Radiolink RC6GS V3 2.4G 7 Channel Radio Transmitter R7FG Receiver Gyro Telemetry Included Remote Controller for RC Car Boat

RC6GS V3 6 Channels RC car controller with good performance will enhance your driving experience

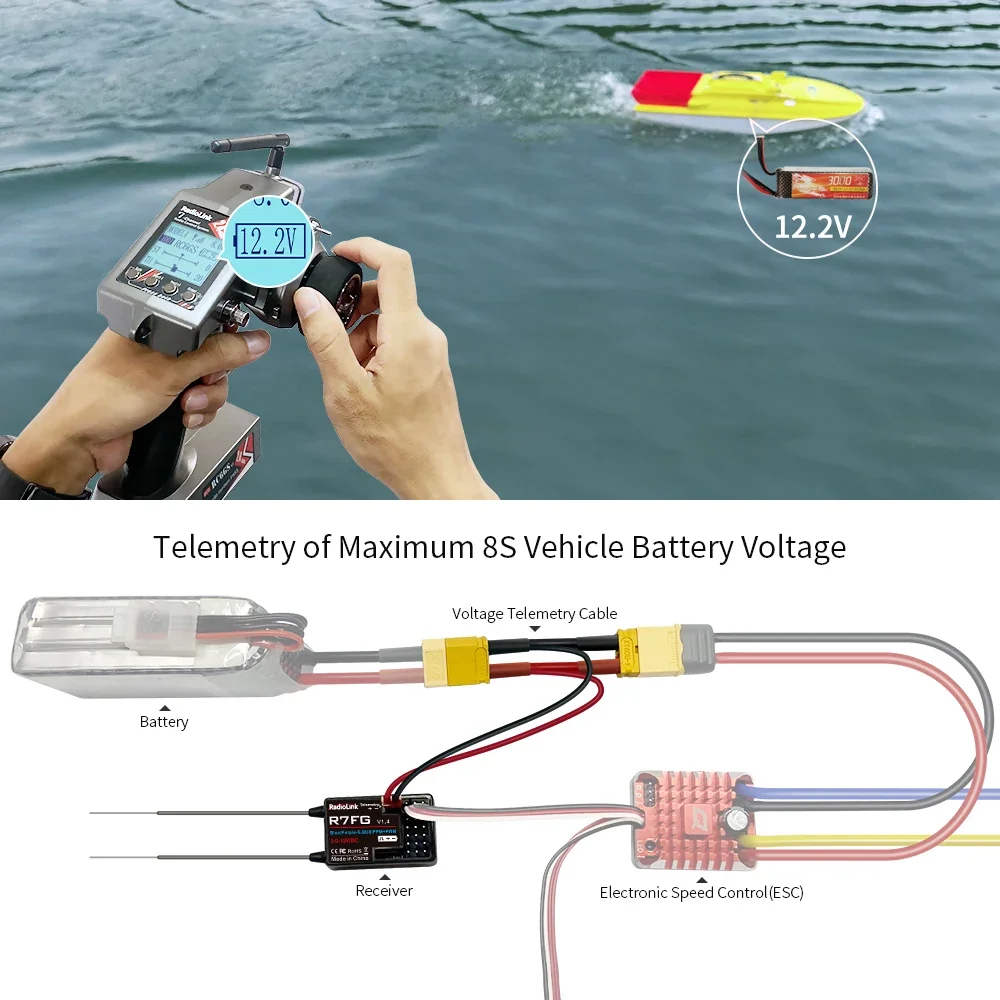

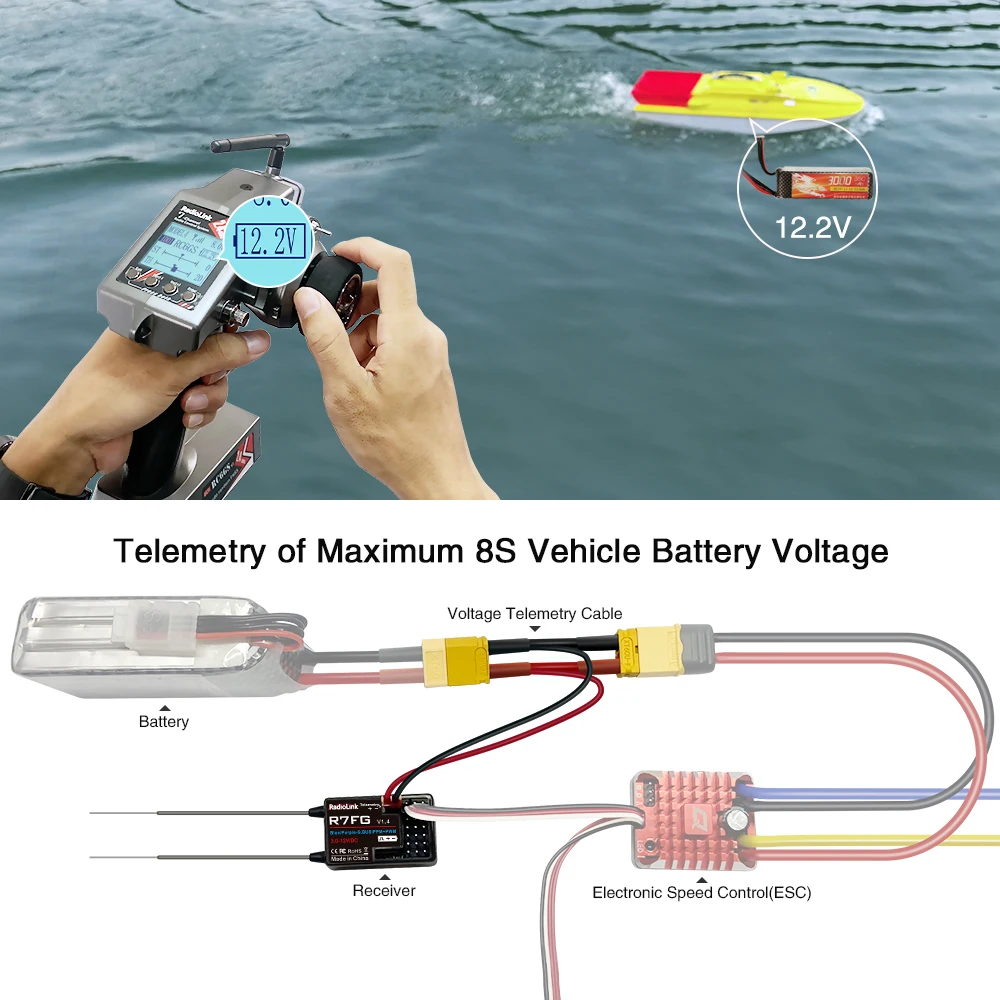

Real-time Information Transmission

The telemetry feature can give you real-time information for reference, like vehicle's battery voltage, RSSI, transmitters receiver's battery voltage and more. Max Telemetry Voltage up to 8S(33.6V).

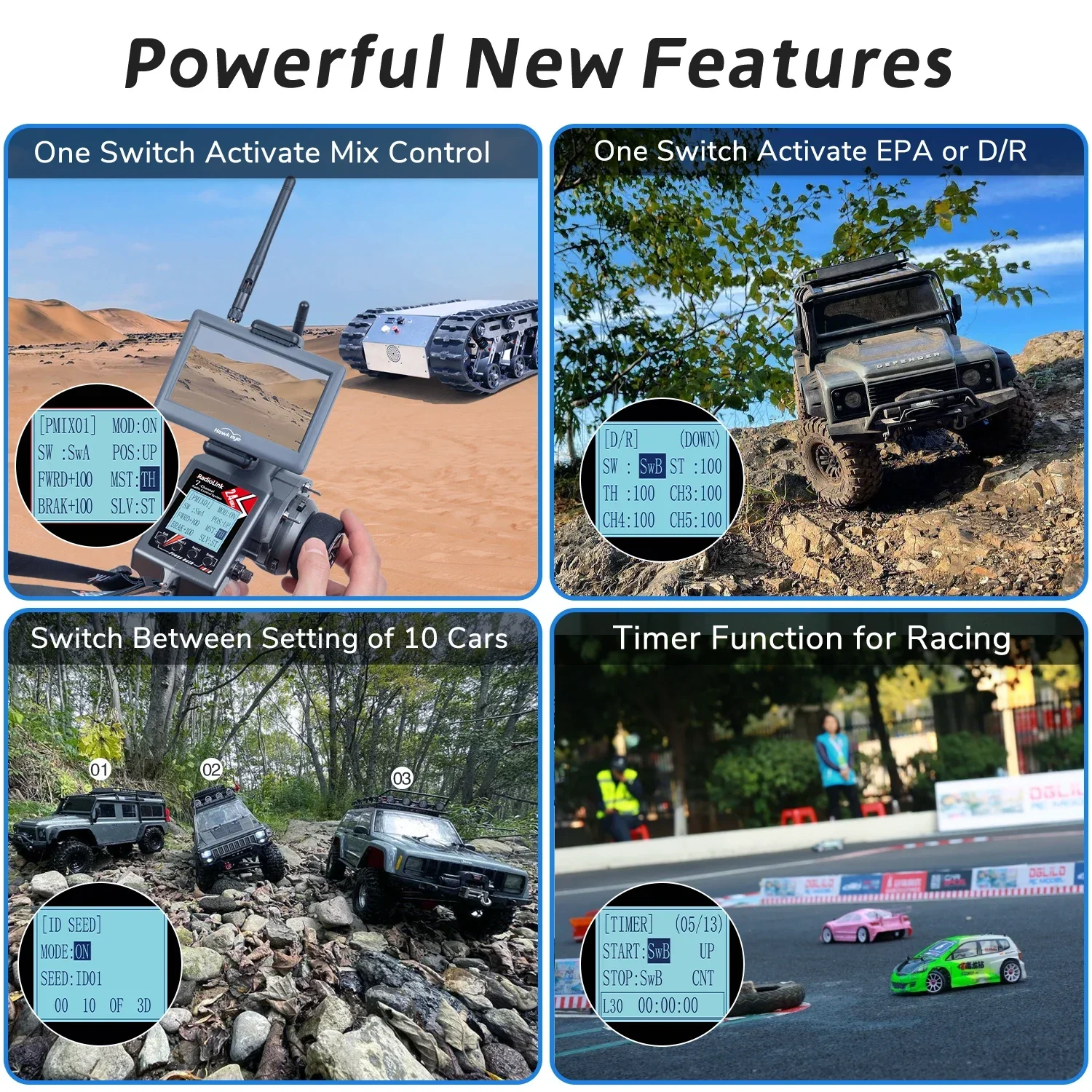

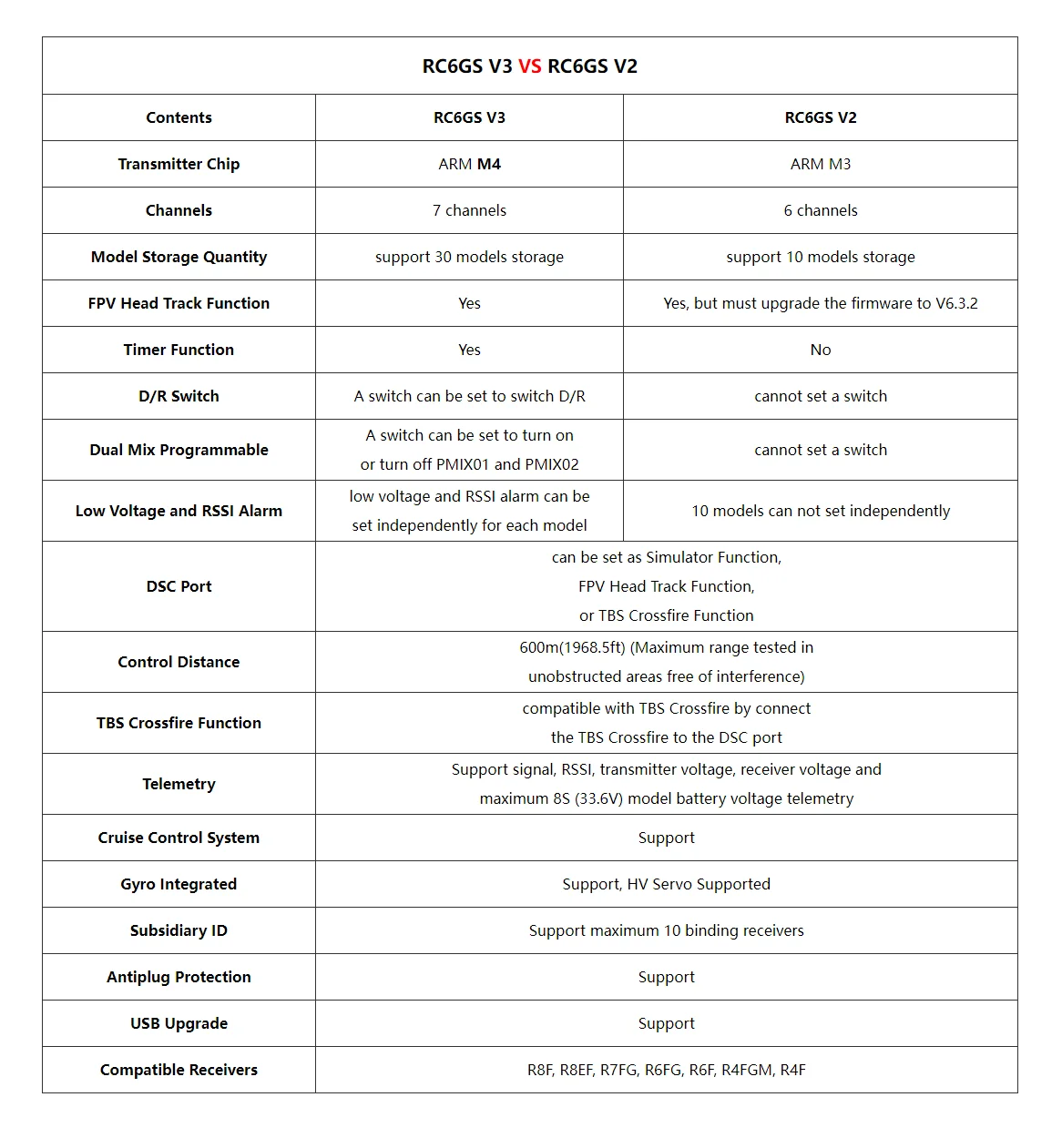

New Upgrade Functions of RC6GS V3:

*Video Display on YouTube: https://www.youtube.com/watch?v=0H5zo-yfWdw

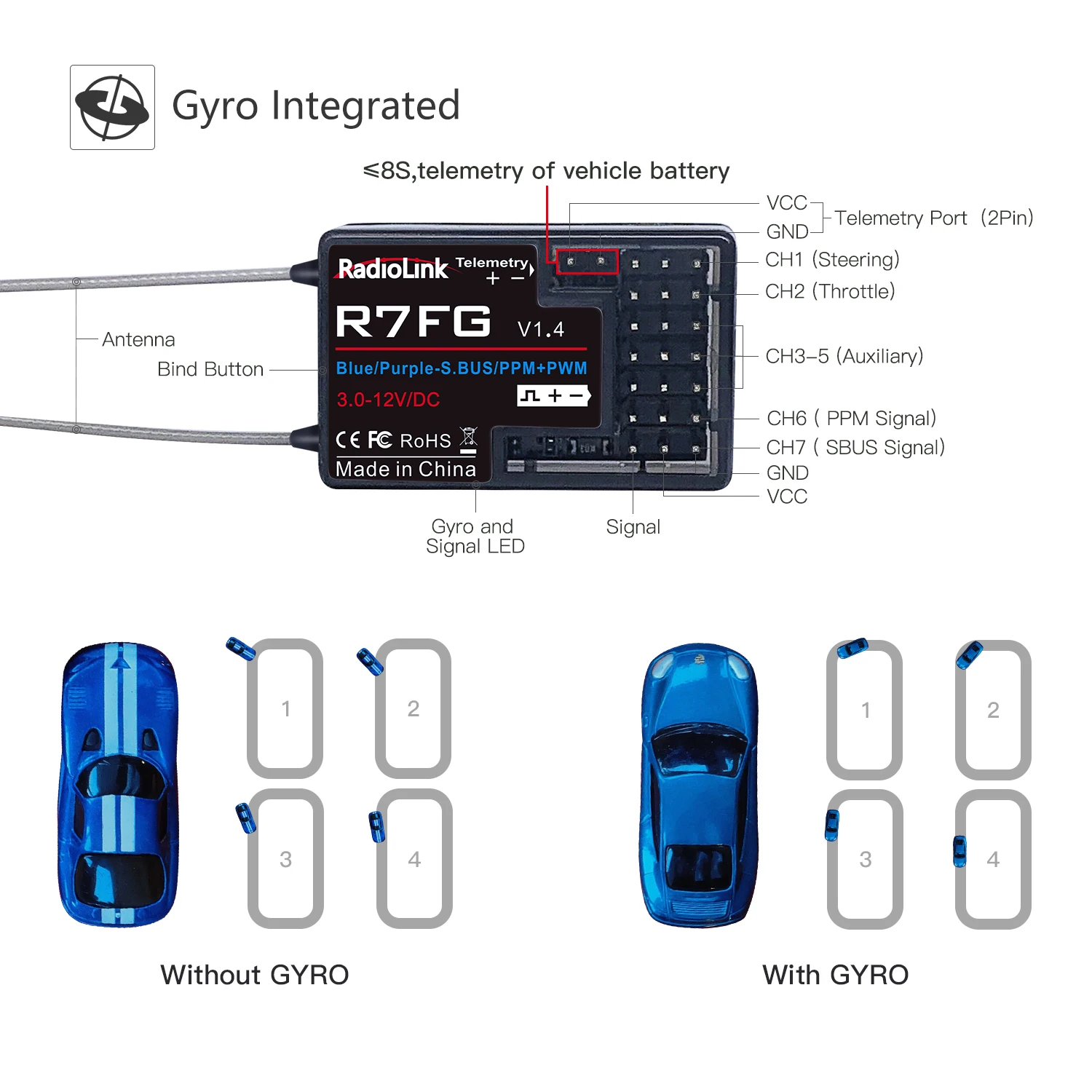

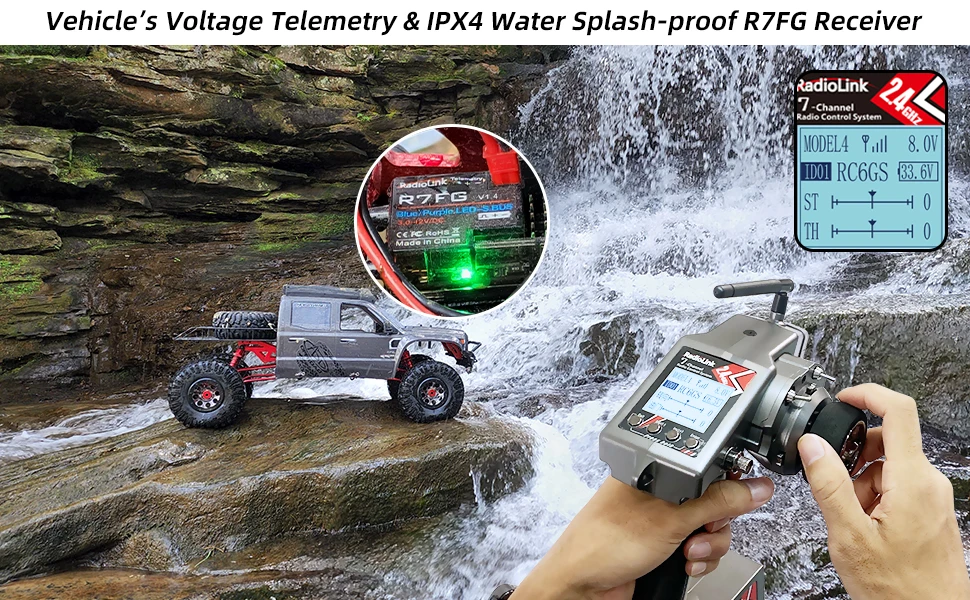

Gyro and Waterproof Inside the Receiver

The integrated gyro in receiver will help you automatically correct the servo directions, which works well for on/off road vehicle's model.

Note: Keep the receiver plugs dry after driving in water

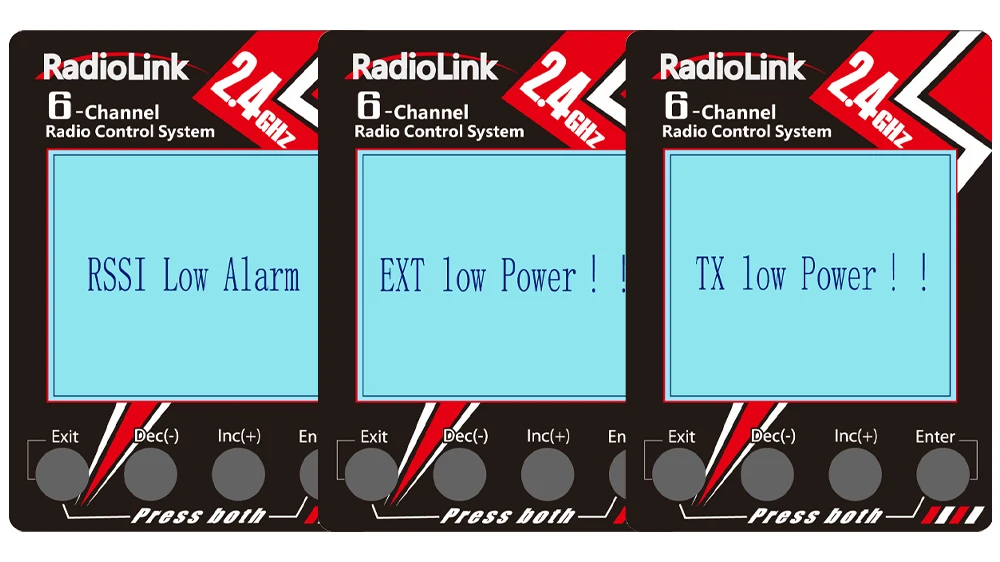

Low Voltage Alarm Page Show:

low voltage and RSSI alarm can be set independently for each model

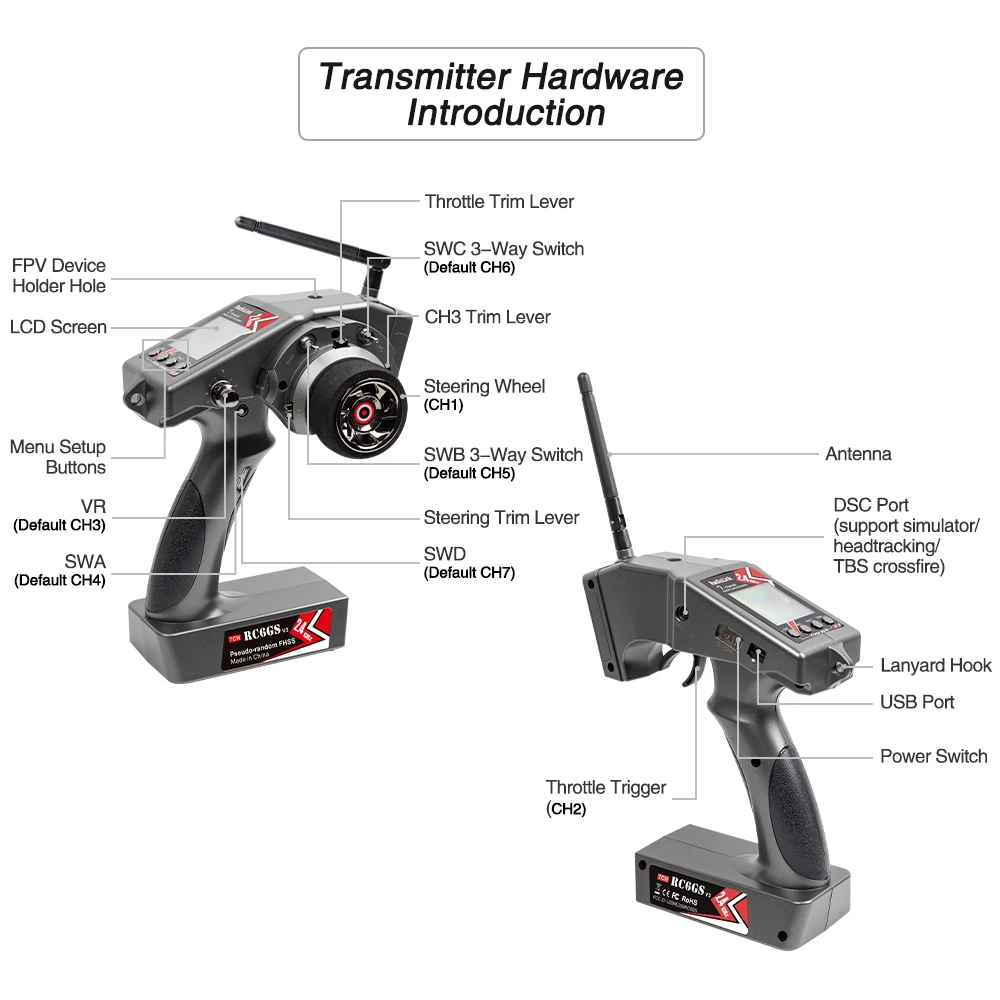

RC6GS V3 Transmitter Specifications:

• Channels: 7

• Control Distance: Up to 600 meters

• Model: RC Cars and Boats

• Low Voltage Alert: Yes(Below 4.6V)

• Operating Voltage: 4.8-16.8V DC

• Operating Current: 80mAh-120mAh

• Screen: 128*64 resolution, LCD back light

• Spread Spectrum: FHSS

• Antenna Length: 106mm

• Frequency: 2.4GHz ISM band (2400MHz-2483.5MHz)

• Battery compartments: 25*97*60mm (JST 2Pin connector)

• Size: 22.4*17.5*11.6cm

• Weight: 323g

• Compatible Receivers: Radiolink R7FG/R8FG/R6FG/R6F/R4FGM/R4F/R8EF/R8FG/R8FGH

R7FG Receiver Specifications:

• Channels: 7

• Gyro inside: Yes

• Control Distance: Over than 600 meters

• Waterproof level: IPX4, water splash proof

• Signal output: PPM/PWM/S-BUS, 2.4GHz

• Receiver operating voltage: 3-12V

• Modulation Mode: GFSK

• Antenna Length: 200mm

• RF Power: <10dbm

• Channel resolution: 4096

• Working Current: 30mA

• Applicable model: rc car, boat

• Size: 3.5*1.8*1.5cm

• Weight: 6g

R4FGM Receiver Specifications:

• Channel: 4

• Version: V2.3

• Gyro Inside: Yes

• Signal Output: PWM, 2.4GHz

• Control Distance: More than 400 meters

• Model Application: RC car/boat

• Frequency: 2.4GHz ISM

• Spread Spectrum: FHSS

• Channel Resolution: 4096

• Voltage Range: 3~10V DC

• Operating Current: 30mA (base on power voltage)

• Antenna Length: 90mm

• RF Power: <10dbm

• Size: 25*13mm

• Weight: 3g

• Compatible Transmitter: RC6GS/RC4GS/RC4GSV2/RC6GS V2/RC4GS V3/RC6GS V3/T8FB/T8S/RC8X

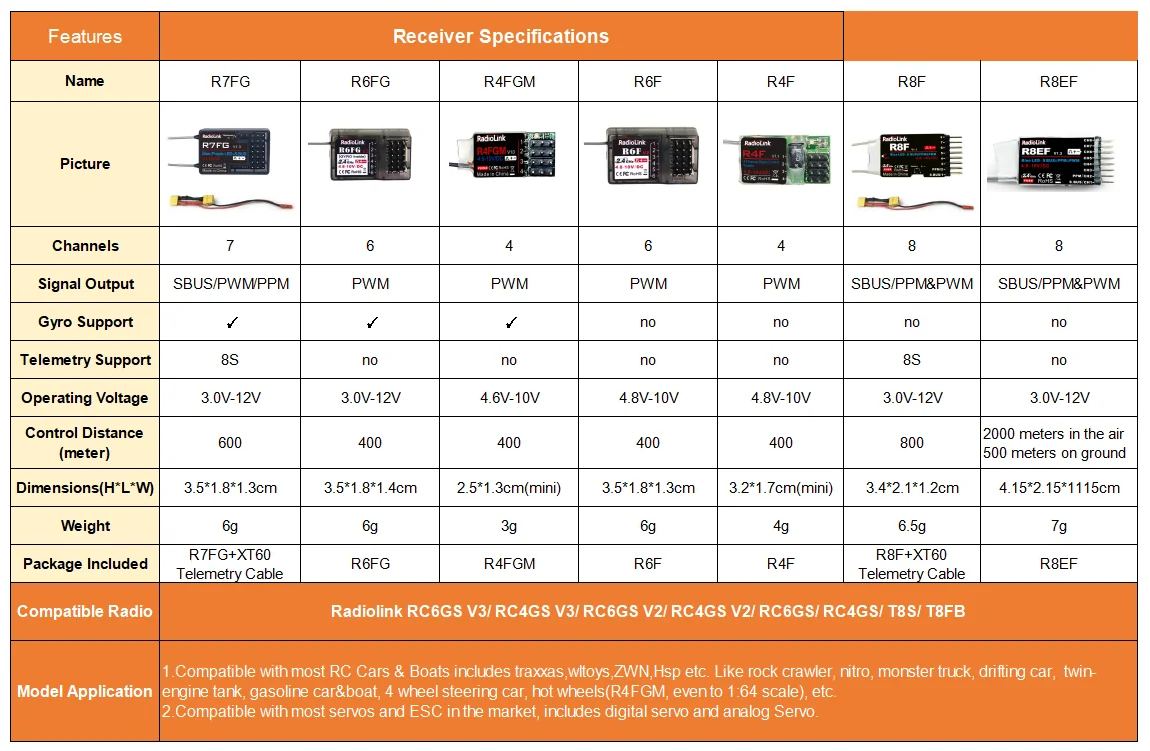

Compatible Receivers Introduction

Note

* All RadioLink transmitters are not open sourced and can only bind to receivers developed by RadioLink. Vice versa.

*We support dropshipping any question, please contacts me via email Lara@radiolink.com.cn.

Q: What battery is suitable to work with RC6GS V3? What's the voltage range?

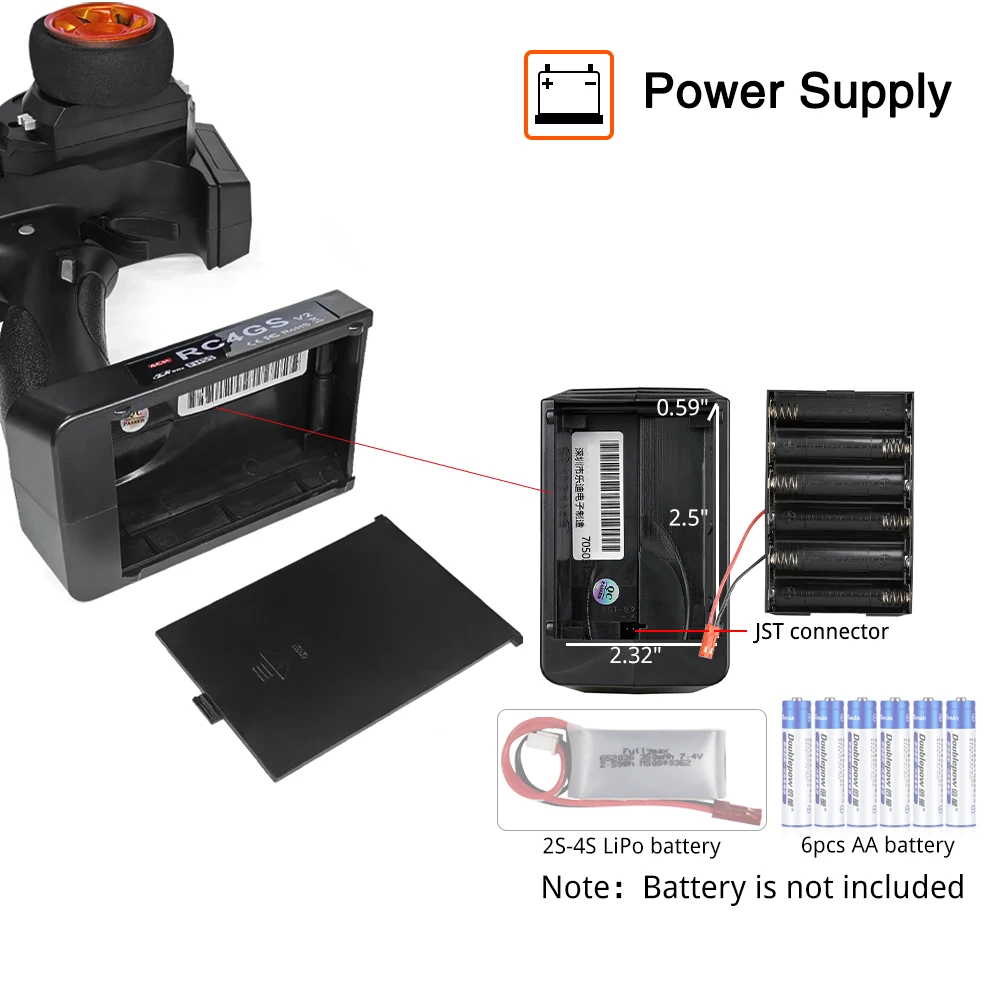

A: The JST connector of RC6GS V3 can be easily adapted for various battery, including LiPo battery of 2S to 4S and 6pcs of AA batteries. The voltage range is 4.8V to 16.8V. Check the picture for battery box reference.

A: The signal output of the ch6 and ch7 changed.

R7FG V1.4 CH6 is PPM output while V1.3 is PWM output;

Q:Why my receiver will not connect to the remote control?

A: It means the receiver didn't bind to the transmitter, you can check if there's signal tower on the top of your transmitter screen. If not, need you bind again:

1.Put the transmitter and receiver about 50 cm apart.

2.Turn on the transmitter first, and then power on the receiver.

3.Long press the ID SET button on the side of receiver until the led light flashing, when the signal tower appears on the transmitter screen, binding is completed.

Note: If you failed to bind with the receiver, please check the steps and try again.

Q:Does RC6GS V2/RC6GS V3 have low voltage alarm function to protect my battery?

A:Yes of course, there're 4 kinds of alarm tips after you can set low voltage value, they are the transmitter , car or boat model, receiver and RSSI signal. It can remind you change the battery or make the model return in time.

Q:Why the gyro not working properly, making the servos twitch uncontrollably?

A:If the servos twitch uncontrollably after you used the gyro function, it means the sensitivity value of the gyro is too large, you can adjust the value or turn the gyro off.
