Description
- High-concerned chemical: None
- Size: 133(H)x48(W)x23(T)mm
- Doorbell: Yes
- Material: ABS
- Camera: COLOR
- Model Number: PoE Video Doorbell
- Access Control: None
- Waterproof: No
- Samrt Home Interface: Yes
- Installation: Wall Mounting
- Communication Interface: WireLess
- Type: intercom system
- Viewing Angle (°): 100
- Display Screen Size(inch): 0
- Answering Mode: TELEPHONE
- Camera Sensor type: CMOS
- Connection Method: Wired
- Brand Name: Reolink
- Origin: Mainland China
- Smart home platform: alexa,Google Assistant
- Plug Type: EU Plug
- Certification: CE,FCC,RoHS,weee
- Technology: DIGITAL
|
Reolink-Chime-Specifications |
|||||
|
Picture |
|
|
|
|
|
|
Model |
Reolink Chime |
US Version |
EU Version |
UK Version |
AU Version |
|
Physical |
Material |
ABS+PC |
|||
|
Dimensions |
86.5 x 29 x 45.2 mm |
86.5 x 29 x 66 mm |
86.5 x 29 x 52 mm |
86.5 x 30.6 x 47.6 mm |
|
|
General |
Input |
AC 100-240 V; 50-60 Hz |
|||
|
Button |
For setting up/selecting ringtones/adjusting volumeTransmission Mode |
||||
|
Modulation Mode |
FSK |
||||
|
Frenquency |
915MHz |
868MHz |
868MHz |
915MHz |
|
|
Volume |
5 levels |
||||
|
Number of Selectable Ringtones |
10 ringtones |
||||
|
Working Environment |
Temperature: -20℃~50℃; Humidity: <85% |
||||
|
Notice |
If you require other specifications, please contact customer service and we will provide you with the corresponding plug adapter. |
||||
|
Comparison of Video Doorbell |
|||
|
Picture |
|
|
|
|
Model |
WiFi Video Doorbell |
PoE Video Doorbell |
|
|
Video & Audio |
Image Sensor |
1/2.7; CMOSSensor |
|
|
Video Resolution |
Default: 2560X1920 (5 megapixels) @20FPS |
||
|
Lens |
f=2.26mm F=2.0, with IR cut |
||
|
Video Format |
H.264 |
||
|
Field of View |
Horizontal: 134° |
||
|
Vertical: 97° |
|||
|
Diagnal: 180° |
|||
|
Pre-Motion Recording |
Support |
||
|
Audio |
Two-way audio, Noise reduction, Echo Suppression |
||
|
Quick Replies |
Support |
||
|
Power |
Hardwired |
12-24VAC 50/60Hz, DC 24V |
|
|

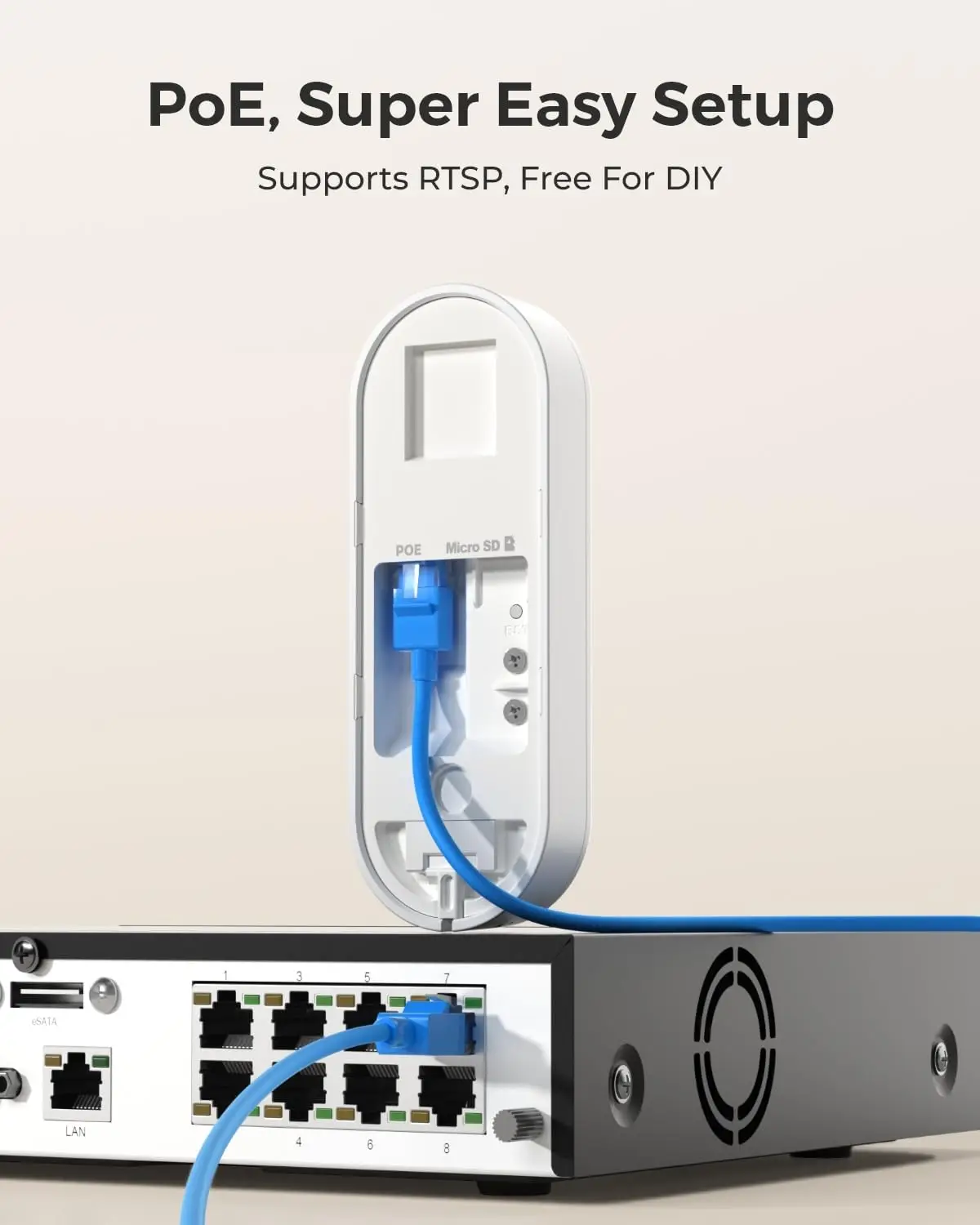

PoE |
x |
IEEE 802.3af, 48V Active; |
|
|
Interfaces |
Power |
Power port |
|
|
System |
Reset button |
||
|
Ethernet |
One 10M/100MbpsRJ45 |
||
|
Storage |
Micro SD card slot (Max. 256GB), Reolink NVR |
||
|
Audio |
Built-in 2 Microphones & Speaker |
||
|
WiFi |
Wireless Standard |
IEEE 802.11a/b/g/n |
x |
|
Operating Frequency |
2.4GHz/5GHz |
x |
|
|
Wireless Security |
WPA-PSK/WPA2-PSK |
x |
|
|
Software |
Frame Rate |
Mainstream: 2fps – 20fps (default: 20fps) |
|
|
Substream: 4fps – 15fps (default: 10fps) |
|||
|
Code Rate |
Mainstream: 1024Kbps – 6144Kbps (default: 4096Kbps) |
||
|
Substream: 64Kbps – 512Kbps (default: 256Kbps) |
|||
|
Browsers Supported |
Edge, Chrome, Firefox, Safari |
||
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
||
|
Smart Alarm |
Motion detection/Person detection/Visitor detection |
||
|
Recording Modes |
Motion recording (default)/scheduled recording |
||
|
Protocols & Standards |
HTTPS, IPv4, UPNP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
||
|
Work with |
Google Assistant |
||
|
Rich Notification |
Support |
No |
|
|
Working Environment |
Temperature |
Operating temperature: -10°C~+55°C(14°F~131°F) |
|
|
Humidity |
Operating humidity: 10% ~ 90% |
||
|
Waterproof |
Support |
||
|
Size & Weight |
Dimension |
133mm(H)x48mm(W)x23mm(T) |
|
|
Weight |
96g |
||
|
Warranty |
Limited Warranty |
2-year Limited warranty |
|
|
Notice |
Version Differences |
Important Notice about Reolink Doorbell and Chime, please scroll down to the bottom of the details page to learn more. |
|

Videos in 2K+ Rich in Detail and Expansive in View
Experience enhanced security with the Reolink Video Doorbell PoE. Enjoy 2K+ clarity for detailed views, both day and night. The white version, with a 3:4 aspect ratio, offers head-to-toe visibility, making it easier to check package status and prevent porch piracy. Alternatively, the black version, with a 4:3 aspect ratio, provides wide horizontal coverage, perfect for open landscapes.














*Please note that Chime is divided into four plug specifications: US/UK/EU/AU. Please choose the option that meets your needs according to the warehouse configuration instructions at the top of the page.
*The regular packaging list does not include SD card. If necessary, please choose the option with SD card to purchase






























З***ч (verified owner) –
Everything is great, delivered in 18 days. Connected to the Keenetic Poe+9 switch, connected to the standard application without issues. Integrated into Home Assistant through standard integration.
R***z (verified owner) –
Received successfully
a***r (verified owner) –
Item arrived in good time and is as described, no complaints
M***M (verified owner) –
Product of unquestionable quality. Reolink being Reolink. Great image quality. However, please be cautious when purchasing. The WHITE video intercom not only has a long-format image but also does not work with WIFI. The BLACK one has a side widened image and has WIFI.
Both have power wire connection 12v and POE, but WHITE one only connect to internet via network cable.
I believe only the white one comes with the internal doorbell.
