SeeSii Nanovna-H Vector Network Analyzer,Upgraded HW3.6 10KHz-1.5GHz MF HF VHF UHF spectrum analyzer VNA

• Upgraded Nanovna-H HW3.6: SeeSii Nanovna-H Vector Network Analyzer is developed by Hugen. With latest 3.6 version,10KHz-1.5GHz measure range,2.8 inch LCD touchscreen,mini and portable design.This Antenna Analyzer is provides outstanding vector network measurement capabilities and perfect for evaluating antenna resonance and SWR.It is a very mini handy & smart analyzer for electronics engineer, amateur radio operators or radio diy amateurs

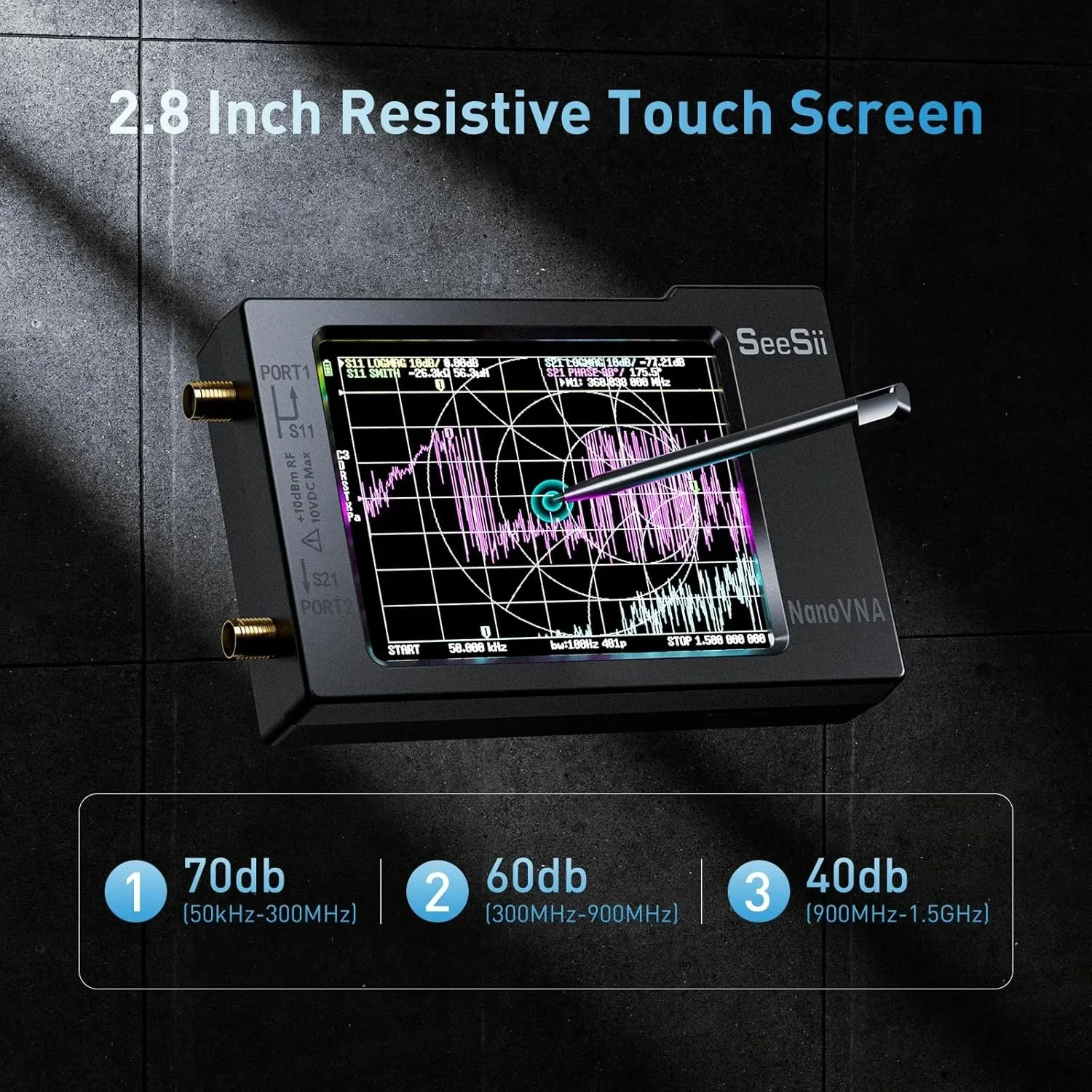

• Improved Frequency Algoruthm: The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The metal shield is designed to reduce the external interference and improve the measurement accuracy. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics.The default firmware main function for vector network analyzer is used for antenna performance measurement

• Multi TX/RX Function: The default firmware is mainly used for antenna performance measurement. The TX/RX method can measure the complete S11/S21 parameters (need to manually replace the transceiver port wiring)

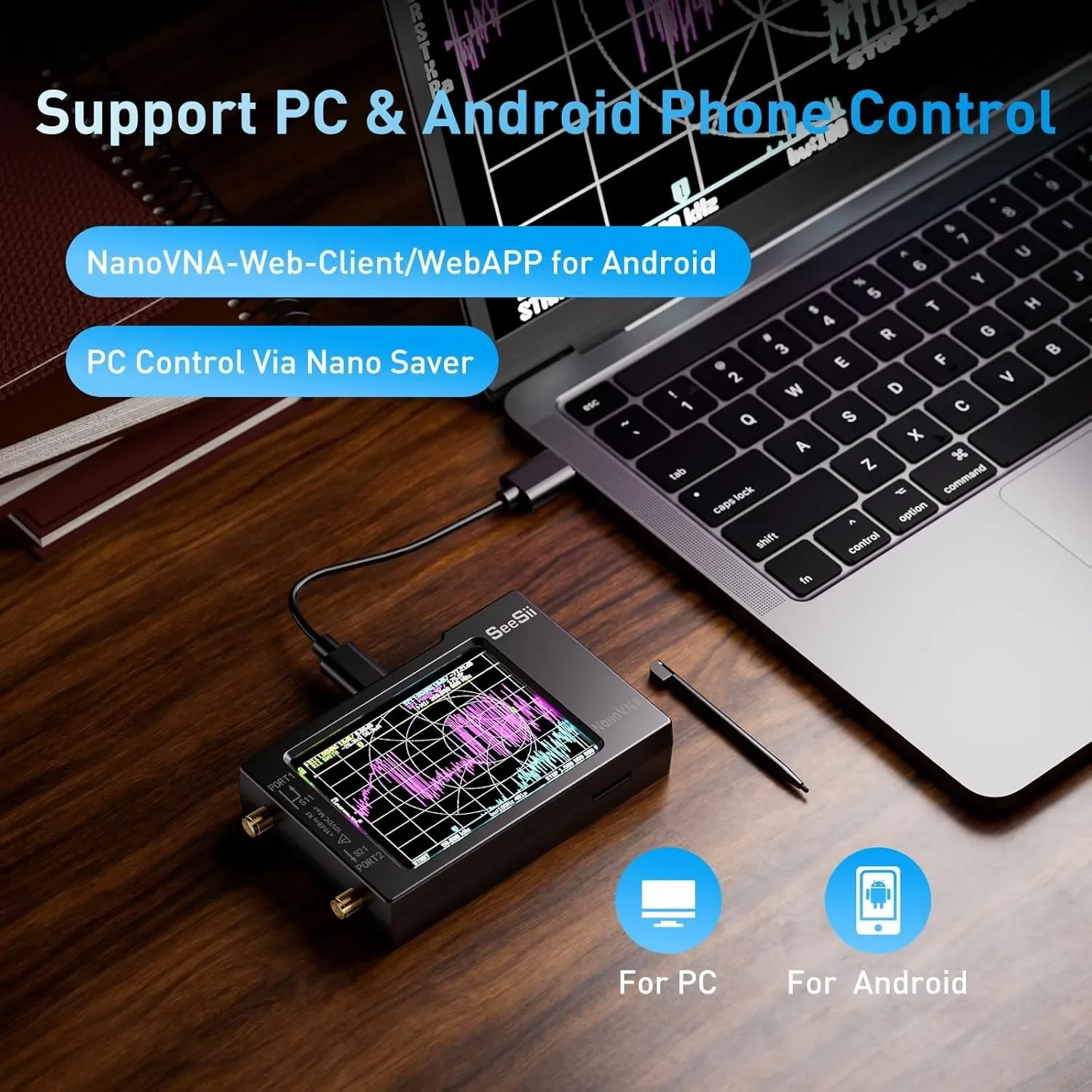

• Android Phone & PC Software Control :The nanovna analyzer uses PC software NanoVNASaver, it can connect to a NanoVNA and extracts the data for display on a computer for saving to Touchstone files. We can export Touchstone (snp) files for various radio design and simulation software through PC software.We can export Touchstone (snp) files for various radio design and simulation software through PC software.In addition,the vna support USB-C to USB-C line, more convenient to connect to mobile phones. It is compatible with most Android phones with the same screen display (doesnt support for iPhone)

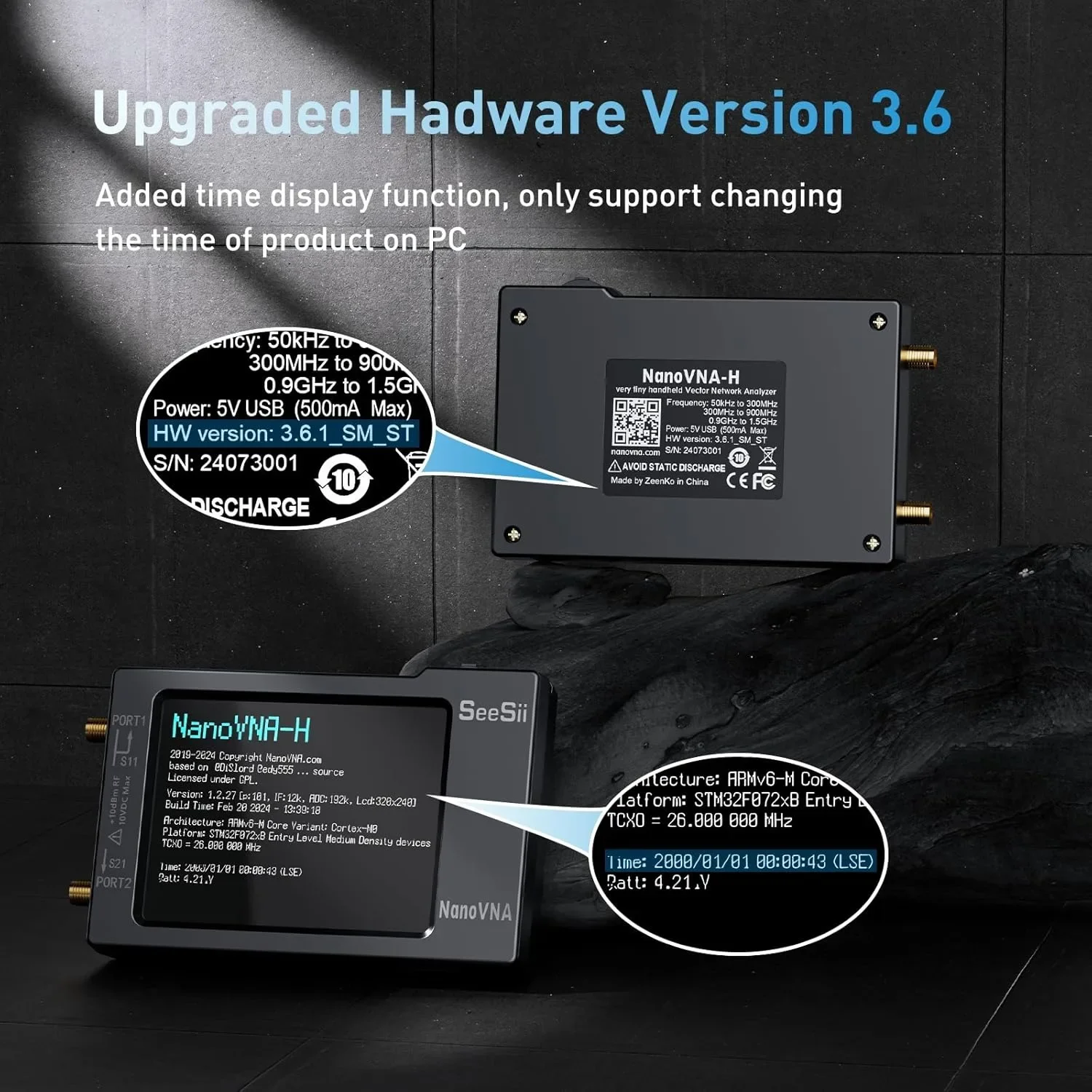

• Built-in Micro-SD Port & Time Display: The lastest antenna analyzer with MicroSD card port,so you can save field test data or screens to a MicroSD card at any time,support up to 32GB memory card. (Not include in the pacakge).In addition, different from old version NanoVNAs, the date and time can be customized, which is convenient for you to further record and save data..The default firmware main function is used for antenna performance measurement

• Abundant Accessories: Come with 1x NanoVNA-H host, 2x 30cm SMA Male to Male RG174 RF Cable, 1x SMA Female to Female Connector,1x SMA SHORT,OPEN &LOAD simple calibration kit,1x USB Type-C Data Cable, 1 x USB-C to USB-C Line, 1x Lanyard and touch plectrum. All the accessories are packaged in a sophisticated box.This is nice vna analyzer for your own use or as a gift for your friend

SeeSii Nanovna-H Vector Network Analyzer is developed by Hugen, With latest 3.6 version,10KHz-1.5GHz measure range,2.8 inch LCD touchscreen,mini and portable design.

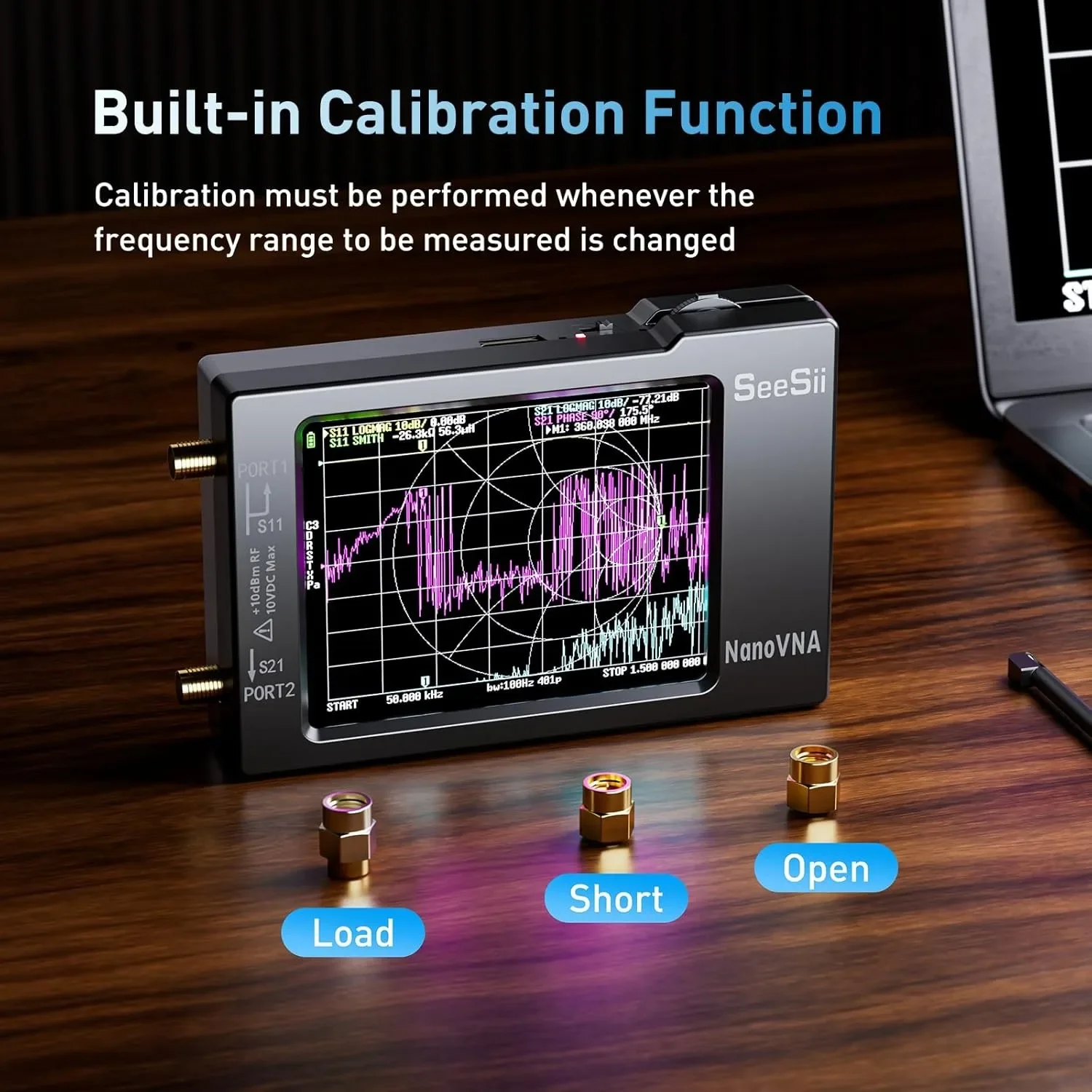

Seesii Nanovna analyzer with Open, Short, Load Calibration.Calibration must be performed whenever the frequency range to be measured is changed.

If the error has been corrected correctly,the calibration status display on the screen will be CnDRSTX.n is the data number being loaded.
