Small Volume Gallium Nitride Power Supply AC 170-265V to DC 24V 6A 12V 12A High-power 150W Switching Power Board for Industrial

Small Volume Gallium Nitride Power Supply AC 170-265V to DC 24V 6A 12V 12A High-power 150W Switching Power Board for Industrial

22.27$
In Stock
Loading...

Description

  • Output Power: 150-500(include500)
  • Use: Other
  • Type: Power Supply
  • Rated Capacity: ï¼œ40VA
  • High-concerned chemical: None
  • is_customized: Yes
  • Output Current: 0-10A
  • Model Number: 150W GaN AC-DC Power Supply
  • Output Frequency: 150W GaN AC-DC Power Supply
  • Brand Name: Aideepen
  • Output Type: SINGLE
  • Origin: Mainland China
  • Certification: CE

Features

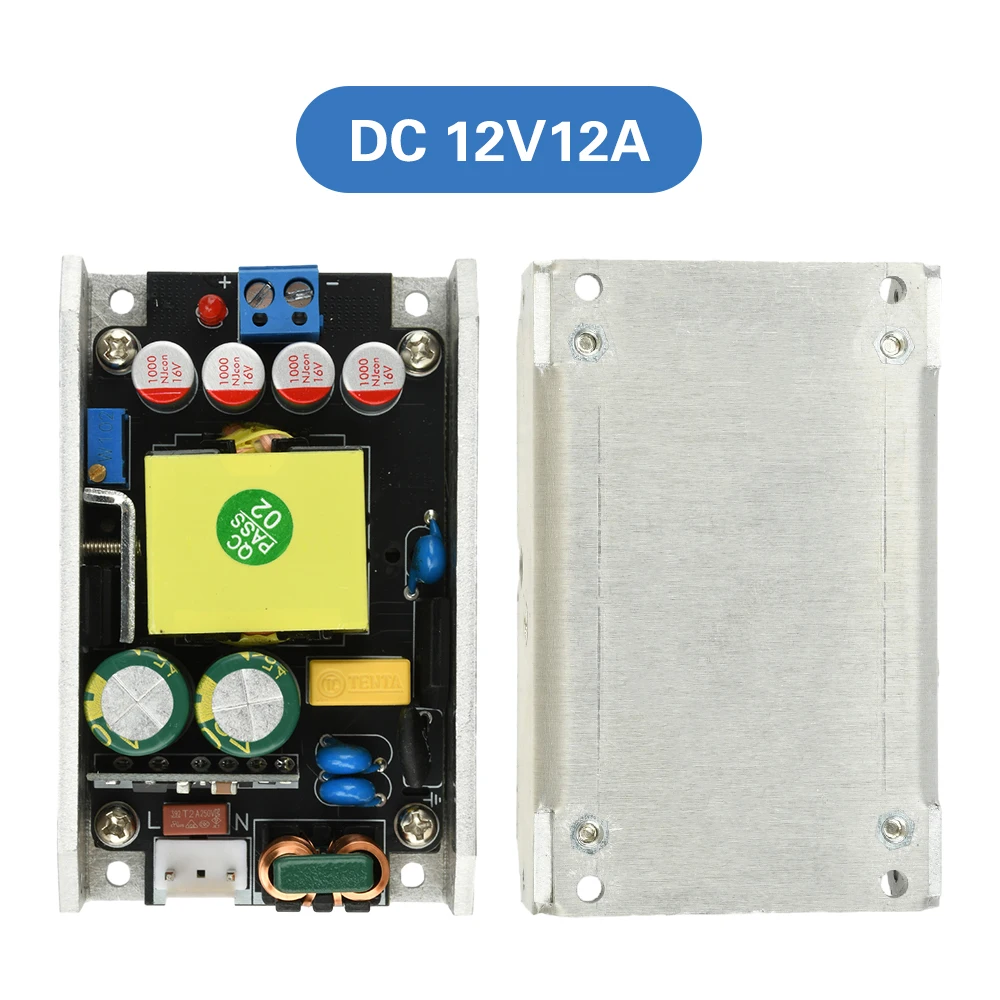

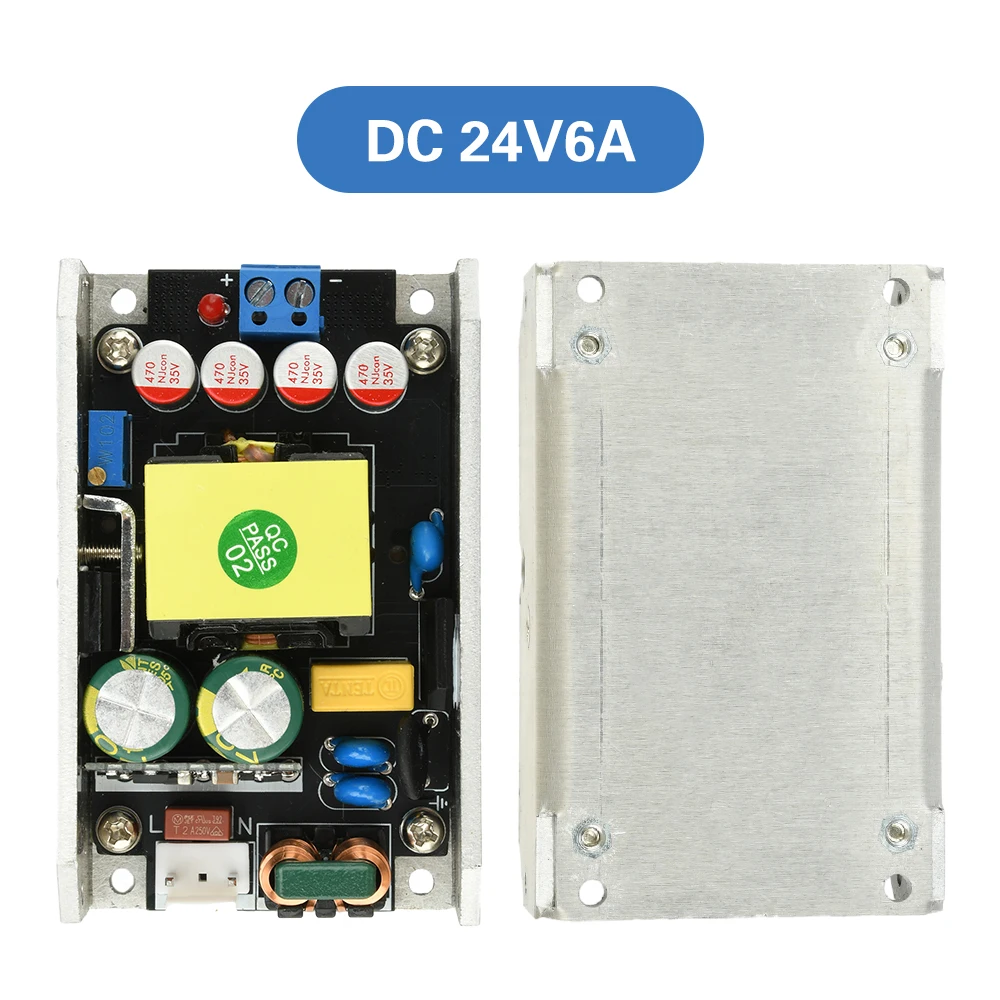

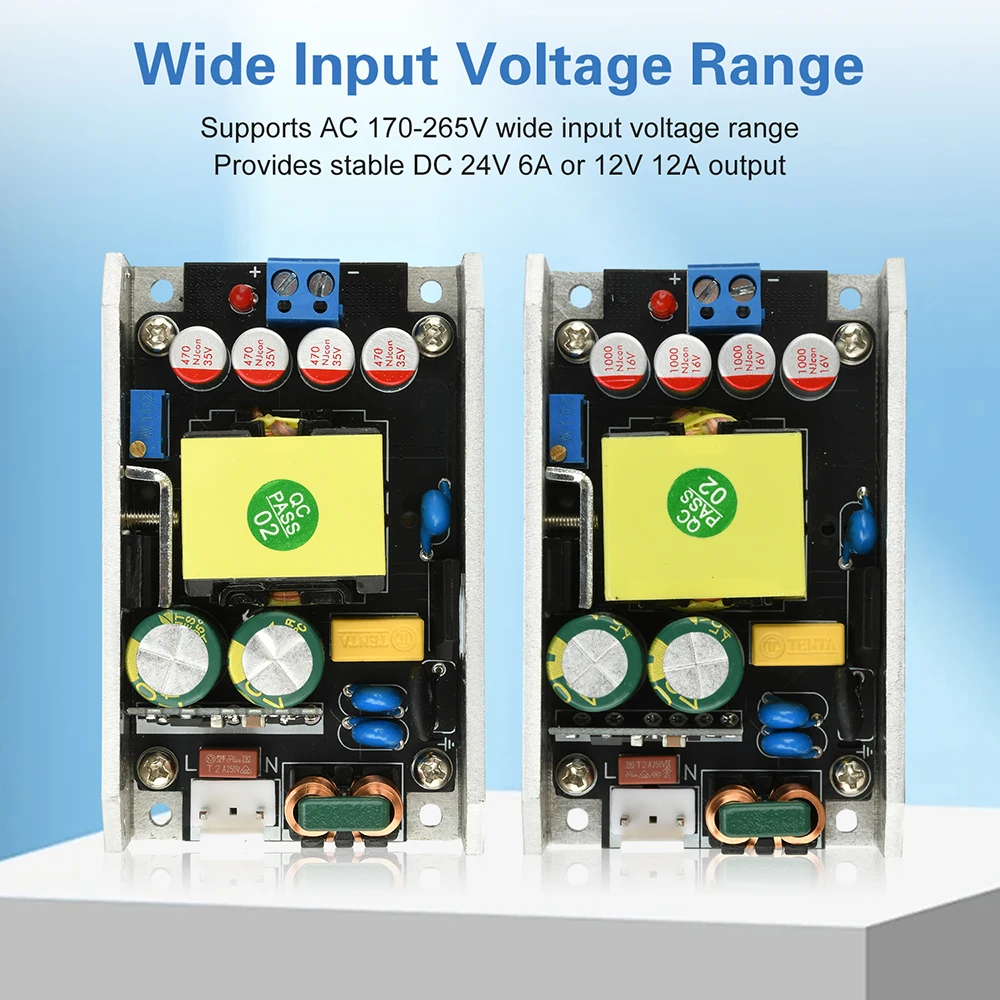

1. Supports wide AC input range of 170-265V, delivering stable DC 24V 6A or 12V 12A output
2. Utilizes advanced GaN technology to enhance power conversion efficiency, reduce energy consumption and heat generation

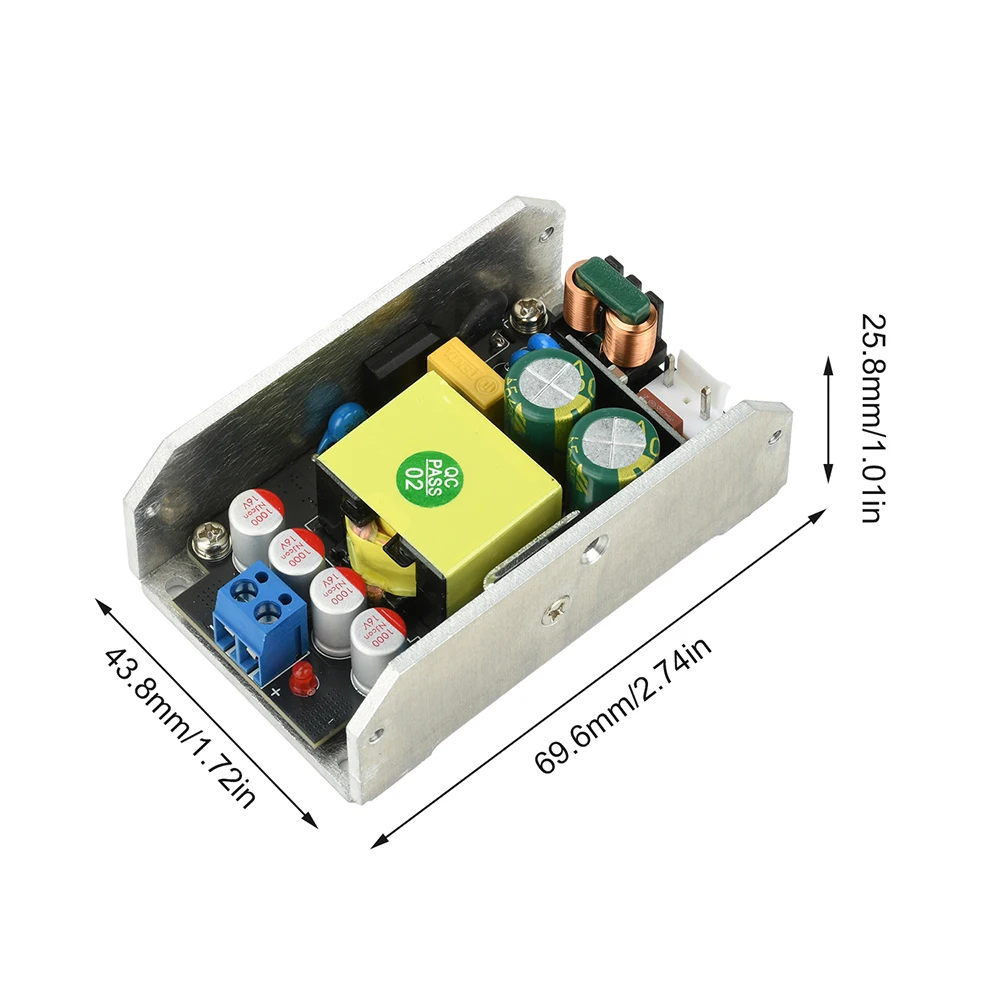

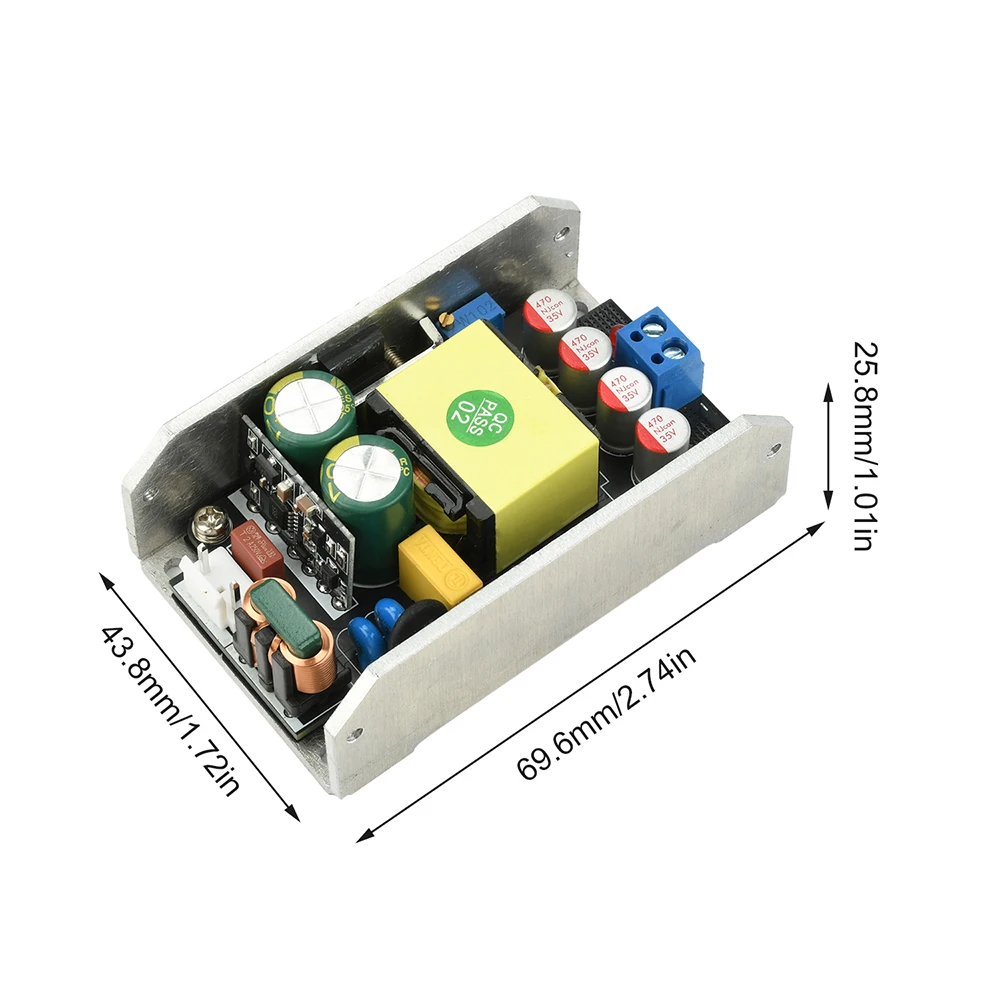

3. Optimized circuit design and highly integrated components enable compact power board size for easy installation
4. Built-in overload, short-circuit, and overheat protection mechanisms ensure safe and reliable operation
5. Suitable for diverse applications including industrial equipment, LED lighting, power tools, and smart home systems

Parameter
Input Voltage: AC 170-265V
Standby Power Consumption: <190mW
Continuous Output Power: 150W
Voltage Regulation: ≤1%
Load Regulation: ≤1%
Overcurrent Protection Threshold: Above 120%
Surge Voltage Withstand: 300V for 5 seconds
Rise Time: Output voltage from 0V to 90% of rated value ≤10ms
Hold Time: After input interruption, output voltage maintains ≥90% of rated value for ≥100ms

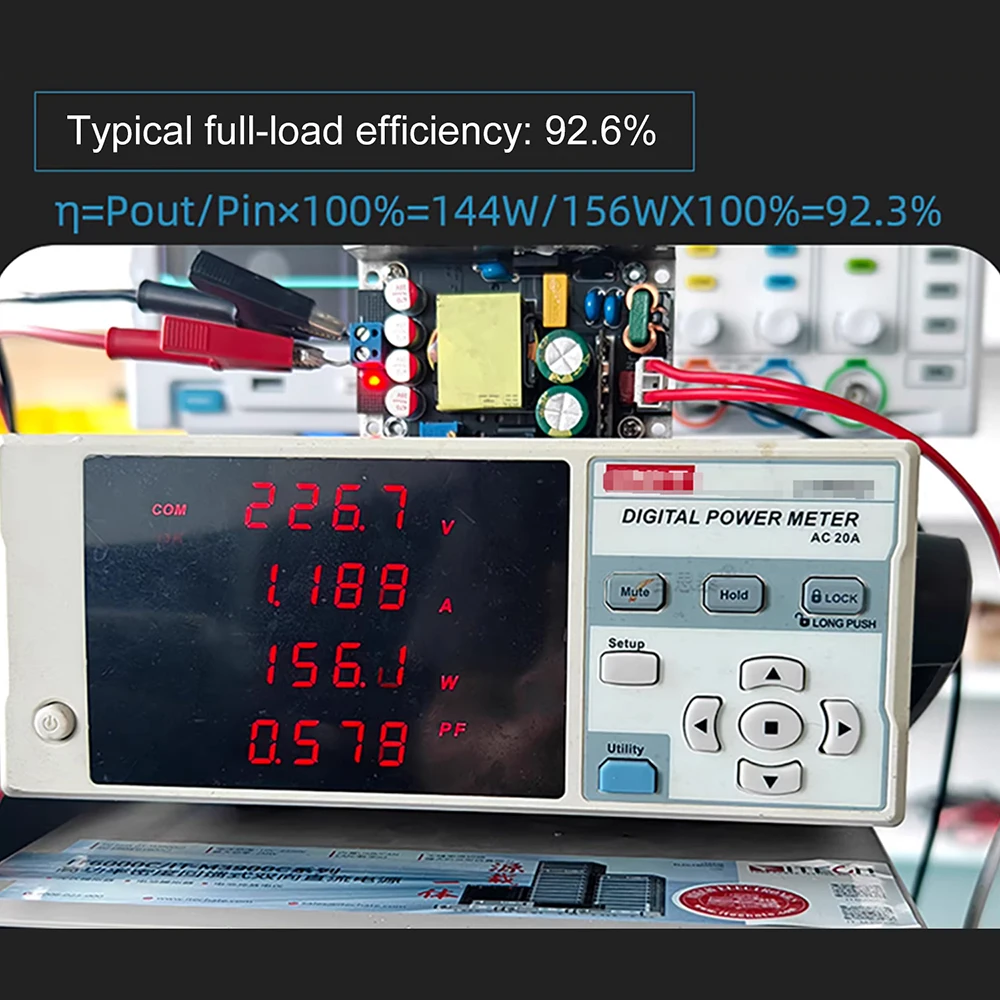

Efficiency: 92% at rated input voltage and full load output
Ripple and Noise: Ripple voltage ≤65mV at rated output voltage and full load output
Reliability: Utilizes high-quality components, rigorously screened and aged-tested. Mean Time Between Failures (MTBF) ≥ 30,000 hours under normal operation
Electromagnetic Compatibility: Complies with EN55032 standards for low environmental electromagnetic interference. Features excellent interference resistance, suitable for complex electromagnetic environments

Package include
Module*1 (Model optional)


Additional information

Color

12V 12A, 24V 6A

Output Power

150-500(include500)

Use

Other

Type

Power Supply

Rated Capacity

<40VA

High-concerned chemical

None

is_customized

Yes

Output Current

0-10A

Model Number

150W GaN AC-DC Power Supply

Output Frequency

150W GaN AC-DC Power Supply

Brand Name

Aideepen

Output Type

SINGLE

Origin

Mainland China

Certification

CE
