Description
- High-concerned chemical: None
- Communication method: Bluetooth-Compatible,Zigbee
- Camera Equipped: No
- State of Assembly: Ready-to-Go
- Model Number: SONOFF ZBMINIL2
- Compatibility: All Compatible
- Brand Name: SONOFF
- Origin: Mainland China
- Model: ZBMINIL2
- Wireless Connections: Zigbee 3.0

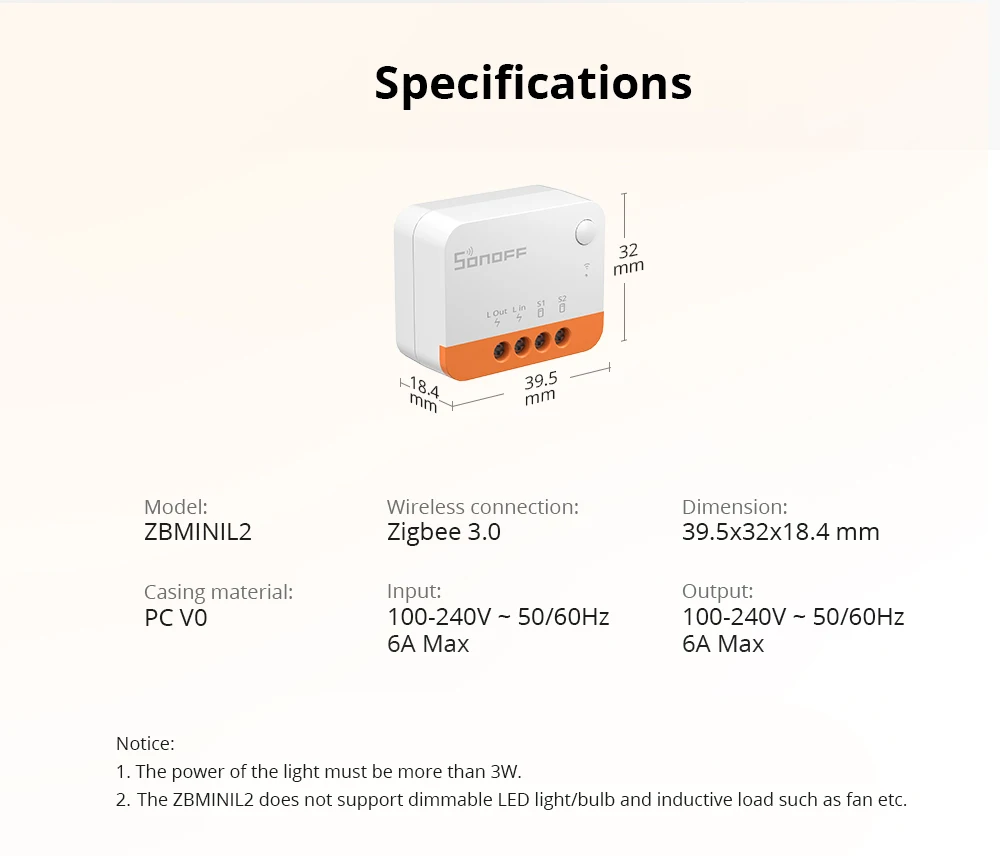

- Dimension: 39.5*32*18.4mm
- Casing material: PC V0
- Input: 100-240V ~ 56/60Hz 6A Max
- Output: 100-240V ~ 56/60Hz 6A Max
- Support: Zigbee 3.0 Hubs

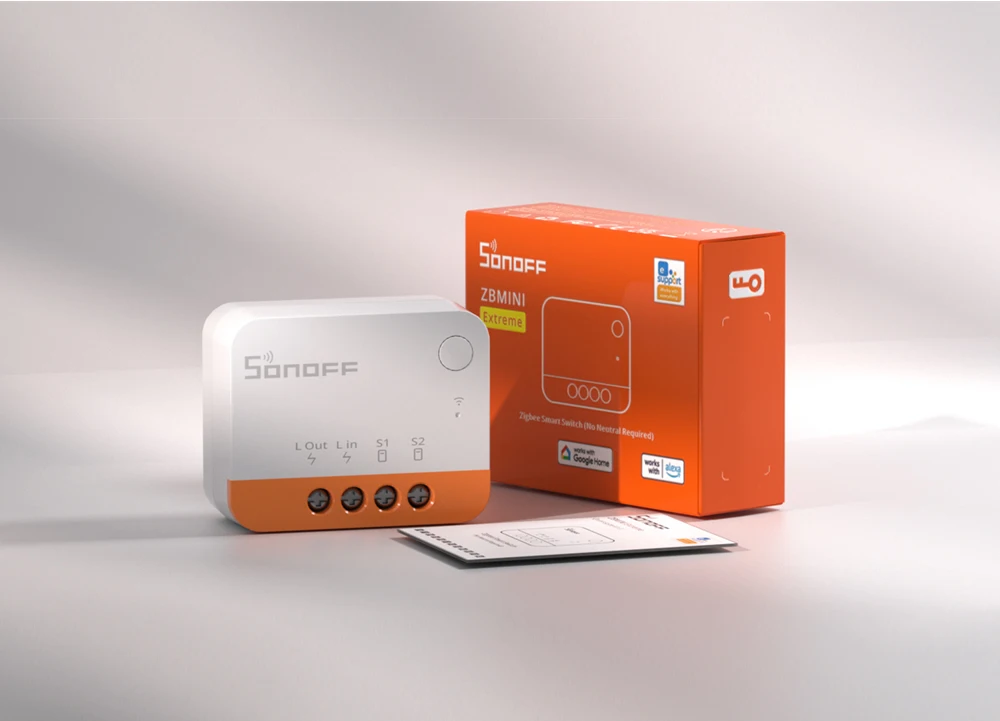

SONOFF ZBMINIL2 Extreme ZigBee Switch No Neutral Wire Required Smart Home Two-Way Control eWeLink Alexa Google Echo Zigbee Hubs

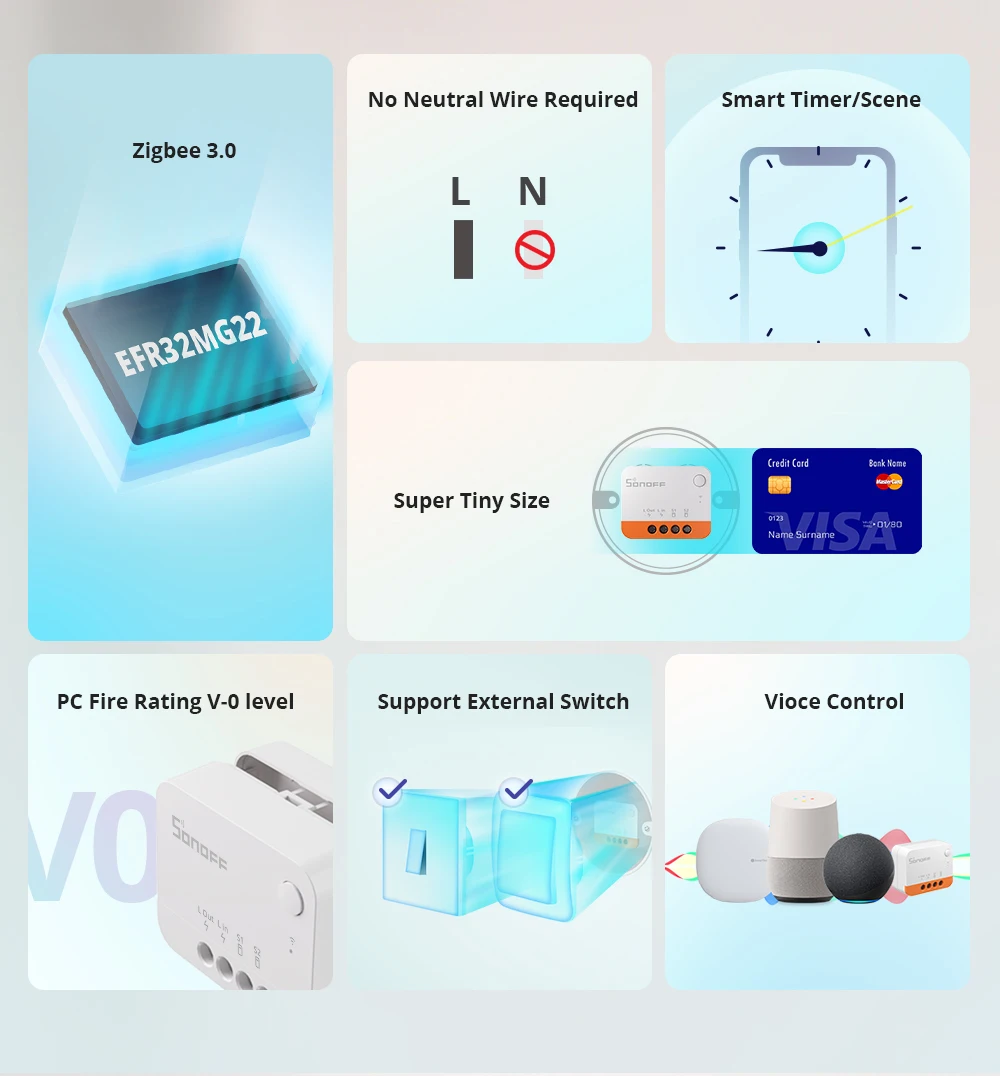

SONOFF ZBMINIL2 is 40% smaller than ZBMINIL, which will make it take up less space in the mounting box, suitable for most size boxes, and leave more space for DIY modification. Although ZBMINIL2 is smaller, it has many functions, no neutral wire required, two-way control, smart timer/ scene, supports two types of wall switch,etc

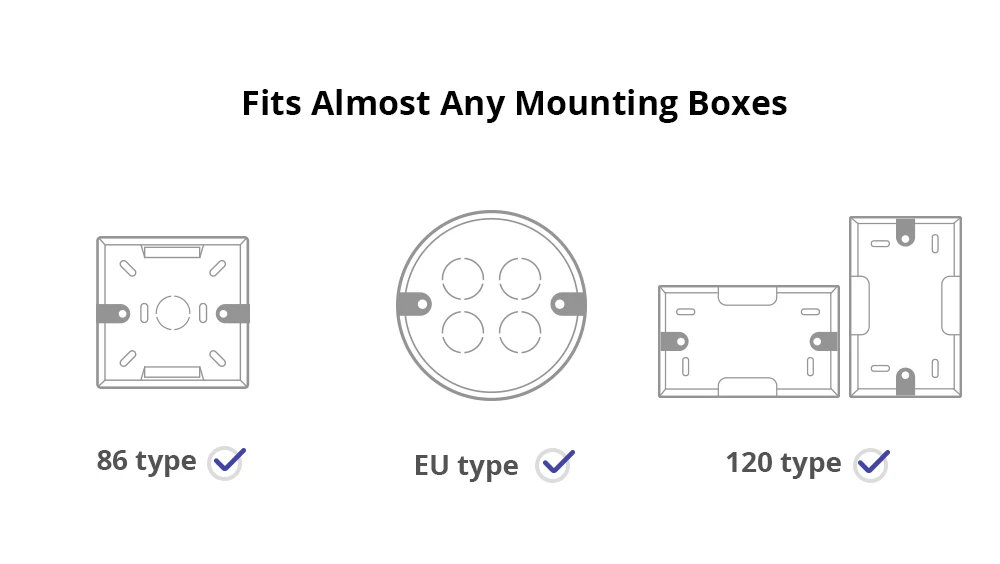

【Super Tiny Size】The tiniest Zigbee smart switch can be easily fit in the smallest EU-type/86 type/120 type mounting box.

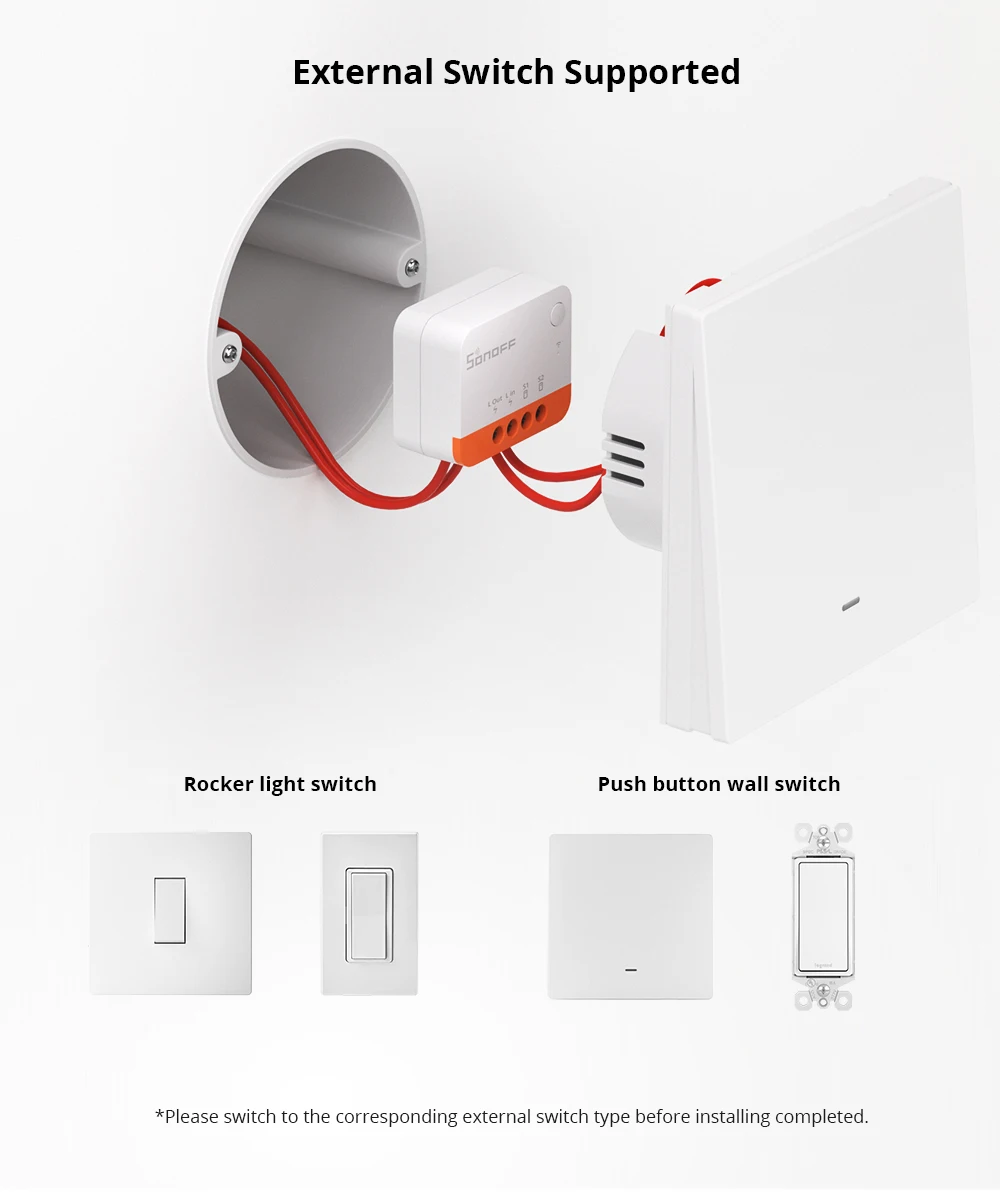

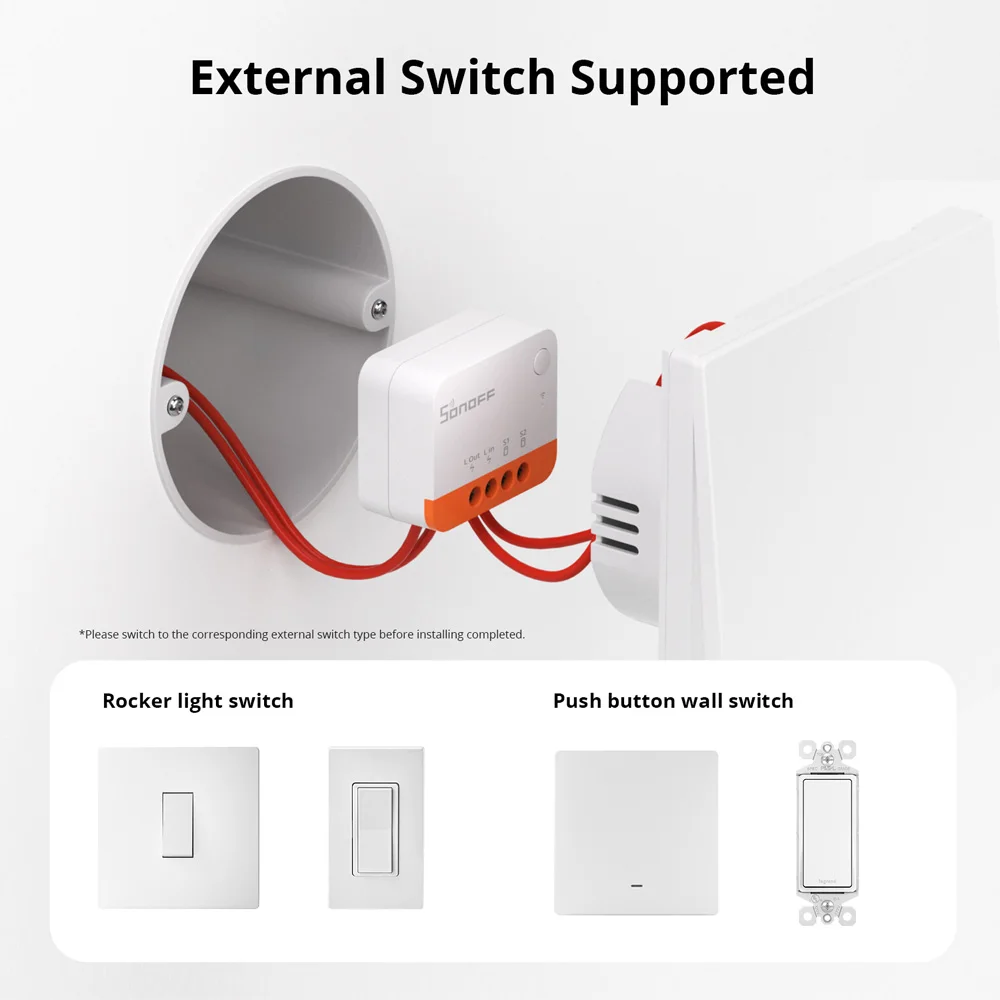

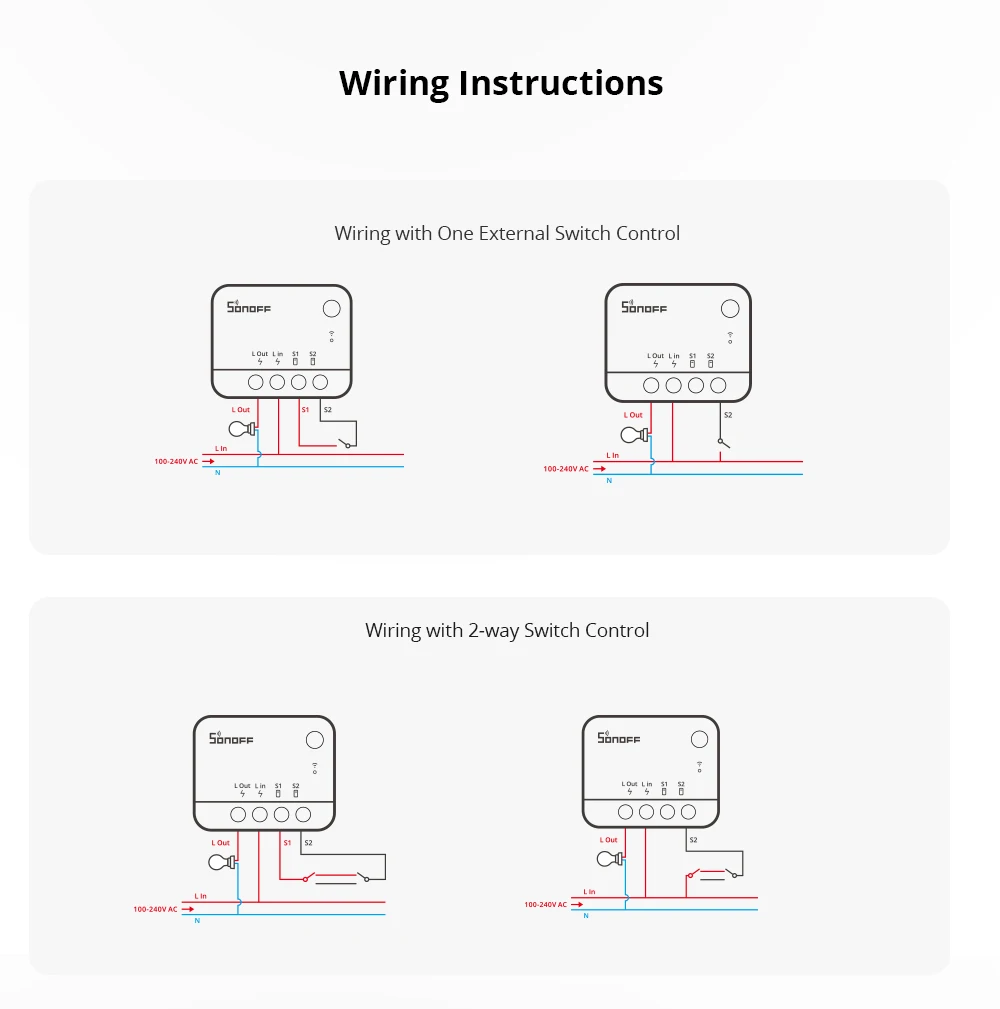

【Support External Switch】 Work with different type of external switches to control your devices, like rocker light switch, push button wall switch.etc, no neutral wire required for easy installation & simple use.
【Simple and Reliable】As a Zigbee 3.0 switch, ZBMINIL2 can combine with Zigbee hubs to form a home LAN,No longer worry about no internet, you are able to freely control the appliances normally even the light is as low as 3W, no anti-flicker module is required.
【Application Scenes】ZBMINIL2 can achieve two-way control for your staircase light; set countdown/scheduled/loop timers to create your situational life; work well with Amazon Alexa and Google home to turn on/off your light by voice command; support setting the smart scene to trigger connected devices to make your life easier.

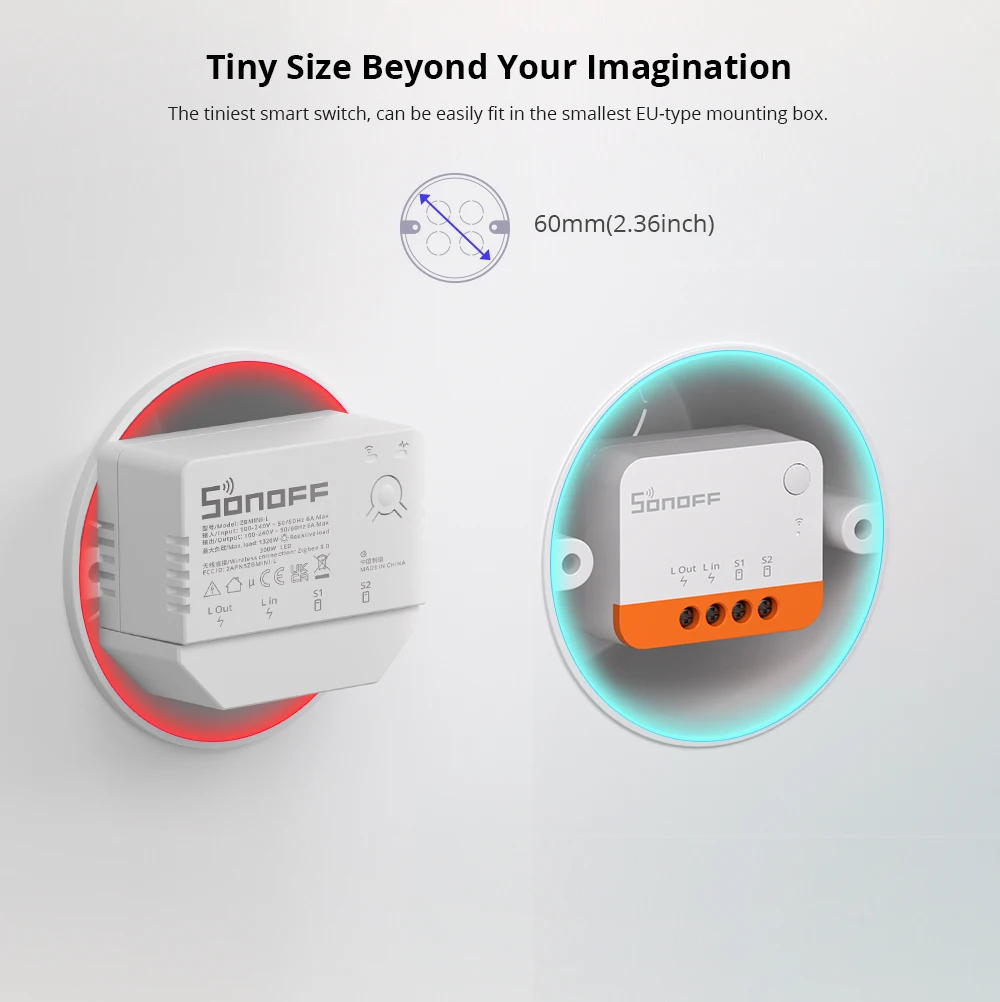

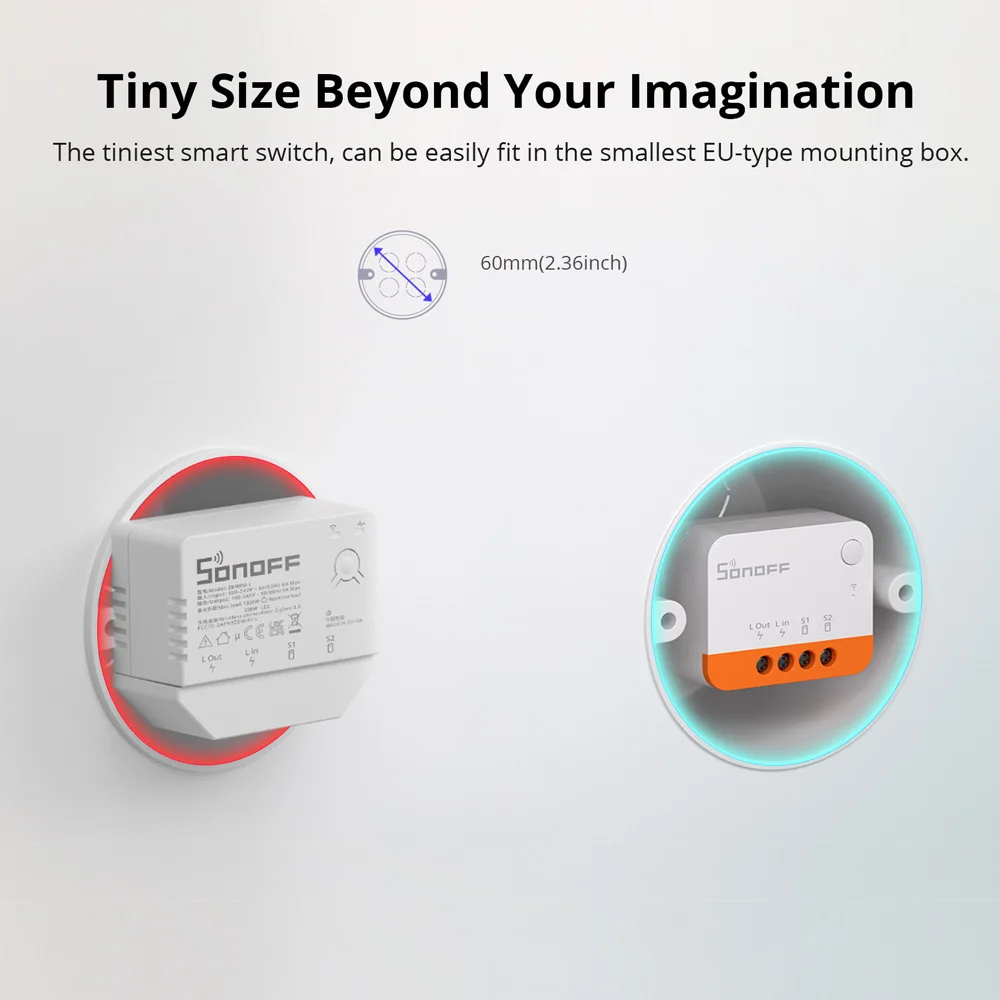

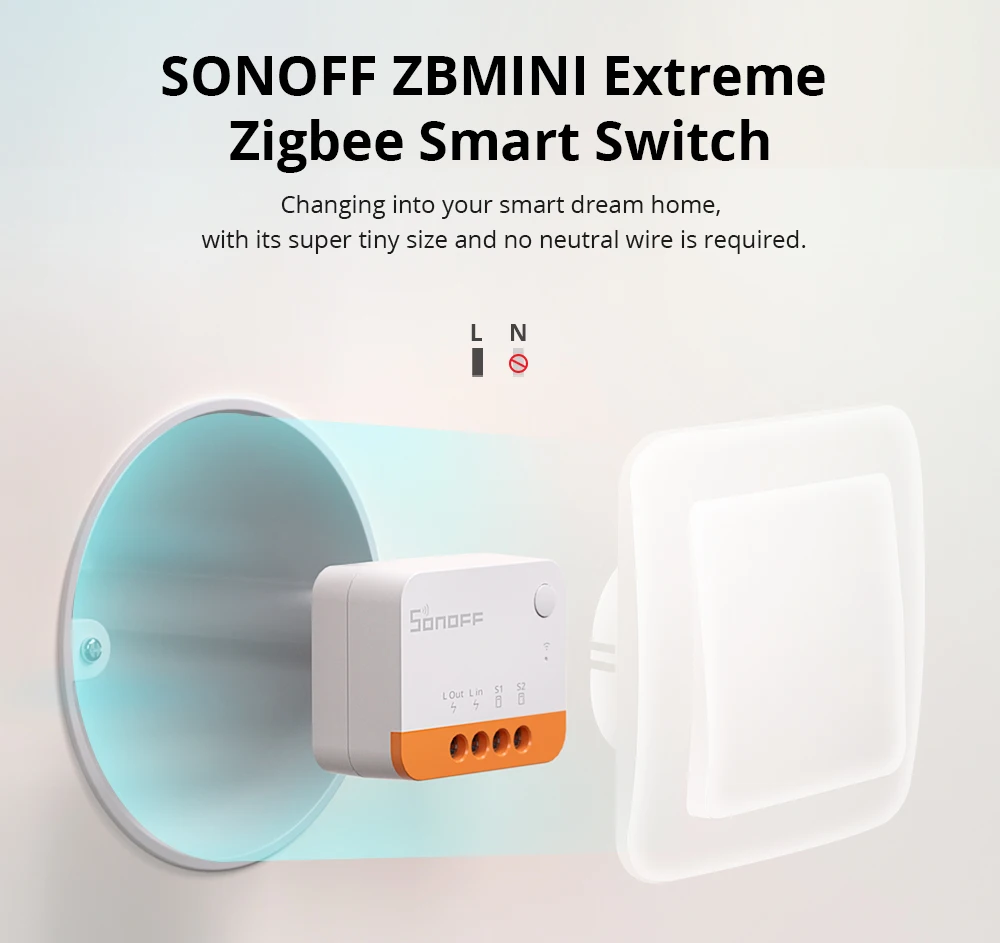

Tiny Size Beyond Your Imagination
The tiniest smart switch, can be easily fit in the smallest EU-type mounting box.

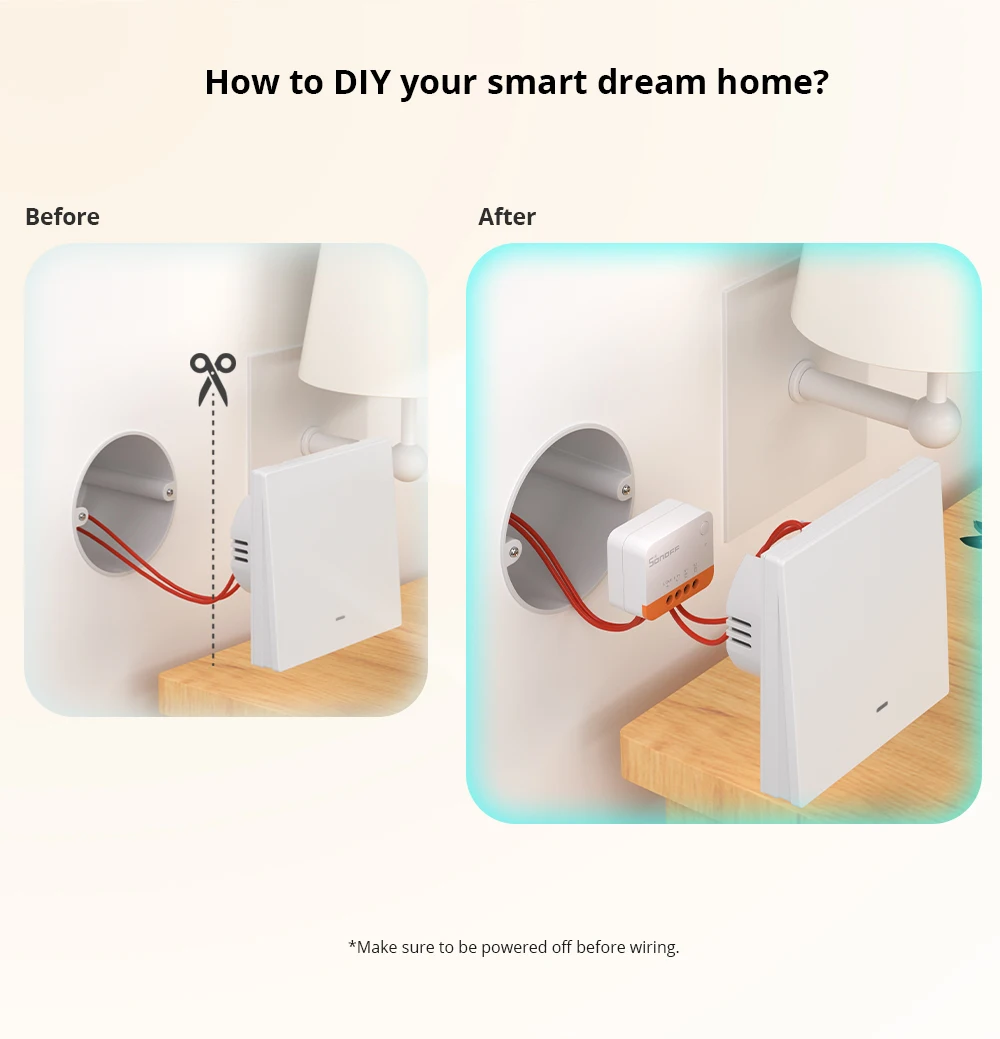

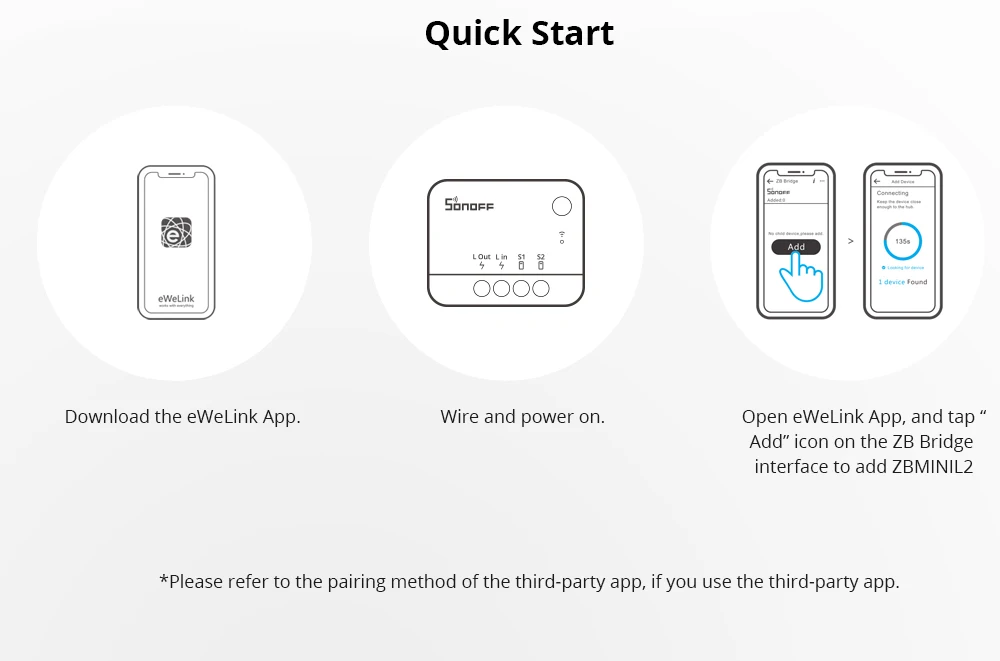

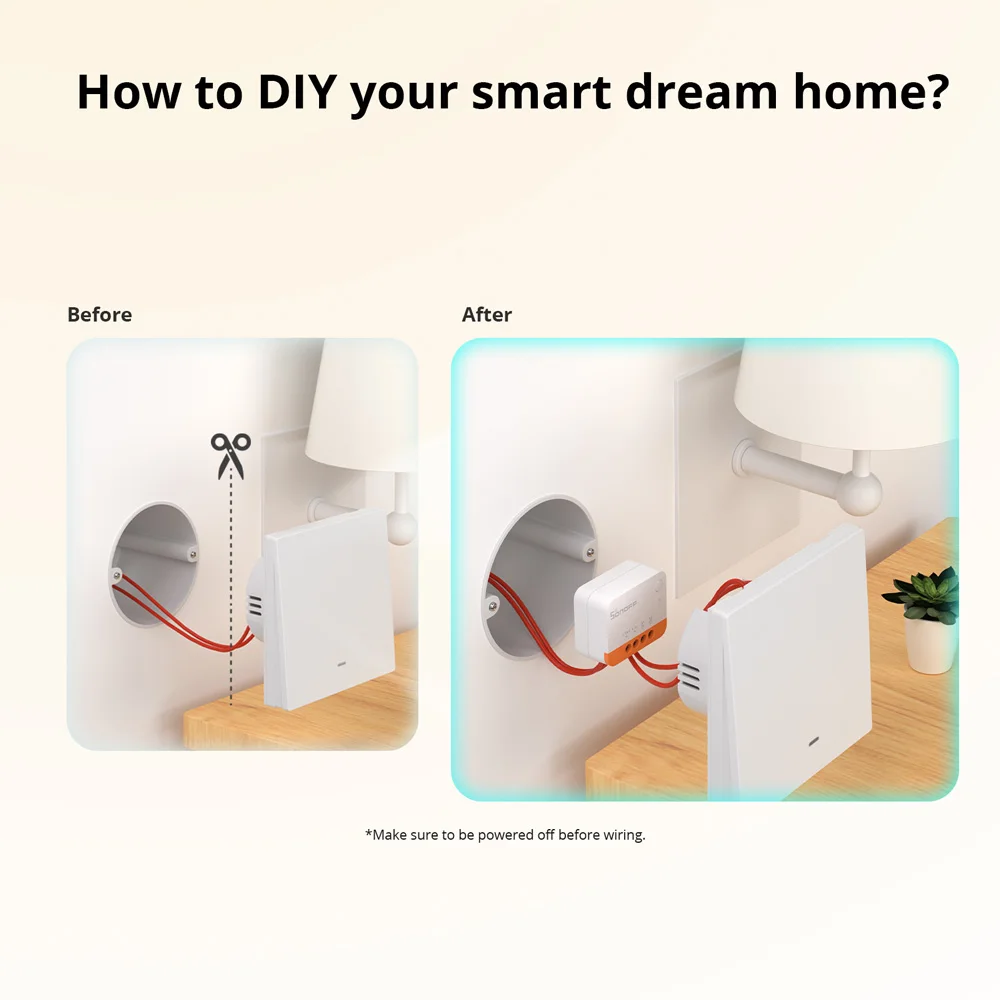

How to DIY your smart dream home?
* make sure to be powered off before wiring.

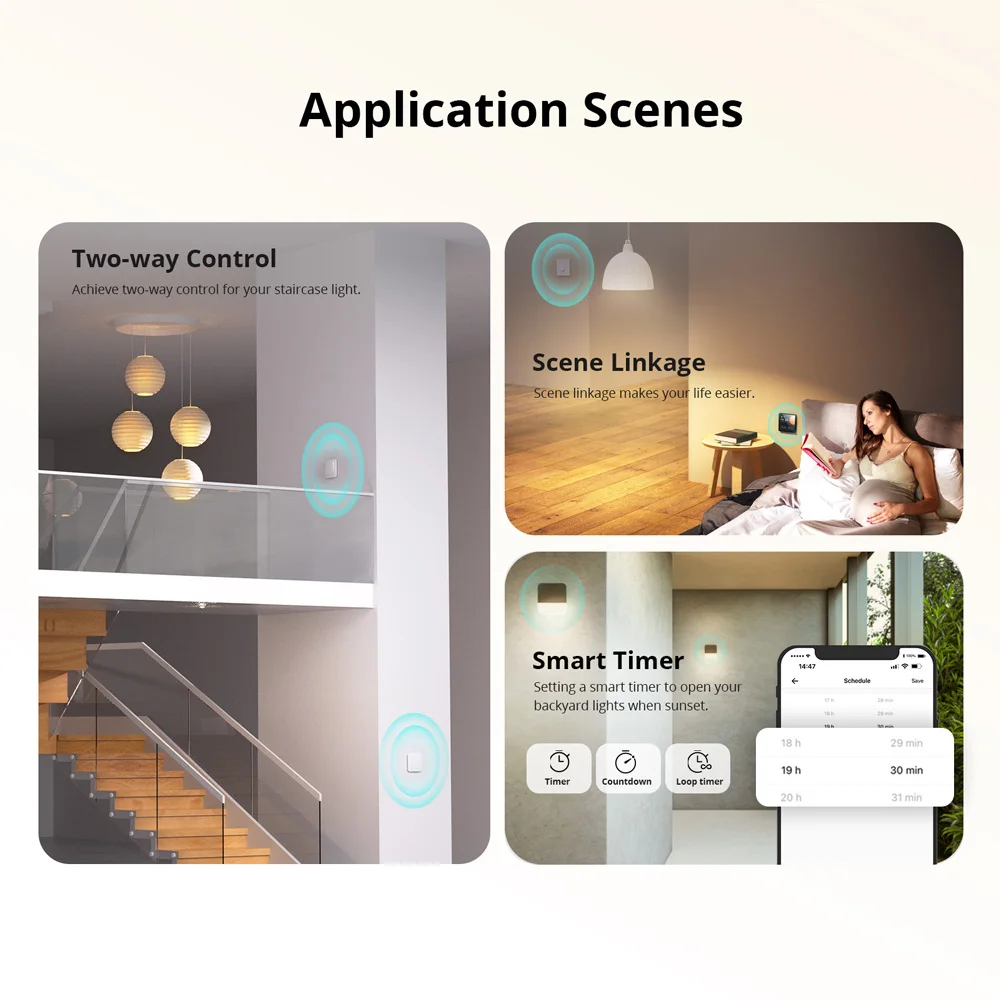

Application Scenes

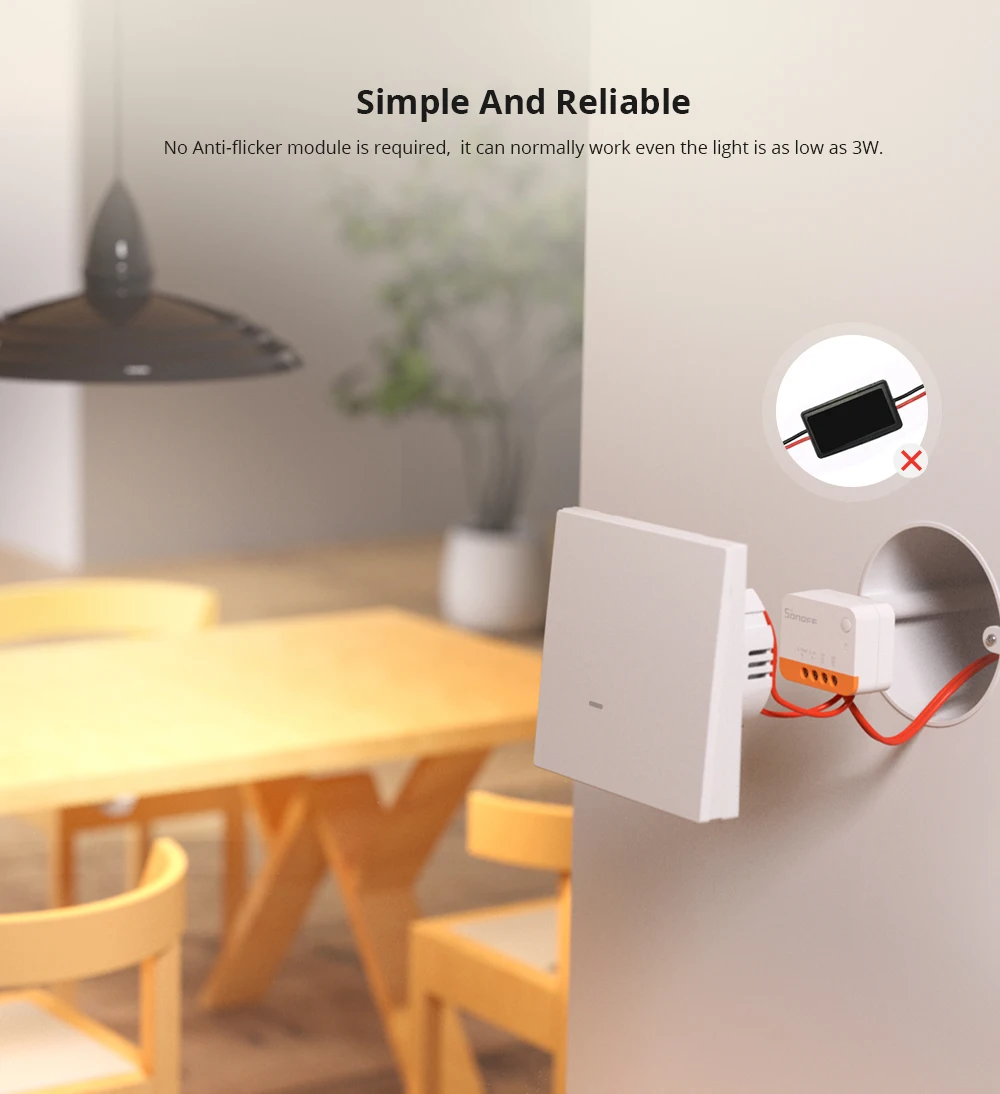

Simple And Reliable
No Anti-flicker module is required, it can normally work even the light is as low as 3W.

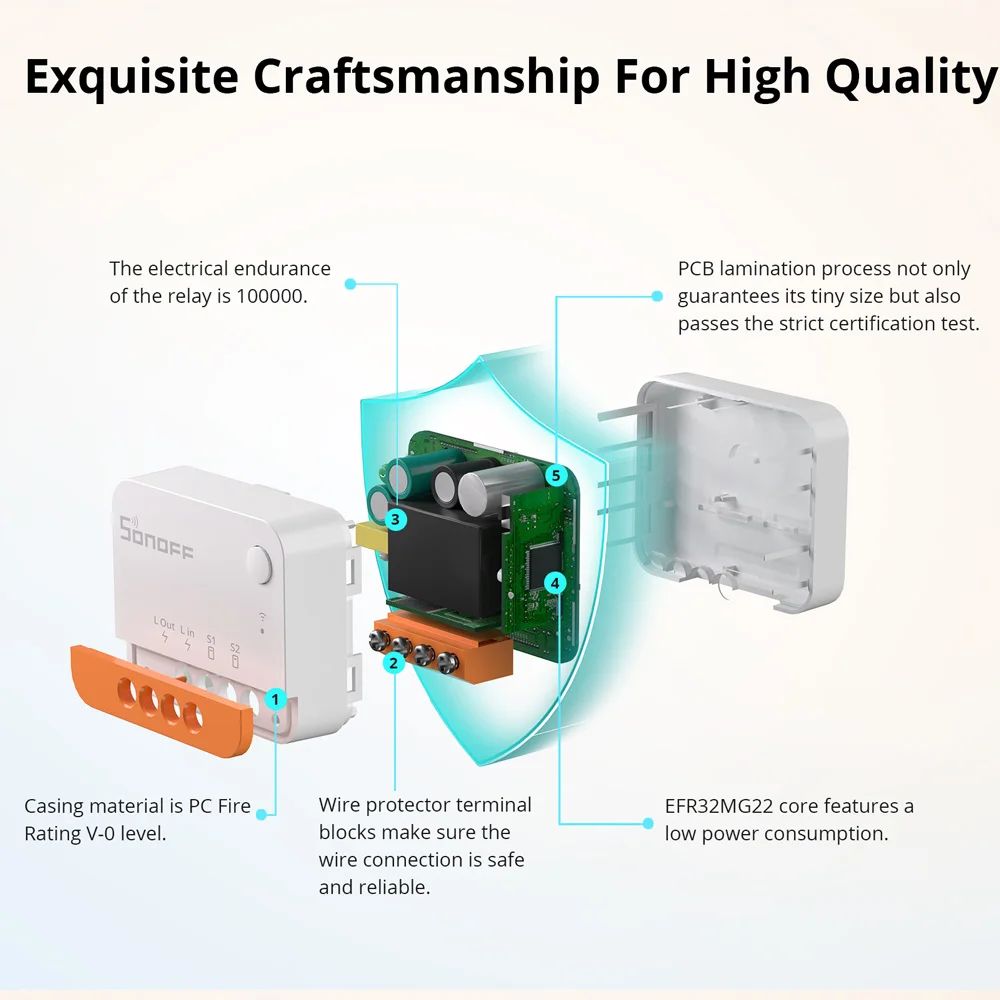

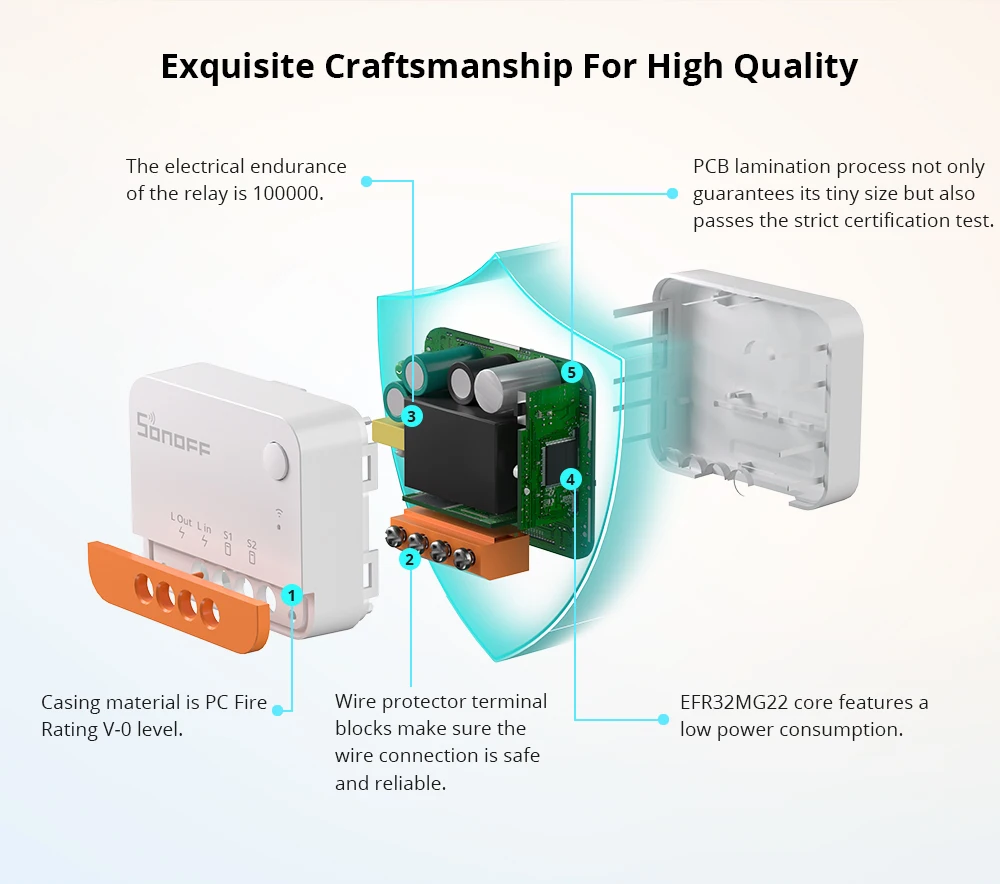

Exquisite Craftsmanship for High Quality
One Voice Command, One Action

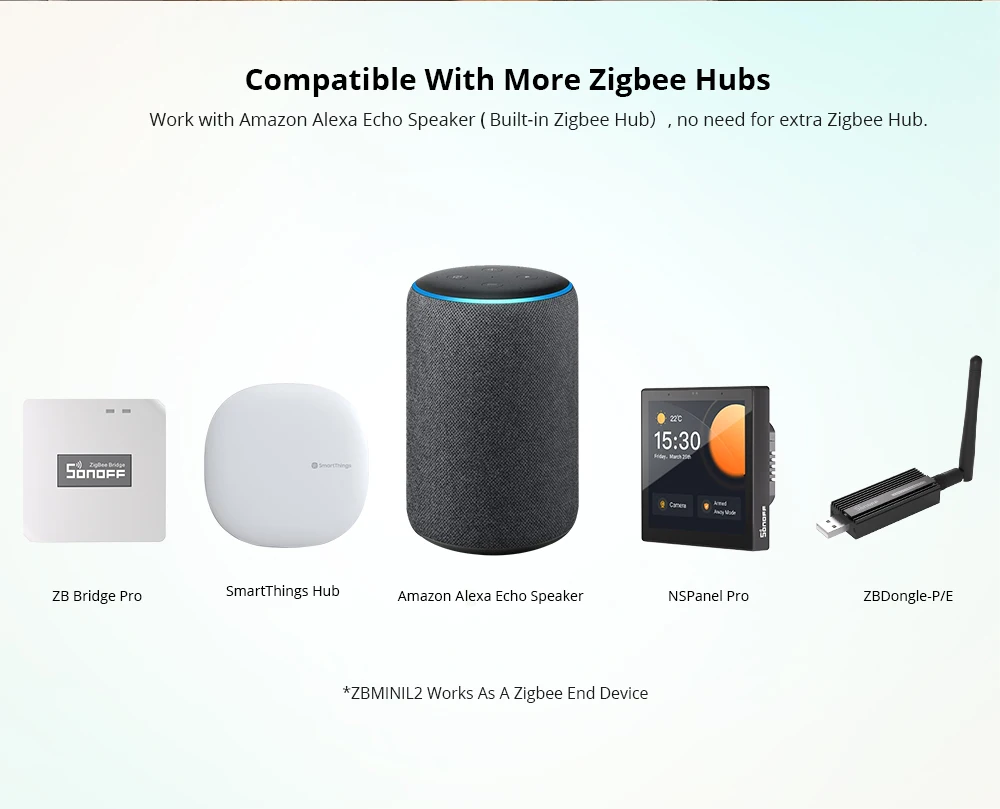

Compatible with More Zigbee Hubs
Work with Amazon Alexa Echo Speaker (Built-in Zigbee Hub), no need for extra Zigbee Hub.
Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF Zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.
D***4 (verified owner) –
Perfect quality device, I recommend it to you, easy connection to Home Assistant.
J***n (verified owner) –
A great solution for converting excisting installations to ewelink zigbee. Very compact. I highly recommend.
AliExpress Shopper (verified owner) –
Once installed, the integration with ZHA from Home Assistant was quick and smooth. This relay does not measure consumption and is Zigbee.
AliExpress Shopper (verified owner) –
Tested and works correctly. Paired in Home Assistant with zigbee2mqtt The size is very small compared to other similar ones. It should be noted that the thickness is about 3 mm less than others, so it fits into the standard European switch box without problems. It does not need a neutral wire. Without a neutral wire, it does not work as a zigbee repeater, only as a final device.
R***n (verified owner) –
Very capable unit for when you don’t have a neutral available at your switch.
e***r (verified owner) –
The smart relay for applications without a neutral line works very well. No flickering issues. Even with LED loads, no problem.
AliExpress Shopper (verified owner) –
The ZBMINI-L2 works really well and is an ideal solution for making an existing system smart even in the absence of a neutral wire. Installation is simple and intuitive, especially for those with a basic understanding of electrical systems, and its compact size allows it to be easily installed in flush-mount boxes.
The Zigbee connection is stable and fast: it is recognized without any issues and responds immediately to commands. Tested with Echo Show 11, it works perfectly with both voice commands and app control, without any delays or disconnections.
A reliable product, well-built and very practical for those who want to automate lights and lighting fixtures without invasive modifications to the system. Recommended.
О***а (verified owner) –
A good item, but with a caveat.
I paired it with the SONOFF E1GSL – it’s essentially a button.
When “as is” is turned on, the light turns on for a moment and then turns off immediately, as we physically press the button to close it and then immediately open it again.
But I needed the light to stay on when the button was pressed.
The mode can be switched to HA, but the parameter for controlling the mode is not displayed in zigbee2mqtt. But Gemini helped find a manual option: you need to quickly press the button 3 times and the mode will switch (there are 3 modes in total).
In the end, I switched to a mode where rapid closing and opening is considered as a single closing or a single opening, and everything started working properly!
