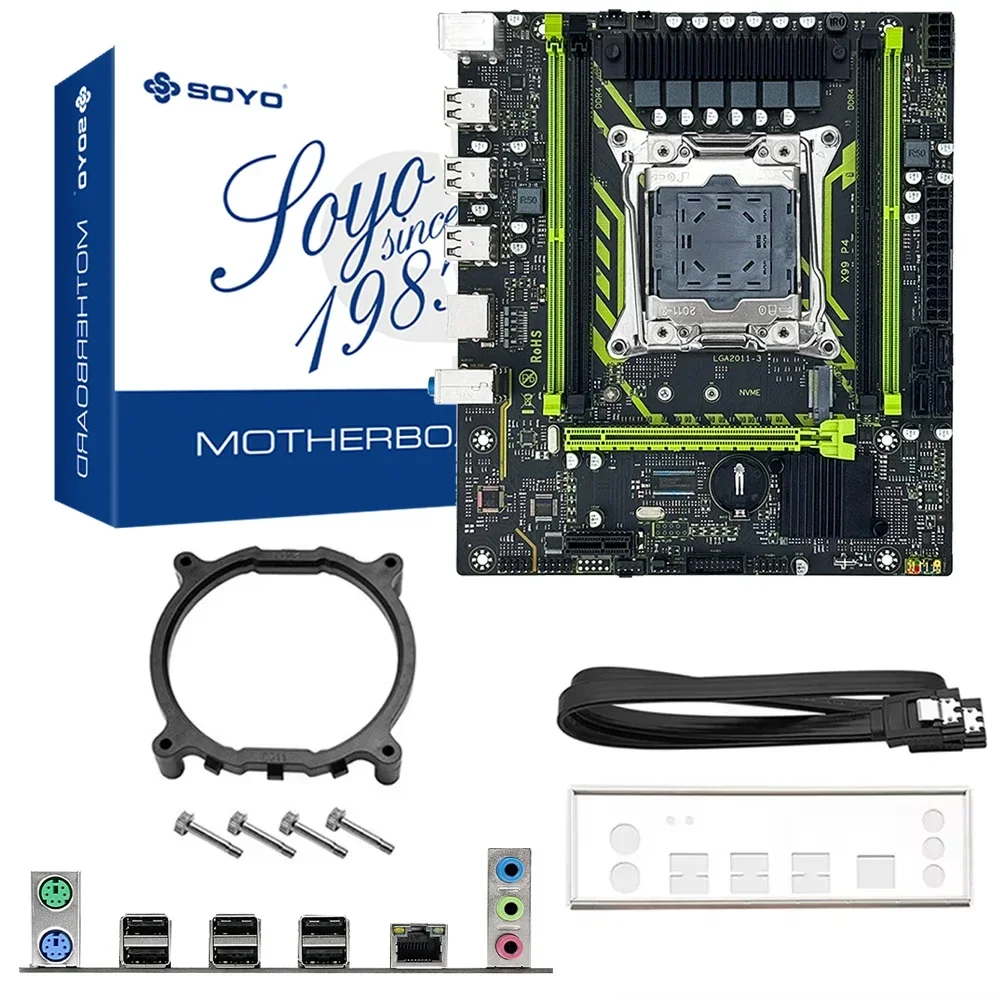

SOYO X99 Motherboard Set with Intel Xeon E5 2650 V4 CPU & Dual-channel DDR4 8Gx1 2133MHz RAM for Gaming Computer Components
Description
- High-concerned chemical: None
- RAID Supported: Yes
- Processor compatibility: Intel Xeon E Series
- Ports: PCI-Express X1
- Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,Video Rendering
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 3.0 Connector,8-pin +12V Power Connector,USB 2.0 Connector
- Back I/O Ports: 1x RJ45,6 x USB 2.0,3 x Audio Jacks,PS/2
- Support USB Type: USB 2.0
- Max LAN Speed: 1000Mbps
- Onboard LAN: 1x RJ45
- SATA RAID: 0
- Supports M.2 SSD: 2280,22110
- Number of M.2: 1
- Number of SATA Ports: 2
- Storage Interface Type: SATA 2,M.2 (NVMe)
- Number of PCI: 1
- Number of PCIe x 1: 1
- Number of PCIe x 16: 1
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR4
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- Battery Included: No
- With CPU: No
- Chipset: Intel H55
- Application: Desktop
- Socket Type: LGA 2011-3
- Brand Name: SOYO
- Special Features: None
- Origin: Mainland China
Differences Between Packages
Motherboards: 1*SY-X99 D4 motherboard
Motherboard+CPU: SY-X99 D4+E5 2650 V4 CPU
Motherboard+CPU+RAM: SY-X99 D4+E5 2650 V4 CPU*DDR4 8G*1
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order
CPU:
Processor Series: Intel Xeon
Model number: E5 2650 V4
Processor Speed: 2.2GHz
Maximum core frequency: 2.9GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 12
The number of threads: 24
L3 cache size (MB): 30 MB
Wattage:105 Watts
cpu will be final double tested before shipping
The CPU is used , please don't buy it if you mind
Specification:
Ethernet: 1 Realtek Gigabit Ethernet card
Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN)
USB Port: 6 USB ports 2.0 interface;
PCIE: 2 (1 PCIE X16, 1 PCIE X1)
USB ports: 4 (one USB port can be connected to two USB 2.0 ports)
Internal connectors
SATA interface: 4 SATA interfaces ( SATA2.0)
ATXPWR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket
Audio: 1 2x5PIN pin
Jlpc: 1 2x5pin battery
M. 2 interfaces: 1 M.2 interface (supporting PCIE M. 2/SATA M. 2)
:M-ATX【215 x 190】mm
Note:
(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
Additional information
| Bundle | Motherboard+CPU, Motherboard+CPU+RAM |
|---|---|
| High-concerned chemical | None |
| RAID Supported | Yes |
| Processor compatibility | Intel Xeon E Series |
| Ports | PCI-Express X1 |
| Usage Scenario | Gaming,Audio & Video,Household,Office,Design,Video Production,Video Rendering |
| Onboard Connectors & Header | 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 3.0 Connector,8-pin +12V Power Connector,USB 2.0 Connector |
| Back I/O Ports | 1x RJ45,6 x USB 2.0,3 x Audio Jacks,PS/2 |
| Support USB Type | USB 2.0 |
| Max LAN Speed | 1000Mbps |
| Onboard LAN | 1x RJ45 |
| SATA RAID | 0 |
| Supports M.2 SSD | 2280,22110 |
| Number of M.2 | 1 |
| Number of SATA Ports | 2 |
| Storage Interface Type | SATA 2,M.2 (NVMe) |
| Number of PCI | 1 |
| Number of PCIe x 1 | 1 |
| Number of PCIe x 16 | 1 |
| PCI - E standards | PCI-E 3.0 |
| Number Of Memory Slots | 4 |
| Support Memory Type | DDR4 |
| Memory channel | Double |
| Package | Yes |
| Maximum Ram Capacity | 128 GB |
| Form Factor | Micro-ATX |
| Chipset Manufacturer | Intel |
| Battery Included | No |
| With CPU | No |
| Chipset | Intel H55 |
| Application | Desktop |
| Socket Type | LGA 2011-3 |
| Brand Name | SOYO |
| Special Features | None |
| Origin | Mainland China |
