Spectrum Analyzer TinySA ULTRA With 4″ Display 100kHz to 5.3GHz with 32GB Card Version V0.4.5.1
Description
- Battery Included: Yes
- High-concerned chemical: None
- Interface: USB
- Average Noise Level: -89dBm & Under
- DIY Supplies: Electrical
- Brand Name: SeeSii
- Origin: Mainland China
2023 New Handheld Tiny Spectrum Analyzer TinySA ULTRA 4" Display 100kHz to 5.3GHz with 32GB Card Version V0.4.5.1
Specification：
|
Parameter |
Specification |
|
Display size |
4” TFT LCD (480×320) |
|
Max low input frequency |
800MHz, 6GHz in Ultra mode |
|
Resolution filters in 1,3,10 steps |
from 200Hz to 850kHz |
|
Max output frequency |
Sinus up to 800MHz, Square wave up to 4.4GHz |
|
output level |
-104dBm to -16dBm |
|
Ultra mode |
Level calibrated up to 5.3GHz |
|
Internal LNA gain |
20dB up to 4GHz |
|
Displayed points per scan |
max 450 |
|
0-350MHz scan time |
165ms |
|
Shortest zero span time |
17ms |
|
DANL at 100MHz |
-153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On) |
|
DANL degrading in ultra mode |
10dB above 2.5GHz, 25dB above 5.3GHz |
|
Phase noise at 10kHz offset |
-92dBc/Hz |
|
Phase noise at 100kHz offset |
-110dBc/Hz |
|
Input 1dB compression level |
+0.5dBm (LNA Off) / -26.5dBm (LNA On) |
|
IIP3 without LNA |
+18dBm (at least 2MHz apart) / 0dBm (500Hz apart) |
|
IIP3 with LNA |
-8dBm (at least 2MHz apart) |
|
Frequency stability |
<1ppm ( -10℃ ~ +55℃) |
|
SD card slot |
micro SD card |
|
Audio out |
3.5mm headphone plug |
|
FW update mode activation |
Push jog button before switch on |
|
Maximum current consumption |
330mA |
|
Maximum charging current |
1300mA |
|

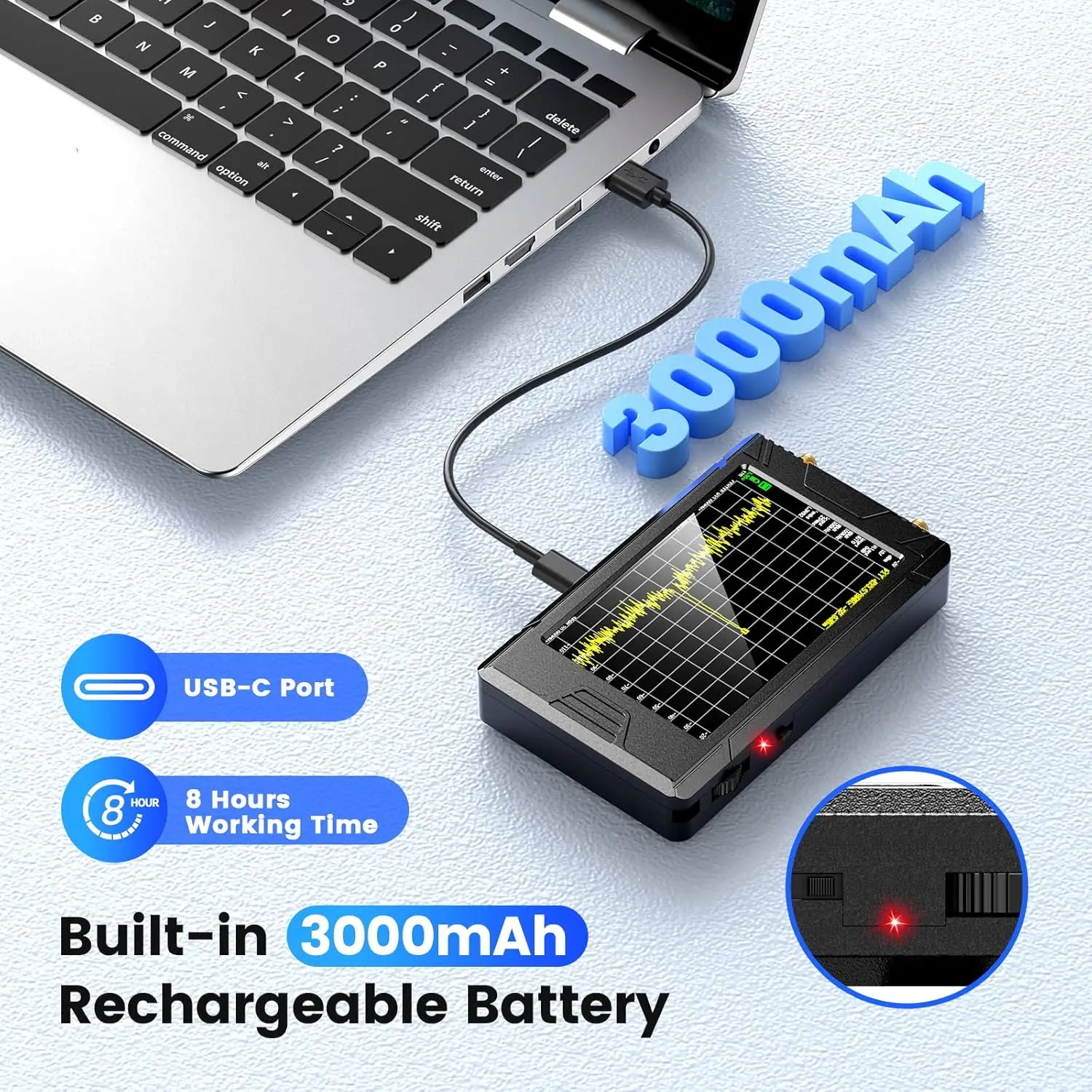

Battery |
Li-polymer 3.7V 3000mAh |
|
RF connectors |
SMA female |
|
Communication Interface |
USB-CDC(Type-C)，UART-TTL(2.54mm Connector) |
|
Appearance Size |
117x72x23mm (Excluding protruding parts) |
TinySA model comparison table：
|
tinySA |
tinySA Ultra |
|
|
Display size |
2.8 inch |
4 inch |
|
Max low input frequency |
350MHz |
800MHz, 6GHz in Ultra mode |
|
High input range |
240MHz – 960MHz |
Not available |
|
Resolution filters in 1,3,10 steps |
from 3kHz to 600kHz |
from 200Hz to 850kHz |
|
Max low output frequency |
350MHz |
Sine wave up to 800MHz, Square wave up to 4.4GHz |
|
Low output level |
-76dBm to -7dBm |
-104dBm to -16dBm |
|
High output frequency range |
240MHz – 960MHz |
Not available |
|
High output level |
-32dBm to 16dBm |
Not available |
|
Ultra mode |
Not available |
Level calibrated up to 6GHz |
|
Internal LNA gain |
Not available |
20dB up to 4GHz |
|
Internal step attenuator |
Normal: 0-31dB, High: NA |
0-31dN |
|
Displayed points per scan |
max 290 |
max 450 |
|
0-350MHz scan time |
405ms |
165ms |
|
Shortest zero span time |
1.8ms |
17ms |
|
DANL low input at 100MHz |
-146dBm/Hz |
-153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On) |
|
DANL high input at 880MHz |
-163dBm/Hz |
Not available |
|
DANL degrading in ultra mode |
10dB above 2.5GHz, 25dB above 5.3GHz |
|
|
Phase noise at 10kHz offset |
-83dBc/Hz |
-92dBc/Hz |
|
Phase noise at 100kHz offset |
-98dBc/Hz |
-108dBc/Hz |
|
Low input 1dB compression level |
-0.5dBm |
+0.5dBm (LNA Off) / -26.5dBm (LNA On) |
|
IIP3 without LNA |
+24dBm |
+18dBm (at least 2MHz apart) / 0dBm (500Hz apart) |
|
IIP3 with LNA |
Not available |
-8dBm (at least 2MHz apart) |
|
SD card slot |
Not available |
micro SD card |
|
Audio out |
Not available |
3.5mm headphone plug |
|
FW update mode activation |
Via DFU menu |
Push jog button before switch on |
|
AM modulation depth |
Fixed 30% |
10% and 100% |
|
FM deviation |
4kHz or 75kHz |
1kHz to 300kHz |
|
Modulation frequency |
50Hz to 5kHz |
50Hz to 5kHz(AM) or 1kHz(FM) |

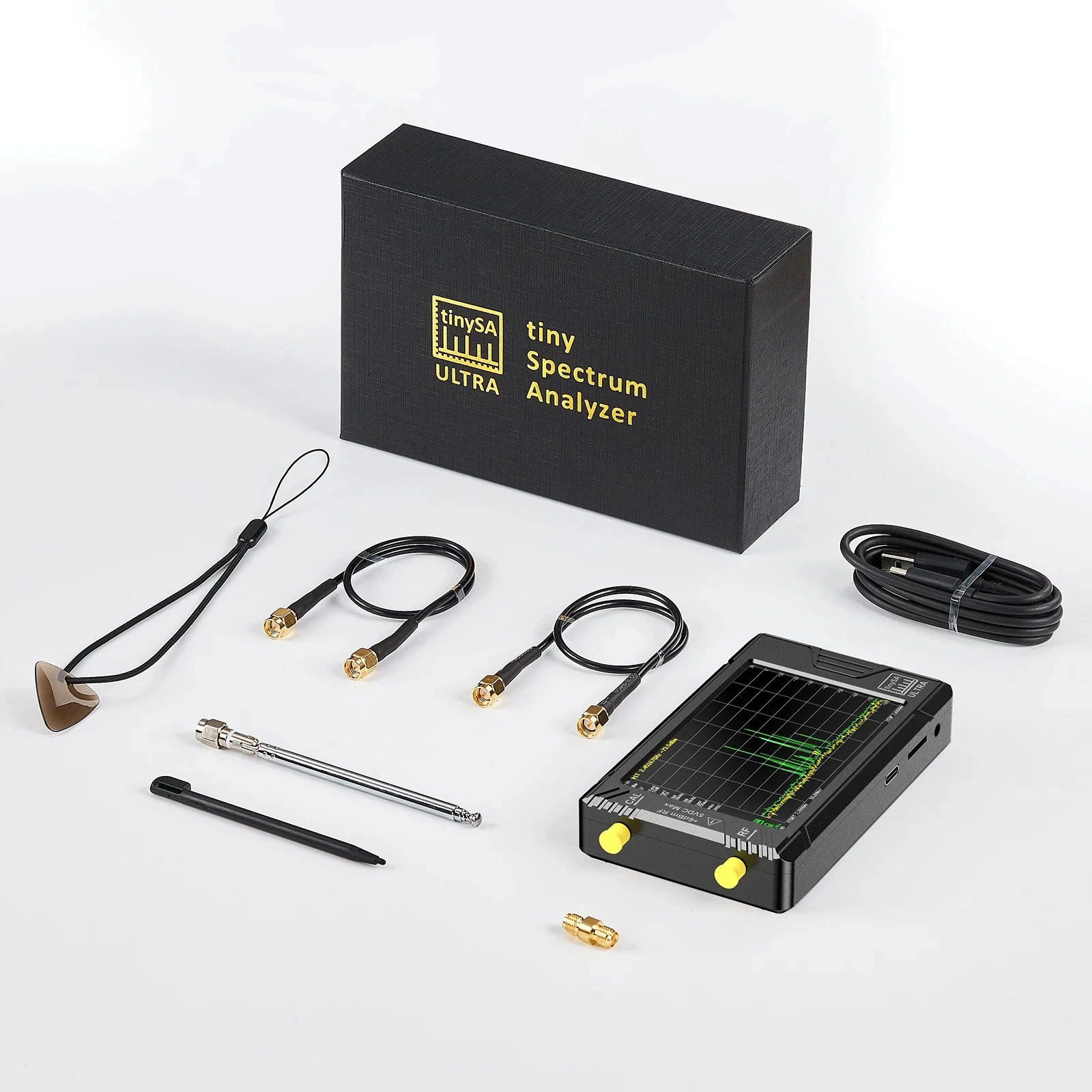

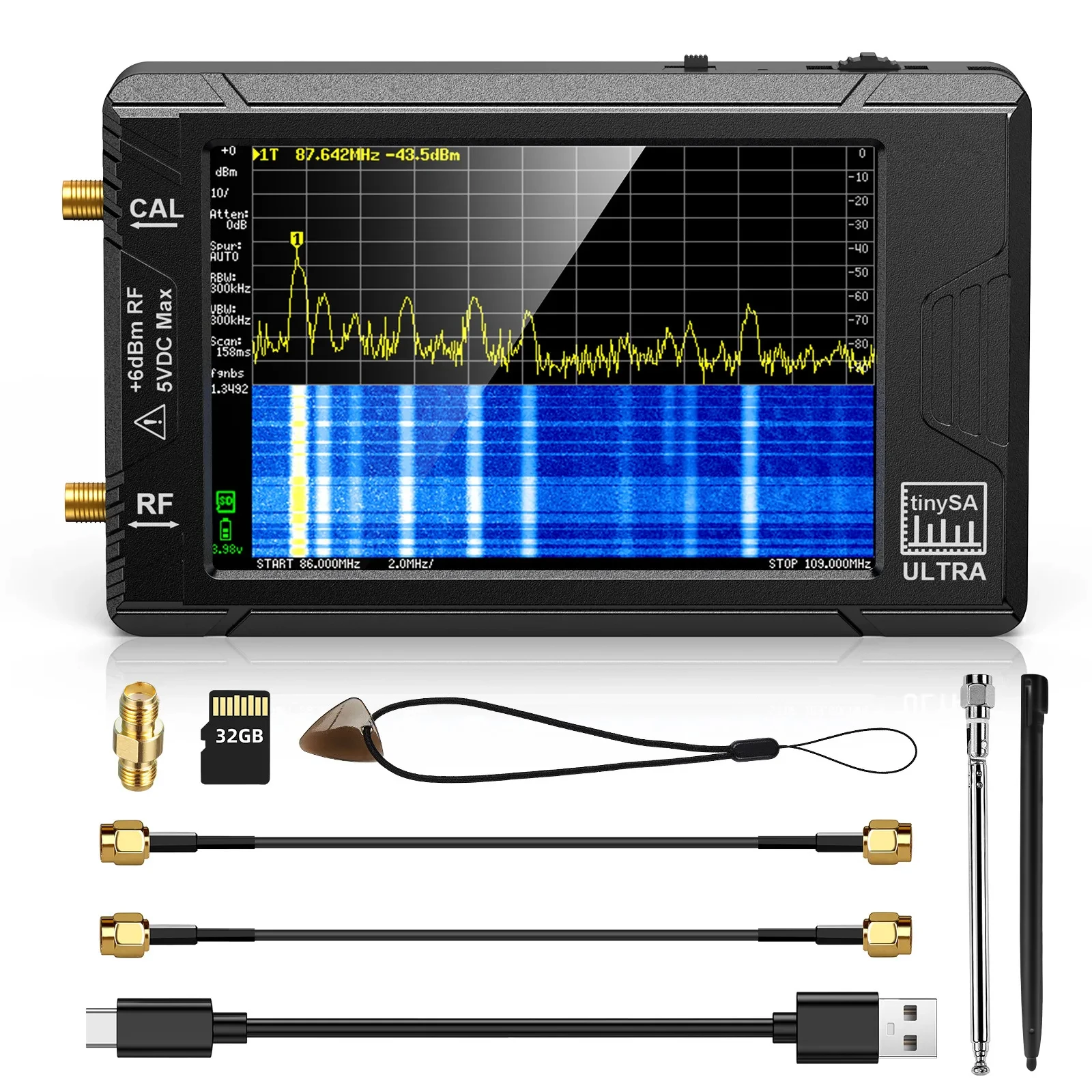

Package includes:
Host (with 3000mAh battery, 4"display) x 1
USB Type-C data cable x1
30cm ALSR100 SMA cables x2
SMA-SMA barrel connector x1
Antenna with SMA connector x1
Lanyard and touch plectrum x1
32GB MicroSD card(plugged in the host) x1
