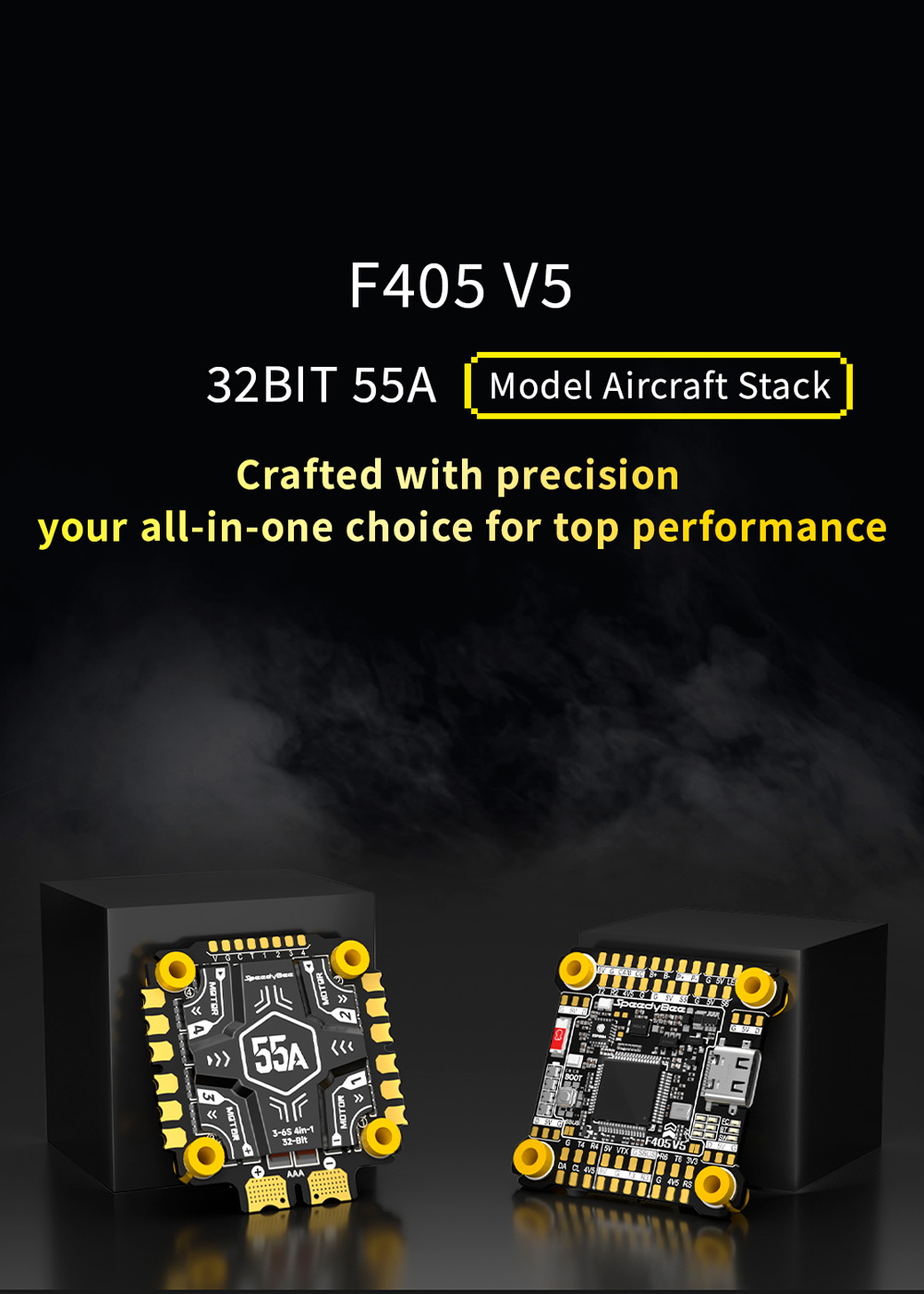

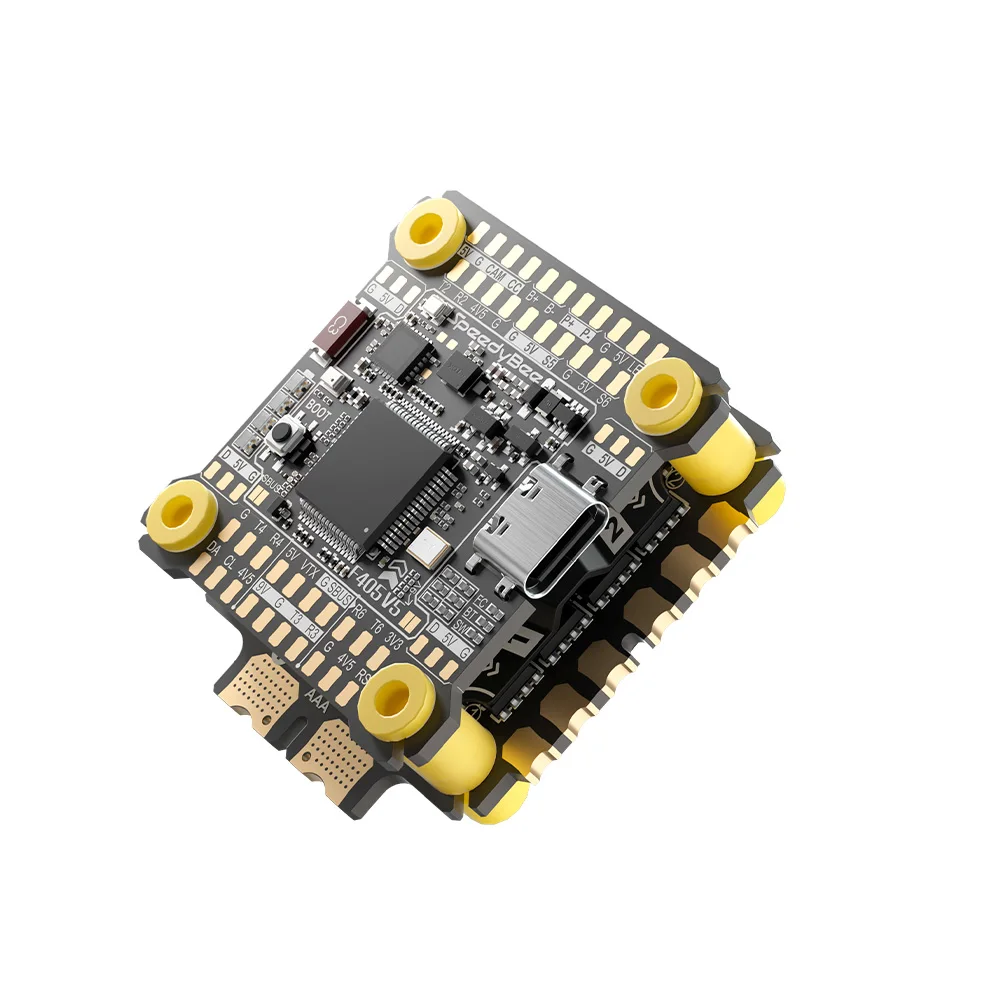

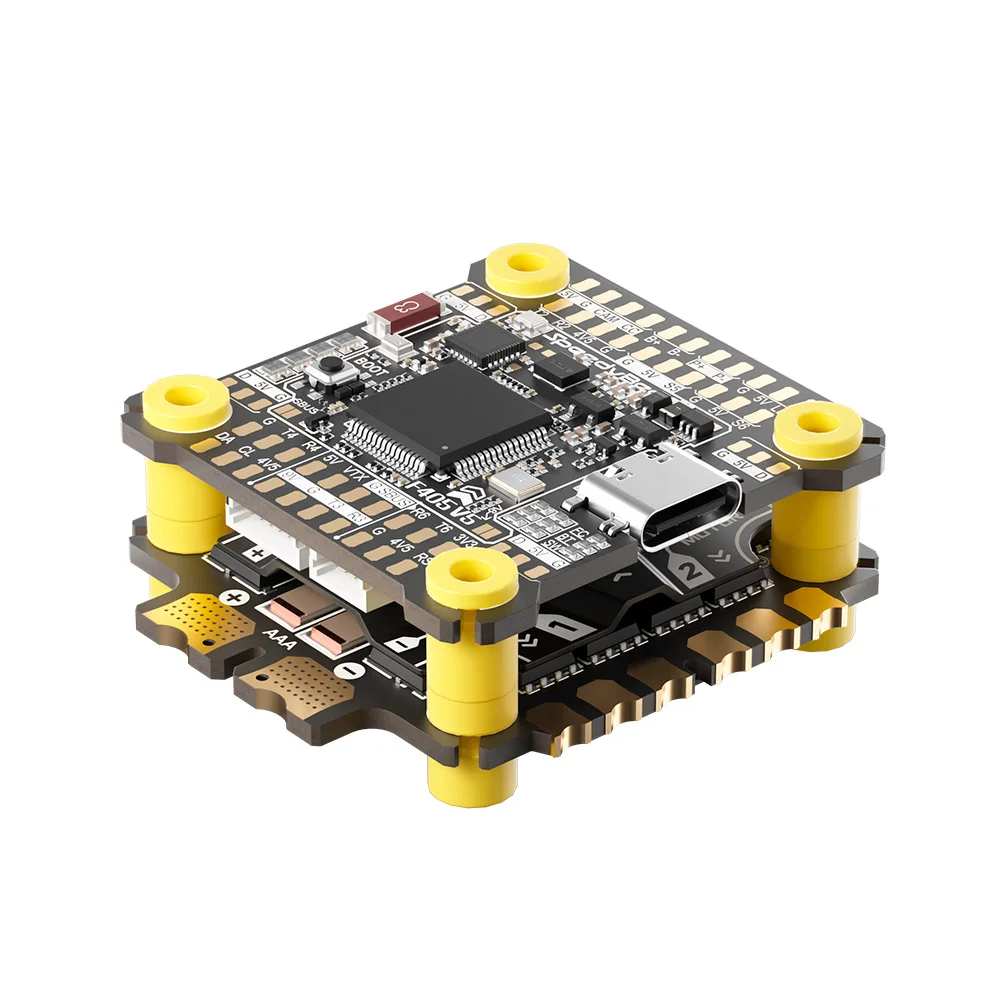

SpeedyBee F405 V5 Stack F405 V5 FC 32-Bit 55A 4in1 ESC 3-6S LiPo 30.5×30.5mm 16MB ICM42688P Gyro For RC FPV Racing Drone

SpeedyBee F405 V5 Stack F405 V5 FC 32-Bit 55A 4in1 ESC 3-6S LiPo 30.5×30.5mm 16MB ICM42688P Gyro For RC FPV Racing Drone

(0 customer reviews)

68.67$ – 327.28$

In Stock

Color

Clear

Description

High-concerned chemical: None
Is Electric: No Battery
Quantity: 1 pcs
Is it battery/power supply: N
Is it charger/adapter: N
Is Batteries Included: No
Remote Control Peripherals/Devices: ESC
Material: Composite Material
Origin: Mainland China
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys

SpeedyBee F405 V5 Stack F405 V5 FC 32BIT 55A 4in1 ESC 3-6S LiPo 30.5×30.5mm 16MB ICM42688P Gyro For RC FPV Racing Drone Support Betaflight INAV Ardupilot

Features:

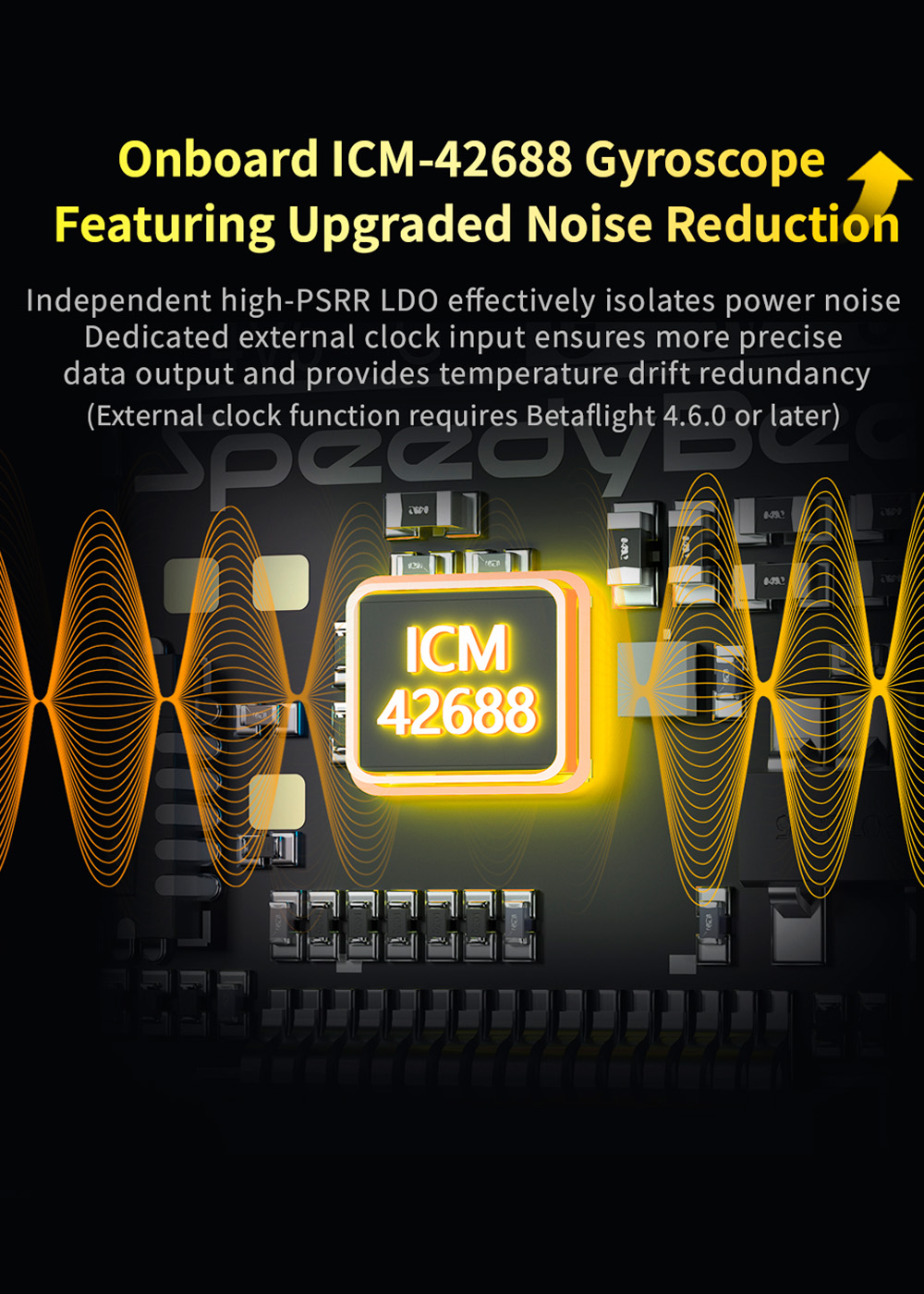

1. Onboard lCM-42688 Gyroscope,Featuring Upgraded Noise Reduction,Independent high-PSRR LDO effectively isolates power noise.

2. STM32F405 Main Controller Stable performance with multi-platform system support.

3. Onboard FLASH chip128 Mbit capacity (16 MB) for higher compatibility, eliminates SD card compatibility issues.

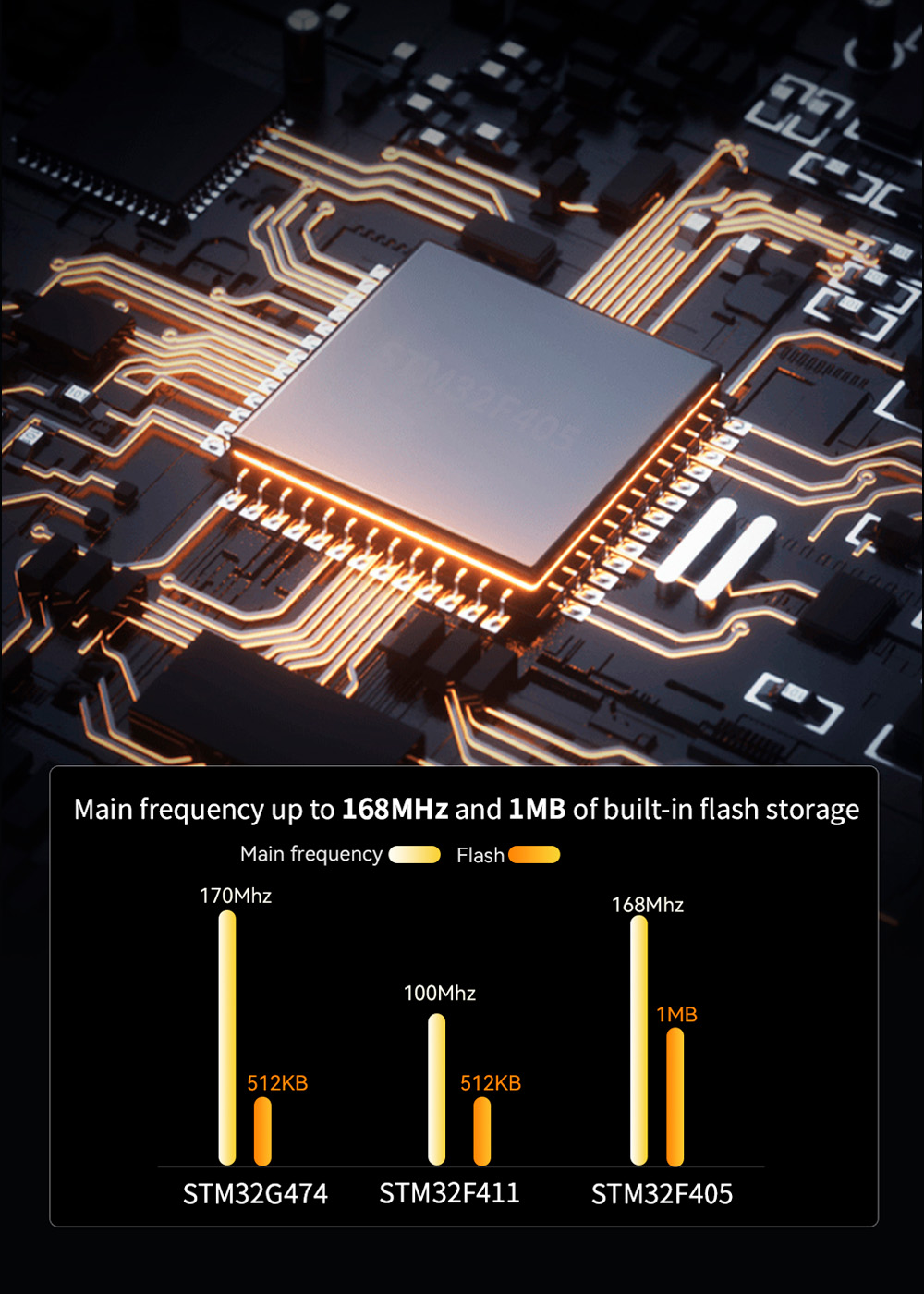

4. Main frequency up to 168MHz and 1MB of built-in flash storage.

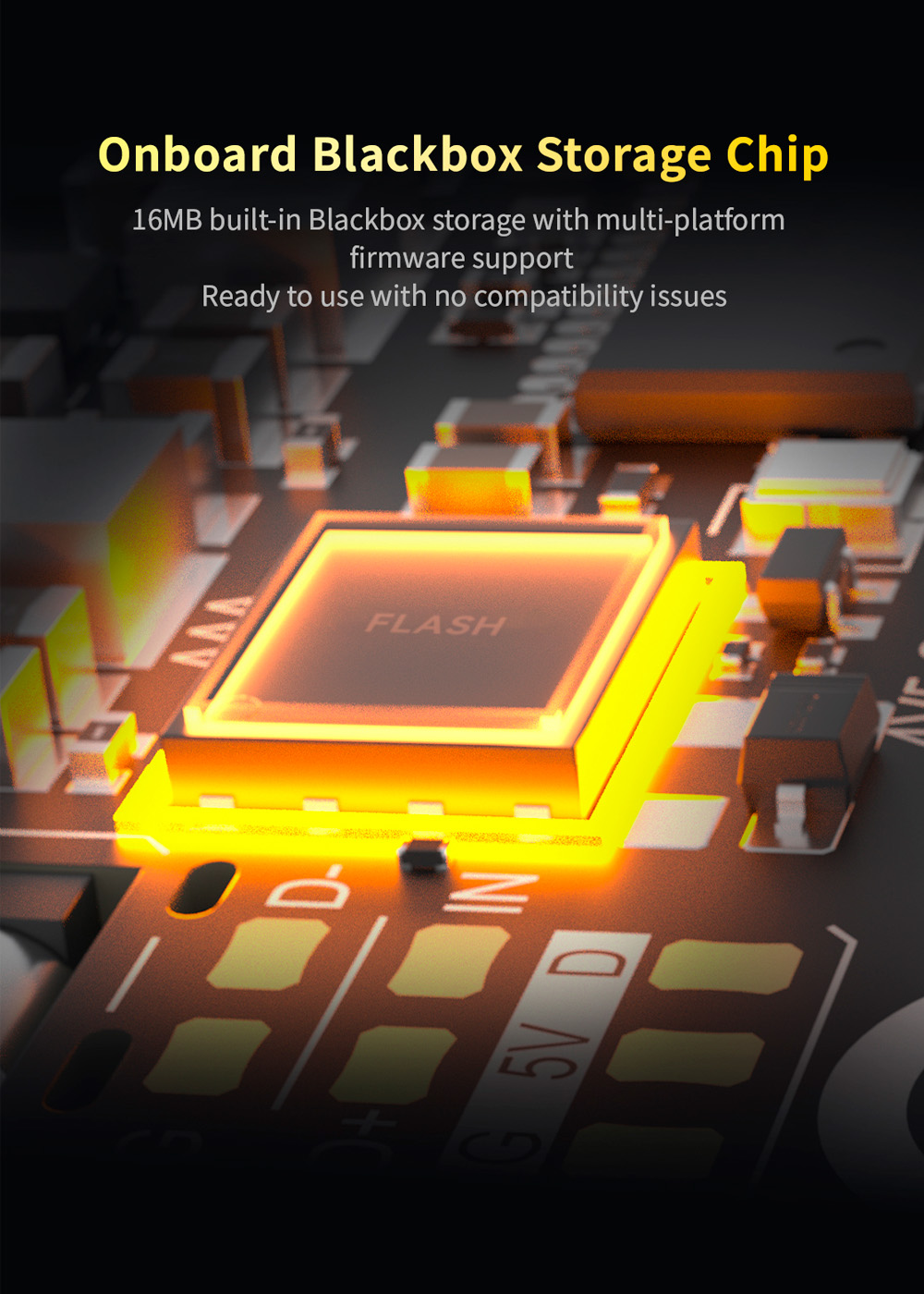

5. 16MB built-in Blackbox storage with multi-platform;firmware support,Ready to use with no compatibility issues.

6. Wireless Tuning 2.0,Supports X4 MeteorLED Strips(Controllable via Betaflight)

7. Equipped with oX32 Firmware,Compatible with small-pitch propellers, enhancing flight stabilityand cornering performance

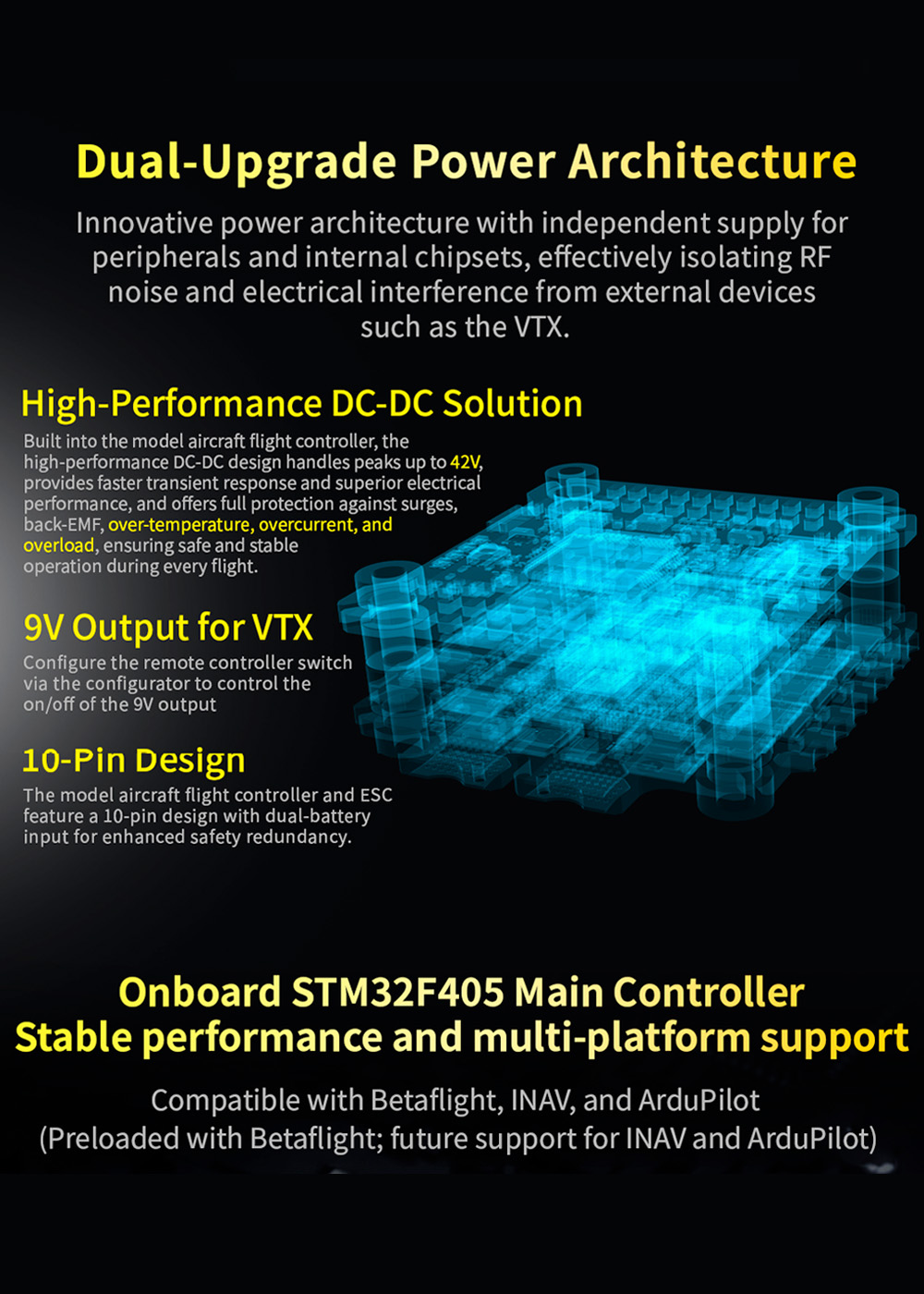

8. The high-performance DC-DC design handles peaks up to 42V,9V Output for VTX,10-Pin Design,design with dual-battery input for enhanced safety redundancy.

9. Diverse Features: X4 colorful meteor-style arm LEDs,multicolor battery LEDs, wirelesstuning, firmware updates, and wireless unbricking.

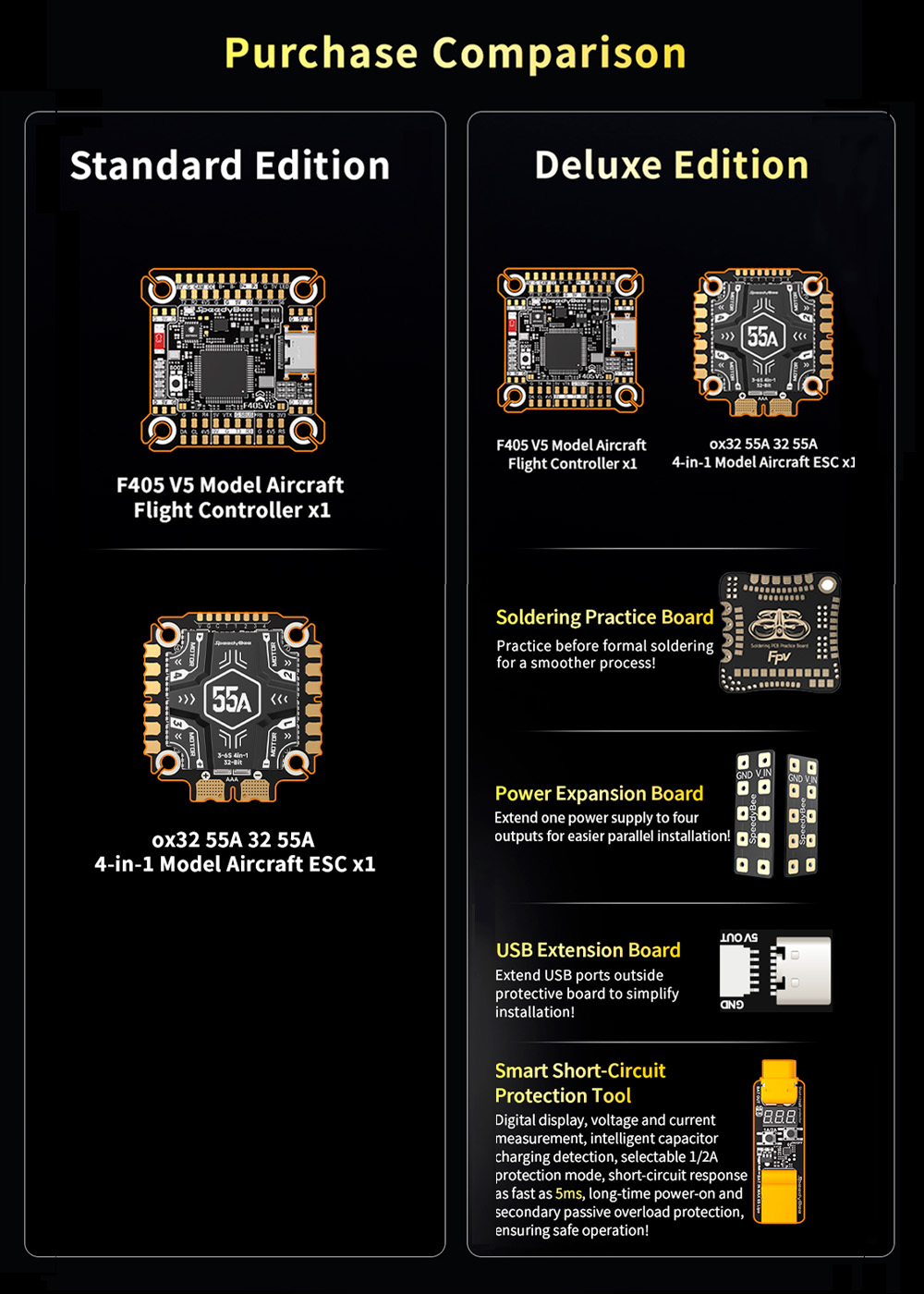

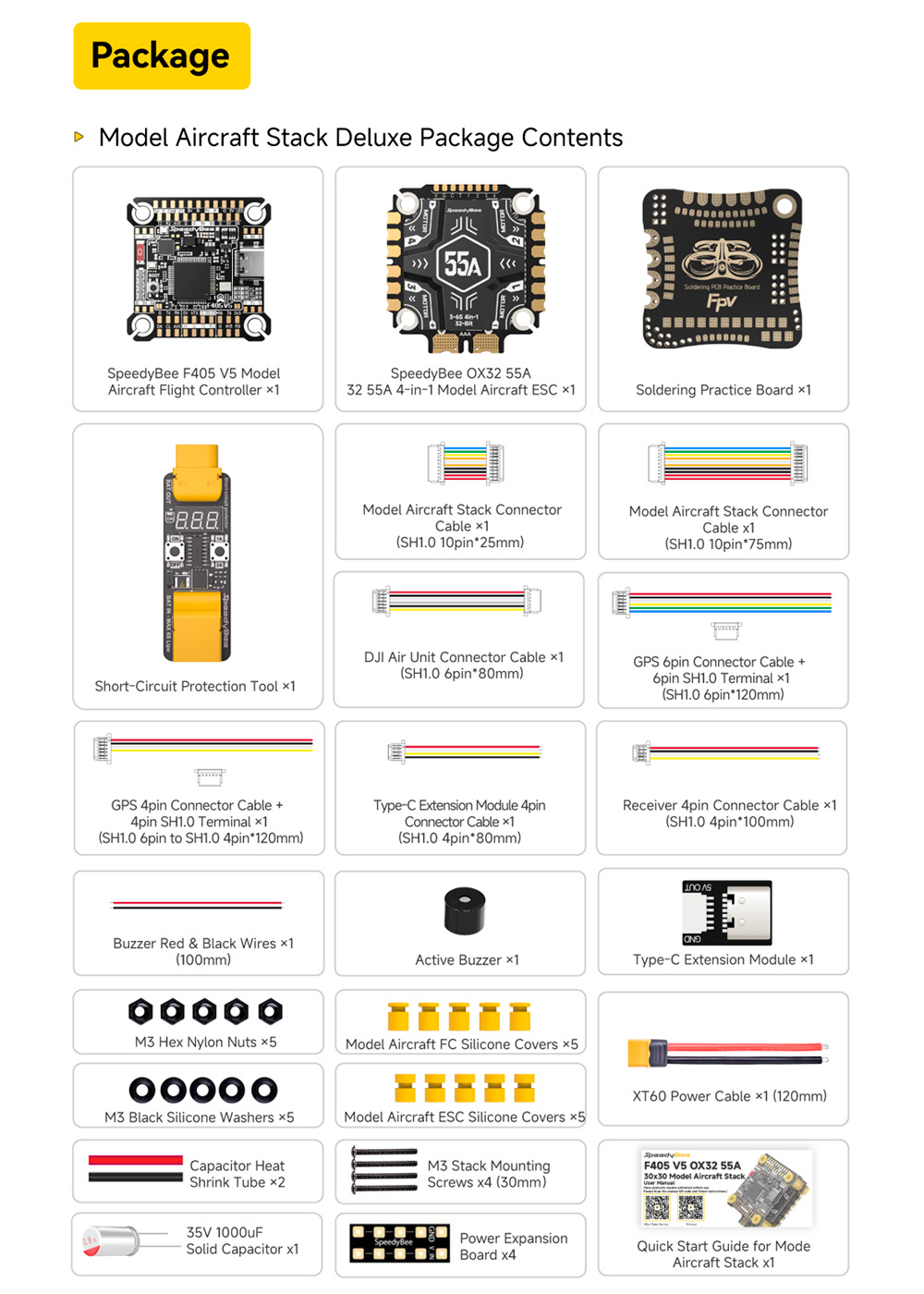

10. Optional Smart Voltage Tester +Short-Circuit Protection ToolAlso includes soldering practice board,USB extension, pad extension, buzzer,and other useful tools(*Deluxe version only)

11. Support Betaflight,INAV, Ardupilot.

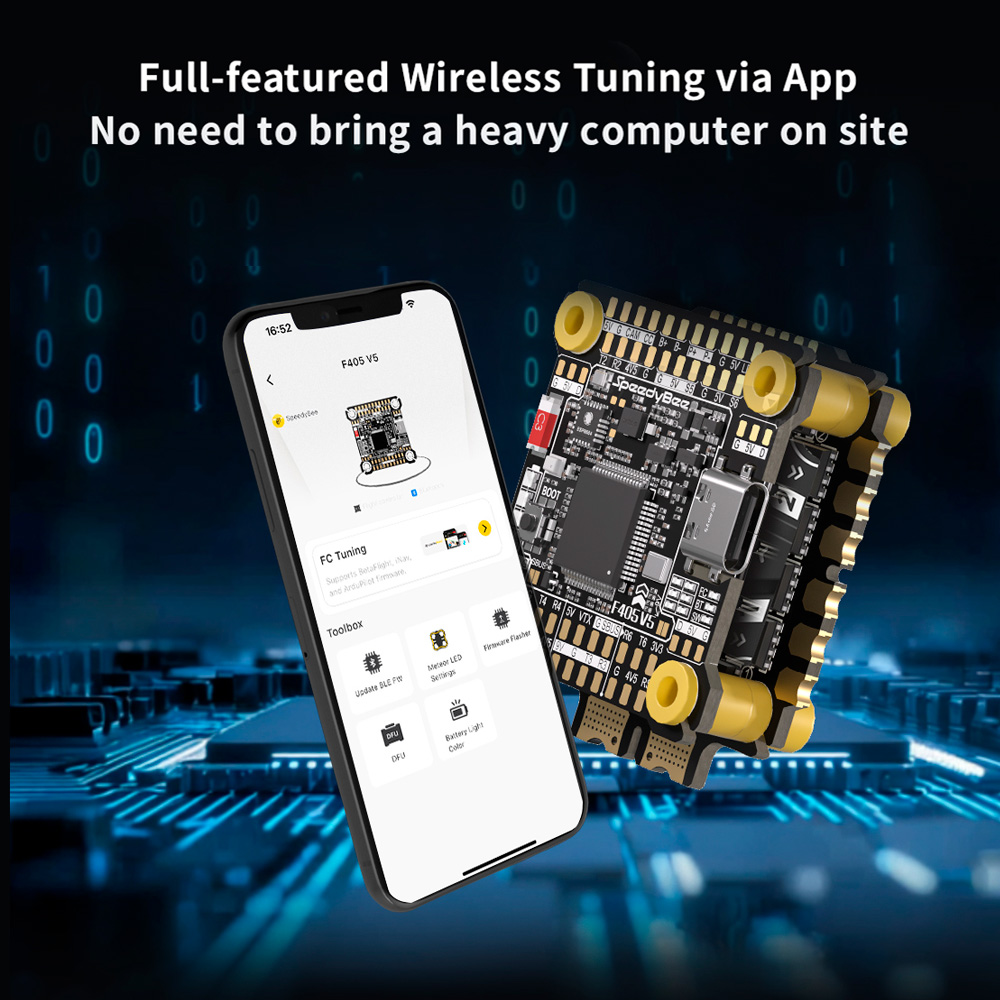

12. Wireless Tuning 2.0 Next-generation Bluetoothsolution with rich featuresand improved transmissionper formance

Description:

F405 V5 Flight Stack,onboard lCM-42688 Gyroscope,Featuring Upgraded Noise Reduction, Main frequency up to 168MHz and 1MB of built-in flash storage.Wireless Tuning 2.0 Next-generation Bluetoothsolution with rich featuresand improved transmissionper formance,Support Betaflight,INAV, Ardupilot.

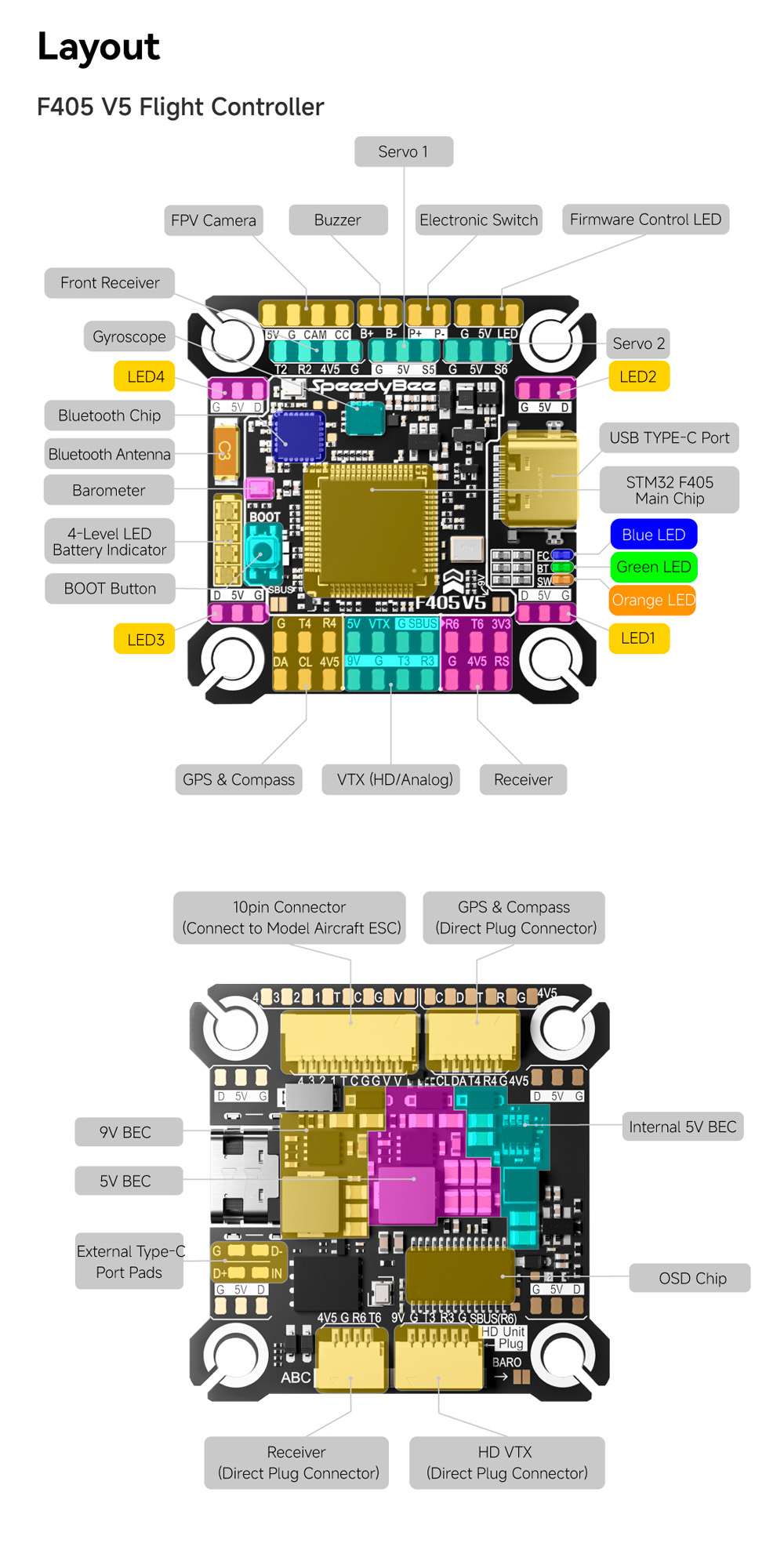

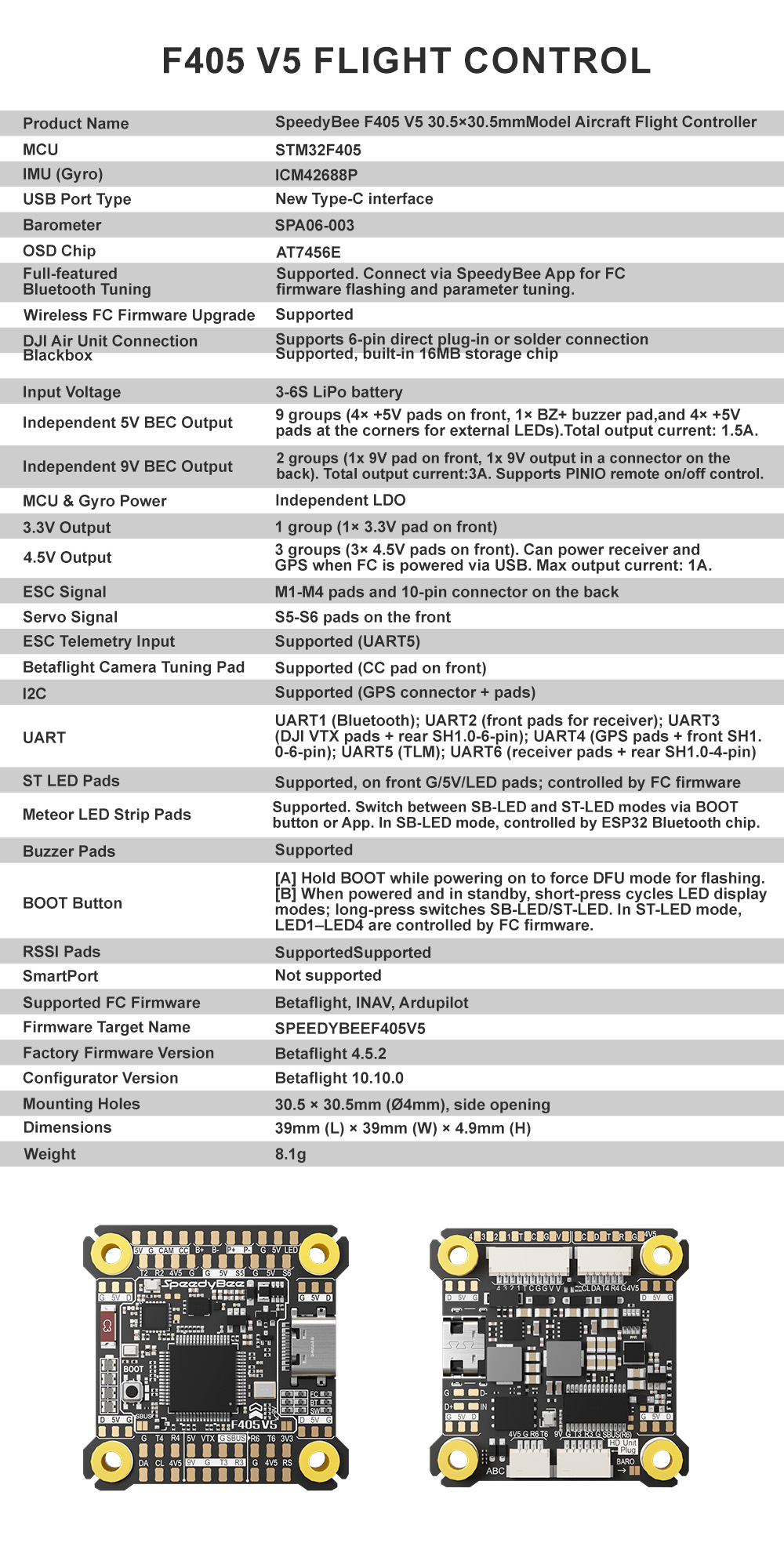

F405 V5 FC Specifications:

Product Name: F405 V5 Flight Controller

MCU: STM32F405

IMU (Gyro): ICM42688P

USB Port Type: Type-C

Barometer: SPA06-003

OSD Chip: AT7456E

Full-featured Bluetooth Tuning: Supported. Connect va SpeedyBee App for FC firmware tlashing and parameter tuning

Wireless FC Firmware Upgrade: Supported

D.l Air Unit Connection: Supports 6-pin direct plug-in or solder connection

Blackbox: built-in

16MB storage chip

Input Voltage: 3-6S LiPo battery

Independent 5V BEC Output: 9 groups (4x +5V pads on front, 1x BZ+ buzzer pad, and 4x +5V pads at the cornersfor external LEDs). Total output current: 1.5A.

Independent 9V BEC Output: 2 groups (1x 9V pad on front, 1x 9V output in a connector on the back). Total outputcurrent:3A.Supports PlNlO remote on/off control.

MCU & Gyro Power: Independent LDO

3.3V Output: 1 group (1x 3.3V pad on front)

4.5V Output: 3 groups

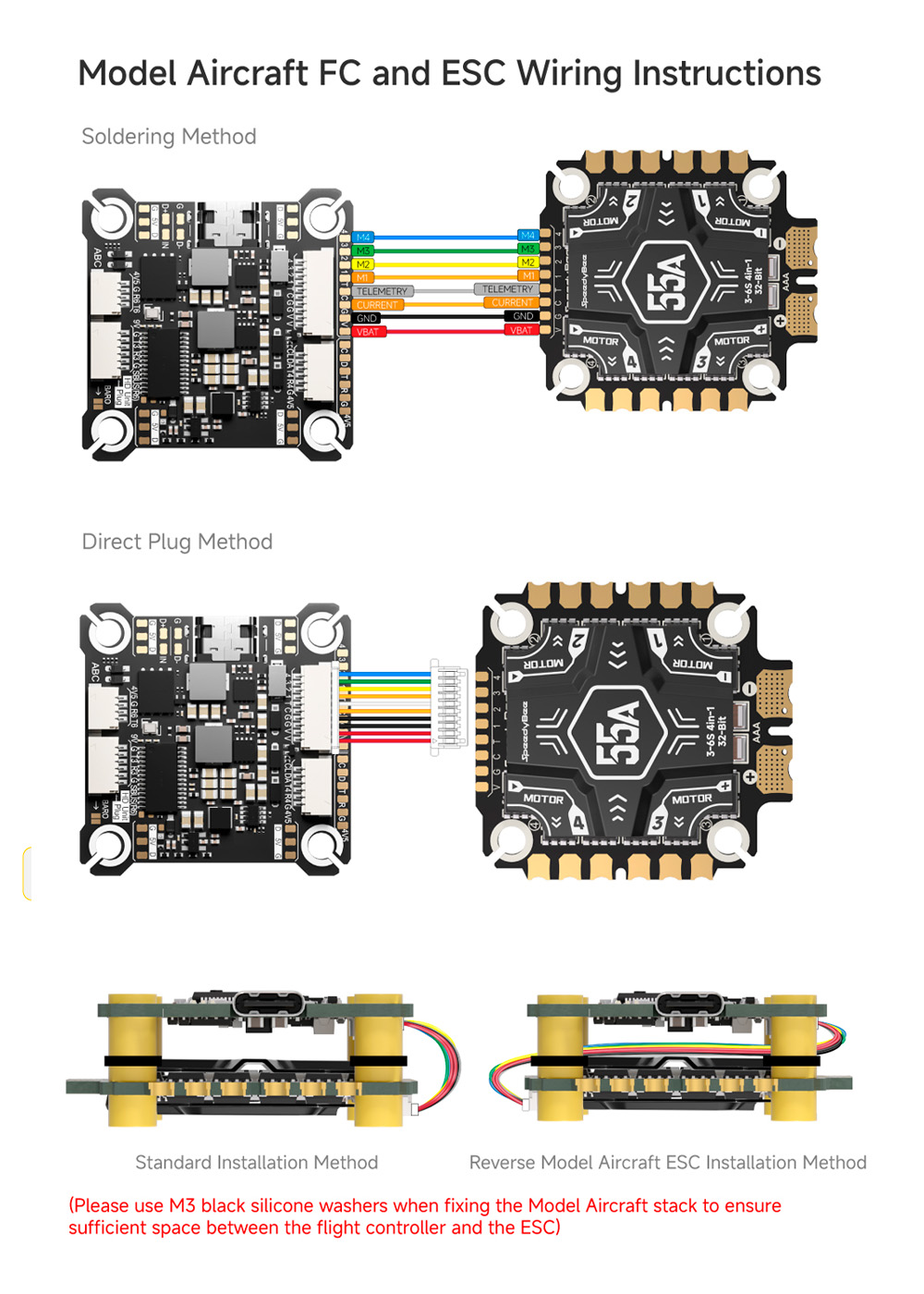

ESC Signal: M1-M4 pads and 10-pin connector on the back

Servo Signal: S5-S6 pads on the front

ESC Telemetry input: Supported (UART5)

Betafight Camera Tuning Pad: Supported (CC pad on front)

I2C: Supported (GPS connector + pads)

RSSl Pads: Supported

SmartPort: Not supported

Supported FC Firmware: Betafight, INAV, Ardupilot

Firmware Target Name: SPEEDYBEEF405V5

Factory Firmware Version: Betafight 4.5.2

Configurator Version:Betafight 10.10.0

Mounting Holes: 30.5 x 30.5mm (M4mm)

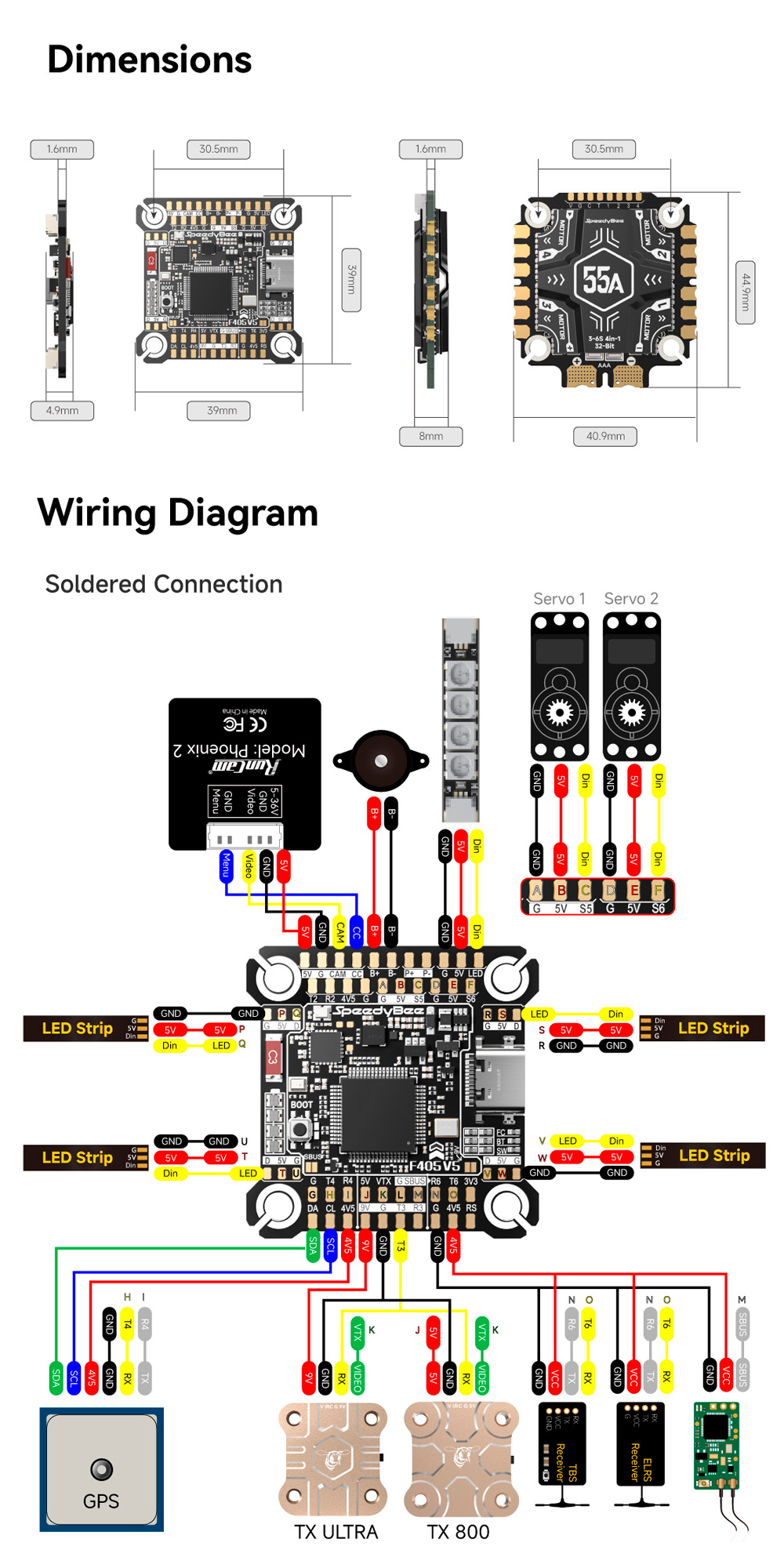

Dimensions: side opening39mm (L)x 39mm (W) x 4.9mm (H)

Weight: 8 1g

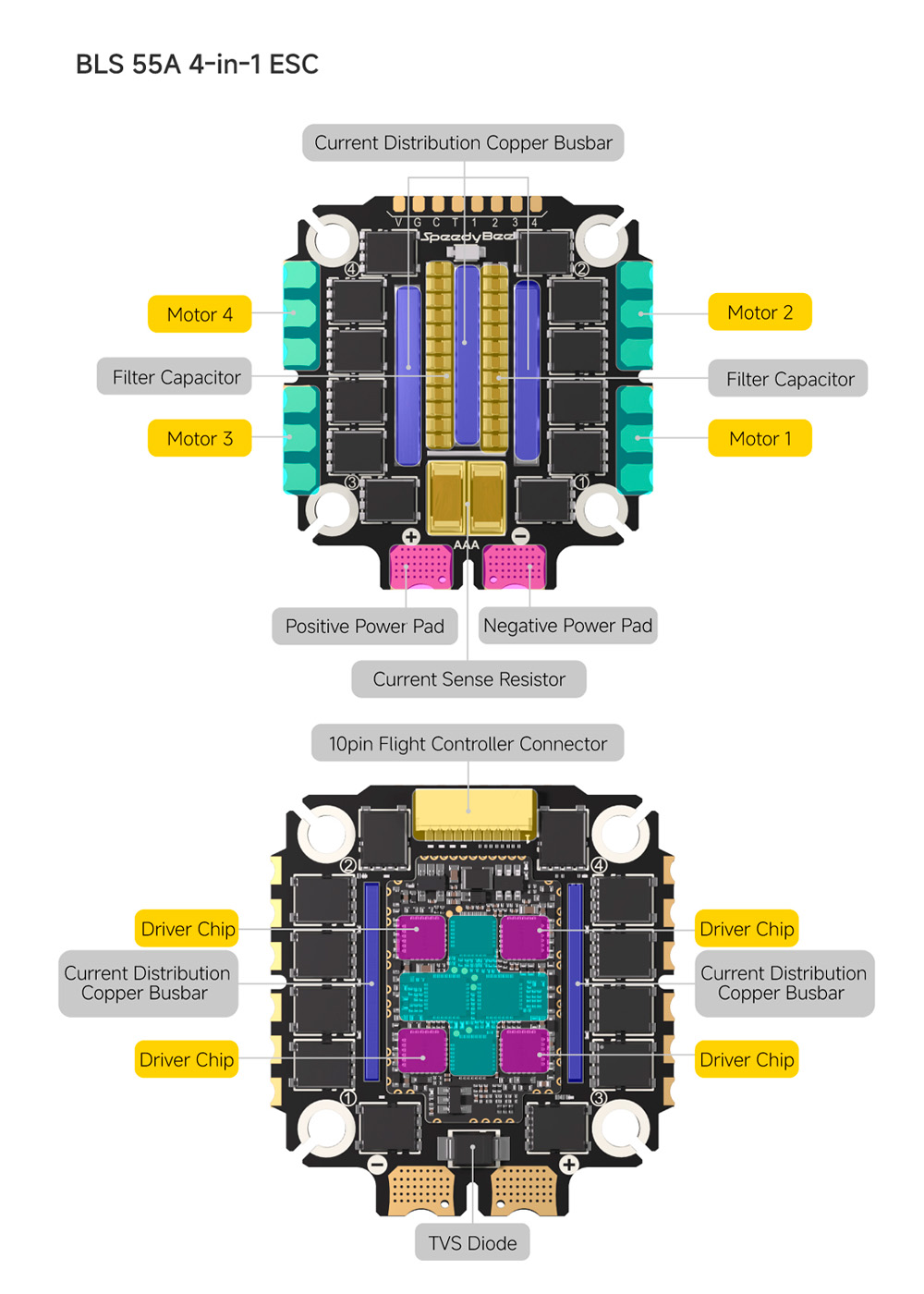

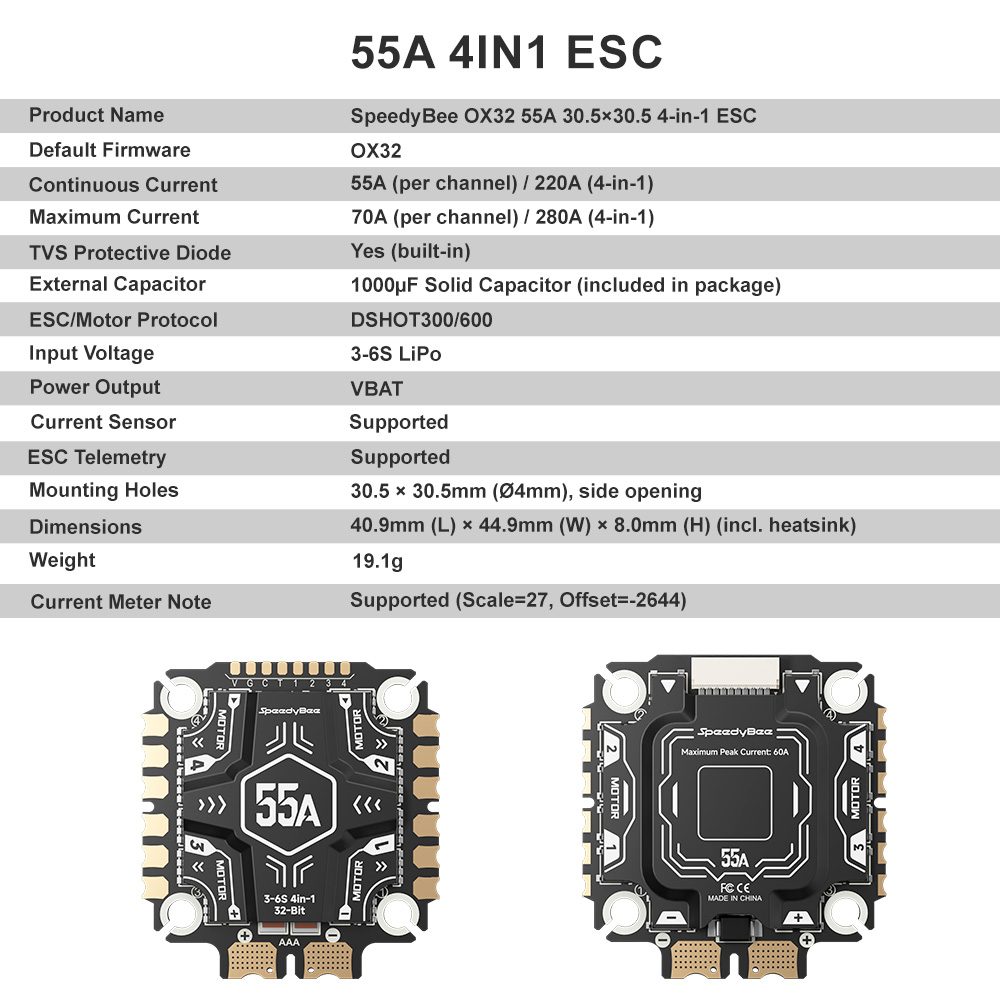

55A ESC Specifications:

Product Name: OX32 55A 4-in.1 ESC

Default Firmware: OX32

Continuous Current: 55A (per channel)/220A (4-in-1)

Maximum Current: 70A (per channel)/ 280A (4-in-1)

TVS Protective Diode: Yes (built-in)

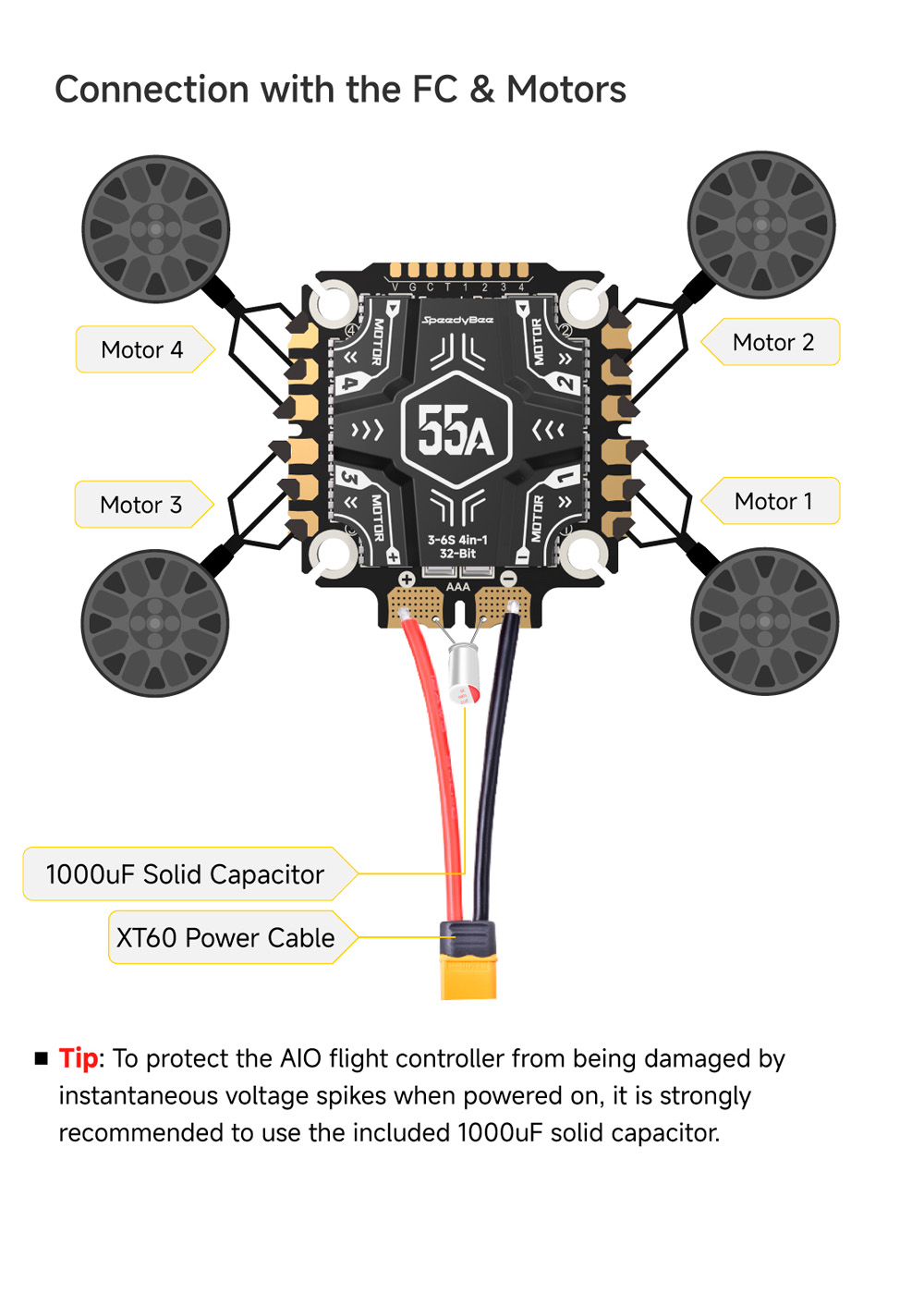

External Capacitor: 1000yF Solid Capacitor

ESC/Motor Protocol: DSHOT300/600

Input Voltage: 3-6S LiPo

Power Output: VBAT

Current Sensor: Supported

ESC Telemetry: Supported

Mounting Holes: 30.5 x30.5mm (@4mm),side opening

Dimensions: 40.9mm(L)x 44.9mm (W)x 8.0mm (H) (incl. heatsink)

Weight: 19.1g

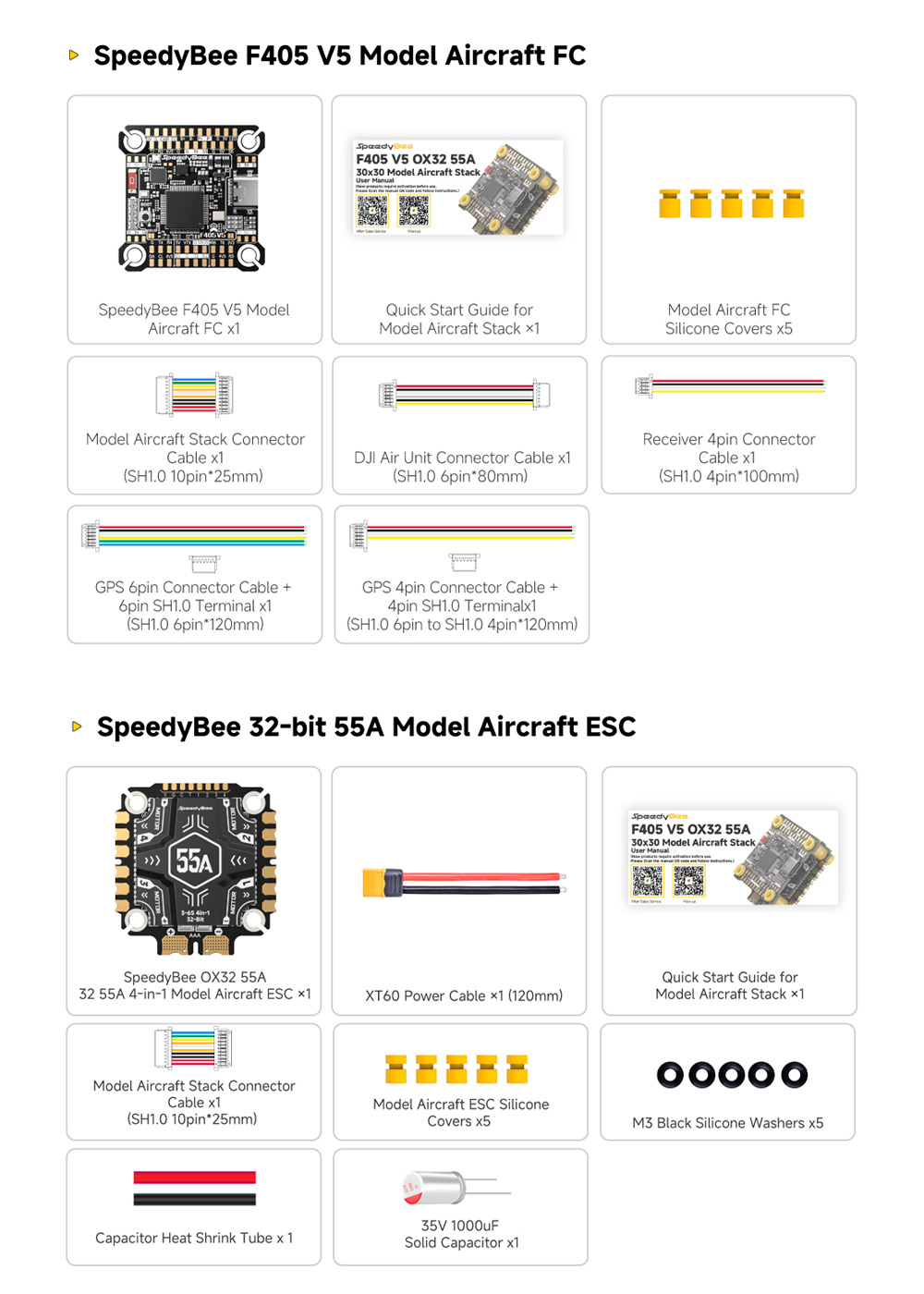

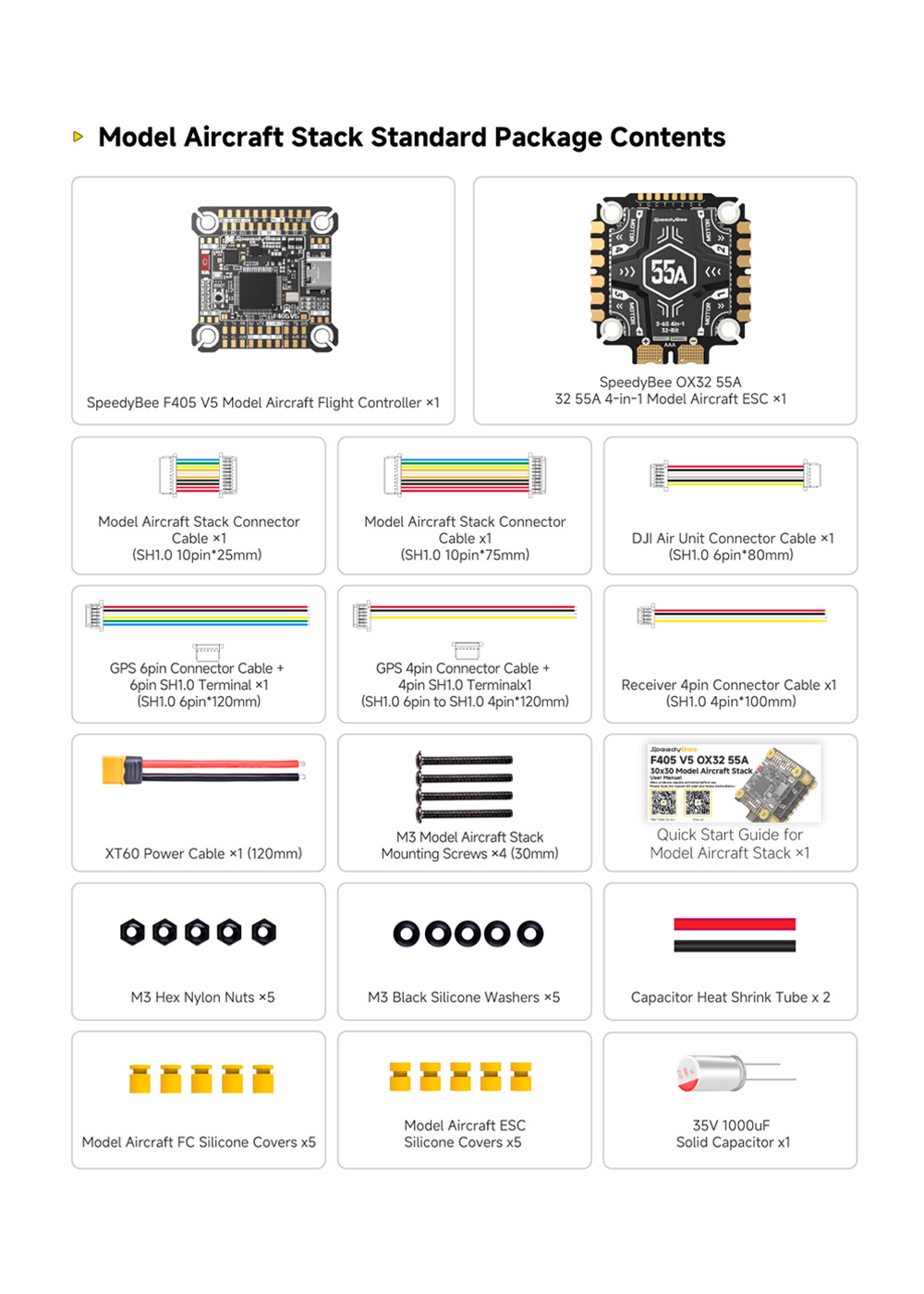

Package contents:

1*F405 V5 Flight Stack

Note:

Only the above package content, other products are not included.

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm

deviation.Thanks!

Before purchase:

1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.

2.Please read the item description, if you have any question, do not hesitate to contact us.

3.No warranty,if you receive a defect item,please contact us at once with item picture.

4.Use the vouchers for more saving.

After purchase:

1.If you are satisfied,please express your use feeling.

2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item picture or video.
