SucceBuy 2PCS Linear Guide Rails SBR12 SBR16 SBR20 800-2200mm & 4PCS UU Bearing Blocks Smooth Motion for DIY Mills CNC Parts
Description
- High-concerned chemical: None
- Origin: Mainland China
- Certification: CE
- Product: SBR 2PCS Linear Guide Rails
- Feature: High Precision Smooth Motion
- Performance: Little Noise
- Rail Shafts: SBR12/SBR16/SBR20, 800-2200mm
- Material: High Carbon Steel & Aluminum
-

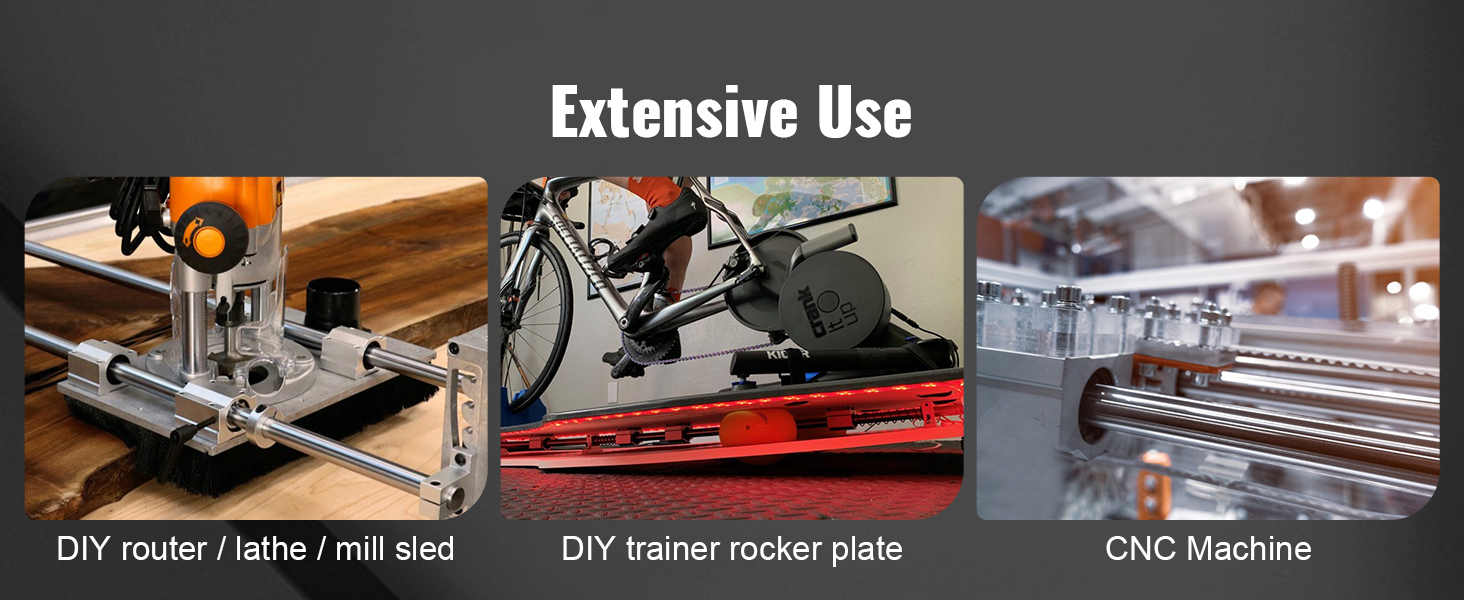

【Versatile Applications】:Ideal for a range of high-load automation equipment and DIY projects, the SBR linear rail set is suitable for use in router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, and more.
-
【Comprehensive Linear Guide Rail Set】:
-

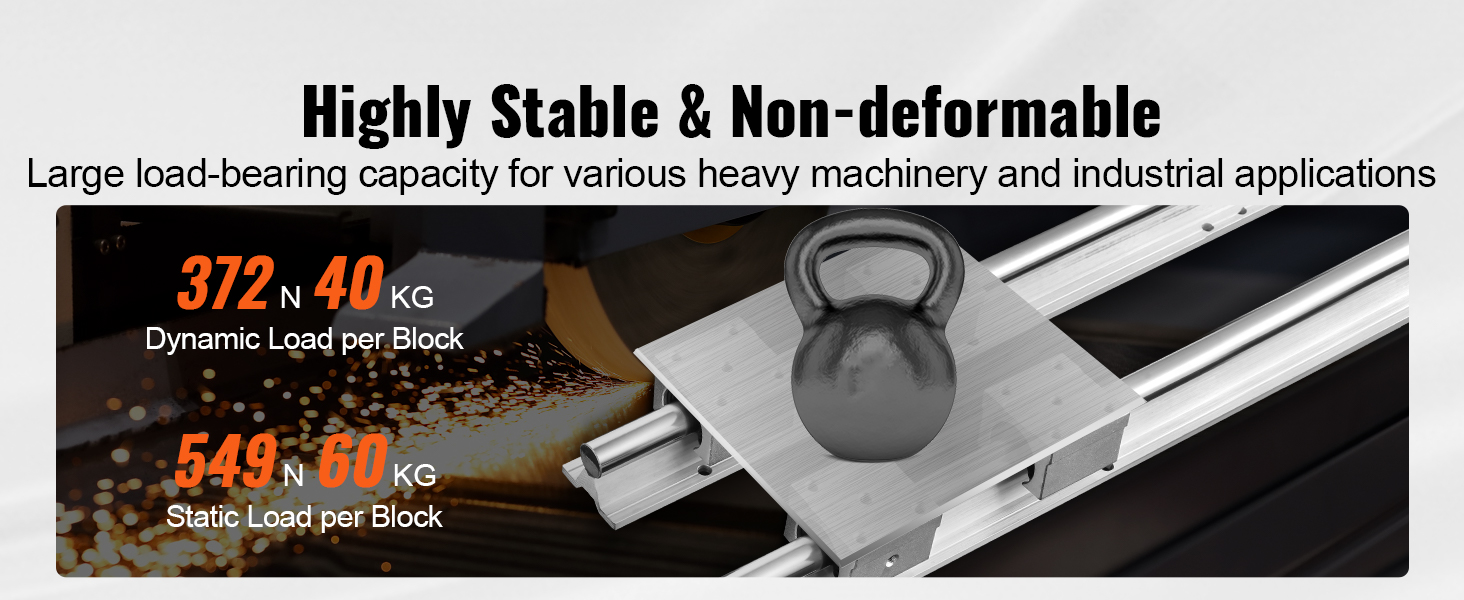

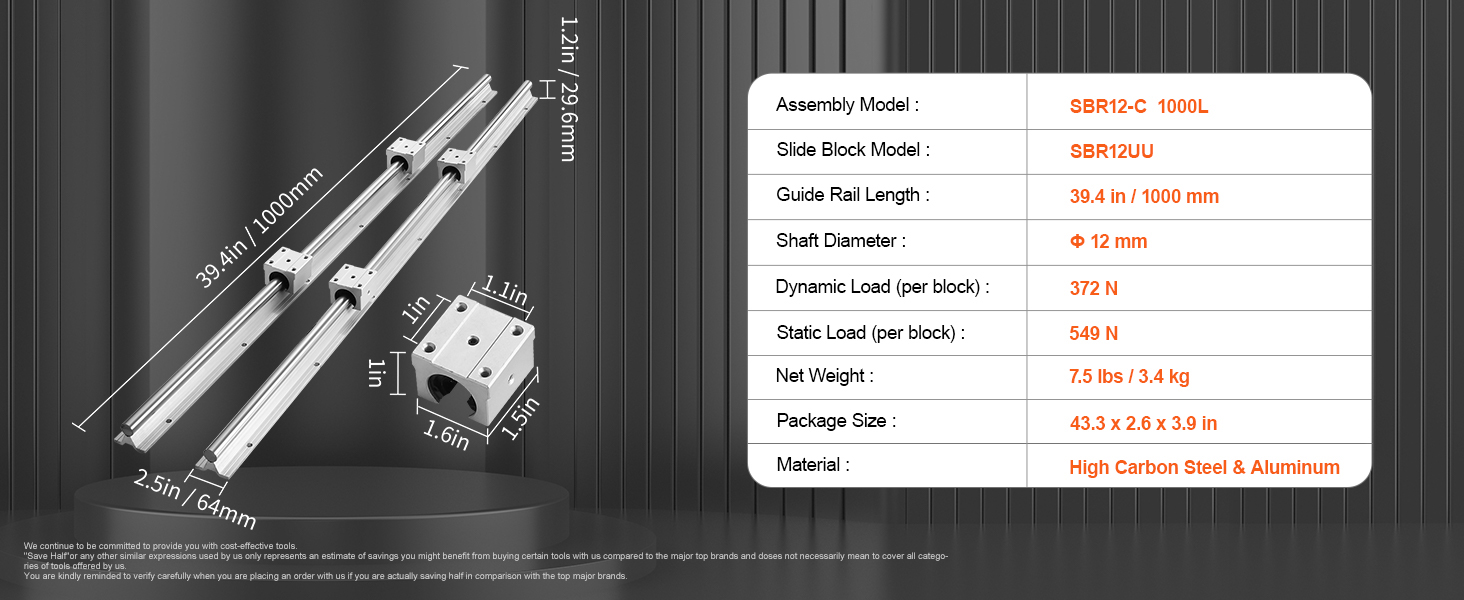

SBR12-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SBR12 guide rails and 4 x SBR12UU slide blocks. Dynamic Load Per Block: 372 N, Static Load Per Block: 549 N.
-
SBR16-800 mm Linear motion guide rail includes 2 x 31.5 in/800 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.
-
SBR16-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.
-

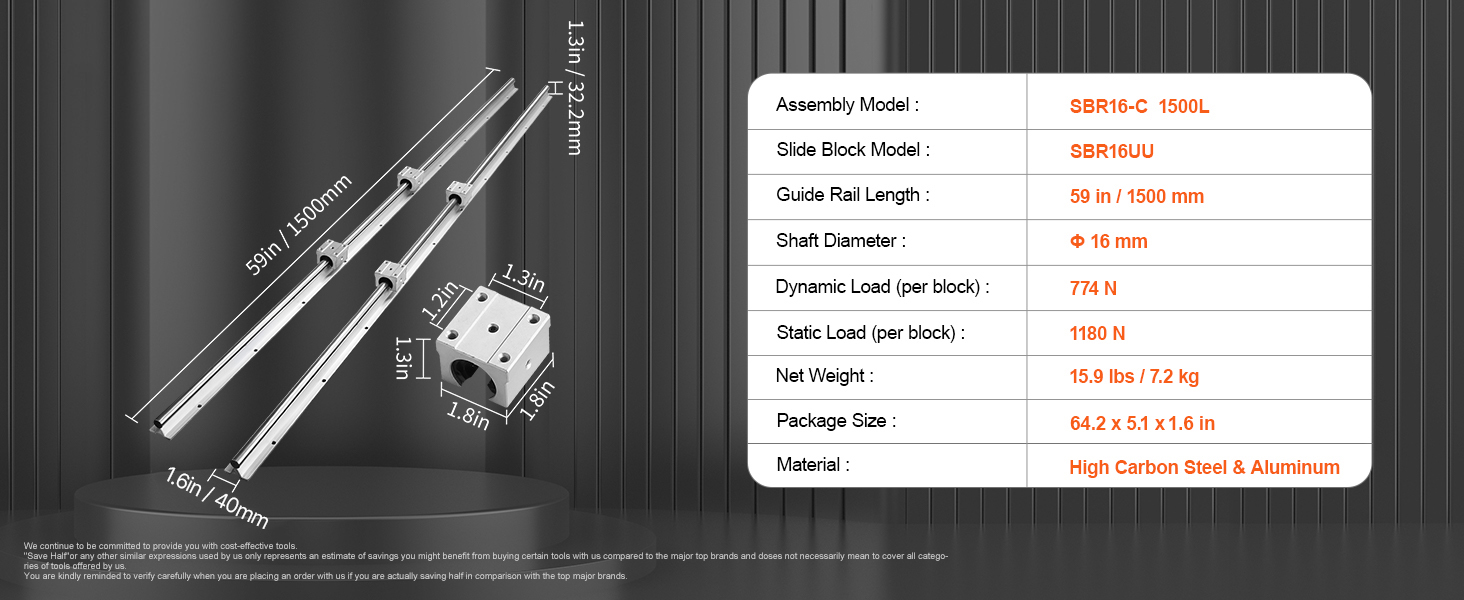

SBR16-1500 mm Linear motion guide rail includes 2 x 59 in/1500 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.
-
SBR16-2000 mm Linear motion guide rail includes 2 x 78.7 in/2000 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.
-
SBR20-800 mm Linear motion guide rail includes 2 x 31.5 in/800 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
-

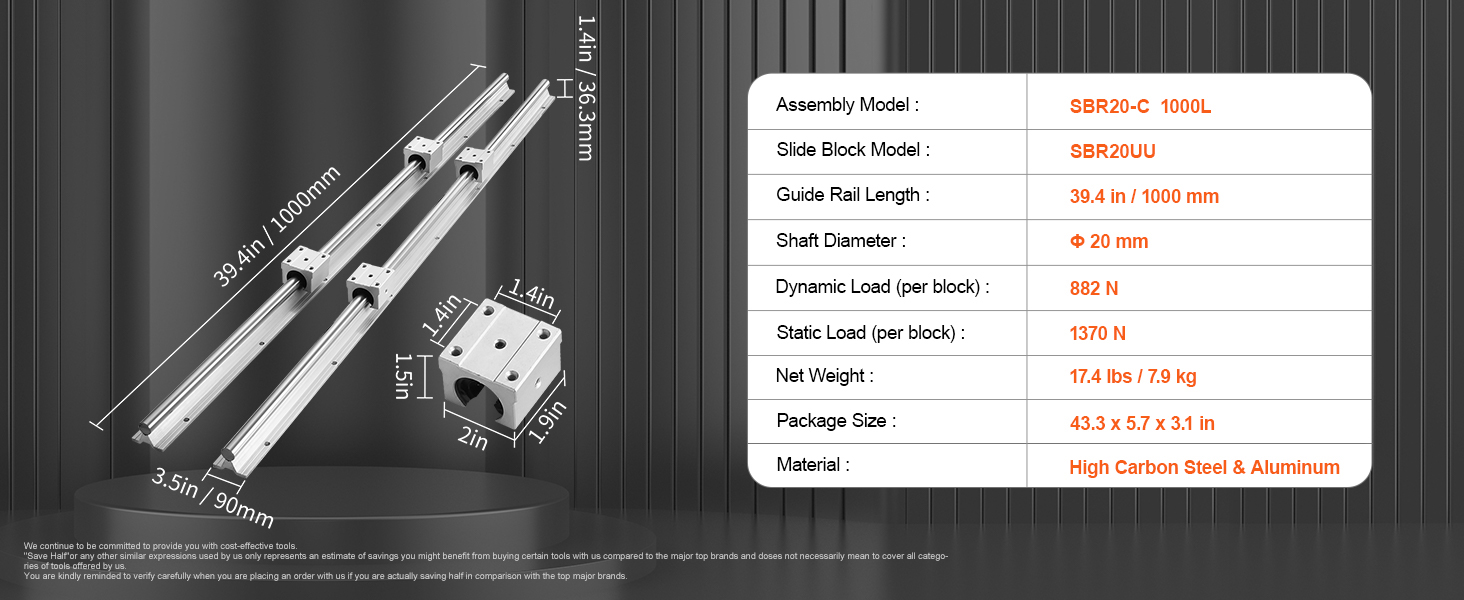

SBR20-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
-
SBR20-1200 mm Linear motion guide rail includes 2 x 47.2 in/1200 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
-
SBR20-1500 mm Linear motion guide rail includes 2 x 59 in/1500 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
-

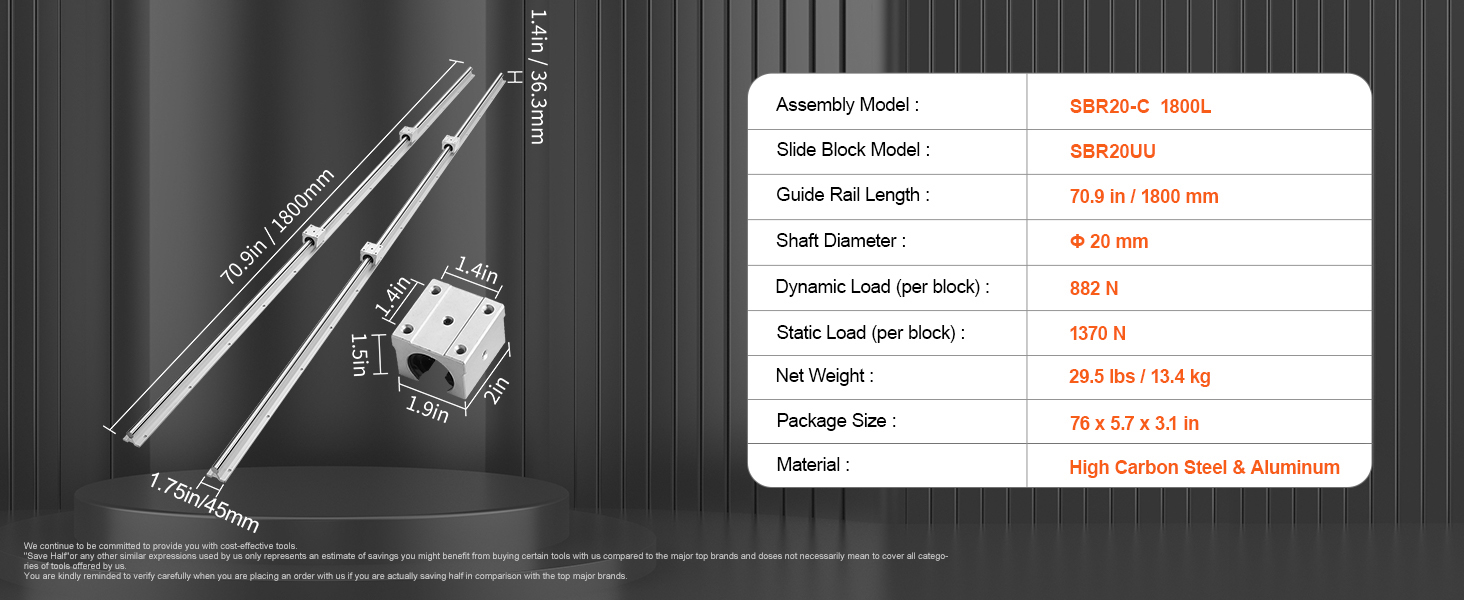

SBR20-1800 mm Linear motion guide rail includes 2 x 70.9 in/1800 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
-

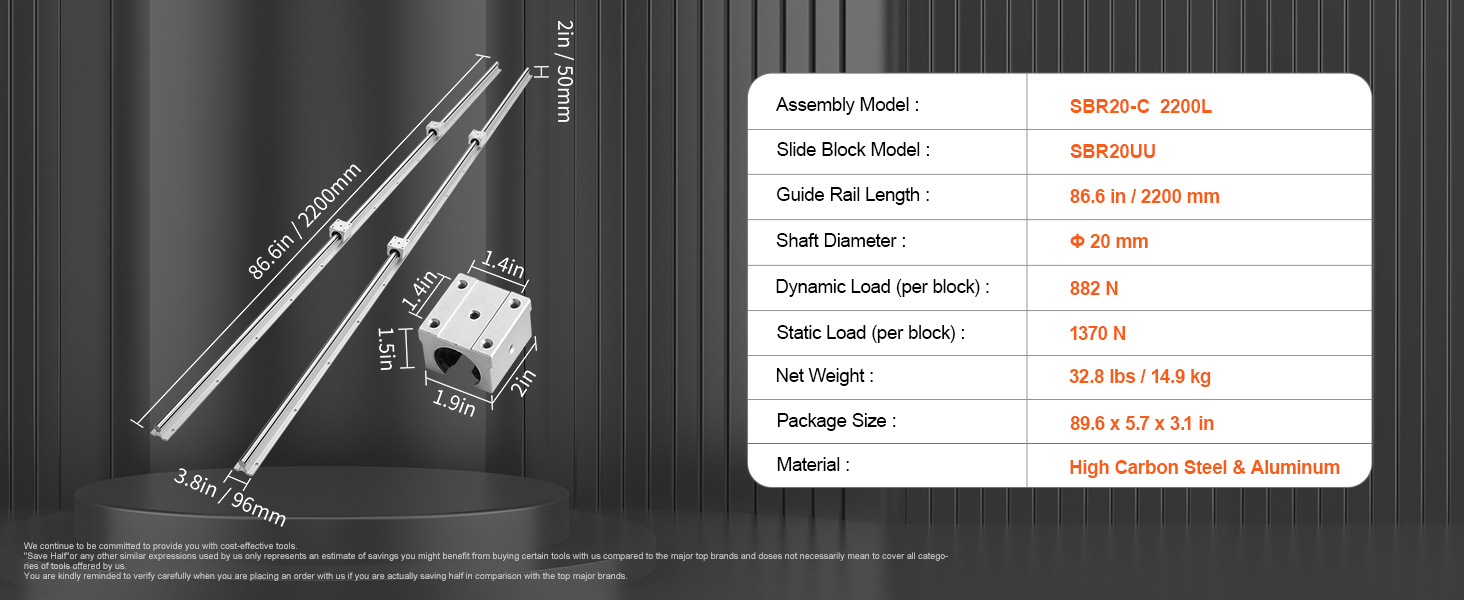

SBR20-2200 mm Linear motion guide rail includes 2 x 86.6 in/2200 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
-
【Durable and Long-Lasting Construction】:Made from carbon steel and aluminum, the linear rails feature a chrome-plated surface for enhanced rust resistance and durability. The set includes four aluminum slide blocks with ball bearings for smooth and consistent sliding performance.
-

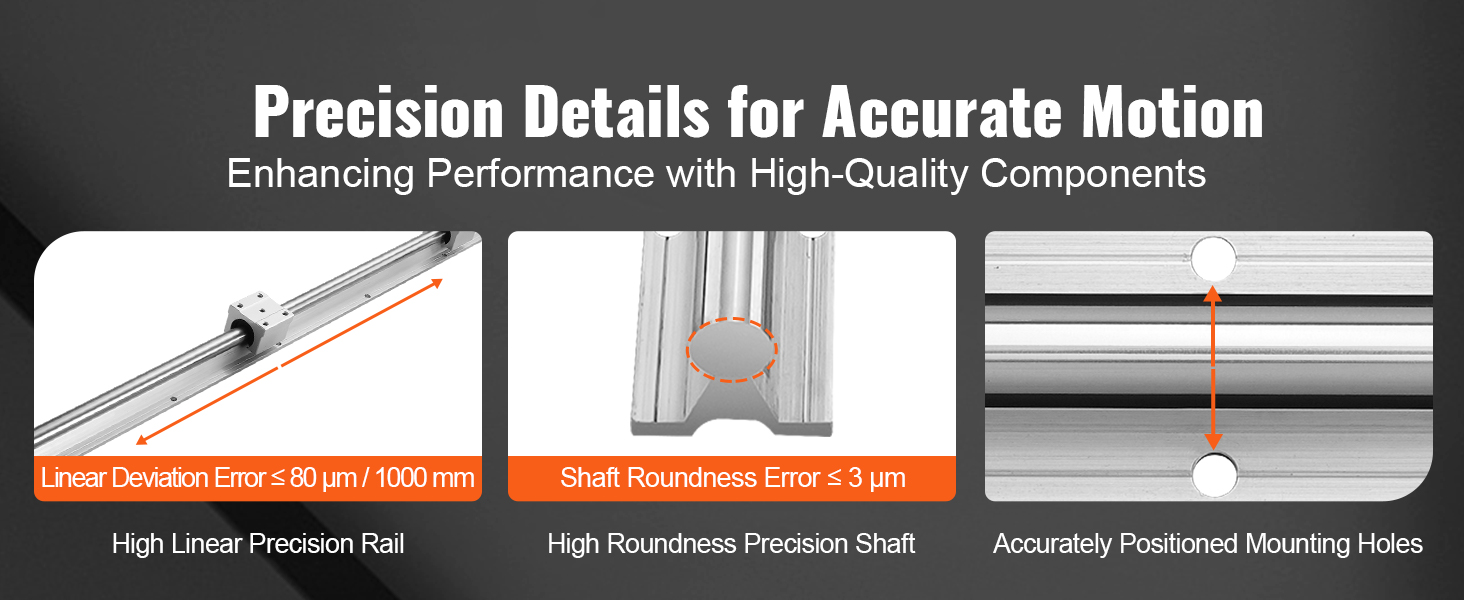

【High Precision for Reliable Performance】:The linear rails boast precise circular shaft dimensions and straightness, providing high accuracy and stability in motion. The sturdy aluminum base and accurately placed mounting holes ensure easy and reliable installation.
-

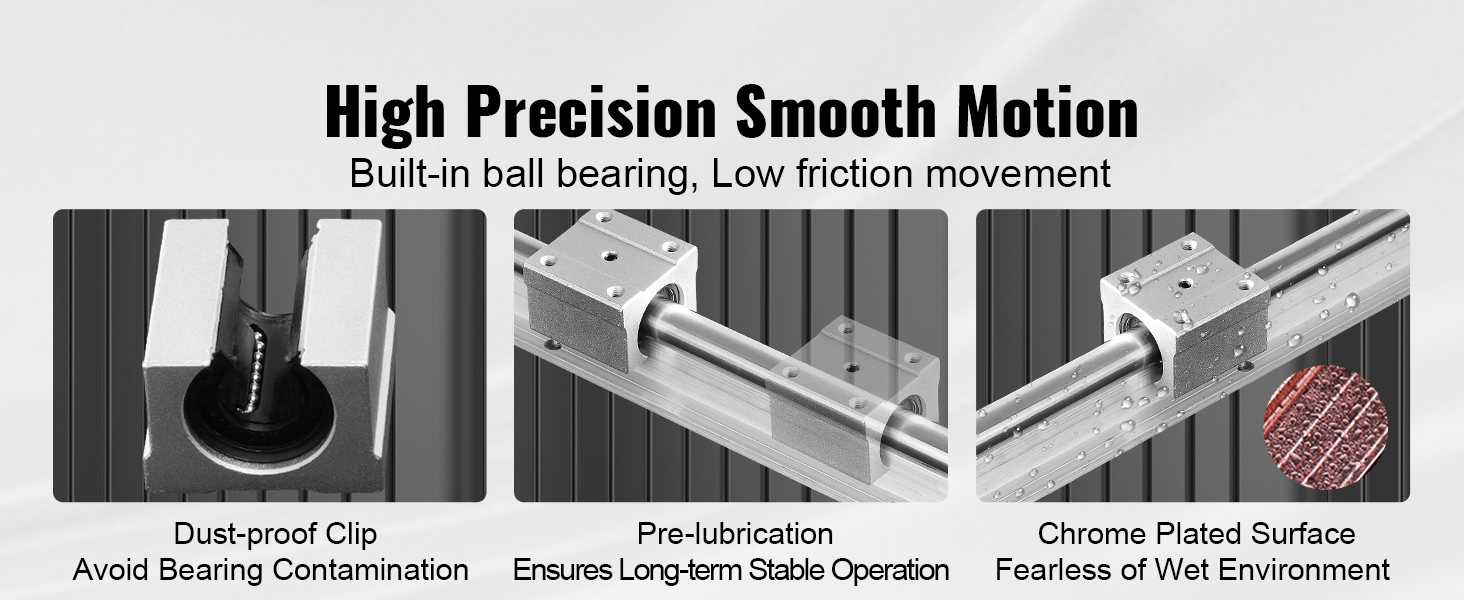

【Low Noise Operation】:The combination of aluminum SBR slide blocks and a carbon steel linear shaft, paired with built-in ball bearings, ensures low-friction, smooth sliding with minimal noise and tilt. This design helps reduce labor and improve control.
SBR12 1000MM
Additional information
| Ships From | UNITED KINGDOM, Australia, canada, CZECH REPUBLIC, france, GERMANY, Mexico, Poland, spain, United States |
|---|---|
| High-concerned chemical | None |
| Origin | Mainland China |
| Certification | CE |
| Product | SBR 2PCS Linear Guide Rails |
| Feature | High Precision Smooth Motion |
| Performance | Little Noise |
| Rail Shafts | SBR12/SBR16/SBR20, 800-2200mm |
| Material | High Carbon Steel & Aluminum |
| Color | SBR12 1000MM, SBR16 1000MM, SBR16 1500MM, SBR16 2000MM, SBR16 800MM, SBR20 1000MM, SBR20 1200MM, SBR20 1500MM, SBR20 1800MM, SBR20 2200MM, SBR20 800MM |
