teseek JUWEI-17 Narrow/Wide Dovetail Groove Harmonic Equatorial Mount + Wired Hand Controller Astronomy Photography Theodolite
Description
- Battery Included: No
- High-concerned chemical: None
- Model Number: JUWEI-17
- Origin: Mainland China
- Certification: CE
- S: 93000—-93011
- juwei 17: equatorial mount
- juwei 17 harmonic mount: Equatorial
- Telescope: juwei 17 mount
- equatorial mount: Astronomical telescope
- harmonic mount: harmonic mount
- equatorial assembly: juwei 17 harmonic equatorial mount
- juwei 17 pier: juwei-17
teseek JUWEI-17 Narrow/Wide Dovetail Groove Harmonic Equatorial Mount + Wired Hand Controller Astronomy Photography Theodolite monture équatoriale телескоп 적도의 телескоп астрономический

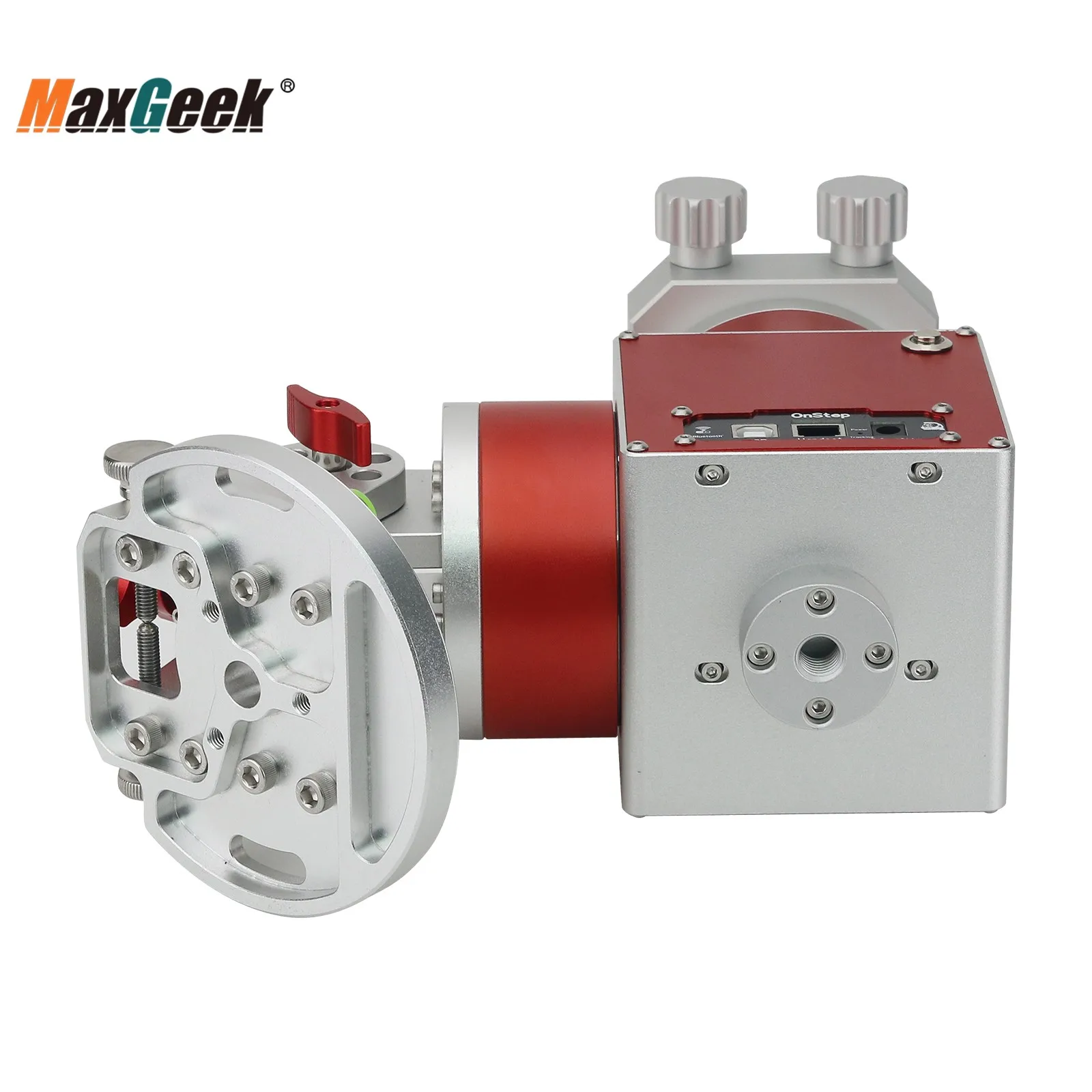

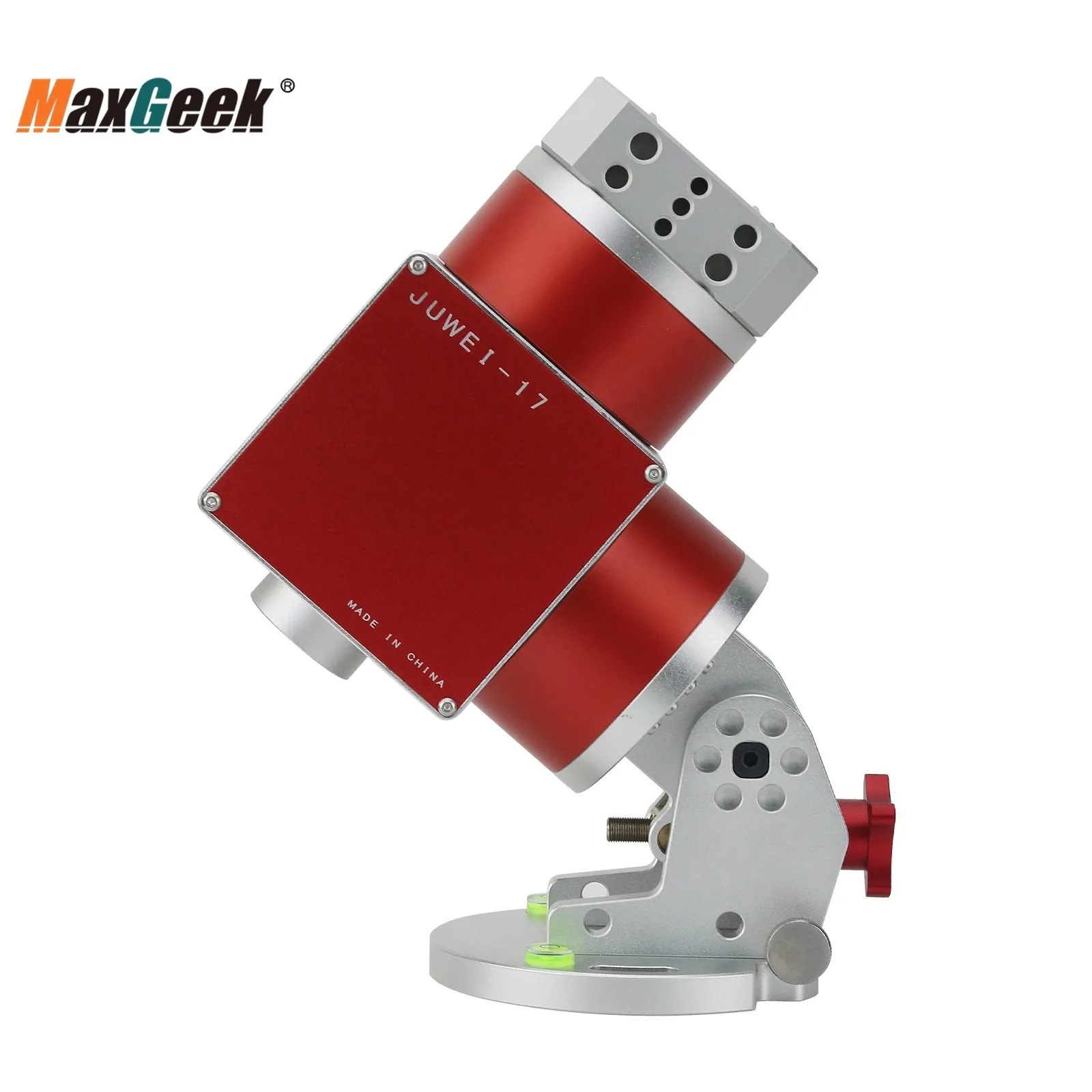

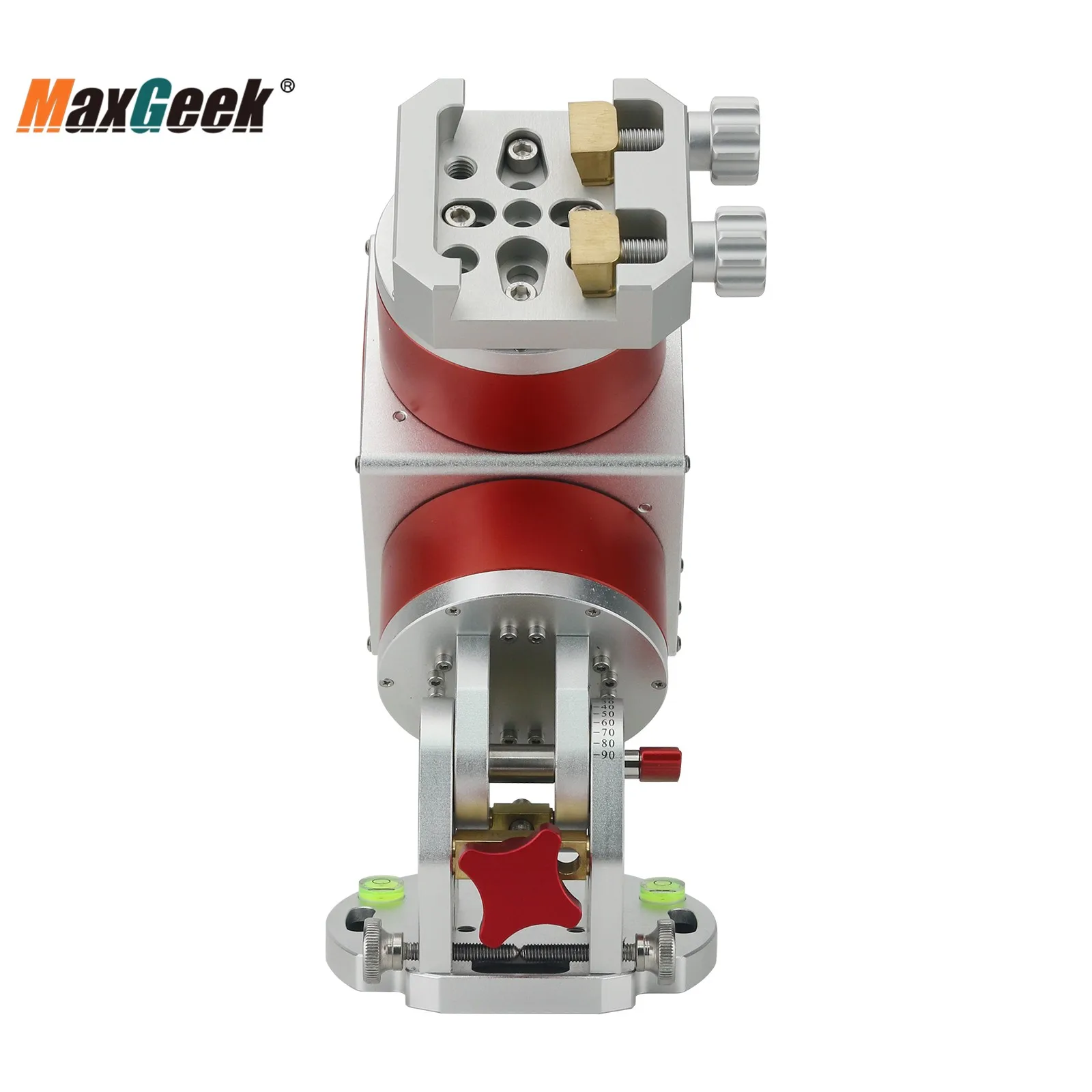

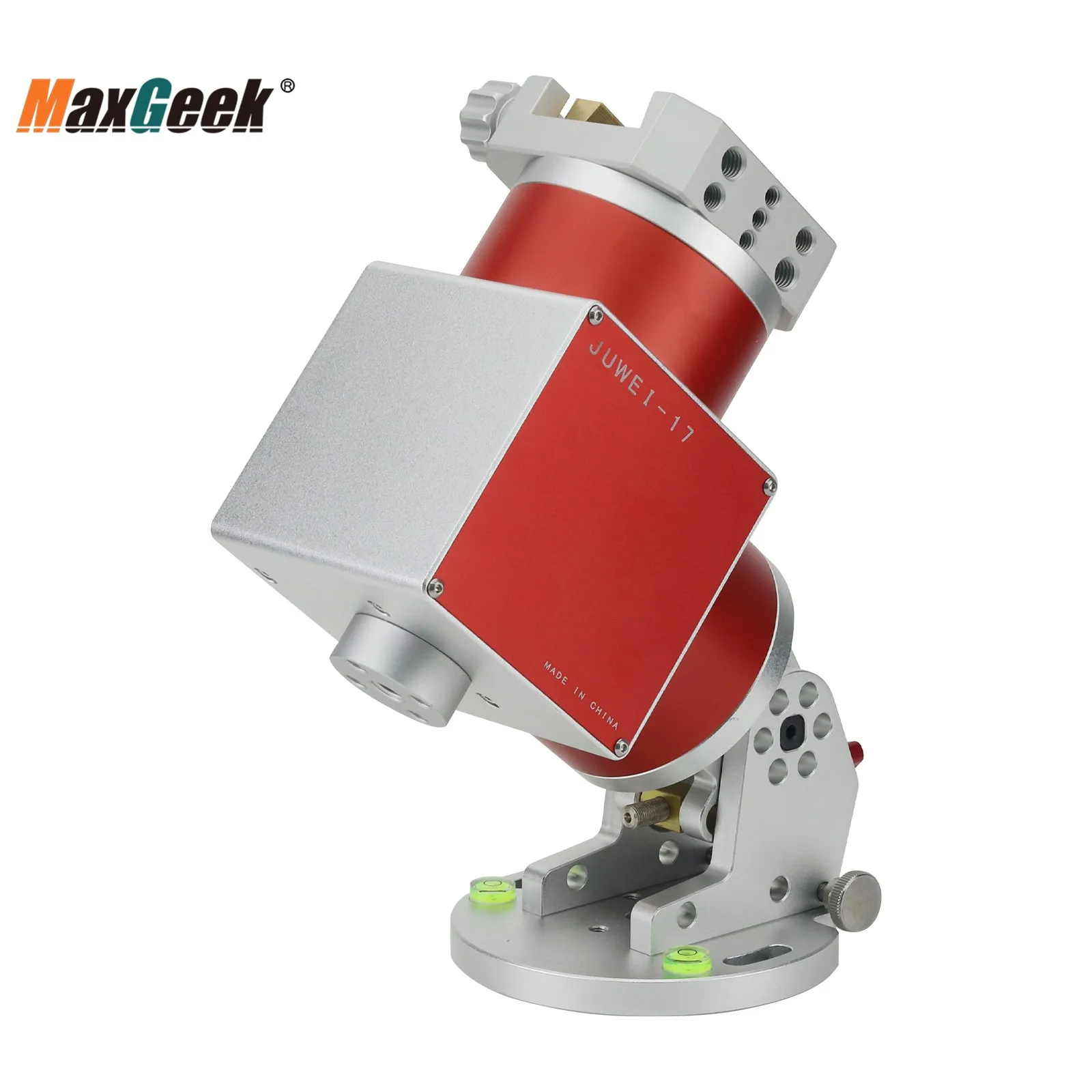

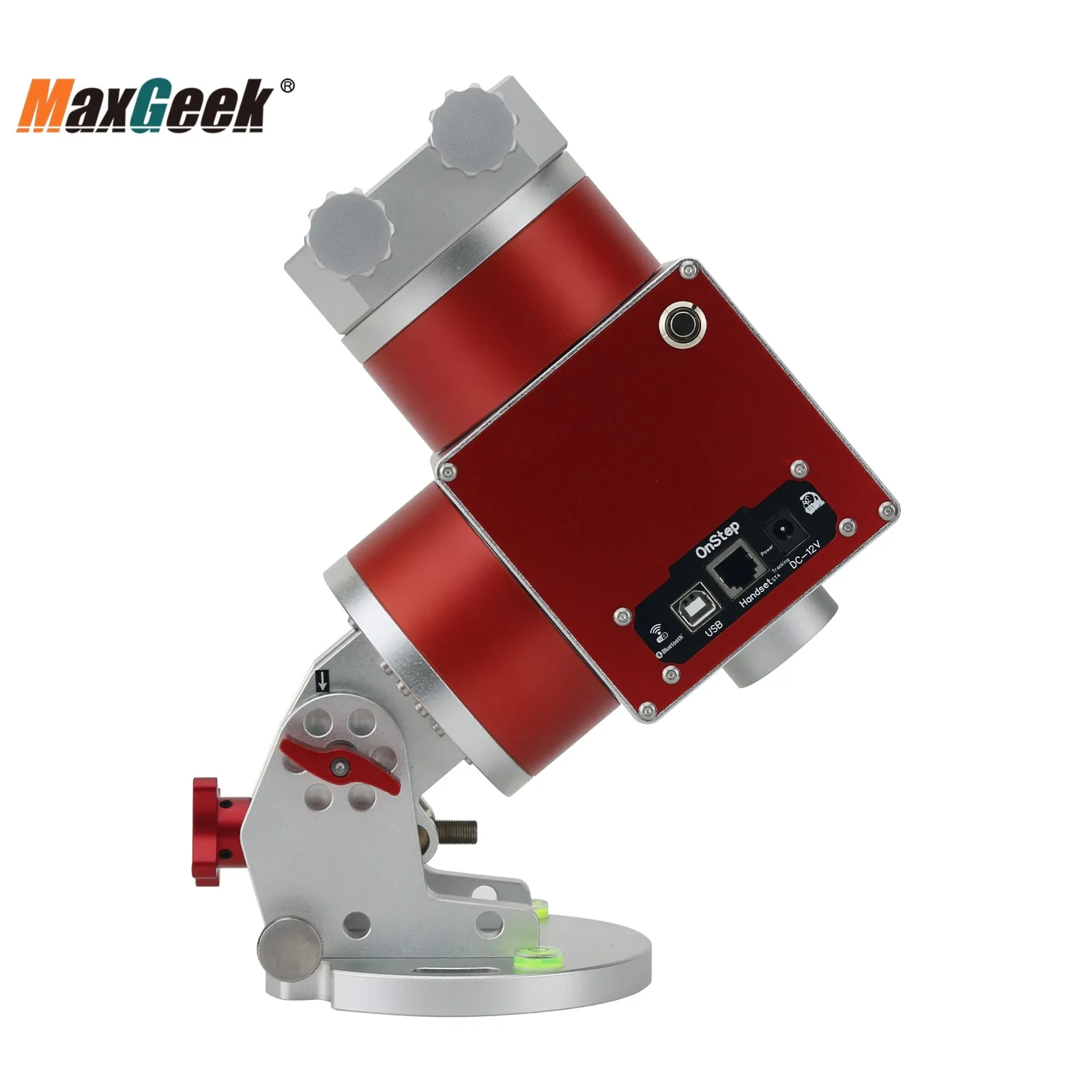

JUWEI-17 Harmonic Equatorial Mount:
Features:
– Excellent load capacity: 13kg without counterweight; more stable for guiding
– Versatile: It can work in equatorial mount and theodolite modes
– Handle + APP control: Wi-Fi control for real-time star map
– Precise control: harmonic reducer + synchronous belt
– Lightweight design: its body structure without counterweight
– Equipped with OnStep system, it supports computer/mobile phone/ZWO smart Wifi controller/NINA/WiFi/Bluetooth/handle control, etc.
Performance Parameters:
– Item name: JUWEI-17 Harmonic Equatorial Mount
– Equatorial mount mode: Equatorial mount/theodolite
– OnStep system: Supports computer/mobile phone/ZWO smart Wifi controller/NINA/WiFi/Bluetooth/handle control, etc.
– Net weight of equatorial mount: 5.15kg
– Load without counterweight: 13kg
– Transmission mode: harmonic + reduction wheel
– Reducer: Double 17 harmonic reducer
– Reduction ratio: 400:1
– Motor: 42 stepper motor
– Chassis specifications: GEM4
– Chassis diameter: 125mm
– Center column: 12mm
– Latitude adjustment range: 10-90 degrees
– Azimuth adjustment range: 20°
– Counterweight shaft interface thread: Diameter M12
– Counterweight diameter: 20mm
– Counterweight length: 230mm
– Power supply voltage: DC12V
– Data interface: USB2.0/WiFi
– Guiding interface: handle and ST4
– Automatic zeroing: mechanical automatic zeroing
Hand Controller:
– Easy to operate
– GOTO autoguiding
– Automatic and accurate tracking
– Your ideal choice for telescope equatorial mounts
– Can be used with JUWEI-17 harmonic equatorial mounts
Package Included:
– 1 x Harmonic equatorial mount
– 1 x Data cable
– 1 x Counterweight shaft
– 2 x Compression screws
– 2 x Nylon gaskets
– 2 x Stainless steel gaskets
– 1 x Horizontal adjustment column
– 1 x Allen wrench
– 1 x Wired hand controller
– 1 x Network cable
Packaging Details:
– Weight: 7kg
Note:
– The colors of the hand controller are black, red and blue. And the controller of different colors will be delivered at random. Thank you for your understanding!
– The tripod displayed in the picture is not included.
-Video guide and manual, please contact customer service, I will send them to you
Additional information
| Color | Narrow Dovetail, Narrow Dovetail-1254, Narrow Dovetail-173, Narrow Dovetail-193, Narrow Dovetail-350850, Narrow Dovetail-365458, Wide Dovetail Groove, Wide Dovetail Groove-175, Wide Dovetail Groove-200001438, Wide Dovetail Groove-200002130, Wide Dovetail Groove-200004889, Wide Dovetail Groove-200004890 |
|---|---|
| Battery Included | No |
| High-concerned chemical | None |
| Model Number | JUWEI-17 |
| Origin | Mainland China |
| Certification | CE |
| S | 93000—-93011 |
| juwei 17 | equatorial mount |
| juwei 17 harmonic mount | Equatorial |
| Telescope | juwei 17 mount |
| equatorial mount | Astronomical telescope |
| harmonic mount | harmonic mount |
| equatorial assembly | juwei 17 harmonic equatorial mount |
| juwei 17 pier | juwei-17 |
