Turmera 1S-20S 3.7V-72V Battery Indicator Displayer with Switch Use in 12V 18V 24V 36V 48V 60V Lithium Battery Lifeo4 Lead-Acid
Description
- High-concerned chemical: None
- Model Number: 3.7V-72V Battery Indicator Displayer
- Accessory Type: Battery Accessories
- Brand Name: Turmera
- Origin: Mainland China
- Certification: None
- Model: 3.7V-72V Battery Indicator Displayer
- Battery Type: Lithium Battery/ Lifepo4 Battery /Lead-Acid

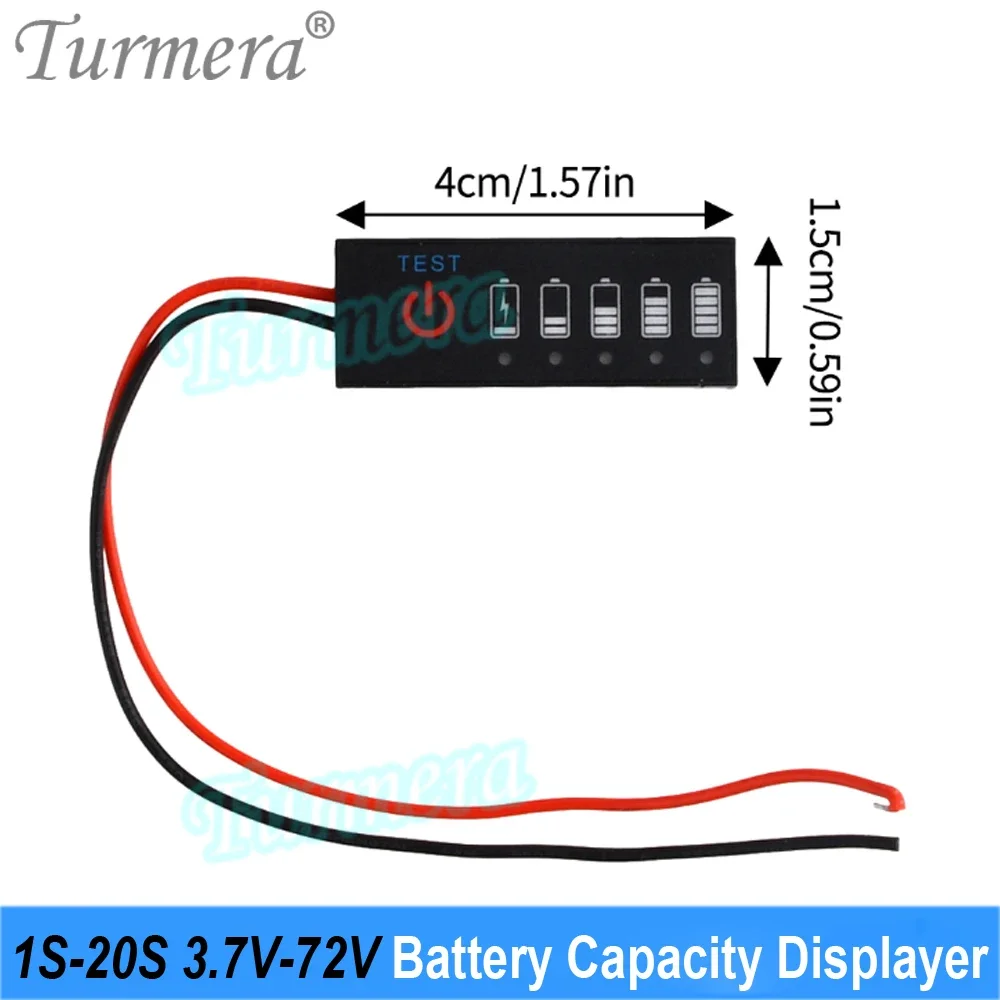

- Dimensions: 40*15*2.5mm
- Application: for 12V 24V 36V 48V 60V Battery Use
Product selling points:
1. Ultra thin battery display with 5 LED indicators for more intuitive and aesthetically pleasing display
2. With reverse connection function, even if the positive and negative connections are reversed, it will not burn
3. Small and exquisite appearance, easy to carry
4. Wider range of use, lithium batteries, lead-acid batteries, lithium iron phosphate, electric vehicle batteries, and electric equipment can all be used
5. Connect the positive and negative terminals of the display board to the positive and negative terminals of the tested battery, gently press the red button with your finger, and the IED light will light up to display the real-time battery level
6. Release your finger, the LED light will go out after a delay of 3-10 seconds, and it will not consume any power when stationary.
Product parameters:
Allowable error: ± 2%;
4-stage battery: 25%, 50%, 75%, 100%
Working current: 15ma
Lead length: 15cm
External dimensions: 40x 15x 2.5mm
Working temperature: -10 ℃~65 ℃
Installation:
1. Connect the positive and negative terminals of the display board to the positive and negative terminals of the tested battery, gently press the red button with your finger, and the IED light will light up to display the real-time battery level
2. Release your finger, the LED light will go out after a delay of 3-10 seconds, and it will not consume any power when stationary.
3. Equipped with reverse connection function, even if the positive and negative connections are reversed, they will not burn, and can be adjusted
Lithium battery group displays battery parameters: (The following data are reference values, with a 2% error range. Do not take photos if high accuracy is required)
Kind reminder: The 3.7V lithium battery uses 1 red power indicator light and 4 green battery indicator lights (for other voltage ranges, 1 red power indicator light and 4 blue battery indicator lights)
(Note: N represents the number of battery cells)
The first power indicator light is red
Battery voltage greater than N × 3.3V, bright second blue
Battery voltage greater than N × 3.5V, third blue on
Battery voltage greater than N × 3.7V, 4th blue on
Battery voltage greater than N × 3.9V, bright 5th blue
Package List:
Battery indicator * 1
Shipping and delivery:
1.China Post Registered Air Mail: about 25-60 working days.(http://www.17track.net)
2.Aliexpress Standard Shipping:about 15-60 working days.(http://www.17track.net)
3.PostNL Delivery Company: About 15-30 working days.(http://www.17track.net)
4.Seller Shipping Method: about 25-60 working days.
About the Feedback and Review:
1.Buyer's early confirmation will be highly appreciated after receiving the items.
2.Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It'll just take you 1 minute,but this 1 minute has the extremely vital significance to us.
3.Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.
Returns and Refund:
1.if you can not received the goods in guaranteed time,please contact us to solve the refund problem.
2.if you have received the goods,but there have some problem contact seller,and seller agree to return the goods with you,when we get the goods,the product in perfect condition,we will give you full refund.
3.if you have any problem in the order time,please feel free to contact us,thank you.
Buyer bought this item also bought:
Additional information
| Color | 10S 36V 42V, 12S 36V Lifepo4, 13S 48V 52V, 16S 48V Lifepo4, 16S 59.2V 67.2V, 1S 3.7V 4.2V, 20S 74V 84V, 2S 7.4V 8.4V, 3S 11.1V 12.6V, 4S 12.8V Lifepo4, 4S 14.8V 16.8V, 5S 18V 21V, 6S 22.2V 25.2V, 7S 25.9V 29.4V, 8S 24V Lifepo4 |
|---|---|
| High-concerned chemical | None |
| Model Number | 3.7V-72V Battery Indicator Displayer |
| Accessory Type | Battery Accessories |
| Brand Name | Turmera |
| Origin | Mainland China |
| Certification | None |
| Model | 3.7V-72V Battery Indicator Displayer |
| Battery Type | Lithium Battery/ Lifepo4 Battery /Lead-Acid |
| Dimensions | 40*15*2.5mm |
| Application | for 12V 24V 36V 48V 60V Battery Use |
