Wireless Fish Finders with Float and Anchor Hook Underwater Camera with WiFi Box 8LED Illuminated Fish Device for Simple Fishing
76.91$ – 114.71$Price range: 76.91$ through 114.71$
In Stock
Loading...
Description
- High-concerned chemical: None
- Brand Name: DIXSG
- Origin: Mainland China
How to use it
Install mobile phone APP
Iphone users: two ways to download software
1. Search for " WiFi check" in the APP Store
2. Download by scanning the QR code below
Android users
Download by scanning the QR code below
Connect & Use :

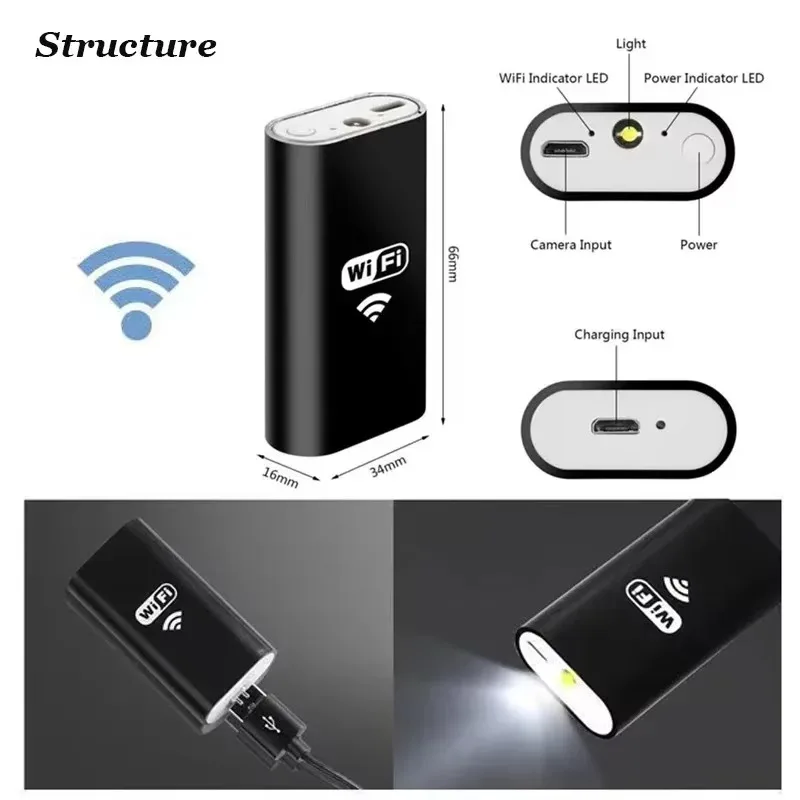

1. Long press the power button of the wifi box to turn on/ long press again to turn off.
2. Use your mobile phone to search for the WiFi signal "DN-WiFi-XXX" and connect (no password required).
3. Open APP, at this time you can see the real-time picture.
4. After the picture appears, short press the on-off key to take a picture.
5. After connecting to the corresponding WiFi name, return to the phone desktop and open the installed APP to display the screen successfully.
6. Turn on and off the flashlight: Press the power supply twice continuously and quickly in the power-on state to turn on the LED lamp, and then press it twice continuously and quickly to turn off the LED lamp
Description:
Number of LEDs: 8
Frame rate: 30fps
View angle: 70°
Working temperature: -35 ℃ degrees to 70 ℃
Resolution: 720P, 480P optional
Viewing angle:70°
Best viewing distance: 10-300 cm
Auxiliary light source: 8 LED lights
Camera diameter: 5. 5mm/ 8mm optional
Waterproof rating: IP68
Transmission distance: 0-30 meters
Connection method: WiFi connection
Wire diameter: 8mm
Pixel: 5 mega-pixel
Power supply: 5V
Support computer: XP W7 W8 VISTA
Photo format: JPEG
Video format: AVl
Connectable devices: mobile phones, computers, tablets
Whether to take photos and videos: Yes
Interface: Android, USB, Type-C
Battery capacity: 750mAh( working time up to 110 minutes after
being fully charged)
Support system: WiFi box support iOS/Android
Install mobile phone APP
Iphone users: two ways to download software
1. Search for " WiFi check" in the APP Store
2. Download by scanning the QR code below
Android users
Download by scanning the QR code below
Connect & Use :1. Long press the power button of the wifi box to turn on/ long press again to turn off.
2. Use your mobile phone to search for the WiFi signal "DN-WiFi-XXX" and connect (no password required).
3. Open APP, at this time you can see the real-time picture.4. After the picture appears, short press the on-off key to take a picture.
5. After connecting to the corresponding WiFi name, return to the phone desktop and open the installed APP to display the screen successfully.
6. Turn on and off the flashlight: Press the power supply twice continuously and quickly in the power-on state to turn on the LED lamp, and then press it twice continuously and quickly to turn off the LED lamp Description:
Cable length: 1/3/5/10/15M
Number of LEDs: 8
Frame rate: 30fps
View angle: 70°
Working temperature: -35 ℃ degrees to 70 ℃
Resolution: 720P, 480P optional
Viewing angle:70°
Best viewing distance: 10-300 cm
Auxiliary light source: 8 LED lights
Camera diameter: 5. 5mm/ 8mm optional
Waterproof rating: IP68
Transmission distance: 0-30 meters
Connection method: WiFi connection
Wire diameter: 8mm
Pixel: 5 mega-pixel
Power supply: 5V
Support computer: XP W7 W8 VISTA
Photo format: JPEG
Video format: AVl
Connectable devices: mobile phones, computers, tablets
Whether to take photos and videos: Yes
Interface: Android, USB, Type-C
Battery capacity: 750mAh( working time up to 110 minutes after
being fully charged)
Support system: WiFi box support iOS/Android

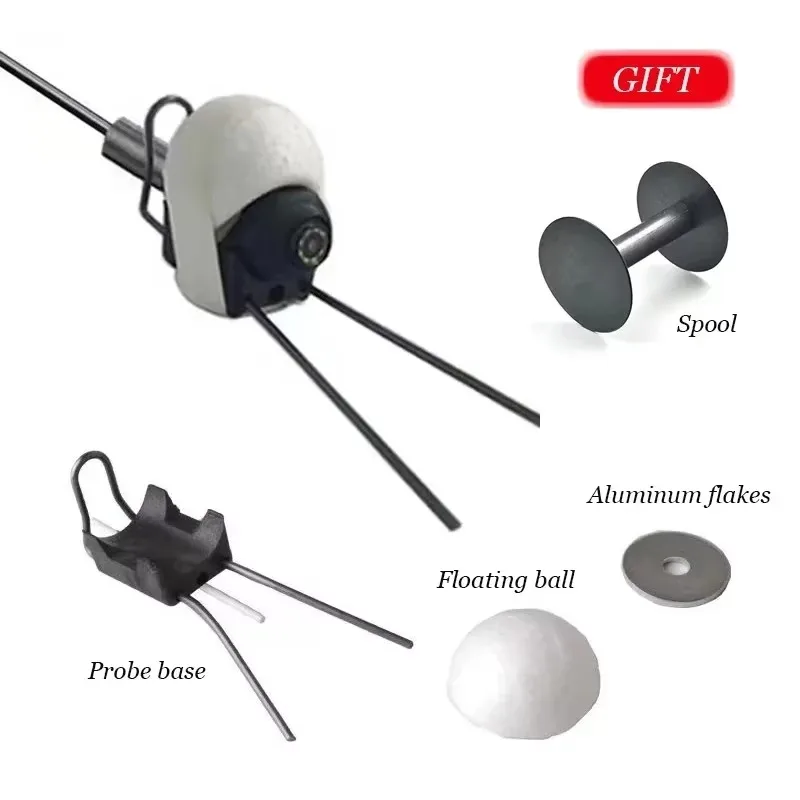

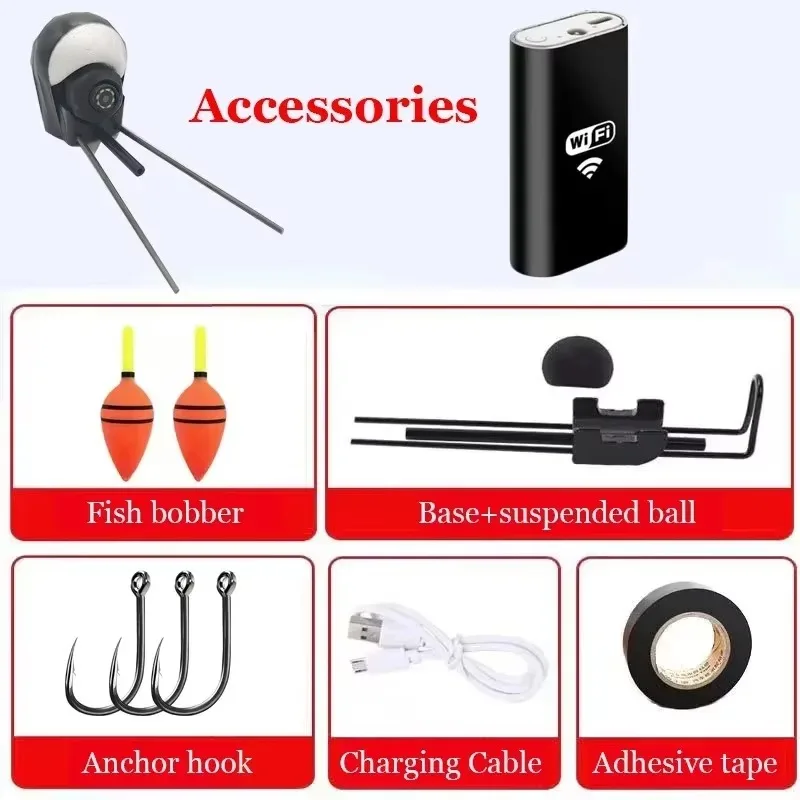

Packing list:
1*Underwater detector
1*Instruction
1* 3 in 1 ports(Type-c/USB/Android)
1*floating ball
1*adhesive tape
1*counterweight iron
1*Camera probe base
1*aiming bar
1*Base fixing rod
1*fishing reel
1*WiFi box
3*Anchor hook
2*Float
How does it work on a smartphone?
1.How to turn on/ off the device?
Long press for about 3 seconds to turn on, and hold again to turn off
2.How to charge the device?
Charging the device with a 5V IA or 5V 500mA power supply can be used for about 110 minutes when it is fully charged, an lights up in red when charging. When the red light goes out, it is fully charged, while it always takes about 2 hours to charge fully.
Additional information
| Color | 10M WiFi Camera, 15M WiFi Camera, 1M WiFi Camera, 3M WiFi Camera, 5M WiFi Camera |
|---|---|
| High-concerned chemical | None |
| Brand Name | DIXSG |
| Origin | Mainland China |
