Description
- High-concerned chemical: None
- Model Number: XF-900
- Cooler Type: Tower
- Heatpipes: 6
- Supported CPU: LGA 775,LGA 1150,LGA 1151,LGA 1155,LGA 1156,LGA1200,LGA 1356,LGA 1366,LGA 1700,LGA 2011,LGA 2011-3,LGA 2066,Socket AM5,AM4
- TDP: 135W
- Fan Speed: 800 – 2000rpm
- Power Interface: 3PIN,3pin/4pin,4PIN
- Package: Yes
- Lines: 3Pin or 4Pin
- Fan Life: 50000 hrs
- Certification: CE,FCC
- Blade Quantity: 7
- Bearing: Fluid Bearing
- Air Volume: 60
- Origin: Mainland China
- Brand Name: XUANFENG
- Noise: 25dBA
- Fan Size: 90mm
- Series: XF-900
- 2 Heat pipes 1FAN TDP:: 90W
- 4 Heat pipes 1FAN TDP:: 120W
- 6 Heat pipes 1FAN TDP:: 135W
- Intel Socket: LGA 775/1150/1151/1155/1156/1200/1700/1356/1366 ( i3 i5 i7 )
- For 2011 Socket: LGA2011/2066/2066/ X79 / X99 / x299 / E5
- For AMD Socket: AM2/AM2+/AM3/AM3+/FM1/FM2+
- For AM4 Socket: AM4 Ryzen3 Ryzen5
Choose Intel Core-Xeon
Package: Color Box (CPU cooler*1, Includes 1 set of Intel base bracket and screws,Xeon-x79x99 base bracket+screws * 1 set， silicone grease*2 )

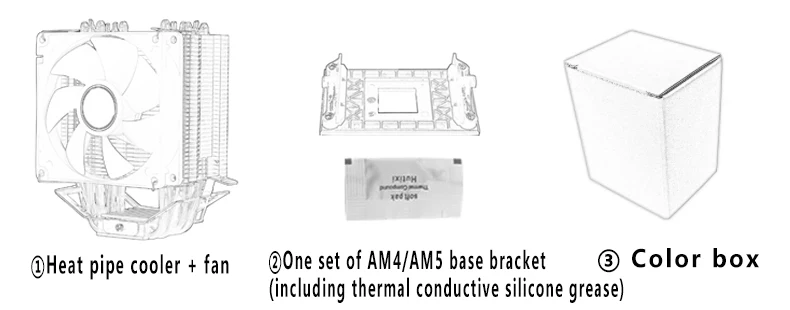

Packing list（Sketch Map）：①②③
Choose AMD Slot:AM4-AM5
Packaging: Color box (CPU cooler * 1, compatible with AM4/AM5 slot base bracket adapter * 1, silicone grease * 1)
Packing list (schematic diagram): ①②③
Compatible with AM4/AM5 slots
Product applicable platform
LGA 2011 2066 2099 E5 X79 X99 2011-3(suitable for computer motherboards with square threaded bases) as shown in the picture
LGA multi-platform universal：
LGA 775/1150/1151/1155/1156/1200/1356/1366/1700/1851/Celer series/Pen series/ Cor Dual i3-i5-i7-i9 12th-14th Gen
3Pin and 4Pin connectors are universally compatible;installation is worry-free regardless of the interface type.
Product image display:
Brand Name：XUANFENG
Fan size: 90 × 90 × 25mm
3Pin speed: 2000 RPM ± 10%
4Pin speed: 800-2000 RPM ± 10%
Fan interface: 3Pin (3-wire constant speed)/4Pin (4-wire temperature control)
Rated voltage: 12V DC
3Pin current: No light 0.18A with light 0.28A ± 10%
4Pin current: No light 0.1A with light 0.2A ± 10%
3Pin power: 2W without light, 3.5W with light ± 10%
4Pin power: 1W without light, 2.5W with light ± 10%
The above data is for one fan, and if it is for multiple fans (air volume, noise, current, power), the data will increase in increments
Statement:
As shown in the figure below, it is an inevitable production process, not a quality problem, nor will it affect the product function and performance. Your successful purchase means that you have approved the process. If there is any dispute or refund due to this process,we will not accept it.
M***a (verified owner) –
It arrived very well packaged in a sturdy cardboard box. The fan mounting mechanism on cooler is similar to many other noctua coolers. For less than €16, i can say that the quality is almost identical to that of coolermaster, for example, which costs twice as much. The mechanism for anchoring it to the socket is very simple and similar to the original anchoring on the intel 1151 socket. A very good alternative, especially for upgrading older computers, if you don’t want to spend a lot on a cooler. Temperatures are noticeably lower than with the original cooler, by around 10 ° C on average.
AliExpress Shopper (verified owner) –
Very effective
Tiens 55. ° C at 100-110W charge on a Xeon
The fans are not particularly noisy, even quite quiet.
f***a (verified owner) –
It is extremely simple to install, and even though it’s a 90mm fan, it has excellent ventilation.
P***o (verified owner) –
Everything has arrived well packaged, in fact very well packaged and secure inside its box, and the heatsink shows good capacity to cool a CPU like a XEON 2697V3 under high workloads, and it does so without becoming too noisy, which is surprising since it uses a single 9CM fan. At rest, it is almost silent.
Regarding the appearance and qualities of the heatsink, the contact area with the CPU, the base, and the copper heatpipes, they look quite well polished, although the appearance is less polished in the rest of the heatsink. The grip system firmly presses the heatsink against the CPU.
The only critique is the plastic finishes of the fan, which seem “3D printed” as it has a rough and poorly polished surface. However, the distrust that would have generated in me seeing that finish, upon seeing it in operation, has evaporated; this fan works more than well.
100% recommended.
AliExpress Shopper (verified owner) –
Good product, on a Xeon E5 2630 V4 it doesn’t go above 40°, quite silent and arrived without any scratches.
L***e (verified owner) –
Excellent, perfect in size and dissipation. The wind 💨 is a bit soft but holds up quite well.
AliExpress Shopper (verified owner) –
Excellent fan, I bought the one with 6 copper bars and it lowers the temperature by 35 degrees under load. And the fan doesn’t even go above 1200rpm. Excellent product!
AliExpress Shopper (verified owner) –
The product works excellent, a little tricky to install, but then everything is fine. It had a temperature of 85 degrees, but with this cooler the temperature is 45 degrees.
