Description
- High-concerned chemical: None
- Model Number: XF-900
- Cooler Type: Tower
- Heatpipes: 6
- Supported CPU: LGA 775,LGA 1150,LGA 1151,LGA 1155,LGA 1156,LGA 1170,LGA1200,LGA 1356,LGA 1366,LGA 1700,LGA 2011,LGA 2011-3,LGA 2066,Socket FM1,Socket FM2,Socket AM3,Socket AM5,Socket AM2,Socket AM2+,Socket FM2 +,Socket AM3 +,Socket FM2 / FM2 +,AM4,FM1
- TDP: 150W
- Fan Speed: 800 – 2000rpm
- Power Interface: 3pin/4pin,4PIN
- Package: Yes
- Lines: 3Pin or 4Pin
- Fan Life: 50000 hrs
- Certification: CE,FCC
- Blade Quantity: 7
- Bearing: Fluid Bearing
- Air Volume: 60
- Origin: Mainland China
- Brand Name: XUANFENG
- Noise: 25dBA
- Fan Size: 90mm
- Series: XF-900
Package: Color Box (CPU cooler*1, Includes 1 set of Intel base bracket and screws,Xeon-x79x99 base bracket+screws * 1 set， silicone grease*2 )

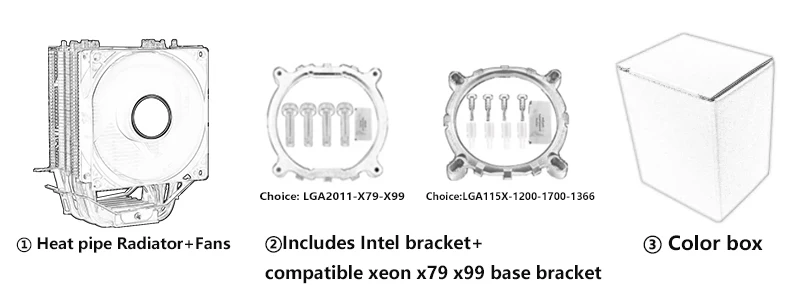

Packing list（Sketch Map）：①②③
Brand Name：XUANFENG
Fan size: 90 × 90 × 25mm
4Pin speed: 800-2000 RPM ± 10%
Fan interface: 4Pin (4-wire temperature control)
Rated voltage: 12V DC
Maximum air volume: 60CFM
Maximum noise: 25dBA
Fan lifespan: 50000 hours
4Pin current: No light 0.1A with light 0.2A ± 10%
4Pin power: 1W without light, 2.5W with light ± 10%
The above data is for one fan, and if it is for multiple fans (air volume, noise, current, power), the data will increase in increments
AMD full series of desktop universal
AM5/AM4/AM3/AM3+/AM2/AM2+/FM1/FM2/FM2+/X2/X3/X4/A4/A6/A8/A10/FX…
For AMD motherboards, there is an original base adapter (as shown in the figure below) that we do not provide. If you need an AMD base adapter, please contact our customer service department. Thank you for your cooperation and have a wonderful day.
Declaration:
The CPU cooler comes with an Intel fixed bracket, while the AMD bracket is an original accessory for the motherboard and we will not deliver it. If you need AMD fasteners, please contact our customer service.
Product applicable platform
LGA 2011 2066 2099 E5 X79 X99 (suitable for computer motherboards with square threaded bases) as shown in the picture
LGA multi-platform universal：LGA775/1150/1151/1155/1156/1200/1356/1366/1700/18XX/Celer series/Pen series/ Cor Dual i3-i5-i7-i9 12th-14th Gen
3Pin and 4Pin connectors are universally compatible;installation is worry-free regardless of the interface type.

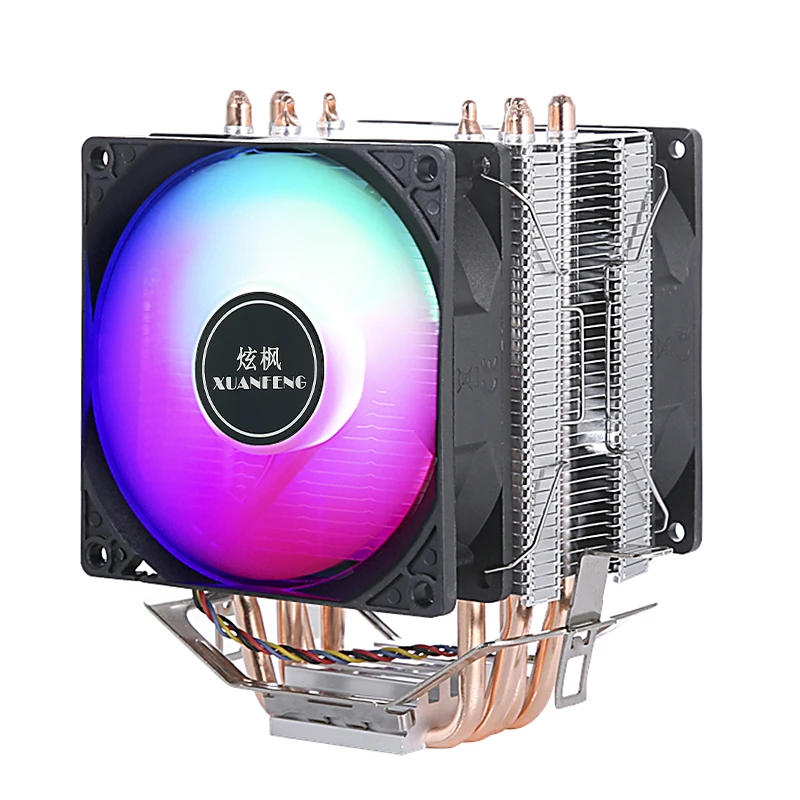

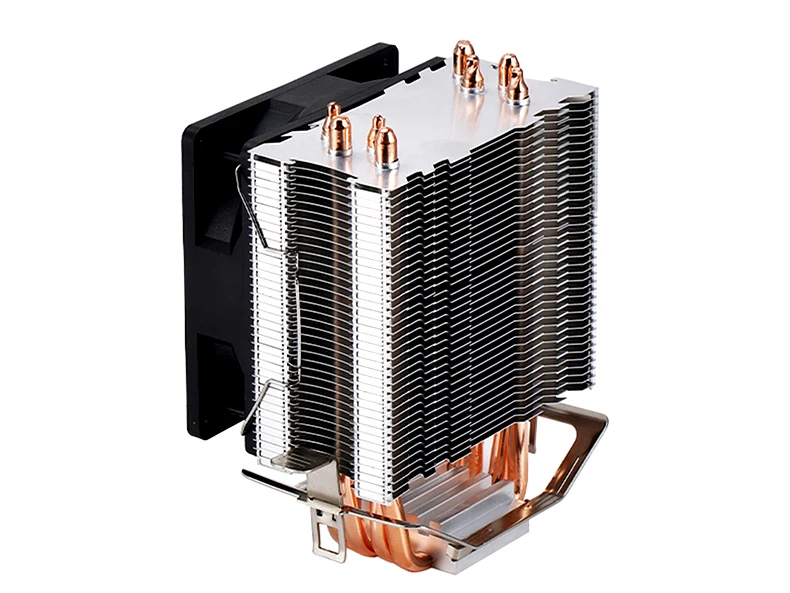

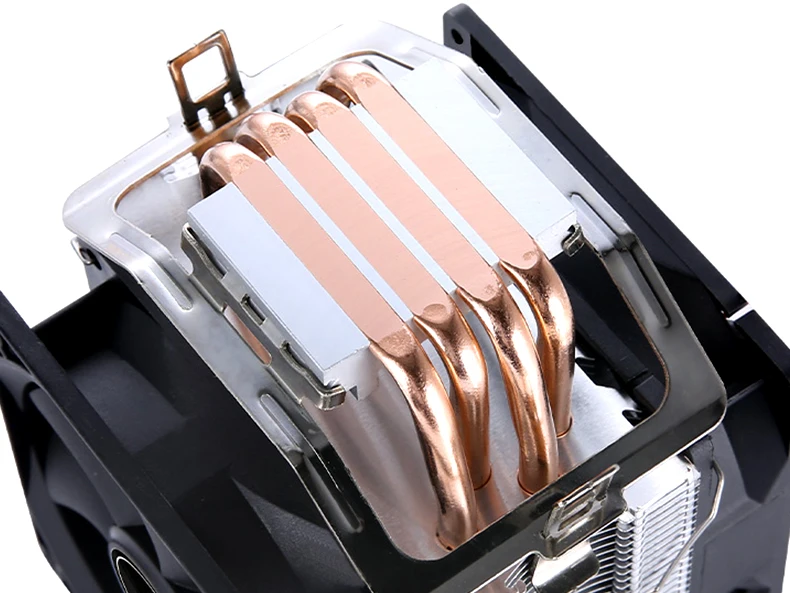

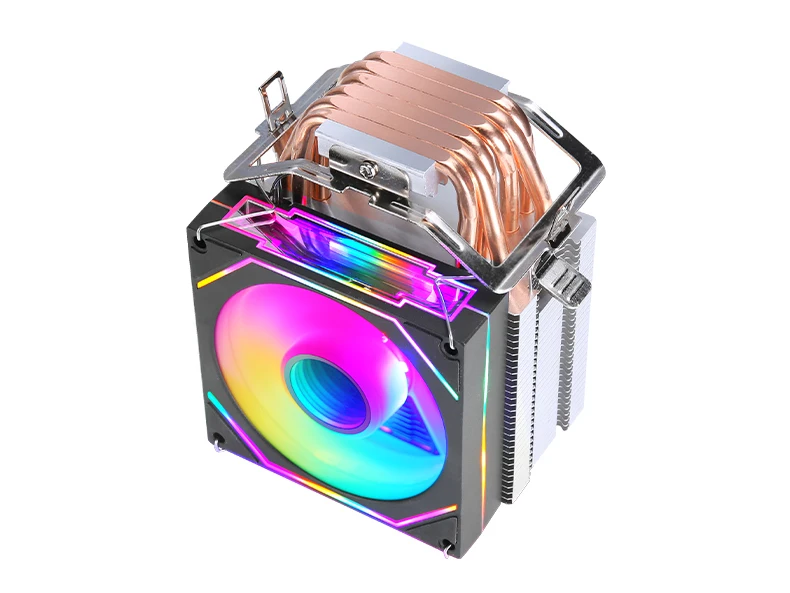

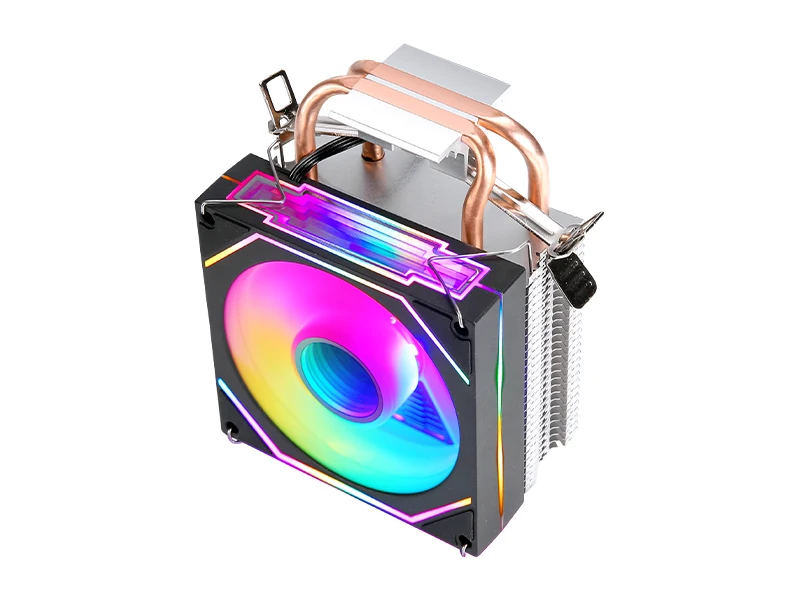

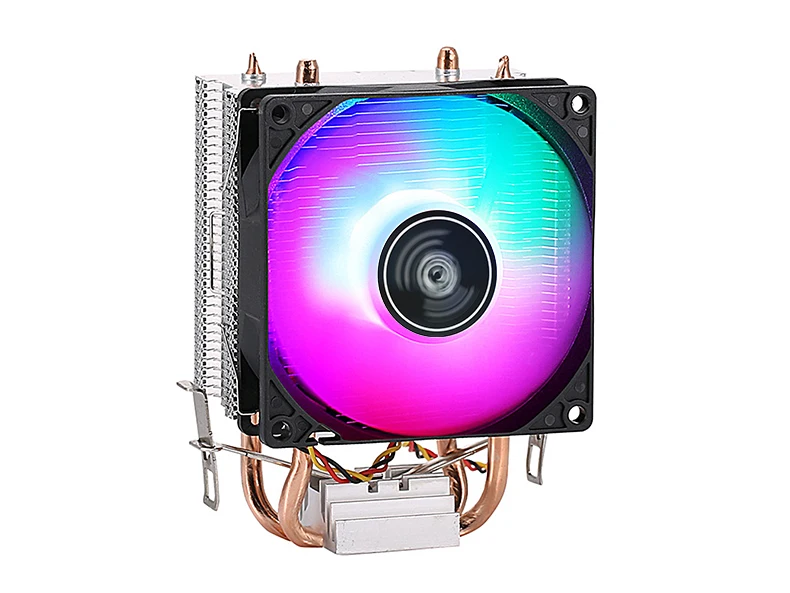

Product image display:
Statement:

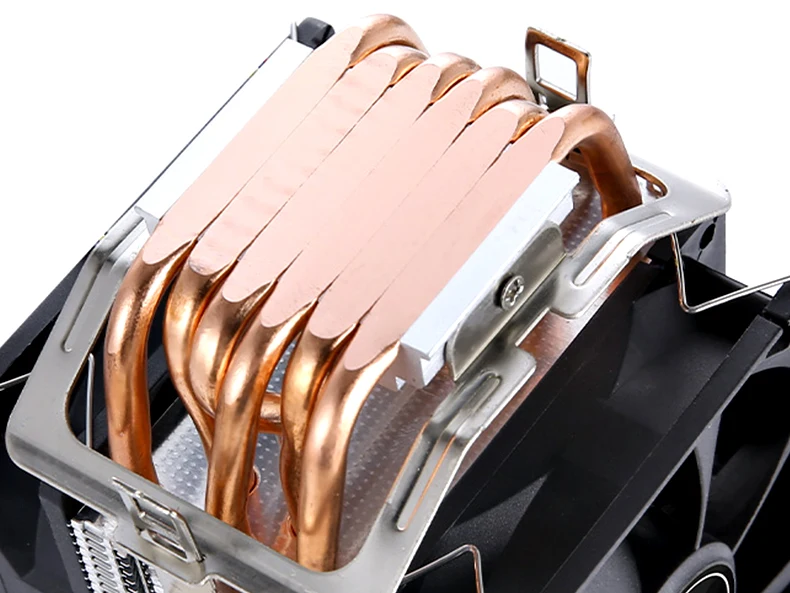

As shown in the figure below, it is an inevitable production process, not a quality problem, nor will it affect the product function and performance. Your successful purchase means that you have approved the process. If there is any dispute or refund due to this process,we will not accept it.
AliExpress Shopper (verified owner) –
I didn’t have high expectations but instead I was extremely satisfied with this heatsink. Version with 6 heatpipes and manages to keep a CPU with a TDP of 120 W below 55. ° With thermal paste included
AliExpress Shopper (verified owner) –
Very good, I liked the purchase. The product has good quality and arrived before the deadline.
V***v (verified owner) –
Fast delivery. The seller responds quickly, is contactable, and resolves issues. The fan itself matches the description and works well. I recommend it.
S***c (verified owner) –
Excellent quality, completely silent, and well packaged
AliExpress Shopper (verified owner) –
Works well. For it’s price better than other options. It cools e5-2650v4 just fine.
AliExpress Shopper (verified owner) –
Hello yes this is the second one I’ve bought I’m happy with the product it works very well that’s why I got the same one again thank you see you soon for another purchase.
R***a (verified owner) –
Excellent product!
R***z (verified owner) –
I couldn’t use it until yesterday and so far it’s working great. I would definitely buy it again for its quality-to-price ratio.
