Y&H 1000W 1300W 1400W MPPT Grid Tie Solar Inverter 24V/36V DC to 110V/220V AC Pure Sine Wave Converter for Solar Panels/Battery

Y&H 1000W 1300W 1400W MPPT Grid Tie Solar Inverter 24V/36V DC to 110V/220V AC Pure Sine Wave Converter for Solar Panels/Battery

(0 customer reviews)

157.63$ – 163.55$

In Stock

Color

Input Voltage

10.8-32V(24V BAT)
22-50V(36V BAT)

Output Voltage

AC 190-260V
AC 90-140V

Clear

Description

High-concerned chemical: None
is_customized: Yes
Output Current: 75A MAX
Model Number: GTI-1400W
Output Power: 1400W
Size: 39*21*11CM
Output Type: SINGLE
Weight: 2.5KG
Brand Name: Y&H
Output Frequency: 50HZ/60HZ auto sensing
Is Smart Device: No
Origin: Mainland China
Certification: CE
Output Voltage: 120V(90V~140V)OR230V(190V~260V)
Input Voltage: Vmp: 26-39V, Voc: 34-50V
Type: On Grid Inverter
MPPT voltage: 26V – 36V
Waterproof: Indoor design
Feature1: solar generator
Feature2: solar powered
Feature3: solar controller
Feature4: solar power generator
Feature5: solar mppt controller

Description:

Grid Tied inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.

About the AC plug:

We will send the corresponding plug according to your receiving country, please rest assured to buy.

Note:

1. Please note that this inverter is specially designed for solar panels and can be applied to 24V solar panels. Vmp is 26-39V and Voc is 34-45V. If a 12v battery is used as input, the inverter will not be able to reach its maximum Power point. We recommend using 36v battery as input source to get better output power. There is always a power loss in the conversion from DC to AC. Energy is also lost through heat. Therefore, if you want to be 100% off the machine, it will not give it to you. Solar panels also have losses, so please do not calculate the efficiency based on the inverter output power/solar panel specifications. Because solar panels and inverters have their own efficiency. Collected fault feedback from multiple customers, most of which stopped working because of the wrong solar panel voltage input.

2. Please use a 10 square cable, the cable length is not recommended to exceed 4M. Tighten the DC terminal wiring. If the cable is too thin or the connection is loose, the inverter will be damaged.

Technical Parameters:

Solar panels:200W-1400W
The Voltage of Matched solar panel:Vmp: 26-39V, Voc: 34-45V
AC Output Voltage: 120VAC(90-140VAC) or 230VAC(190-260VAC)
Frequency Range: 48Hz ~ 62Hz Auto
DC Input: 22-50V
MPPT range: 26-39V.Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency
Certification:CE RoHS

Product Paramenters

Model	1000W		1200W		1300W		1400W
Suggest Solar	>1200W		>1400W		>1500W		>1700W
Max Output	1000W		1200W		1300W		1400W
Input Data
DC input	Vmp@18V(10.5-30VDC)/Solar cells=36 PCS per solar panel / MPPT Voltage: 18-21VDC;
	Vmp@36V(20-50VDC)/Solar cells=60/72 PCS per solar panel / MPPT Voltage: 24-45VDC
	@18V	@36V	@18V	@36V	@18V	@36V	@18V	@36V
Max Current	62.5A	40A	75A	48A	81.5A	52A	87.5A	56A
Output Data
Rated voltage	@120V(90-140VAC); @230V(190-260VAC)
	Auto match frequency: 50/60Hz(48-65Hz)
	@120V	@230V	@120V	@230V	@120V	@230V	@120V	@230V
Rated current	9.1A	4.5A	10.9A	5.5A	11.8A	5.9A	12.7A	6.4A
Output Efficiency
Efficiency	@120VAC Verstion
	@18V	@36V	@18V	@36V	@18V	@36V	@18V	@36V
Peak Efficiency	85%	88%	85%	88%	85%	88%	85%	88%
Stable Efficiency	83%	86%	83%	86%	83%	86%	83%	86%
Efficiency	@230VAC Verstion
	@18V	@36V	@18V	@36V	@18V	@36V	@18V	@36V
Peak Efficiency	88%	88%	88%	88%	88%	88%	88%	88%
Stable Efficiency	83%	86%	83%	86%	83%	86%	83%	86%
Stand-by Power	<1W
Feature
Power Transmission	Reverse transfer, load priority
Protection	1. Islanding; 2. Short-circuit; 3. DC & AC low voltge; 4. DC & AC over voltage; 5. High temperature
Grid distrubance	EN 50178/ EN 62109-1 /VDE 0126-1-12
EMC	EN 61000-6-3:2007 / EN 61000-6-1:2007
Grid detection	DIN VDE 1026/UL1741
Certificate	CE, ROHS, FCC
Exterior
Operation	– 20℃ to +65℃
Humidity	0% to 90% Non-condensing
Waterproof	IP23(Indoor design)
Showing	Luminous diode(LED)
Cooling	Electric fan(>45℃)
Net Weight	@1000W		@1200W		@1300W		@1400W
	2.1KGS		2.1KGS		2.2KGS		2.2KGS
Gross Weight	2.6KGS		2.6KGS		2.7KGS		2.7KGS
Size (LxWxH)	39.5x21x11.5CM		39.5x21x11.5CM

How to easily set up Grid Tie Inverter?

1: Use 200W-1400W Solar Panel, Vmp: 26-39V, Voc: 34-45V

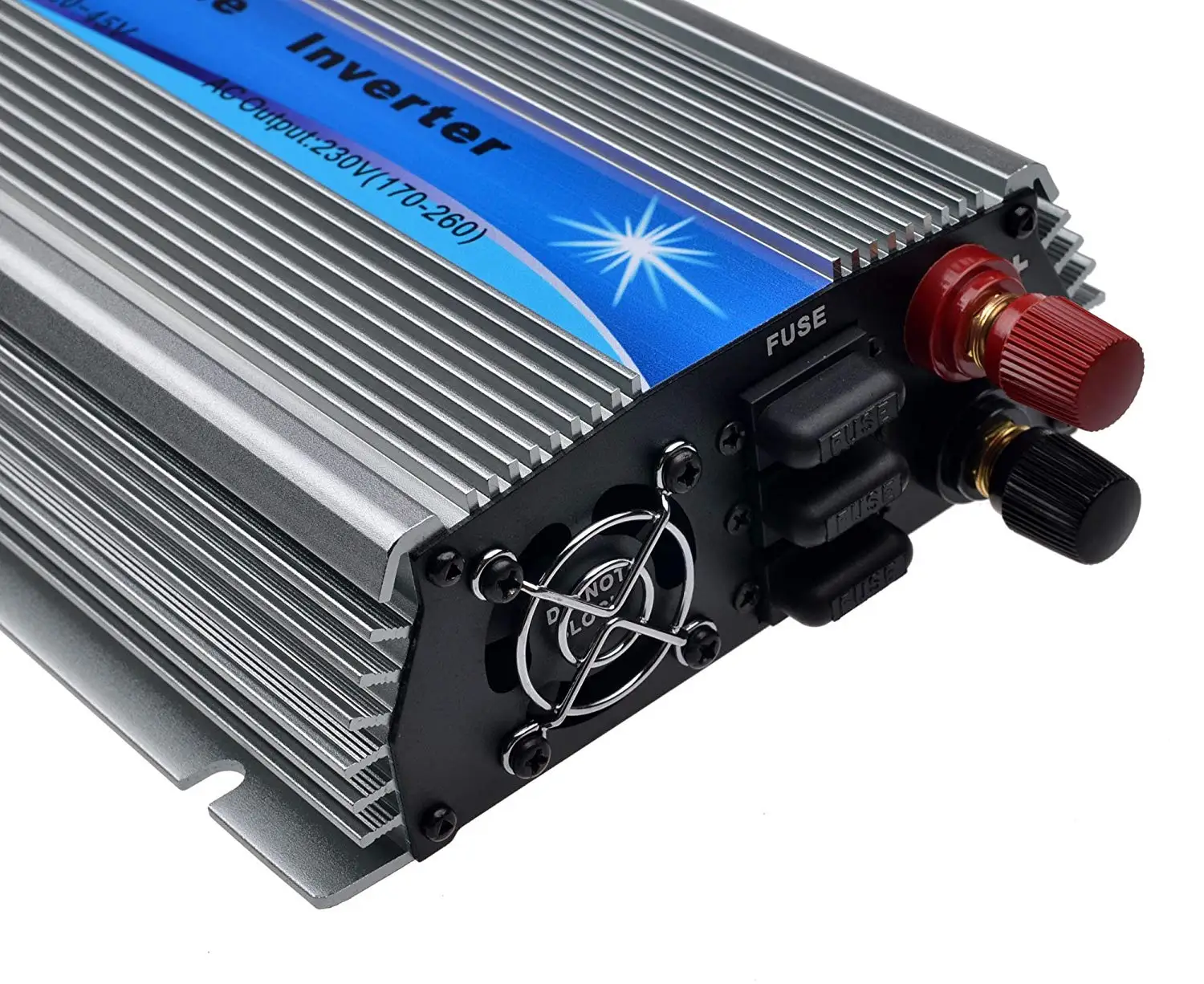

2: Red terminal: Connect DC positive, black terminal: Connect DC negarive.. Be sure to tighten! ! ! Otherwise it will be short circuited.

AC The output need to be connected to the grid power.

3:AC socket: Connection to the mains. The AC cord to the inverter 3 foot outlet, then the AC cord to home 3 pin AC outlet. 4:The switch of the home outlet must be turned on.

Stackable connection (The purpose is let small power inverter become high-power inverter.)

In order to achieve higher power use requirements, the use of this product can be stacked, such as: 4 grid inverters 1400W of stack used is equal to 5600W, and the number of open stacks (No Quantitative Restrictions).

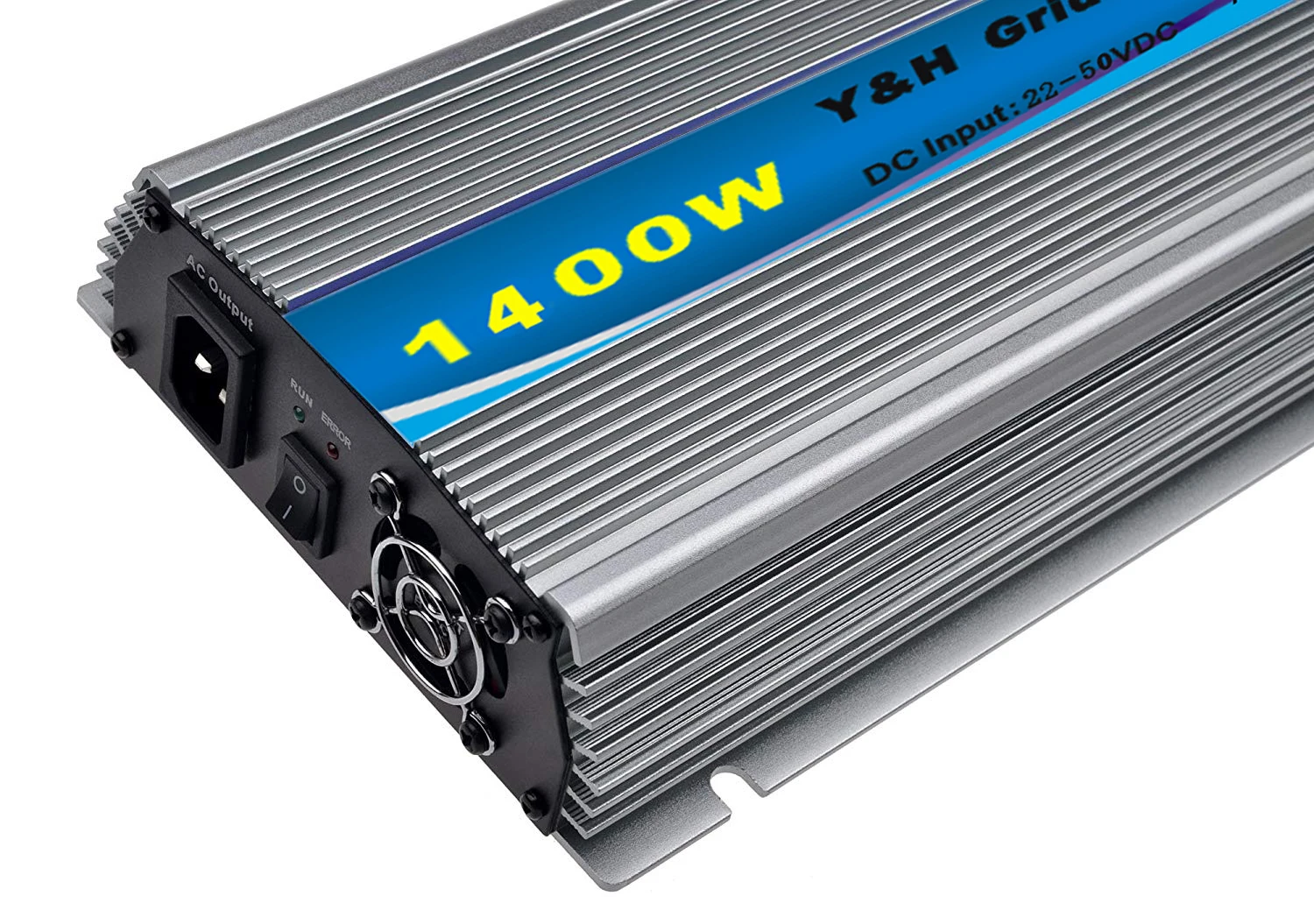

Inverter Photos

Additional information

Color	GTI-1000W, GTI-1300W, GTI-1400W
High-concerned chemical	None
is_customized	Yes
Output Current	75A MAX
Model Number	GTI-1400W
Output Power	1400W
Size	392111CM
Output Type	SINGLE
Weight	2.5KG
Brand Name	Y&H
Output Frequency	50HZ/60HZ auto sensing
Is Smart Device	No
Origin	Mainland China
Certification	CE
Output Voltage	120V(90V~140V)OR230V(190V~260V)
Input Voltage	Vmp: 26-39V, Voc: 34-50V
Type	On Grid Inverter
MPPT voltage	26V – 36V
Waterproof	Indoor design
Feature1	solar generator
Feature2	solar powered
Feature3	solar controller
Feature4	solar power generator
Feature5	solar mppt controller
Input Voltage	10.8-32V(24V BAT), 22-50V(36V BAT)
Output Voltage	AC 190-260V, AC 90-140V
