Y&H Hybrid Solar Inverter 3.2KW 4.2KW 6.2KW 10.2KW Off-Grid Hybrid Inverter 230V Built-in MPPT Solar Charge Controller
Description
- High-concerned chemical: None
- is_customized: Yes
- Output Power: 500 – 1000W
- Size: 420mm*310mm*110mm
- Output Type: SINGLE
- Weight: 10kg
- Brand Name: Y&H
- Output Frequency: 50Hz/60Hz(Auto sensing)
- Is Smart Device: Yes
- Origin: Mainland China
- Certification: CE
- Nominal Output Voltage: 220/230/240VAC
- Output Voltage Waveform: Pure Sine Wave
- Item: Solar Inverter
- Battery Type: Lifepo4 Batteries, Lithium Batterie
- Type1: DC/AC Inverters
- Type 2: MPPT Solar Invertor
After EU customers order, the inverter will be shipped from our local EU warehouse within 24 hours.
The delivery time is about 3-7 days.
Please keep the default shipping from China when placing the order, so that when you make the final checkout The price will be automatically discounted to about 20% lower than the displayed price.
when you order before, please contact us first, thank you.
Inverter startup sequence:
1: Battery 2: AC input or PV input 3: Load
The inverter exits the system sequence:
1: Load 2: AC input or PV input 3: Turn off the inverter Exit battery
Important Note:
Describe:

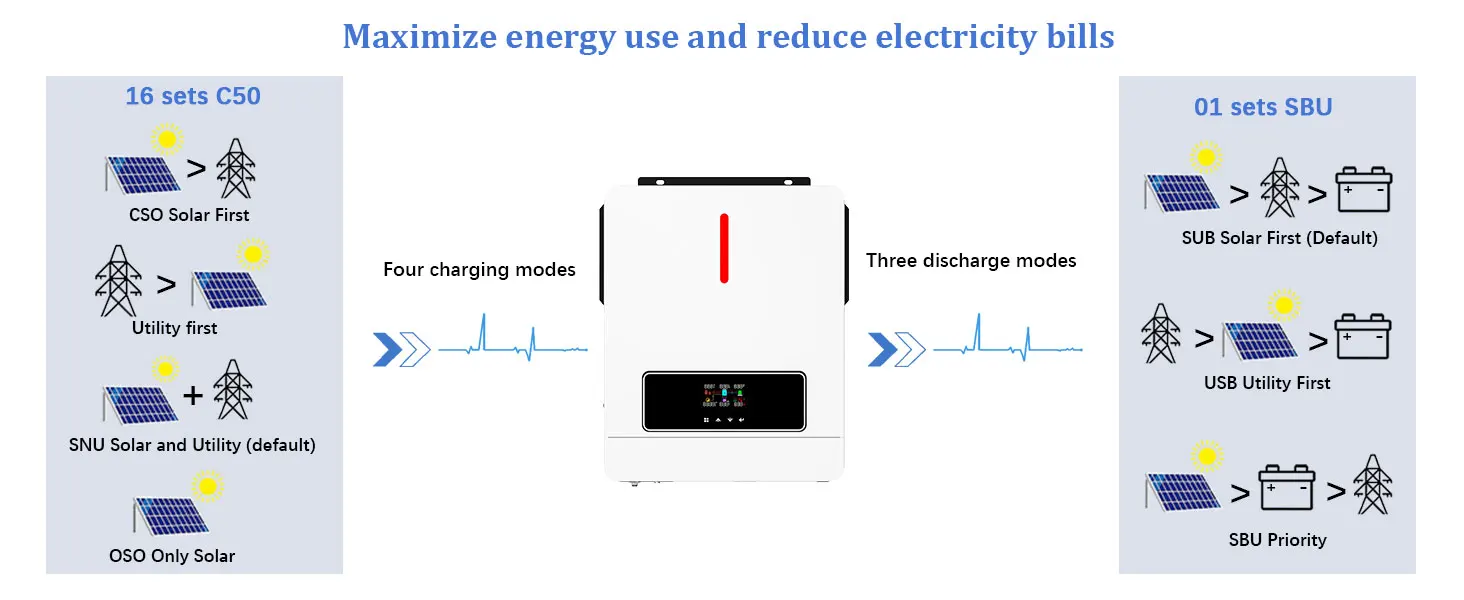

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
4.2KW Parameter Diagram
Specification:
|
INVERTER MODEL |
4.2KW |
6.2KW |
|
Output Voltage Waveform |
Pure Sine Wave |
|
|
Output Frequency |
50Hz |
|
|
Peak Efficiency |
93% |
|
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
|
Two Load Output Power |
||
|
Full Load |
4200W |
6200W |
|
Maximum Main Load |
4200W |
6200W |
|
Maximum Second Load(battery model) |
1400W |
2066W |
|
Main Load Cut off Voltage |
26VDC |
52VDC |
|
Main Load Return Voltage |
27VDC |
54VDC |
|
MPPT Solar Charging Mode |
||
|
Max. PV Array Power |
6200W |
6500W |
|
Nominal PV Voltage |
240Vdc |
360Vdc |
|
PV Array MPPT Voltage Range |
60Vdc~500Vdc |
|
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
|
Max Charging Current |
120Amp |
|
|
Grid-Tie Operation |
||
|
Nominal Output Voltage |
220/230/240 VAC |
|
|
Feed-in Grid Voltage Range |
195~253VAC |
|
|
Nominal Output Current |
18.2A |
26.9A |
|
Power Factor Range |
>0.99 |
|
|
Maximum Conversion Efficiency |
97% |
|
|
General Specifications |
||
|
Safety Certification |
CE |
|
|
Operating Temperature Range |
-10°C to 50°C |
|
|
Storage temperature |
-15°C~ 60℃ |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
Additional information
| Color | 10.2W-48VBAT, 3KW-24VBAT, 4.2KW-24VBAT, 6.2KW-48VBAT |
|---|---|
| High-concerned chemical | None |
| is_customized | Yes |
| Output Power | 500 – 1000W |
| Size | 420mm*310mm*110mm |
| Output Type | SINGLE |
| Weight | 10kg |
| Brand Name | Y&H |
| Output Frequency | 50Hz/60Hz(Auto sensing) |
| Is Smart Device | Yes |
| Origin | Mainland China |
| Certification | CE |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Waveform | Pure Sine Wave |
| Item | Solar Inverter |
| Battery Type | Lifepo4 Batteries, Lithium Batterie |
| Type1 | DC/AC Inverters |
| Type 2 | MPPT Solar Invertor |
| Input Voltage | No Wi-Fi, With Wi-Fi |
| Output Voltage | 220-240V |
