ZQTMAX 13dB Yagi Antenna 824-960MHz For cell phone signal booster 800 / 850 / 900 MHz CDMA GSM Repeater 2g 4g mobile amplifier
Description
- High-concerned chemical: None
- Cable Length: 300cm
- Specification: 15m
- Gain(dB): 13
- Model Number: antenna
- Brand Name: ZQTMAX
- Origin: Mainland China
- Certification: CE
Item Description:
This Outdoor Yagi Directional for 800/850/900MHz Band Only, Easy installation on buildings
This Yagi antenna is compatible with all 800/850/900MHz wireless carriers, stable performance
This Outdoor Yagi Directional Antenna includes mounting parts for easy mounting on either a flat surface or a pole.
This Outdoor Yagi Directional Antenna works with all major wireless carriers operating on 800/850/900MHz.
Specification:
Frequency Range:824 – 960MHz
Gain:13dBi
Front to Back Ratio:bigger than 15dB
Impedance:50 ohms
VSWR:Less than 1.5
Cable Loss:0.12dB
Vertical Plane:72°F ± 5°F
Horizontal Plane:76°F ± 5°F
Polarization Type:Vertical or Horizontal

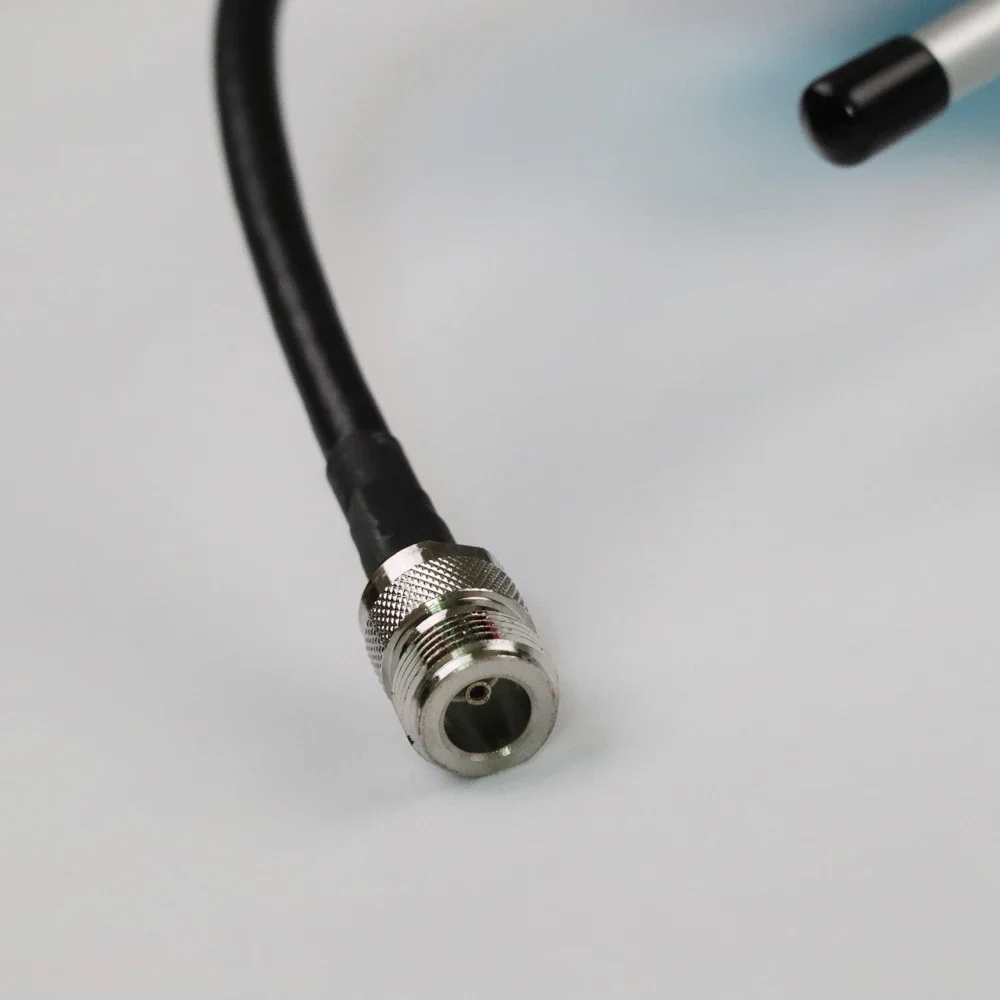

Connector Type:N Female Or SMA Male connector
Number Of Element:9 units
Length without Cable:13 Inch (30cm)
Rated Wind Velocity:145 Mile per Hour
Working temperature: -40°F ~ +140°F
Package included:
1x 9 units 13dBi Yagi Antenna
Customer Services:
Dear buyers, we appreciate your business, if you are satisfied with our products and services, please leave us a positive feedback and rate the details of the transaction (Detailed Seller Ratings) with a “PERFECT 5 STARS”. Your recognition will help us to improve our service.
Please give us a message before leaving any 1 or 2 ratings, negative feedback, and we will do our endeavor to resolve the issues. Please give us the opportunity to resolve any problem.
- We provide good price and shipping service for wholesale buyer.
- You can buy from our wholesale listings directly or contact us.
- For more excellent similar or other Products,welcome to visit our Store.
Additional information
| Color | N female connector, SMA male connector |
|---|---|
| High-concerned chemical | None |
| Cable Length | 300cm |
| Specification | 15m |
| Gain(dB) | 13 |
| Model Number | antenna |
| Brand Name | ZQTMAX |
| Origin | Mainland China |
| Certification | CE |
1 review for ZQTMAX 13dB Yagi Antenna 824-960MHz For cell phone signal booster 800 / 850 / 900 MHz CDMA GSM Repeater 2g 4g mobile amplifier
Vendor Information
Related Products
AliExpress Shopper (verified owner) –
I will repurchase.
D***s (verified owner) –
I haven’t had the opportunity to try it yet, but the Yagi ZQTMAX 13dB antenna seems very well built and of high quality. The specifications are ideal to improve signal reception in areas with limited coverage. Your design is robust and compatible with various bands (800/850/900 MHz), promising good performance with signal amplifiers. However, the shipping was fast and the packaging was correct. Very satisfied with the purchase so far!
j***e (verified owner) –
Fast delivery, only 8 days nice. Antenna arrived in good condition, looks like it will do the job fine. Measured vswr at 915mhz was 1.6 for me which is acceptable (1.0 at 886mhz). No issues to report, cheers
P***l (verified owner) –
All good
e***i (verified owner) –
Robust antenna, well made, but with excessive ROS outside 800Mhz (at 868Mhz the ROS is 5.. too much to be used in TX).
I had purchased the Lora Meshtastic system, but due to excessive ROS, I won’t be able to use it for this purpose.
M***v (verified owner) –
Thank you, good product, fast shipping.
F***a (verified owner) –
I installed this antenna on my Gateway GW3000 and the signal increased by about 12 dB, so the stated value is true.
U***g (verified owner) –
Excellent quality antenna for lora 868. Vswr good and great performance.
Unbeatable value for money, many thanks.
