Description
- High-concerned chemical: None
- Displacement (ml): 49cc
- No. of Cylinders: 1 Cylinder
- Origin: Mainland China
- Item Type: engines
- Material: Aluminum, Iron
Specifications
Applicable Models: For 49CC Two-stroke Motorcycles
Condition: New
Material: Aluminum, Iron
Color: Black, Silver
Style: Modern
Ignition System: Electronic Ignition
Start Mode: Hand-pulled Self-Returning Rope Starter
Engine Type: 2-Stroke Single Cylinder Engine, Air Cooling
Displacement: 49cc
Maximum Power (5~15min): 1.9kw/7000rpm
Rated Power (12h Power): 1.7kw/6000rpm
Continuous Power (300h or More Power): 1.6kw/5500rpm
Overload Power (1h Power): 1.83kw/6500rpm
Maximum Torque: 2.7N.M/6500rpm
Maximum Horsepower: 3PS
Cylinder Diameter: 44mm/1.73in
Stroke: 32.8mm/1.29in
Minimum Fuel Consumption Rate: <610g/1.34lbs/KW.h
Fuel: 90 Unleaded Gasoline(Not Included)
Lubrication Oil: FC Grade 2-stroke Gasoline Engine Oil(Not Included)
Gasoline to Oil Volume Mixing Ratio: 25:1(Break-in Period), 30:1(Late Break-in Period)
Spark Plug Clearance: 0.5mm/0.02in
Fuel Tank Capacity: 1.2L/0.32gal
Deceleration Ratio: 1:1
No-load Speed: 12500rpm
Noise: 100.7dB(A)(Sound Pressure Level); 116.9dB(A)(Sound Power Level)
Gross Weight: 3.7kg/8.16lbs
Net Weight: 3.4kg/7.5lbs
Package Size: 34*14*25cm/13.39*5.51*9.84in
Key Features
High-quality Material: This product is made of iron and aluminum, with high hardness, anti-corrosion, and anti-rust properties, so it can be used for a long time.
Large Fuel Tank: It is equipped with a 0.32gal fuel tank, which can last for a longer distance after filling up with gas and fuel, supporting long-distance riding and making it more convenient for outdoor use.
Strong Power: It is a two-stroke 3-horsepower single-cylinder engine with a no-load speed of up to 12500 rpm and 1.9kw max. power, allowing you to enjoy a faster riding speed.
Good Heat Dissipation: The air cooling system and heat dissipation holes can reduce the temperature of the engine in time, prolong its service life, and reduce potential safety hazards.
Fits (As a Reference)
For 49CC Two-stroke Motorcycles
Package Included

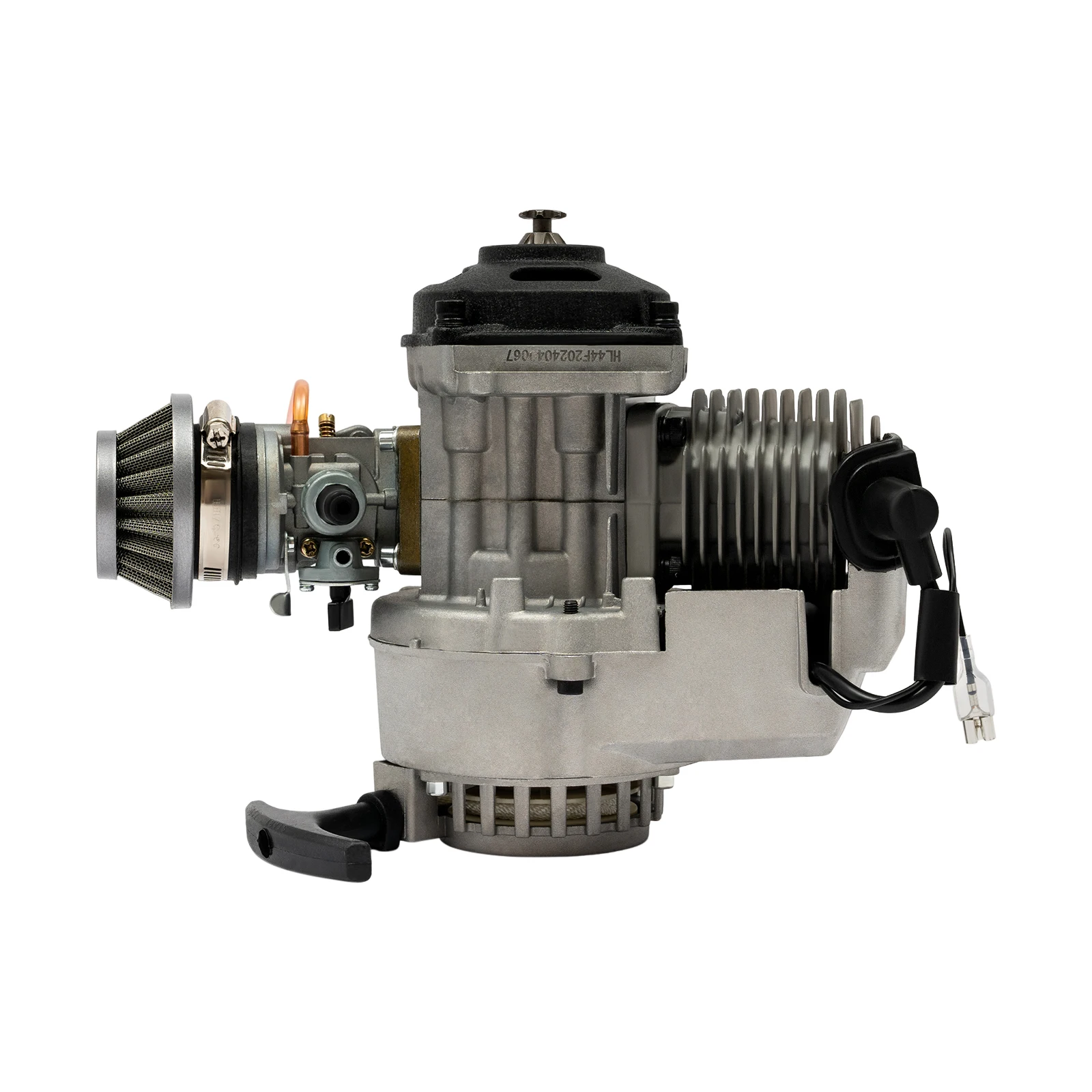

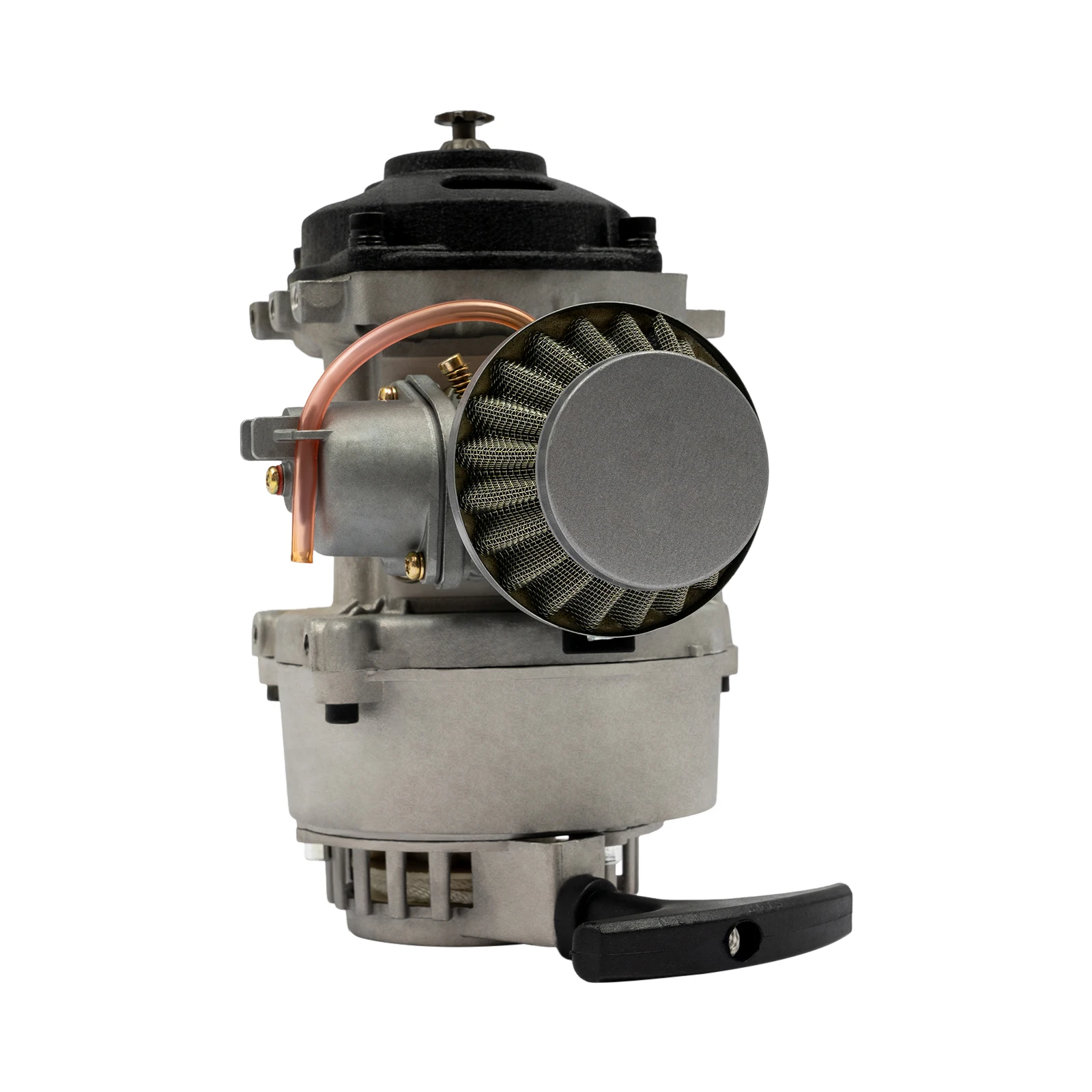

1* 49CC Mini Motorcycle Engine
Notes
1.Please check whether this item can fit in your car before purchasing.
2.We strongly recommend professional installation.
3.Please allow for slight color differences caused by shooting light and errors caused by manual measurement, and make sure you don't mind before ordering. If you have any questions, please contact us, and we will reply and solve your problem as soon as possible.
