Description
- Smart card type: Not Recorded
- High-concerned chemical: None
- Model Number: FM-505
- Origin: Mainland China
- Model: FM-505
- Protocol: ISO18000-6C / EPC C1 GEN2
- Frequency: 865-868MHZ(EU),902-928MHZ(US)
- RF Power Output: -2~25dBm
- Interface: TTL(UART)
- Gain antenna: 1dbi,3dbi,4dbi,5dbi,5.5dbi antenna
- Power supply: 3.5V-5V
Model | FM-505 |
Protocol | ISO18000-6C / EPC C1 GEN2 |
Frequency | 865-868MHZ(EU),902-928MHZ(US) |
RF Power Output | -2~25dBm |
Interface | TTL(UART) |
Gain antenna | 3dbi antenna |

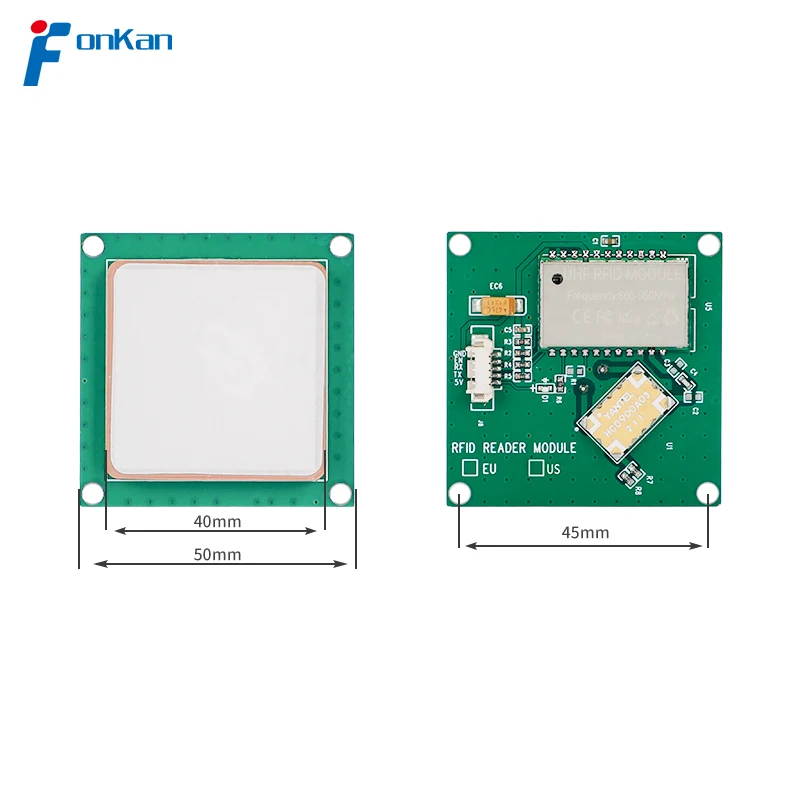

Module size | 50*50mm |
Read distance | 2.5M(depends on tags ) |
Read speed | >50pcs tags/sec |
Tags storage | 200pcs tags @ 96 bit EPC |
Power supply | 3.3V-5V |
Standby current | <80mA(EN pin high level) |
Sleeping current | <100uA(EN pin low level) |
Operation current | 180mA @3.5V(25dBm output, 25℃) |
110mA @ 3.5V (-2 dBm output,25°C) | |
Receive sensitivity | <70dbm |
Heat-dissipating method | Air cooling(no need for out install cooling fin) |

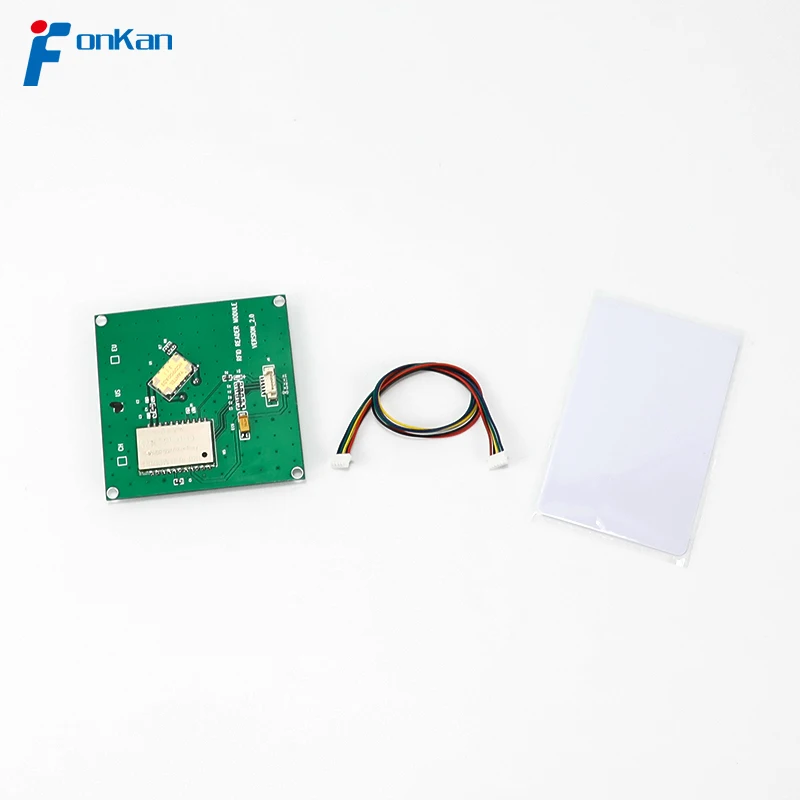

1.UHF RFID module*1pcs
2.Test card *1pcs
3.5 PIN Cable *1pcs
4.SDK and DEMO(After bought,we will send it to your E-mail)
S***r (verified owner) –
Satisfactory reading effect
h***r (verified owner) –
Received the package quickly, very satisfied.
q***r (verified owner) –
Good seller, delivery quickly said!
F***r (verified owner) –
Seller responded to my questions enthusiastically.
S***r (verified owner) –
Received tested ,good
П***ч (verified owner) –
Everything is fine! !
AliExpress Shopper (verified owner) –
Good
С***ч (verified owner) –
Everything works; to read, you need to send a command to the port – it responds with an identifier number, and can operate in a mode that reads multiple tags simultaneously. It works at a distance of about 40 cm.
