M5Stack Tiny NanoH2 IoT Development Board Kit Support Thread Matter Interoperability Protocols Based on Thread for Smart home
In Stock
Loading...
Description
- High-concerned chemical: None
- Model: NanoH2
- Type: MCU/Single Chip Microcomputer
- Origin: Mainland China
- Brand Name: M5Stack
Â
M5Stack Tiny NanoH2 IoT Development Board
Â
 Product FeaturesÂ
-
Supports Zigbee and Thread, Matter wireless protocols
-
Built-in LED, IR infrared transmitter, and RGB
-
Equipped with a Grove port, supporting multiple peripheral expansions
-
USB Type-C interface for power supply and programming
-
Compact size
-
Development Platform
-
Arduino
-
ESP-IDF
 ApplicationsÂ
-
Smart home
-
Industrial control
-
Consumer electronics
-
Low-power wireless communication nodes
 Package IncludesÂ
Â
1 x NanoH2
 SpecificationÂ
Â
Â
 Product detailsÂ
Â
Â
 Product DescriptionÂ
Â
NanoH2 is an ultra-compact IoT development board in the M5Stack development kit series. It is powered by the ESP32-H2FH4S as the SoC and features hardware security mechanisms such as secure boot and Flash encryption. The device integrates IEEE 802.15.4 wireless communication and supports Zigbee, Thread, and Matter interoperability protocols based on Thread. The hardware integrates an LED, IR infrared transmitter, RGB, Grove interface, USB Type-C, and a user button. The Grove interface enables flexible expansion with various M5 devices, providing developers with rich hardware expansion capabilities. It is suitable for functional extension needs in lightweight IoT scenarios and can be applied in smart home, industrial control, low-power wireless communication nodes, and the development of various low-power IoT terminals based on IEEE 802.15.2.
Â
Download Mode
To flash firmware, you need to enter download mode: press and hold the button GPIO9, then connect the USB cable to enter download mode.
Additional information
| Color | NanoH2 |
|---|---|
| High-concerned chemical | None |
| Model | NanoH2 |
| Type | MCU/Single Chip Microcomputer |
| Origin | Mainland China |
| Brand Name | M5Stack |
Vendor Information
14%
2025 New 100% Pure Silk Scarf Women Neck Hair Foulard Bandana Square Small Headband Hijab Print Poncho Scarves Pashmina
Original price was: 35.67$.30.91$Current price is: 30.91$.Select options
This product has multiple variants. The options may be chosen on the product page
Need for Speed Scratch Car Auto Windshield Decal Vinyl Sticker Universal Window Bumper Auto Door Car Accessories
7.91$Select options
This product has multiple variants. The options may be chosen on the product page
14%
BellyDance Costume for Women’s Sexy Off Shoulder Top+Tassel Chiffon Long Skirt 2pcs Oriental Dance Professional Training Suit
Original price was: 84.57$.73.29$Current price is: 73.29$.Select options
This product has multiple variants. The options may be chosen on the product page
Smart GPS Locator Pet Wallet Suitcase Car Global Positioning Tracking Elderly Kids Anti Getting Lost Finder For iPhone Find My
Price range: 10.56$ through 12.09$Select options
This product has multiple variants. The options may be chosen on the product page
19%

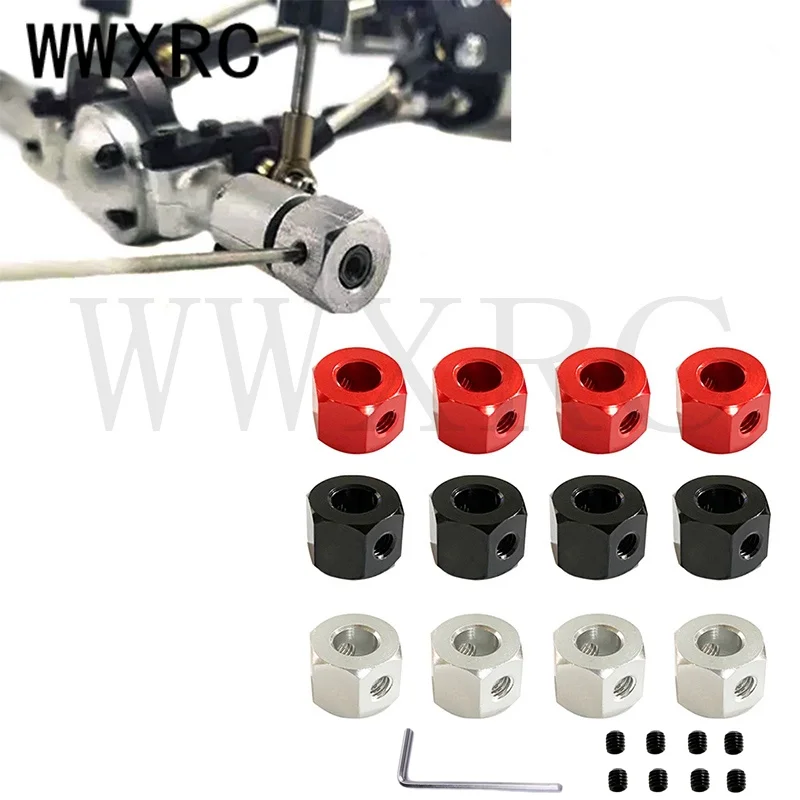

Metal Adapter 5mm to 12mm Aluminum Alloy Adapter for MN86 WPL D12 C14 C24 B14 B16 MN D90 D91 Truck Modified Upgrade Parts
