Description
- High-concerned chemical: None
- Internal Storage: None
- Focus: 2.1mm
- Audio Output: 1CH BNC
- Supported Operating Systems: No
- Supported Mobile Systems: None
- Video Compression Format: H.264
- Viewing Angle : 120°
- Lens (mm): 3.6mm
- Connectivity: Closed System/CCTV Wired
- Horizontal Resolution: 1000TVL
- Sensor Size: 1/3"
- Style: Bullet Camera
- Sensor: CMOS
- Focal Length: 3.6mm
- Installation: Normal
- Model Number: Mini Analog Camera Wide Angle
- Brand Name: YinRuins
- Origin: Mainland China
- Alarm Type: None
- Plug Type: None
- Certification: None
- Style: Mini Camera
- Type: Mini Analog Camera

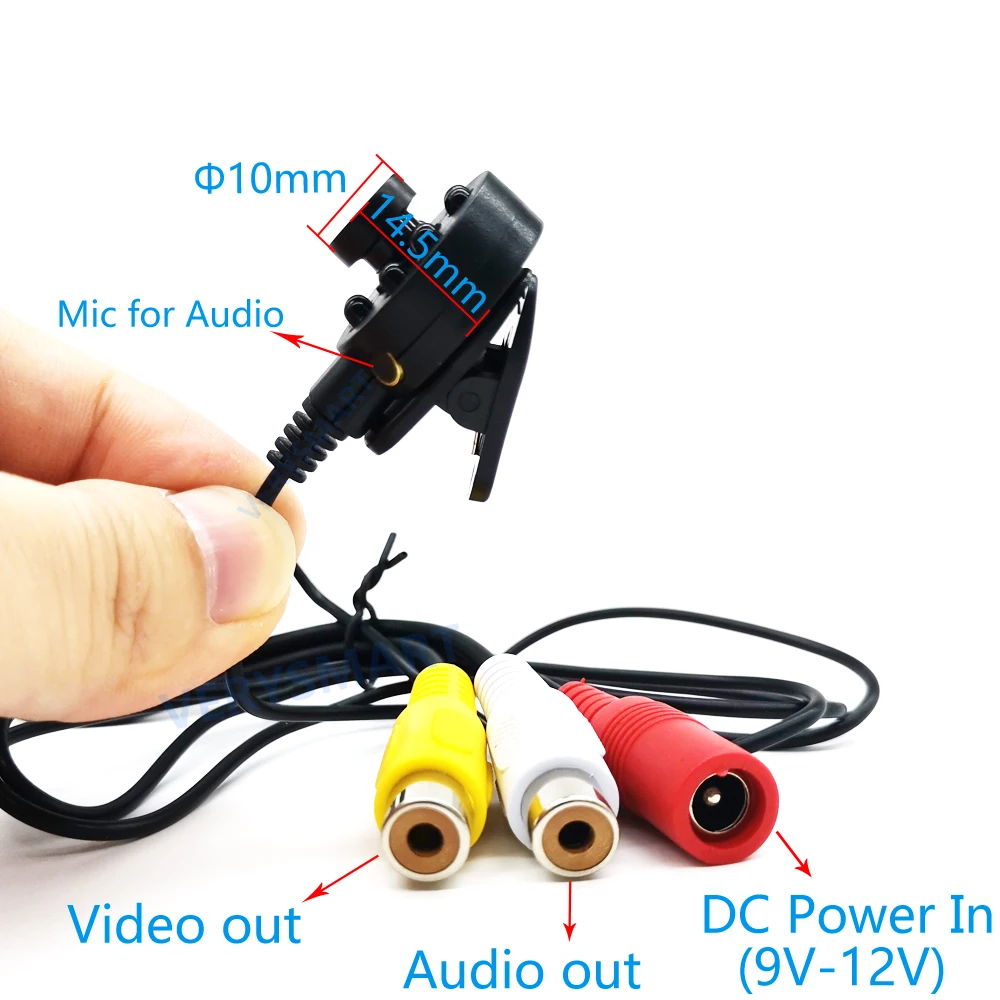

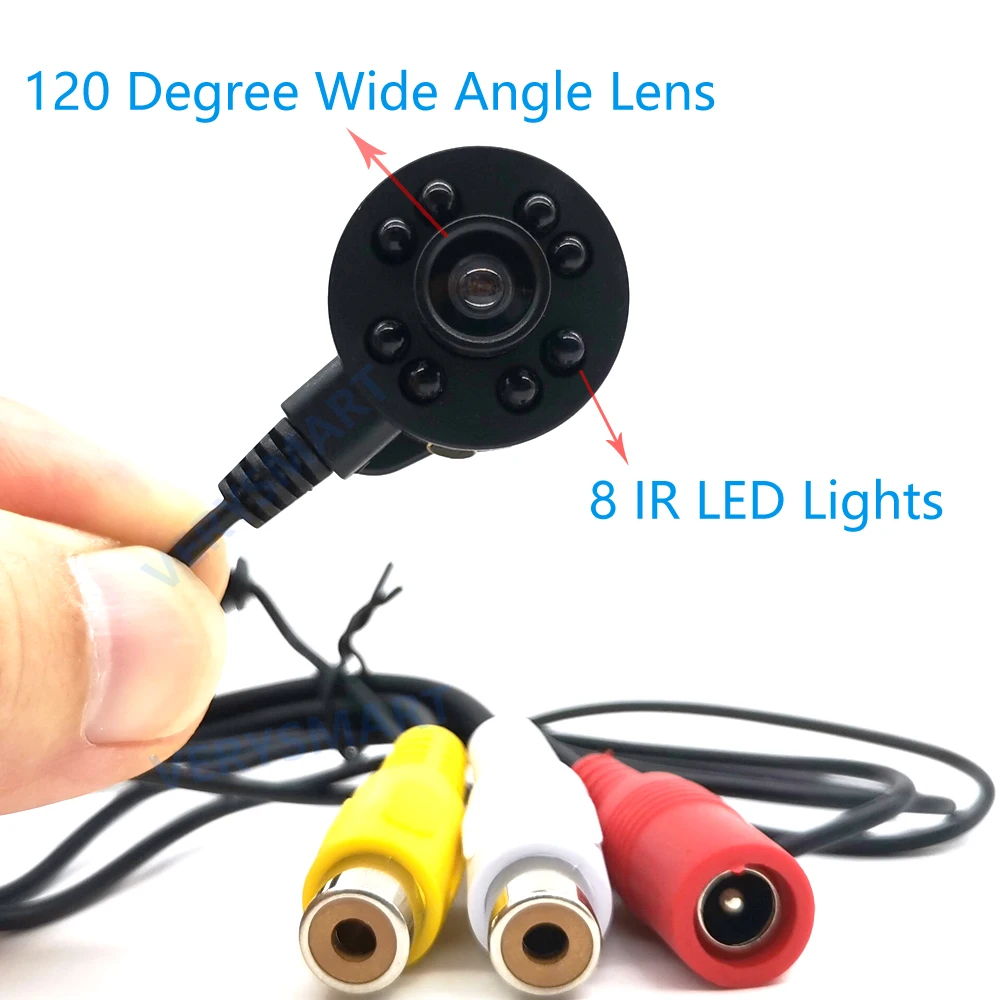

Micro Mini Analog Camera with 8PCS 940nm IR LEDs 120 Degree Wide Angle Lens Night Vision indoor CCTV Video Audio Camera
Features:
1:PAL / NTSC signal system
2:8 infrared lights, will not shine（Invisible to the naked eye）, more safe and clear.
3:Mini design, adopts the 1/3 inch CMOS image sensor
4:1000TVL horizontal resolution, high clear picture.
5:With high stability, widely applicable for various indoor environment
6:There is a detachable clip on the back for easy clip on clothes and other items.
7:Easy installation
Specifications:
Camera Type: Mini Analog camera
Camera image: Color
Image Sensor: 1/3 Inch CMOS
Effective Pixels PAL: 752(H) x 582(V), NTSC 768 x 494
Signal System: PAL / NTSC
Horizontal Resolution: 1000TVL
Lens: 3.6mm / 2.1mm
Viewing Angle : 85° / 120°
Shutter Speed: 1/50 (1/60)-1/100,000 sec
White Balance: Auto
S/N Ratio: > / = 48dB (AGC OFF)
Minimum Illumination: 0.1LUX / F1.2
LEDs: 8pcs 940nm IR LEDs
IR distance: 5M-8M
Video Out: 1.0Vp-p
Power Consumption: DC9V-12V 500mA
Operation Temperature: -10~+50 centigrade degree
Operation Humidity: RH95% max
Packaging content:
Option 1 (2.1mm Lens 120°):
1*Mini Camera(2.1mm Lens 120°)
1* English manual
Option 2 (3.6mm Lens 85°):
1*Mini Camera(3.6mm Lens 85°)
1* English manual
Note:
Power adapter is not included(Please use 9V to 12V DC Power, Max 500mA), we suggest use 9V Power.
Option 1 (2.1mm Lens 120°):
Option 2 (3.6mm Lens 85°):
