Description
- Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
- High-concerned chemical: None
- Zoom type: None
- Zoom: None
- Lens Quantity: Single Lens
- AI Functions: Motion Detection
- Color Night Vision: No
- Operating Temperature: -10°-60°
- IP Rating: IP66
- Power Mode: Mains Electricity
- Scene: Indoor and outdoor
- Megapixels: 5 MP
- TF Card: None
- Power Supply: Normal
- Internal Storage: None
- Installation: Normal
- Color: green
- is_customized: No
- Video Compression Format: H.264,H.265
- IR Distance(m): 1-5
- Camera Stabilization: None
- Supported Mobile Systems: Android,iOS
- Supported Operating Systems: Windows 7,Windows 8,Windows 10
- Lens (mm): 2.8mm
- Connectivity: Closed System/CCTV Wireless
- High Definition: 5.0 Megapixels
- Style: Mini Camera
- Brand Name: HQCAM
- Origin: Mainland China
- Special Features: Waterproof / Weatherproof
- Certification: CE
- Alarm Type: Email Photo
- Shell Material: Metal
- Smart home platform: None
- Optical Zoom: None
- Power Source: Normal
NOTICE:
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !
CE Certificate
RED Report-2.4G Wifi WST21N060115-2ER
Our bird box camera with WiFi connection is our most popular camera for bringing nature indoors. Using the camhi or camhipro app you can watch nesting birds on your smartphone or tablet in HD.
It’s straightforward to set up: simply connect up the power, mount the camera in your bird box and connect to your WiFi network. You can stream the camera live on your device, watch pre-recorded footage, and share the best bits with friends and family.
Features:
Support both WiFi connection and wired cable connection
Support Acess Point (AP WiFi) connection, you can connect camera by AP mode and live view / playback/ control pan tilt zoom even without internet
Camera built in memory card slot, Support TF card / micro SD card up to 128G
Support Motion detection Recording and email alarm.
Support send alarm pictures to the e-mail address,
Support upload alarm pictures and videos to the FTP server,
Support record alarm pictures and videos to Micro SD card,
Support alarm mobile phone message push
Support remote view and remote control pan tilt zoom from phone app /PC client at any time and any place
Support playback memory card records from phone app
Built in IR-CUT, Support both day and night vision,
Provide android & ios APP and multi-channel CMS PC client software.
Elegant outline and easy installation.
Phone app :CamHi camhipro
Support QR code login.
Support Plug n Play P2P
Support On,vif , camera can work with On,vif NVR recorder!
Different angle lens available
100 degree lens is 2.8mm,
Hid-den infrared lamp
940nm infrared lamp, invisible light source to human eyes, no harm to birds and animals, very hid den
Installation method of SD card ( card)
1. Open the screws at the bottom of the shell
2. Locate the SD card slot
Supports up to 128 GB memory card

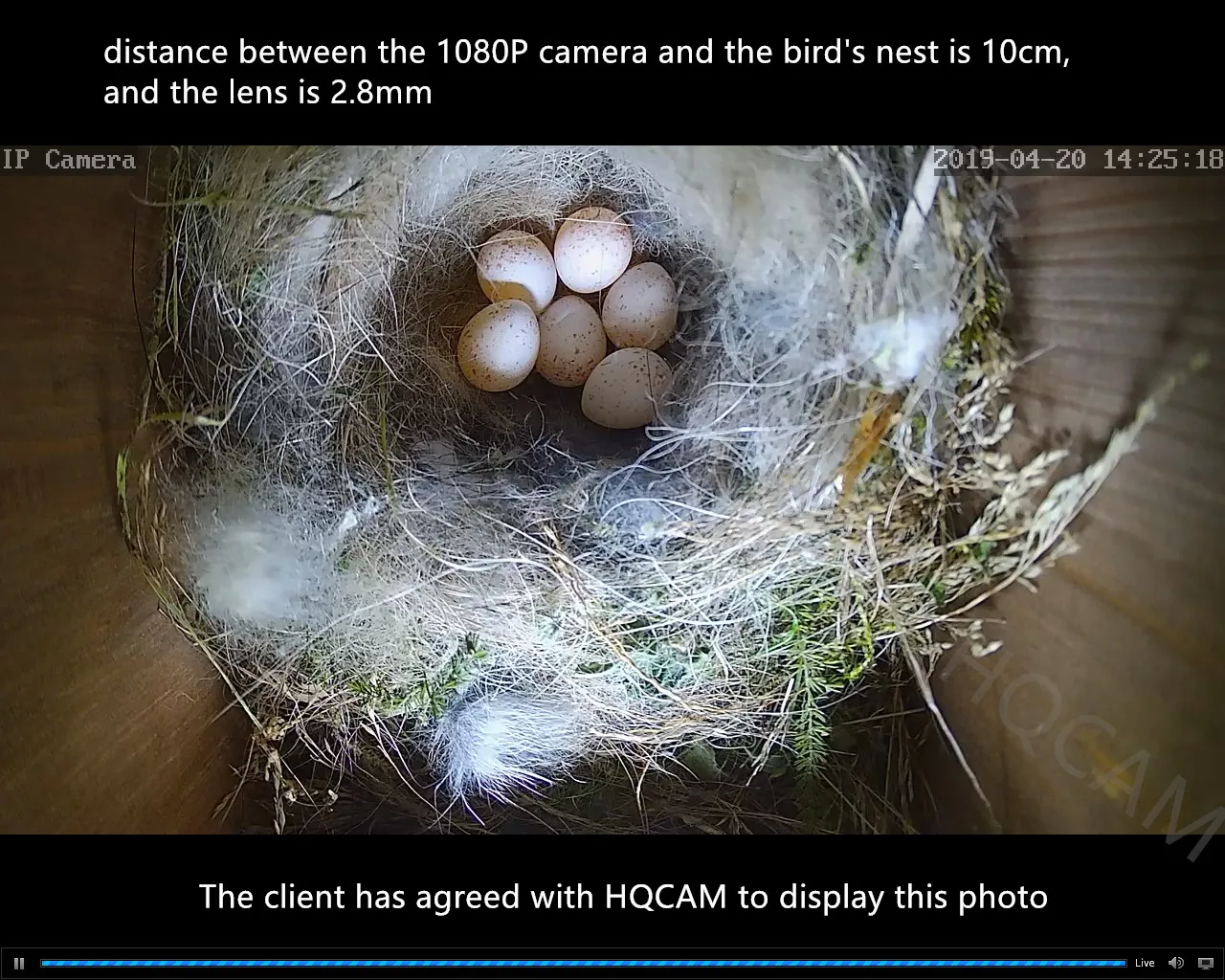

Customer real case presentation:
Size
Q1: Is it wifi camera?
Re: Yes, it is wireless ip camera with wifi antenna.
Q2: Does it support sd card?
Re: YES, it bulits a sd card slot,you can install a micro SD card to save records.
Q3 Can i watch the camera video from another place remotely? What is the app for phone?
Re: Yes, you can. The phone app named" CamHi". (User ID: admin; Password: admin)
Q4: Can i record the video into SD card or my computer hard disk or i have to use this camera with a recorder NVR?
Re: Yes, you can record video to your Micro sd card / PC hard disk, and you can also use it with a recorder NVR and record it into NVR hard disk. Both are OK!
Q5: Does it support ON VIF?
Re: Yes.
Q6: What browser access is supported?
Re：Support for Internet Explorer, other browsers can switch to IE compatibility mode can also be accessed, may remind you to download the plugin
Q7: Not a clear picture?
Re：Check whether it is the first stream. The first stream is the clearest
To check whether the focal length of the lens is correct, you can try to slowly rotate the lens, pay attention to loosen the small screws near the lens
Q8: How long is the power extension cord appropriate?
Re：The power extension cable used should not exceed 6 meters, and the extension cable of more than 6 meters is recommended to buy a power adapter above DC12V3A for power supply, otherwise it will lead to frequent restart of the power supply camera or no picture
Q9: The PC client software displays a message indicating that the password is incorrect or unavailable
Re: Please contact us for the latest version of the PC client software
Q10:The camera keeps rebooting or going offline
2MP Parameter(Disclaimer: This camera is real pixels, real frame rate! We reject fake interpolated pixels, fake frame rates!!)
2MP | |||||
operating system | Embedded LINUX | ||||
main processor | GK7201V200 | ||||
image sensor | 1/3”CMOS sensor | ||||
IRCUT | support | ||||
Compression standard | |||||
Video compression algorithm | Support H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline | ||||
Audio compression algorithm | G.726/G.711 | ||||
Compressed transmission stream | 32Kbps-6144bps, can self-defining, default 1280Kbps | ||||
Image | |||||
Maximum image size | 2MP(1920×1080) | ||||
definition | First stream: 2MP（1920×1080） | ||||
Second stream:640×352 | |||||
Video frame rate | 10-25fps(60HZ) | ||||
Character overlay | Support OSD name, time and date information overlay | ||||
Image Settings | Brightness, contrast, saturation, exposure, up and down reversal, left and right mirror adjustable | ||||
Network function | |||||
Storage function | Support Maximum 128GB Micro SD card storage, support timed recording and alarm recording storage(Alarm recording duration of 15 seconds), support alarm upload cloud storage function (requires purchase of cloud storage package) | ||||
Motion detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) | ||||
Alarm linkage | Send pictures of the alarm to the designated email address; Upload alarm pictures and alarm recordings to the FTP server | ||||
Network Protocol | Support TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP | ||||
Access Protocol | Support ONVIF 2.4 protocol | ||||
Interface | |||||
Audio input | 1CHinput, support MIC input | ||||
Audio output | |||||
network interface | 10Base-T/100Base-TX Ethernet interface | ||||
WiFi 802.11b/g/nWireless network interface | |||||
General specifications | |||||
Size | |||||
Temperature and humidity | 0℃～+50℃10%～95%RH | ||||
Power Supply | DC12V 2A | ||||
Power consumption | 1.5W | ||||
——————————————————————————————————————————————————————————————————-
5MP Parameter(Disclaimer: This camera is real pixels, real frame rate! We reject fake interpolated pixels, fake frame rates!!)
5MP | ||||||
operating system | Embedded LINUX | |||||
main processor | Ingenic T41NQ | |||||
image sensor | 1/2.7”CMOS sensor | |||||
IRCUT | support | |||||
Compression standard | ||||||
Video compression algorithm | Support H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline | |||||
Audio compression algorithm | G.711 | |||||
Compressed transmission stream | 32Kbps-6144bps, can self-defining, default 960Kbps | |||||
Image | ||||||
Maximum image size | 5MP(2880×1620) | |||||
definition | First stream: 5MP(2880×1620)，4MP（2560×1440） | |||||
Second stream: 800×600，640×480，800×480、640×352 | ||||||
Video frame rate | 10-20fps | |||||
Character overlay | Support OSD name, time and date information overlay | |||||
Image Settings | Brightness, contrast, saturation, exposure, up and down reversal, left and right mirror adjustable | |||||
Network function | ||||||
Storage function | Support Maximum 128GB Micro SD card storage, support timed recording and alarm recording storage(Alarm recording duration of 15 seconds), support alarm upload cloud server (requires purchase of cloud storage package) | |||||
Motion detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) | |||||
Alarm linkage | Send pictures of the alarm to the designated mailbox; Upload alarm pictures and alarm recordings to the FTP server; support alarm pictures and videos to TF card | |||||
Network Protocol | Support TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP | |||||
Access Protocol | Support ONVIF 2.4 protocol | |||||
Interface | ||||||
Audio input | 1CH input, support MIC input | |||||
Audio output | 1CH output, support connecting headphones or amplifiers | |||||
network interface | 10Base-T/100Base-TX Ethernet interface | |||||
WiFi 802.11b/g/n Wireless network interface | ||||||
General specifications | ||||||
Size | (length, width）38×38 | |||||
Temperature and humidity | 0℃～+50℃10%～95%RH | |||||
Power Supply | DC12V 2A | |||||
Power consumption | 1.5W | |||||
