Description
- High-concerned chemical: None
- Internal Storage: None
- Audio Output: 1CH BNC
- Supported Operating Systems: No
- Supported Mobile Systems: None
- Video Compression Format: H.264
- Viewing Angle : 170°
- Lens (mm): 3.6mm
- Connectivity: Closed System/CCTV Wired
- Horizontal Resolution: 700TVL
- Sensor: CMOS
- Focal Length: 3.6mm
- Installation: Embedded
- Technology: Mini
- Model Number: Mini Analog Camera
- Brand Name: YinRuins
- Origin: Mainland China
- Alarm Type: None
- Plug Type: None
- Certification: None
- Power Supply(V): DC 8V ~ 12V
- Dimensions (L x W x D)(mm): 12 x 12 mm
- Style: Mini Camera
- Type: Mini CVBS Camera
Mini FPV Analog Camera 3.6/2.1/1.8mm Wide Angle Lens Size 12x12mm Color CVBS Home Security Surveillance Video Cameras
Technical parameters:
Image Sensor: 1/4'' HD CMOS
TV System: PAL/NTSC
Effective Pixels: PAL: 628(H) x 582(V)
Lens: Built in 3.6mm/2.1mm/1.8mm Lens
Viewing Angle : 70°/140°/170°
Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)
S/N ratio: 48dB
Video Output: 1.0Vp-p.75. BNC Connector
AGC: Auto
White Balance: Auto
Backlight Compensation: Auto
Exposure Mode: EE
Electronic Shutter: 1/50(1/60) – 1/100000 sec
Power Supply Support: DC8V – 12V 500mA
Sync. System: Internal Synchronization
Applications: Widely used for Home, Office, helicopters and other aerial aircraft, as son on.
Note:

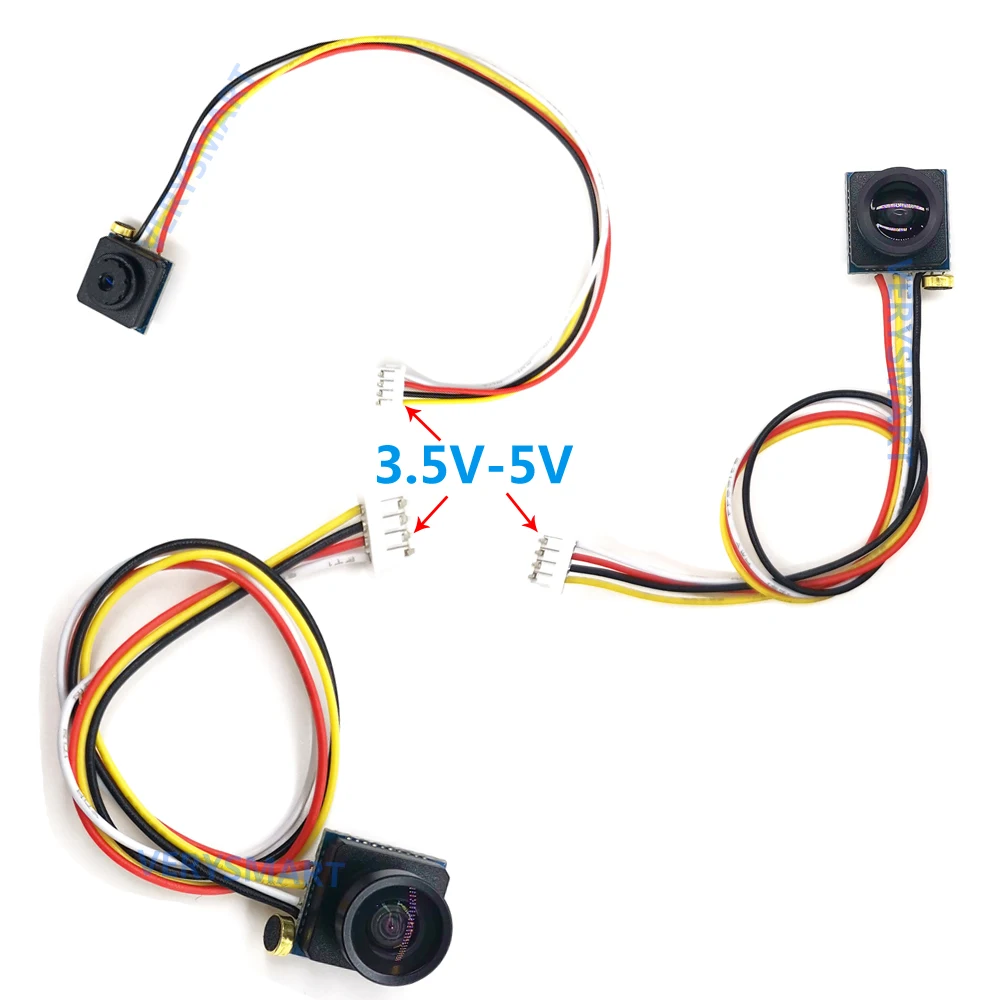

1.The dimensions of the three cameras are: 12mm × 12mm.
2.The 3.6mm, 2.1mm, and 1.8mm in the picture refer to the lens specifications of the three cameras, not the size, 3.6mm lens corresponds to 70 degree lens, 2.1mm corresponds to 140 degree lens, 1.8mm corresponds to 170 degree lens, thanks.

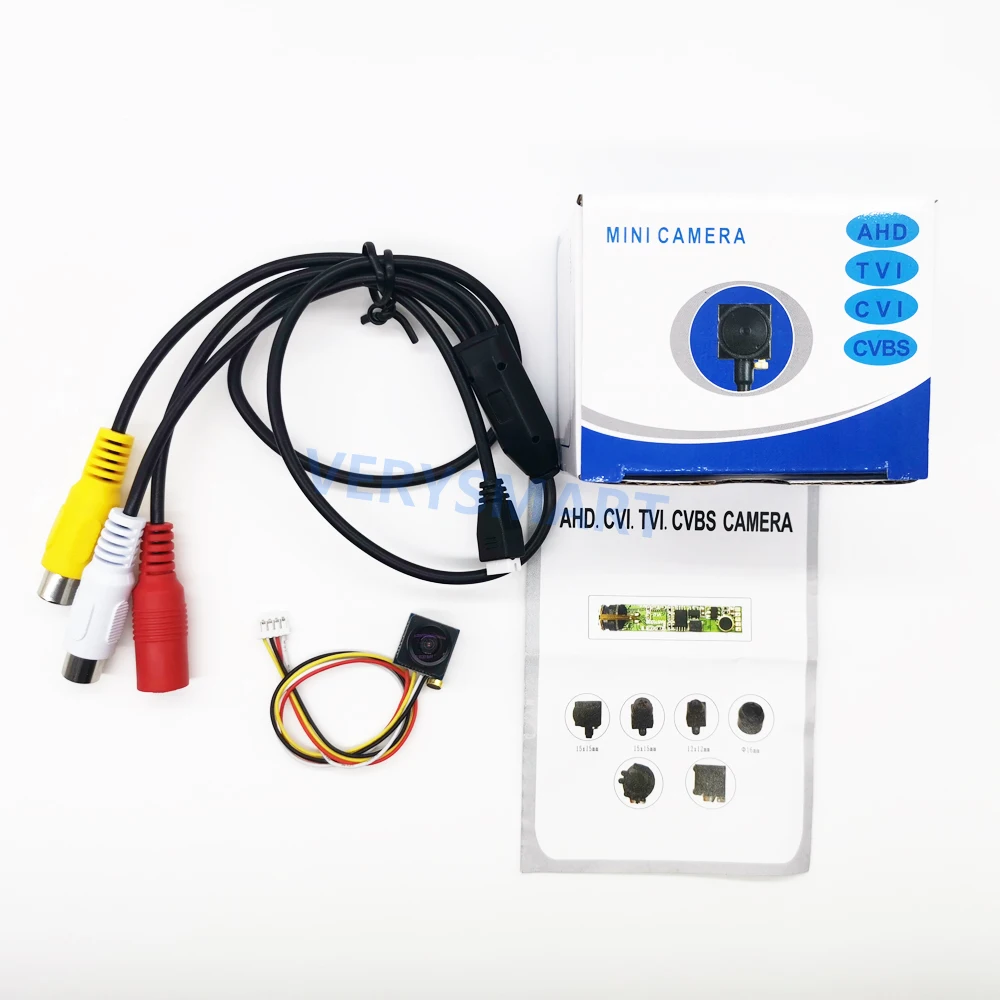

Package include:
1 x Mini CCTV Security Camera
