Description
- High-concerned chemical: None
- Gain(dB): 3dBi
- Brand Name: YILEXUN
- Origin: Mainland China
- Waterproof Level: IP66
- Maximum Range: <1.5km
- Walkie Talkie Type: Portable
- Output Power(w): 10w-25w
- Frequency Range: 144 / 430MHz
- Cable Length: 3meters

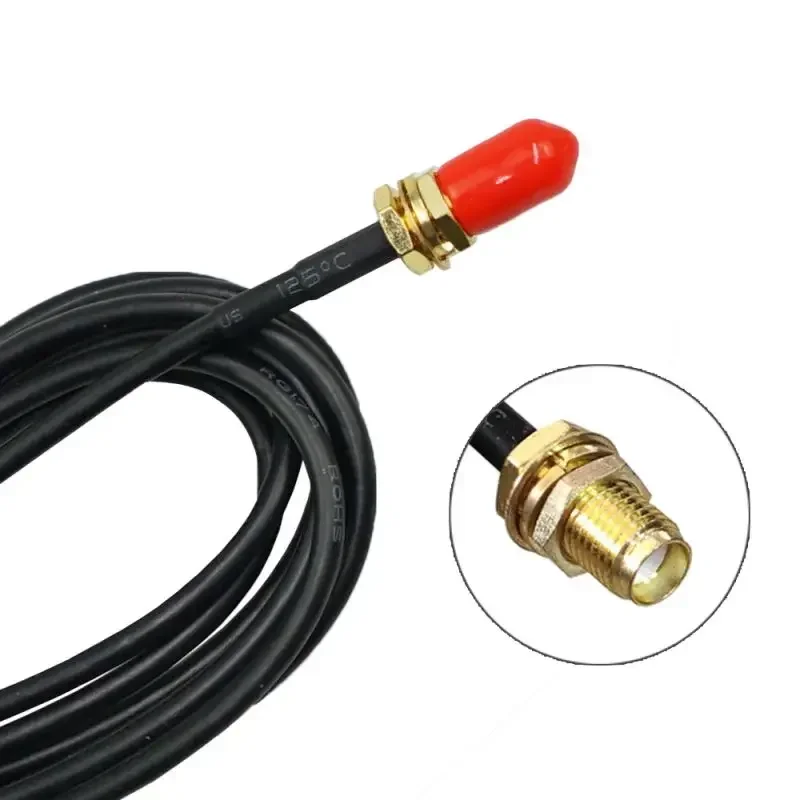

- Cable Interface: SMA-Female
Main Technical Specifications
Frequency: 144/430Mhz (VHF :136-174MHz UHF: 400-520MHz)
Connector: SMA-Female
Max Power: 10W
Impedance: 50ohms
Gain: 3.0 dBi
Suction cup diameter: 31mm
Antenna height: 39cm / 15.35 inch
Cable length: 3m /118.11 inch
Weight: 55g
Suitable for
Kenwood | TK-360, TK-370, TK-370G, TK-372, TK-372G, TK-3100, TK-3140, TK-3160, TK-3170, TK-3180 , TK-3200, TK-3202, TK3207 |
LINTON | LT-3288, LT-6288, LT-3188, LT-2188, LT-3260, LT-3268, LT6188, LT3288 |
PUXING | PX-777, PX-777 PLUS, PX-666, PX-888 |
WEIERWEI | VEV-3288S, VEV-6288, VEV-3288 |
QUANSHENG | TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT, TG-UV |
WOUXUN | KG-689, KG-689 PLUS, KG-669, KG-669 PLUS, KG-659, KG-699E, KG-UVD1 |
HYT | TC-268, TC-268S, TC-368, TC-368S, TC-370S, TC-500, TC-500S |
TYT | TH-UVF1 T2 T3 F6 300 500 600 800 900 9900 |
BAOFENG | BF-666S, BF-777S, BF-888S, BF-320, BF-480, BF-490, BF-V6, BF-V8, BF-388A, BF-UV5R, BF-UV5RA, BF-UV5RB, BF-UV5RC, BF-UV5RD, BF-UV5RE, BF-UV5REPlus, BF-UV82, BF-UVB5 B6 |
Other radios suitable for this antenna. | |
Notice: If your radio model is not compatible, please see my other item or email us your model number, then, we will help you find one that suits for you.

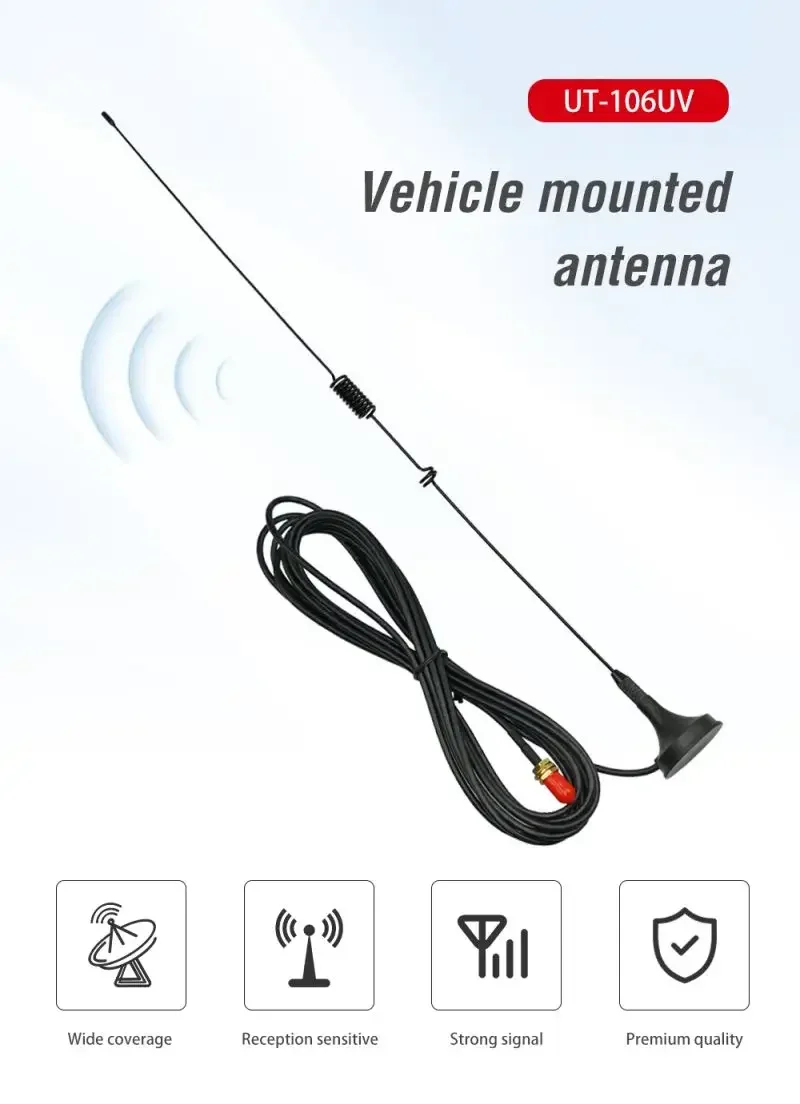

Package included: 1pcs x Nagoya UT-106UV Antenna
AliExpress Shopper (verified owner) –
Works very well for uhf and fm radio only. I wouldn’t recommend for any other bands. The cord is a good length and the magnet is strong enough to hold at highway speeds
N***a (verified owner) –
Good quality antenna. Comes with 1m coaxial cable. It’s attached to magnetic base which in turn can be attached to roof of car. Comes with female port to be attached directly to the baofeng uv2 modals. Fast shipping.
AliExpress Shopper (verified owner) –
This really works, it definitely improves the range, and it’s very effective on many bands. Connected to Quasheng, for this money, I recommend it! 😉
AliExpress Shopper (verified owner) –
Excellent reception compared to the standard antenna and even better than the larger one purchased. Good sensitivity.
AliExpress Shopper (verified owner) –
Arrived well packaged and promptly, no damage or bends in the antenna. Per the picture below, swr is <2db in the target bands, and as low as 1.1db
AliExpress Shopper (verified owner) –
Excellent little antenna. It noticeably increased the range of my handheld baofang.
AliExpress Shopper (verified owner) –
Works surprisingly well for such a small antenna. i have tested it across vhf and uhf bands and it’s transmission and reception abilities are pretty good. the magnet is ok for static work, but i wouldn’t trust it on a moving vehicle.
AliExpress Shopper (verified owner) –
An accessory that’s really worth it, it greatly improves the performance of the HT. Good wiring size and the magnetic base is very convenient. I use it as a window antenna at home. I recommend it.
