Nb-iot /LORA Soft Antenna UAV wireless module Figure transmission data transmission 840-868-915-923-902-928mhz antenna SMA male
Description
- High-concerned chemical: None
- Gain(dB): 10
- Brand Name: GIZONT
- Origin: Mainland China
IPEX cable SMA female head 10cm
Click the jump link to purchase if necessary.
Many people have placed an order and selected the incorrect option, so
please check your order option again after placing the order!!
What Frequency specifications do you choose we will ship, please don't choose wrong, if you are not clear, please contact customer service.
Electrical parameters

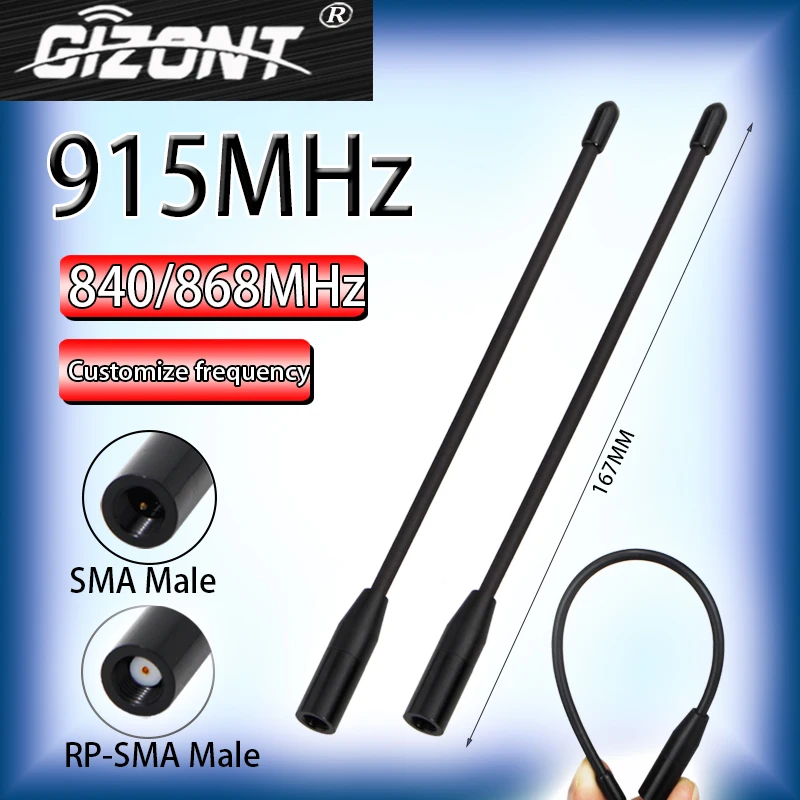

Frequency range: 840MHZ/868Mhz/915MHZ (902-928mhz) (other frequency points can be customized, contact customer service)
Antenna material: carbon steel soft whip, automatic shaping
Antenna size: 16.7 cm
Weight: 20 g
Polarization mode: vertical
Gain: 10 dbi
Standing wave ratio: ≦1.5
Maximum input power: 20W
Input impedance: 50 Ω

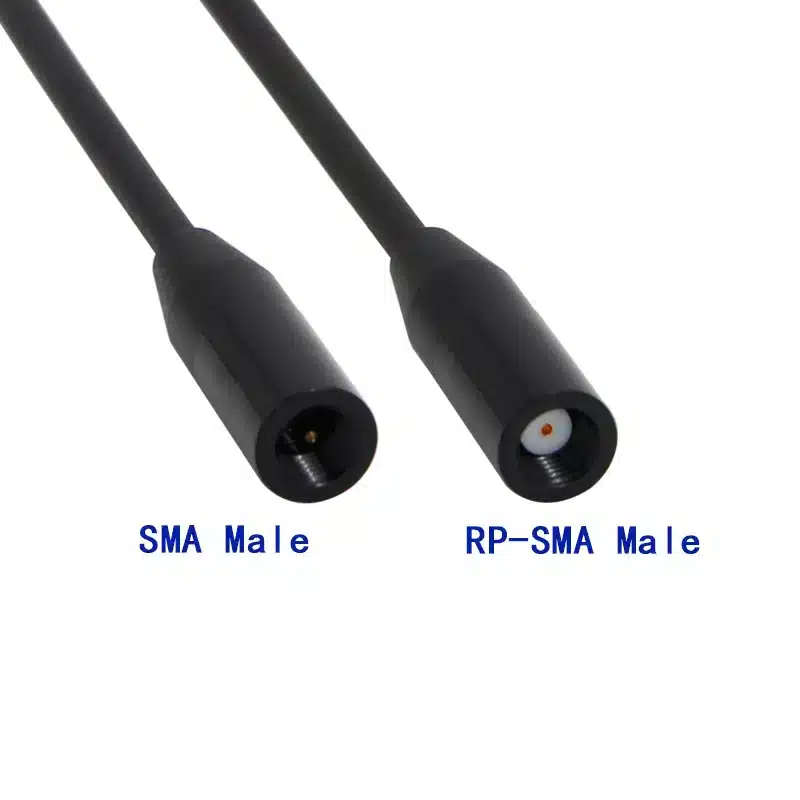

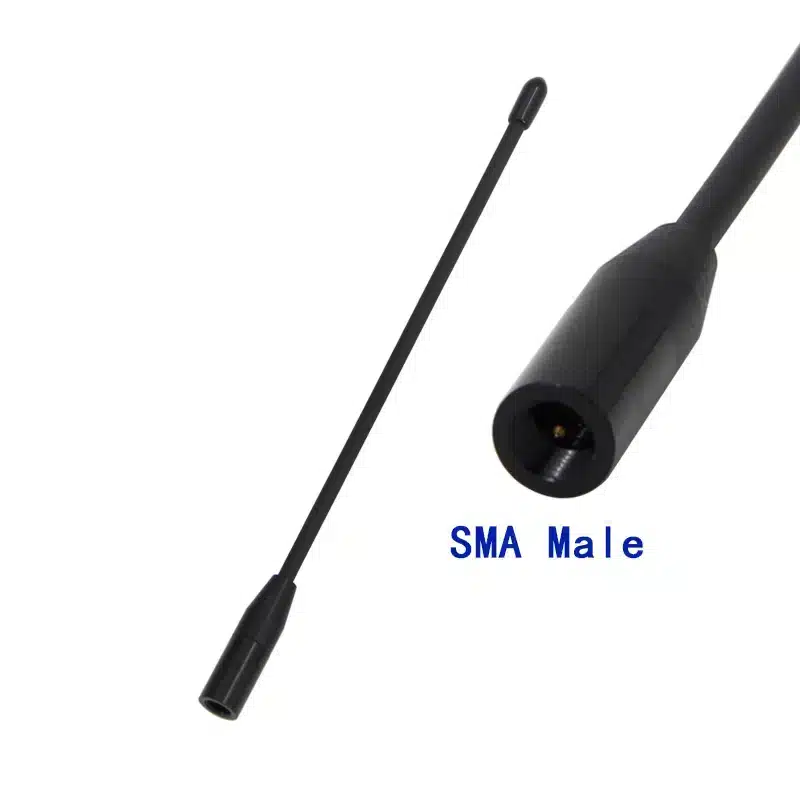

Antenna connector: SMA male or RP-SMA male
Operating temperature: -40℃ to +60℃
Additional information
| High-concerned chemical | None |
|---|---|
| Gain(dB) | 10 |
| Brand Name | GIZONT |
| Origin | Mainland China |
8 reviews for Nb-iot /LORA Soft Antenna UAV wireless module Figure transmission data transmission 840-868-915-923-902-928mhz antenna SMA male
Vendor Information
- Address:
- 4.92 rating from 137625 reviews
Related Products
AliExpress Shopper (verified owner) –
Very happy with these antennas. I was using the supplied short antenna that came with my lora kit but sometimes i couldn’t get signal reception. These antennas improved my lora reach for my distant letterbox sensor project. Recommended.
R***r (verified owner) –
Perfect antenna for all the meshies on channel 45 (medium-fast) – spot on 926mhz.
Great price – buy a few extras and have then ready for your next meshie meet and you’ll be the most popular guy/gal there.
They should rename these antennas to “meshie peace-maker ii”
AliExpress Shopper (verified owner) –
Measured with vna and it’s 50 ohm and good swr at 868 mhz
AliExpress Shopper (verified owner) –
Great antennas, i’ve tested all of them and they are perfect, swr under 1.2:1
AliExpress Shopper (verified owner) –
Quite good quality antenna! Resonates at ~930mhz in my setup. 915mhz=1.2 swr.
AliExpress Shopper (verified owner) –
Good seller, fast shipping. Very good antenna on nanovna 1.11
AliExpress Shopper (verified owner) –
Good quality antennas, works perfect with heltec lora 32 v3 and heltec nrf52840 t114
AliExpress Shopper (verified owner) –
2nd time i ordered this same antenna, shows up as a neat 865-869mhz dip in the tester
