Description
- High-concerned chemical: None
- Is Electric: No Battery
- Anti-wind Ability: no
- Drone Weight: as the manual
- Takeoff Weight: as the manual
- Transit Time (Days): as the manual
- Video Capture Resolution: 4K UHD
- Operator Skill Level: Beginner
- Indoor/Outdoor Use: Outdoor
- Camera Mount Type: Other
- Controller Mode: MODE1,MODE2
- Model Number: RTF XY-5 220mm FPV Racing Drone
- Flight Time: 5~10
- Controller Battery: not including
- Control Channels: 6 channels
- Motor: Brushless Motor
- Is Batteries Included: No
- Power Source: Electric
- Remote Distance: as the manual
- Remote Control: Yes
- Type: HELICOPTER
- Aerial Photography: Yes
- Package Includes: Original Box,Camera,Remote Controller,charger,USB Cable,Operating Instructions
- Material: Plastic,Metal
- State of Assembly: Ready-to-Go
- Features: App-Controlled
- Brand Name: jmt
- Origin: Mainland China
- Recommend Age: 14+y
NOTE:
All the parts will be soldered, but not assembled. You need to assemble them yourself, not recommended for beginners!
if you need the RTF with battery version, pls choose the express shipping method, due to the aliexpress standard shipping method not support pure battery, pls notice that, thank you!
When the VTX is working, the surface will generate high temperature, please do not touch it directly to avoid burns; There is no such thing as a non-heat-generating VTX on the market.
Functions and features:
Wheelbase 220mm
Support voltage 3-4S
Battery life is about 10 minutesRemote control: Flysky remote control or TX18S remote control (optional, only include in RTF version)
Remote control distance:
(with Flysky remote control) about 400 meters,
(with TX18S remote control) about 2000 meters
Propeller: 51466
Motor: 2205 2300kv
ESC: 45A BL_S
Flight control: F4 V2
VTX: VT5804 0-600mw
Camera: ratel 2
Battery: 3S 1500mah 40C (optional, only include in RTF version)
Frame type: HX type
Wheelbase: 220mm
Arm thickness: 5mm
Thickness of the upper and lower plates: 2mm

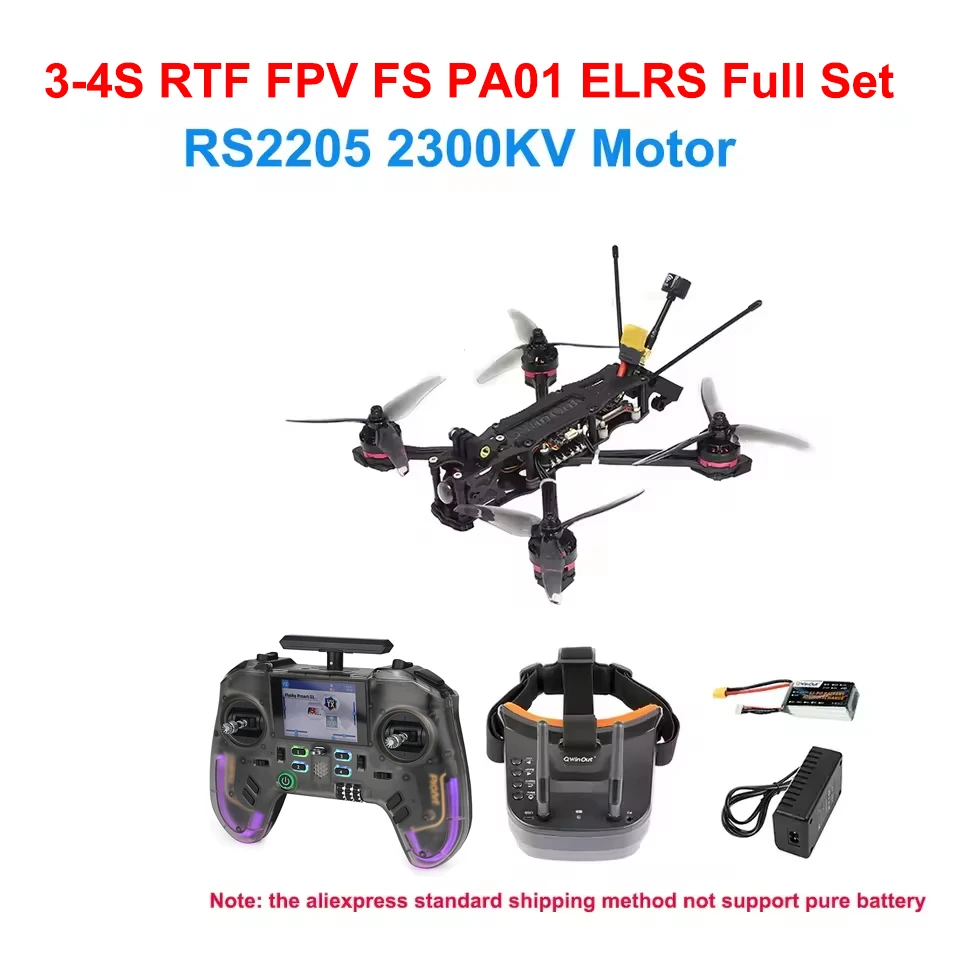

Package include:
1x 220mm xy-5 Wheelbase racing crossing drone rack
2 Pairs x PC material 51466 three-blade propeller
4x 2205 2300kv RC motor
1x 45A brushless ESC 4in1
1x F4 V2 flight control built-in OSD/BEC
1x VT5804 0-600mw
1x micro size ratel 2 camera
1x FPV Goggles(Optional)
1x 11.1V 1500MAH 40C battery (Optional)
1x Flysky FS I6 Transmitter Model 2 with receiver (Optional)
Remote control distance:
(with Flysky remote control) about 400 meters,
(with TX18S remote control) about 2000 meters
Motor: 2205 2300kv
ESC: 45A BL_S
Flight control: F4 V2
VTX: VT5804 0-600mw
Camera: ratel 2
Battery: 3S 1500mah 40C (optional, only include in RTF version)
Wheelbase: 220mm
Arm thickness: 5mm
Thickness of the upper and lower plates: 2mm
LiteRadio 4 Radio Transmitter
Channel: 10
Color: Gray (Standard Version), gray blue (Twilight Limited Edition)
Gimbal: Potentiometer (Standard Version), Hall (Twilight Limited Edition)
RF System: ExpressLRS 2.4G
RF Output Power: 25mW/50mW/100mW (adjustable)
Simulator Connection: Bluetooth-compatible and USB-cable connection
Supported Simulator: Most simulators and for DJI Virtual Flight
Port: Type C port (integrates data transfer and charging)
Charging Power: 5V, max 3A
Battery: Built-in 1S 2000mAh LiPo
Endurance: 4-5 hours at 100mW or max 8 hours at 25mW
Weight: c. 210g
Dimensions: 172.5mm*118.5mm*72.5mm

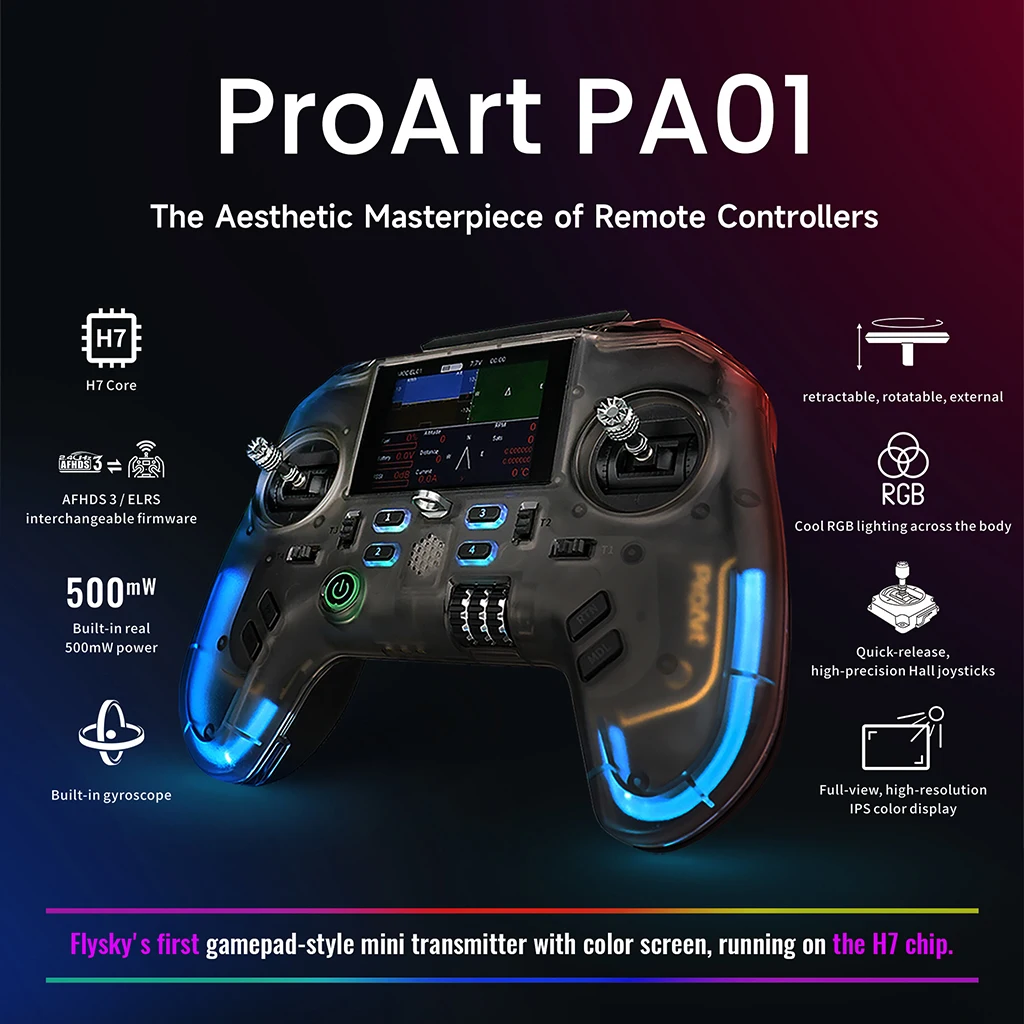

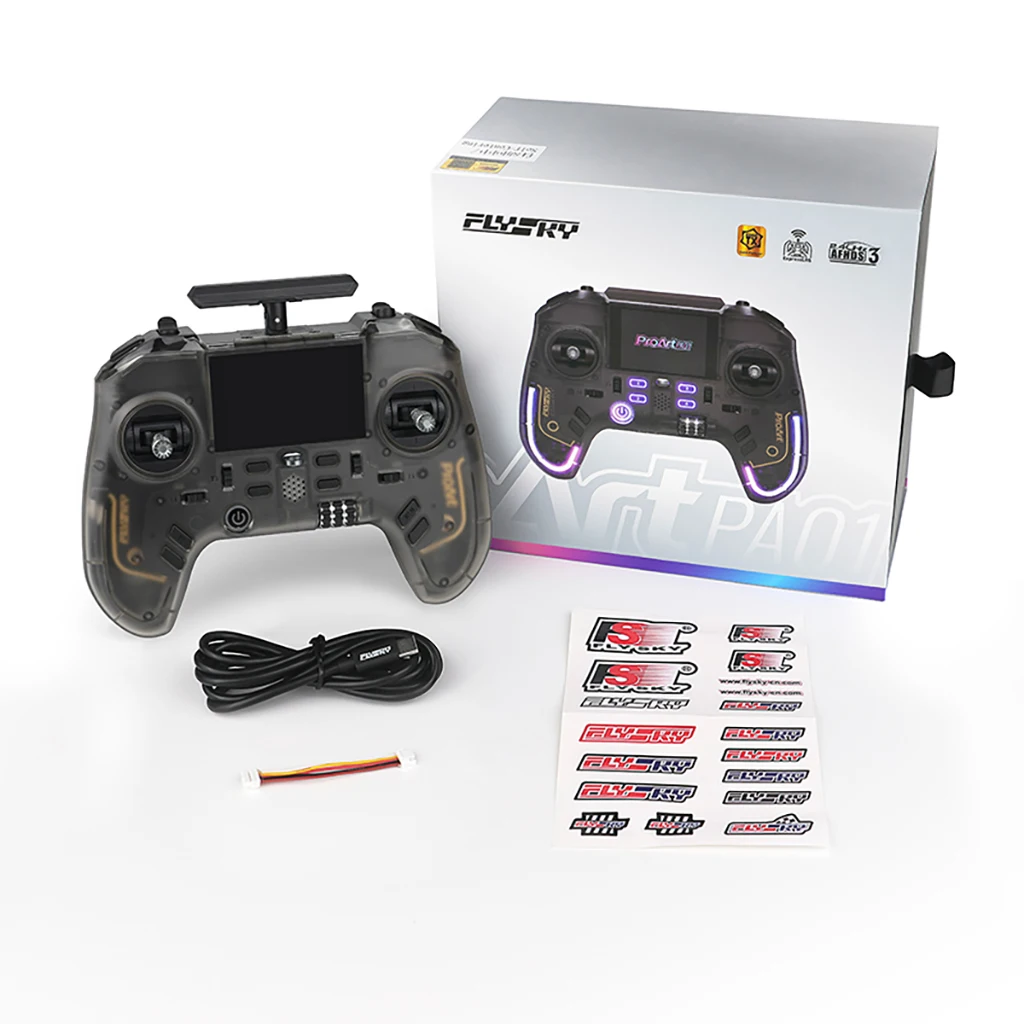

Model: PA01
Number of channels: Built-in transmission: 18; External transmission: 32
Wireless frequency:2.4GHz ISM
Wireless protocols:AFHDS 3 /ELRS
Transmission power:20dBm (factory default)
Antenna: Single antenna (retractable, rotatable,external)
Input voltage: 7.4V (2 x 18650 LiPo batteries)
Data ports: USB Type-C,3.5mm audio, 3.5mm trainer (DSC)
Low voltage alarm: <7.2V
Display: 2.4-inch, 240 x320 full-dot matrix color IPS display, non-touch, full viewing angle
Charging port: USB Type-C
Channel resolution: 4096 level
Firmware Update: Supported
Operating temperature:-10°Cto+60°℃
Operating humidity:20%-95%
Dimensions: 174.9 x131.4 x 67.5 mm
Body color: black translucent
Body weight:343g (without batteries)
Charging dock weight: 67g (without batteries)
Certifications: SRRC,CE, FCC ID:2A2UNPA0100
