Description
- High-concerned chemical: None
- Model Number: HB-876E
- Size: 160
- Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)
- Components: Disc Brake
- Brand Name: Goodtaste
- Origin: Mainland China

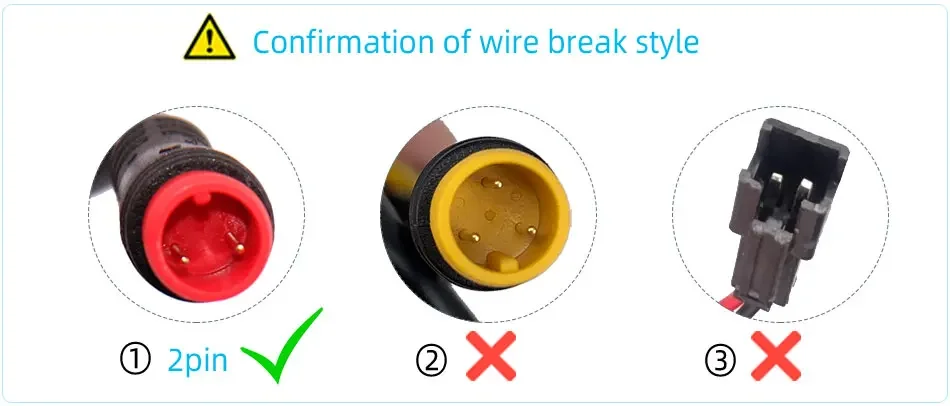

① The 2-pin broken wire style identified by the number can be adapted
https://www.aliexpress.com/item/1005004328635393.html

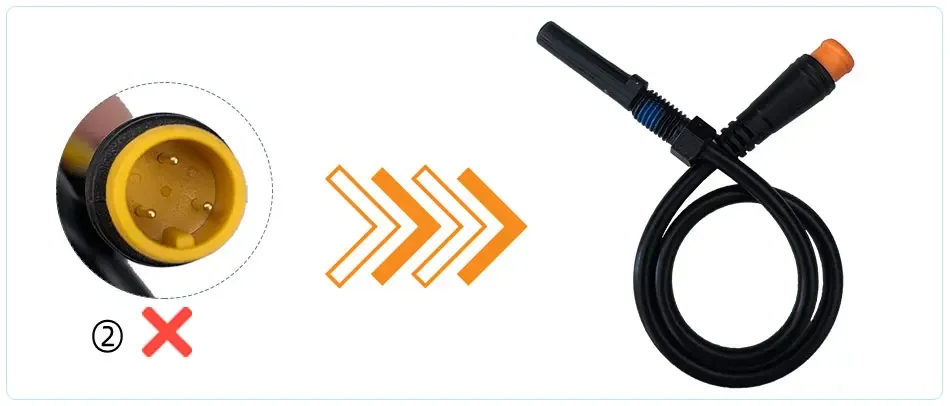

② The 3-pin broken wire identified by ID needs to be purchased separately. Please click on the image or link above to purchase

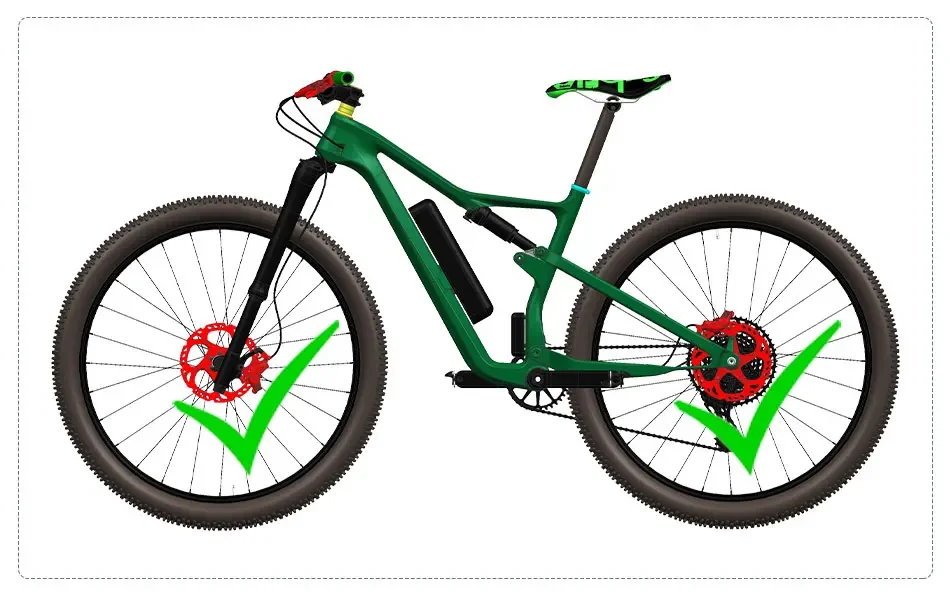

The bicycle with the above structure can be adapted
https://www.aliexpress.com/item/1005004149983592.html

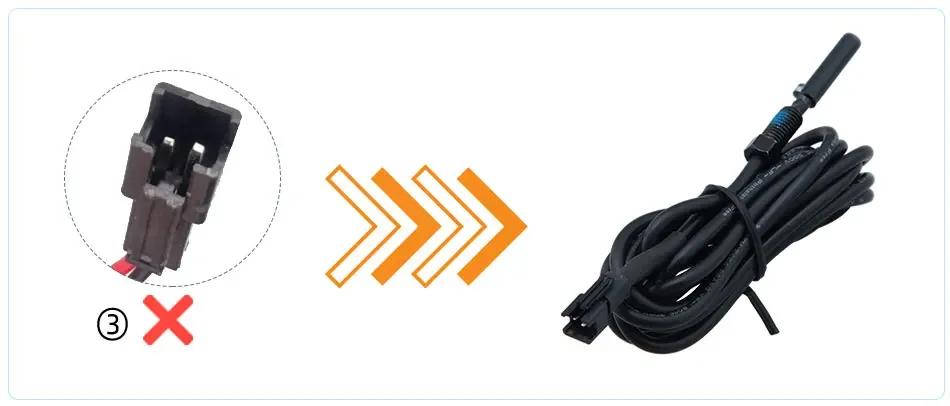

③ The SM-2A broken wire marked with ID needs to be purchased separately. Please click on the image or link above to purchase

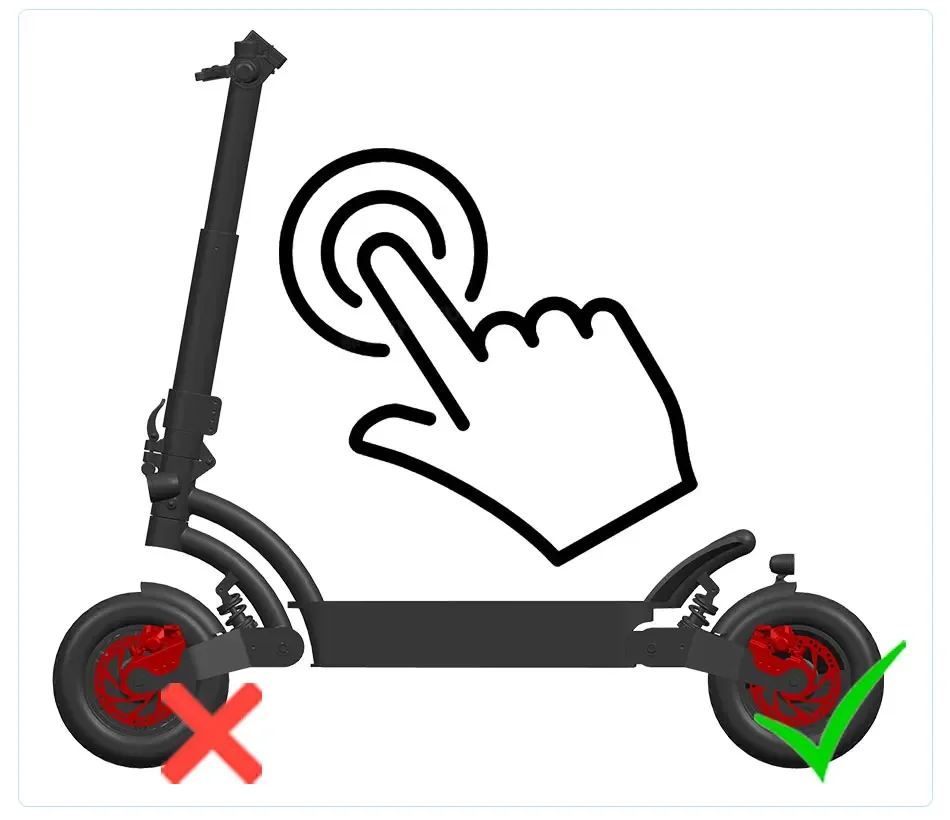

If the clamp is in the position shown in the picture, it can be adapted

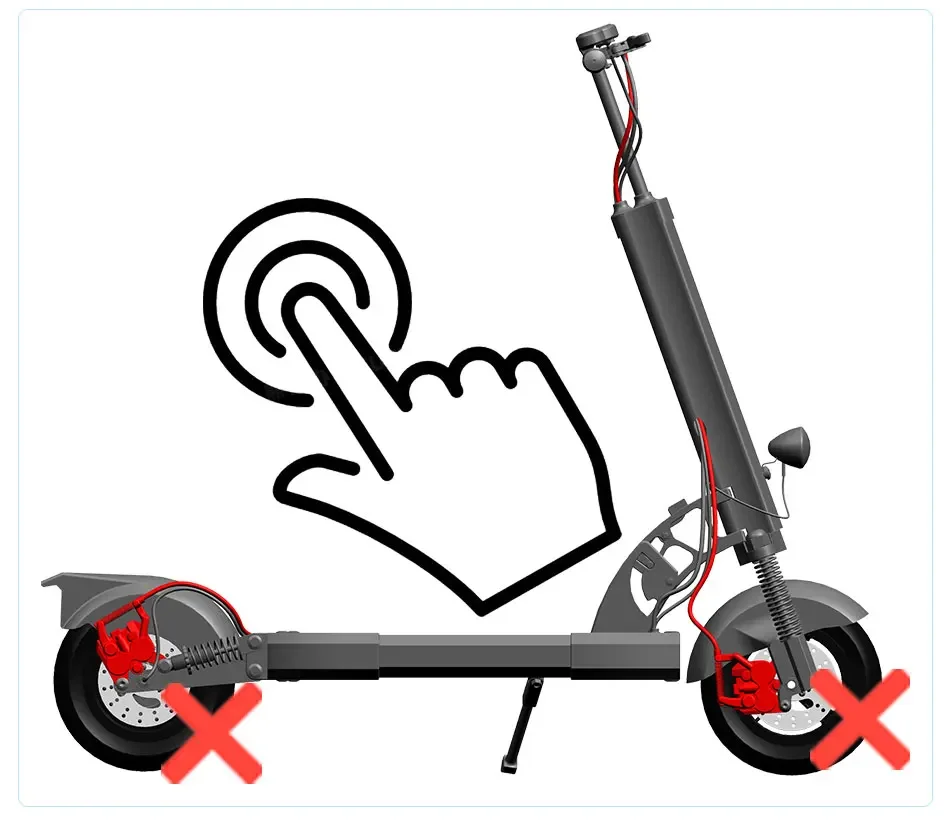

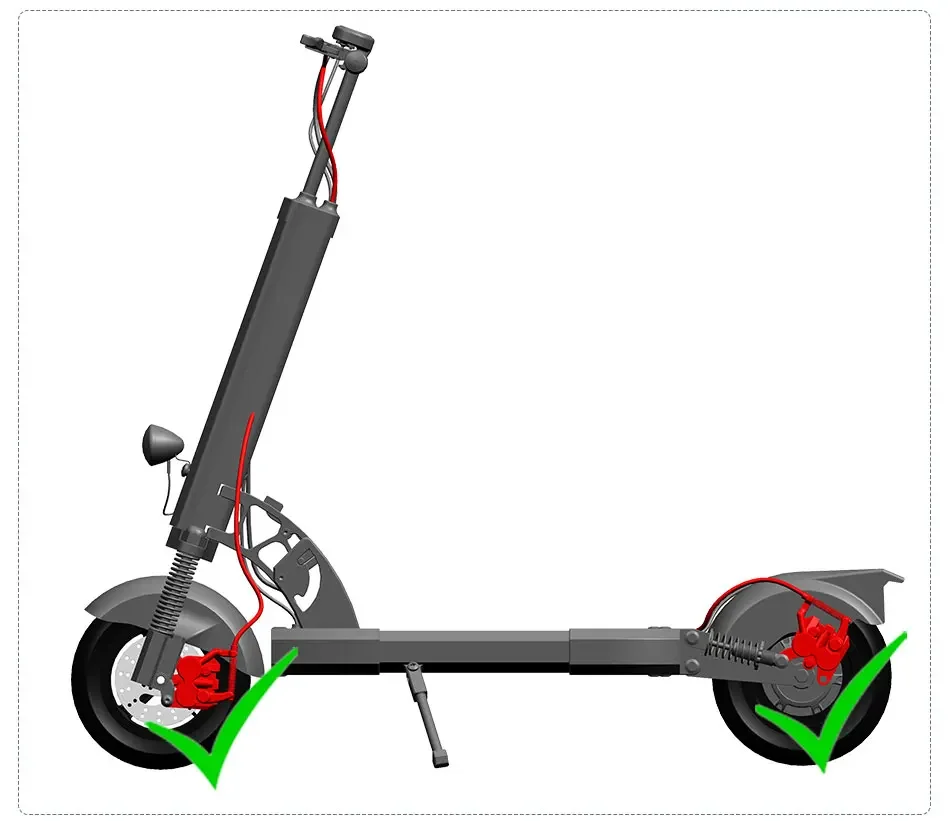

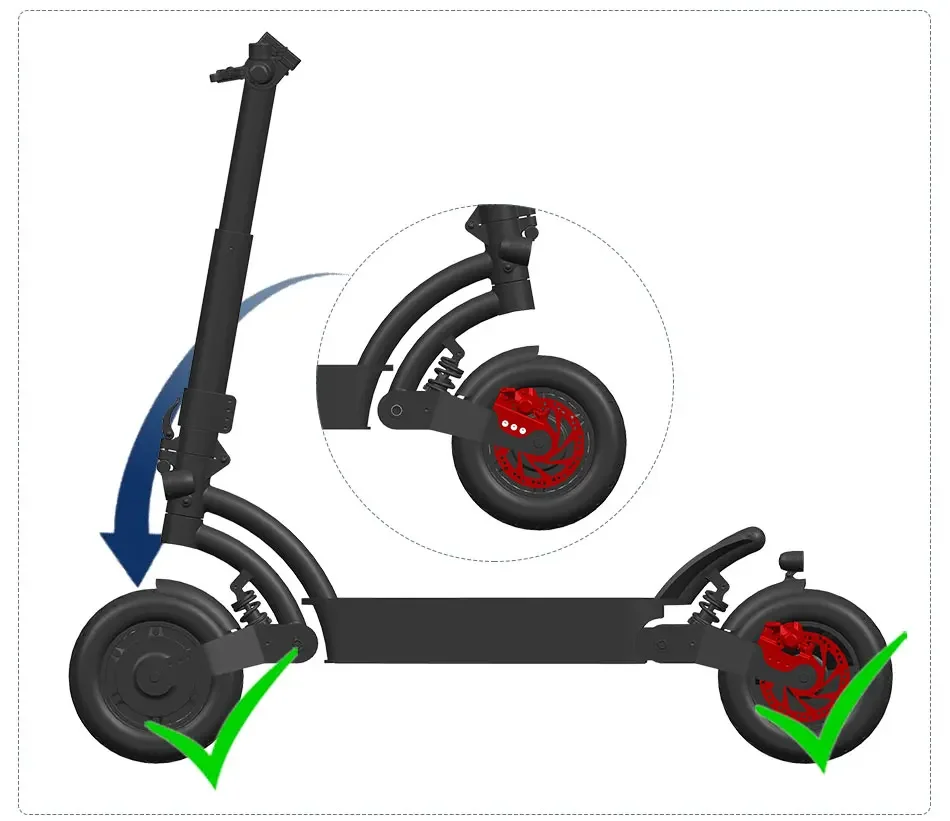

The electric scooter with the above structure can be adapted
The electric scooter with the above structure can be adapted
https://halahei.aliexpress.com/store/1101805911/search?SearchText=right+disc
If the clamp cannot fit in the position shown above, you can click on the image or link above to purchase it!
https://halahei.aliexpress.com/store/1101805911/search?SearchText=ab
If the clamp cannot fit in the position shown above, you can click on the image or link above to purchase it!
Product Introduction

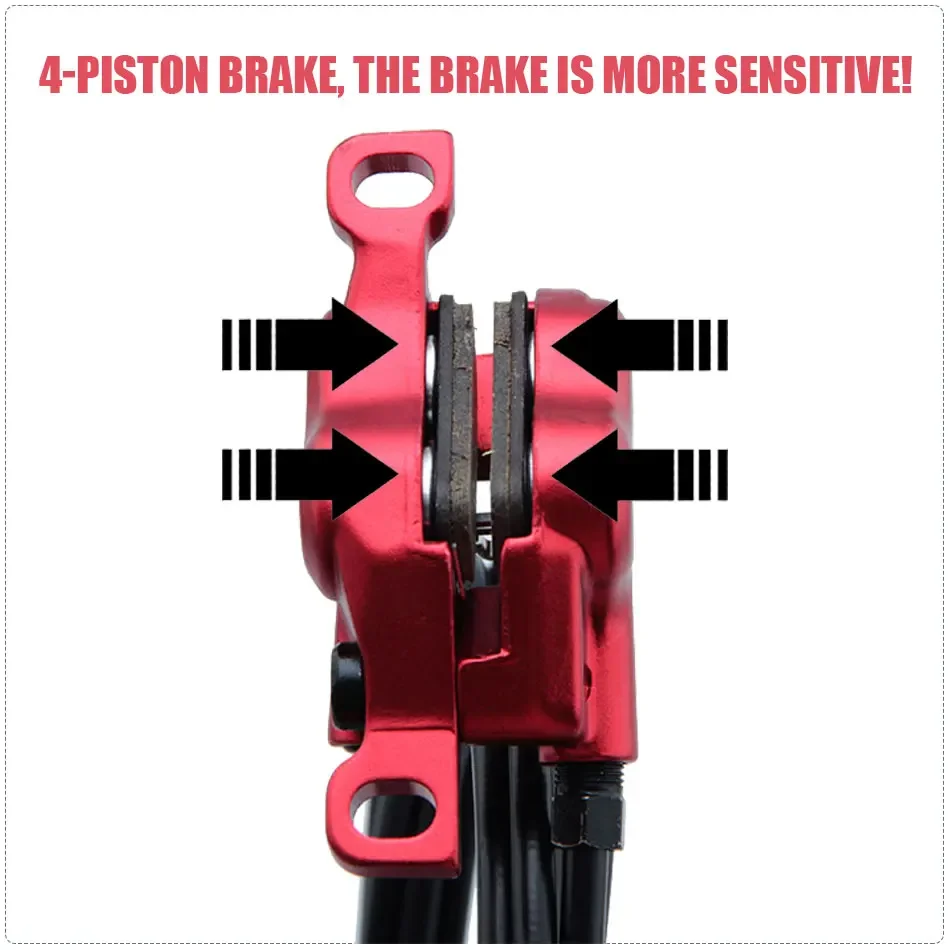

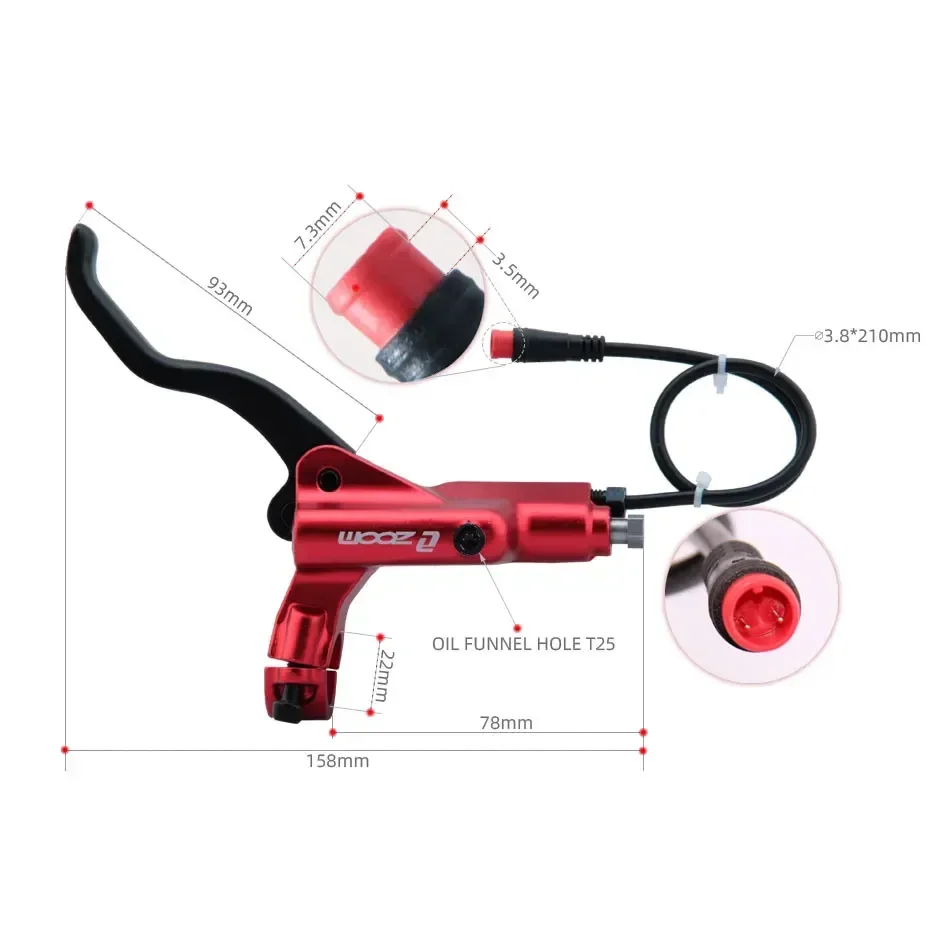

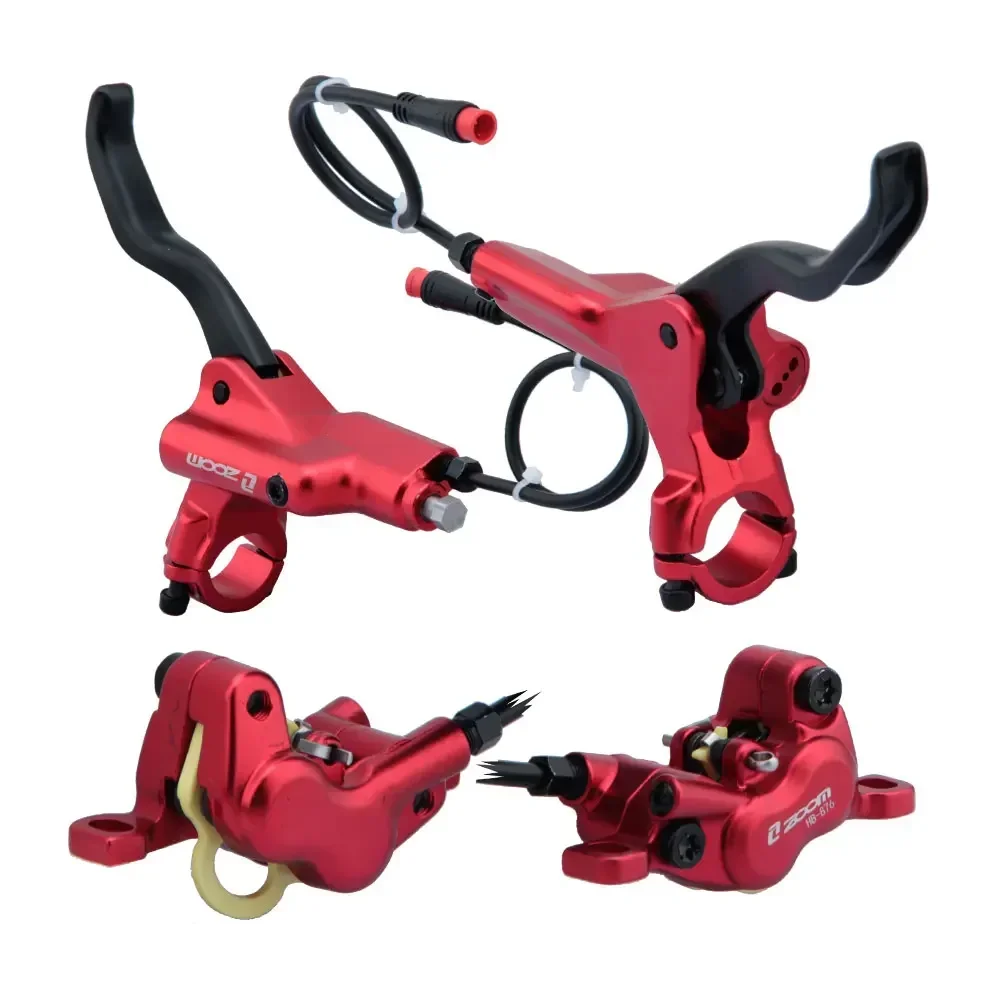

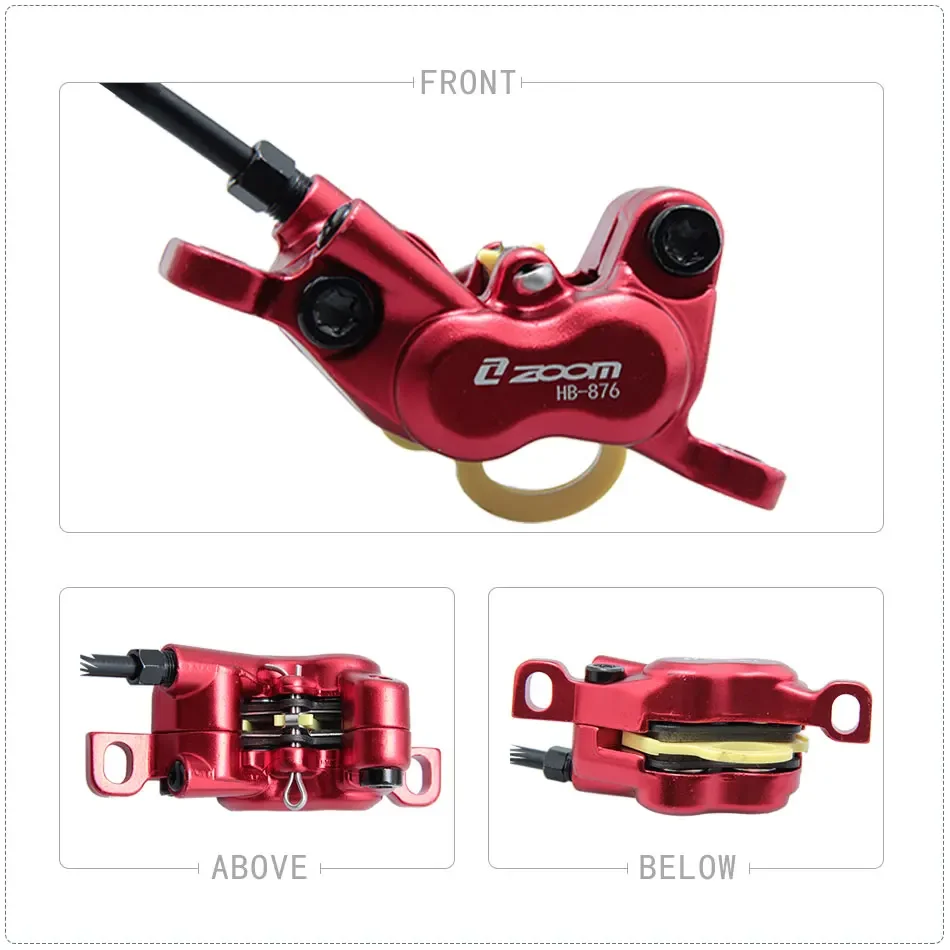

Product Name: Mountain Bike 4 Piston Hydraulic Brake
Brand: zoom
Model: HB-876E
Color: black and red optional
Power-off principle: Magnetic induction 2-pin power-off wire

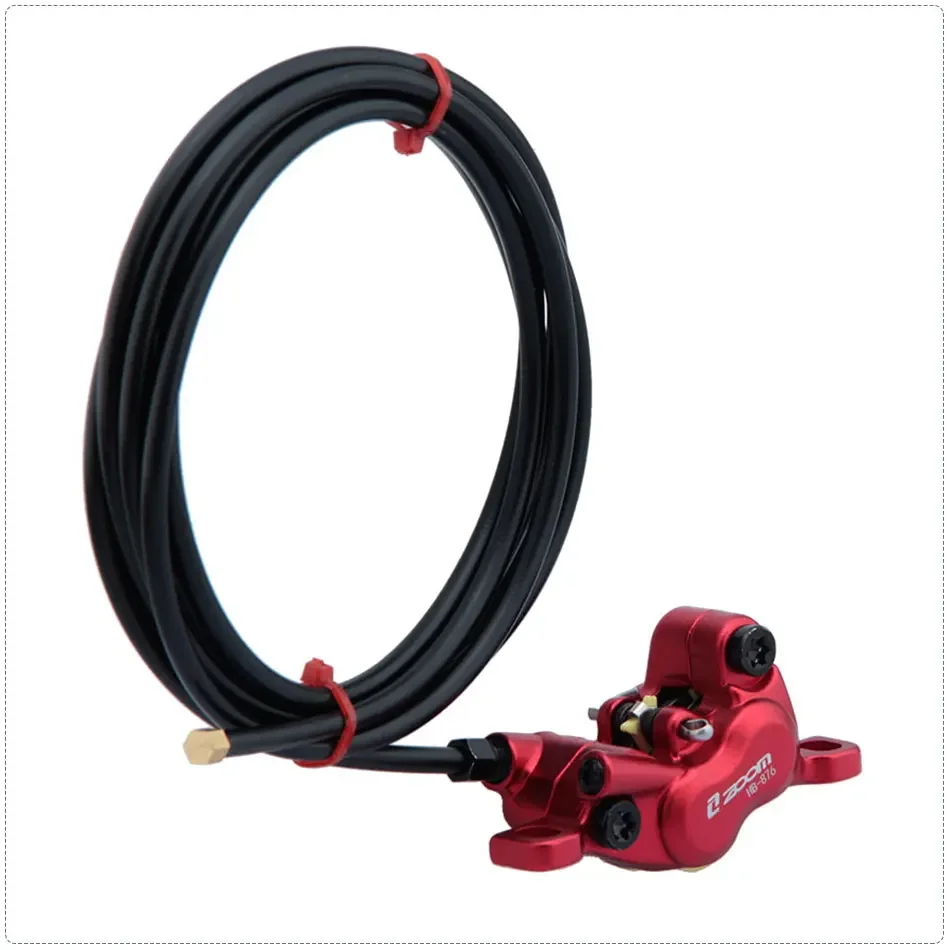

Tubing length: front 2300mm and rear 2300mm
Material: aluminum alloy
Weight: 800g
Brake disc size: 160
Fits handlebar diameter: 22mm

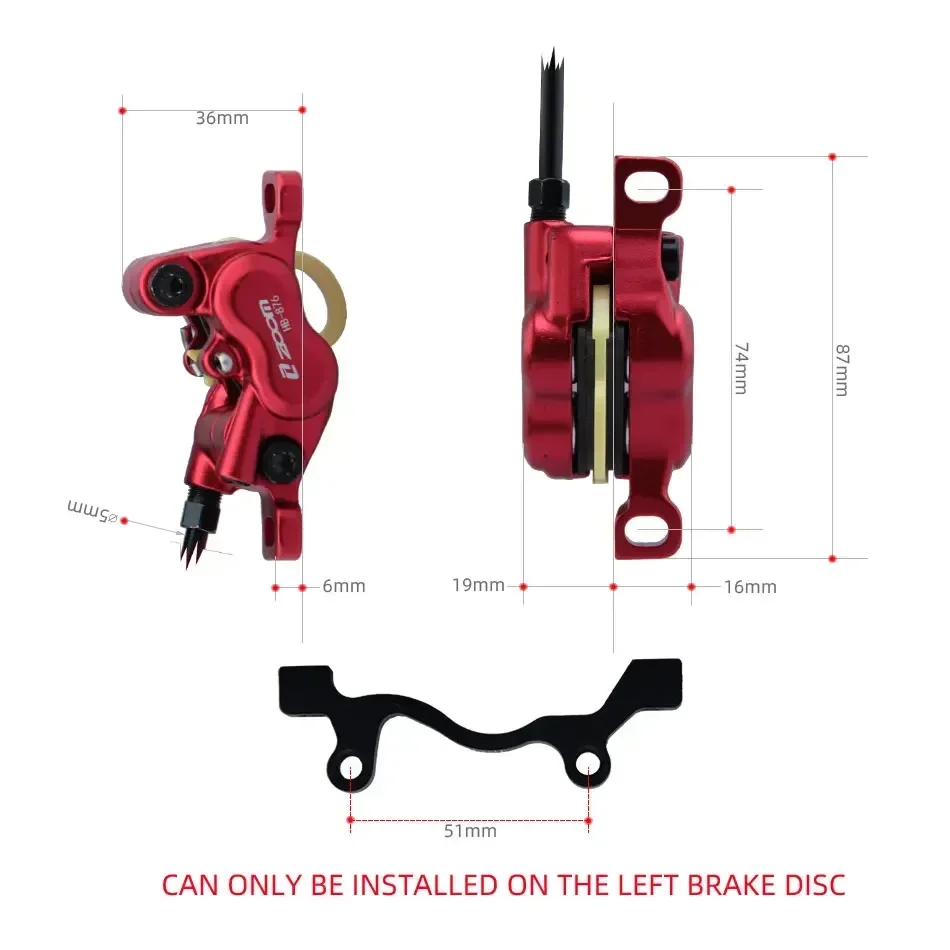

Brake seat installation size: 51mm/74m

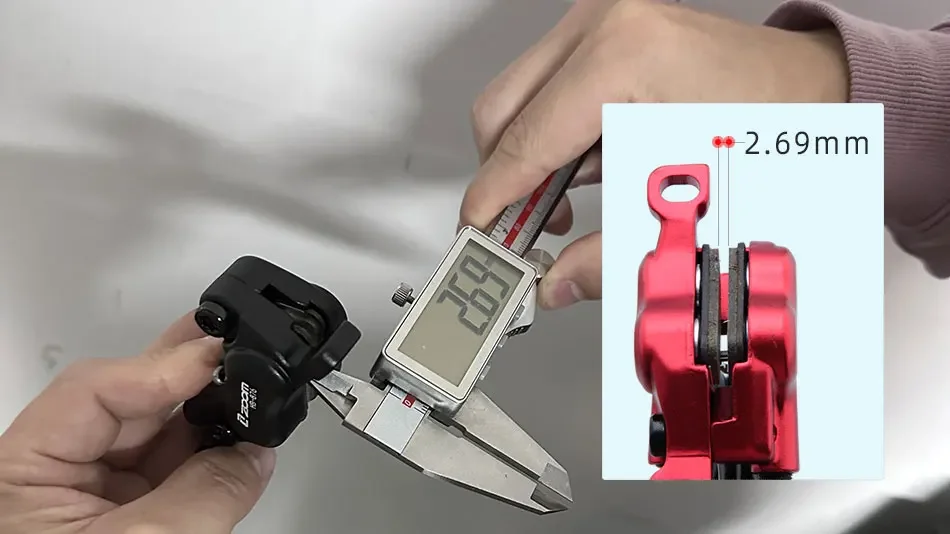

The gap between the pads is about 2.7mm

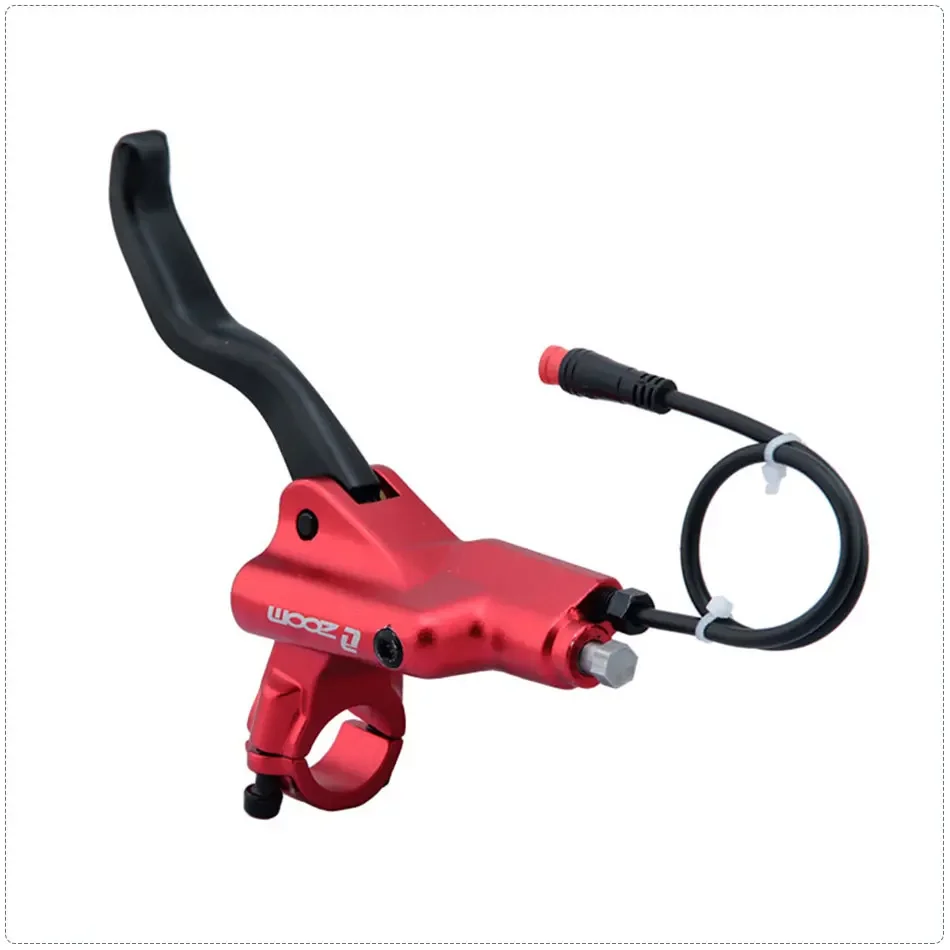

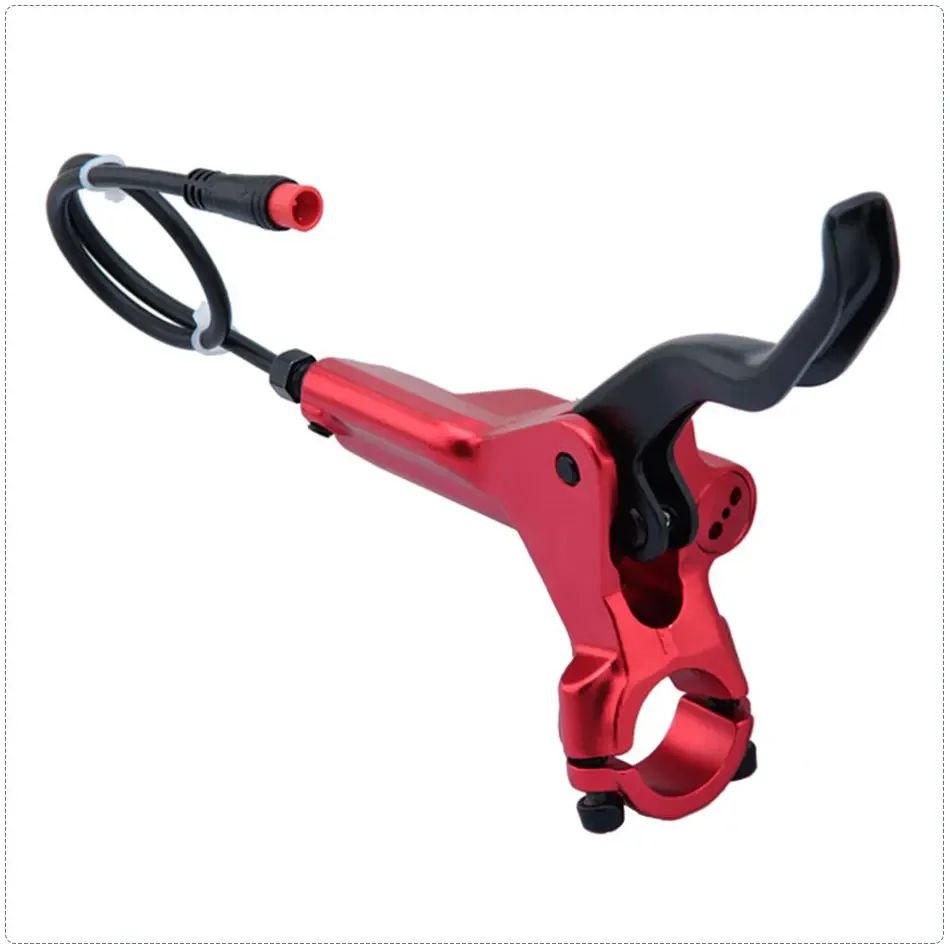

The hydraulic brake lever is an integrated oil cylinder structure, which is durable and does not leak oil!
and make the braking more efficient.

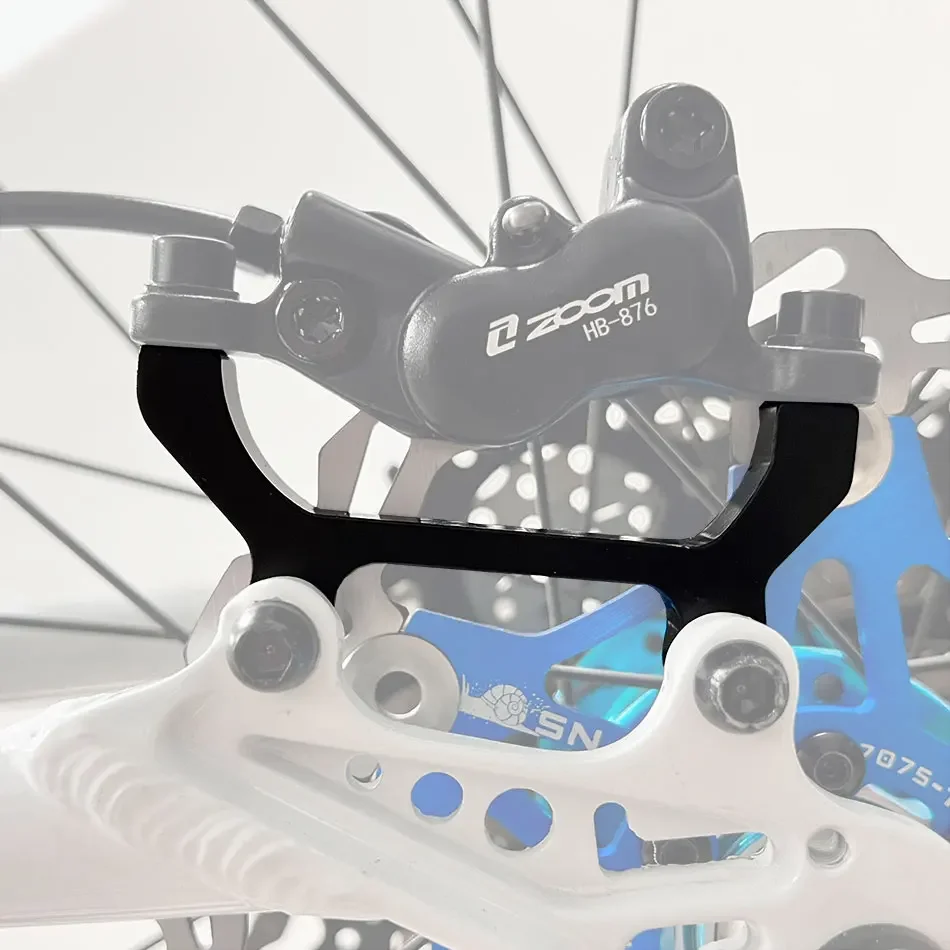

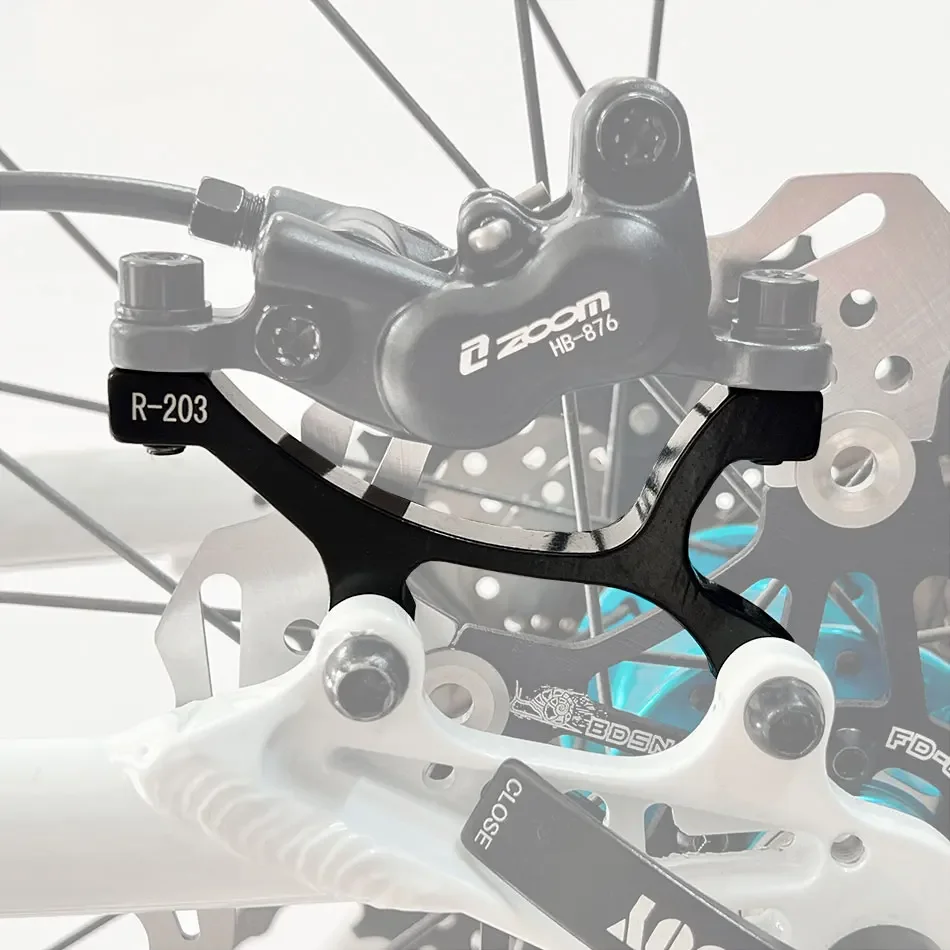

After 203 installation live shot

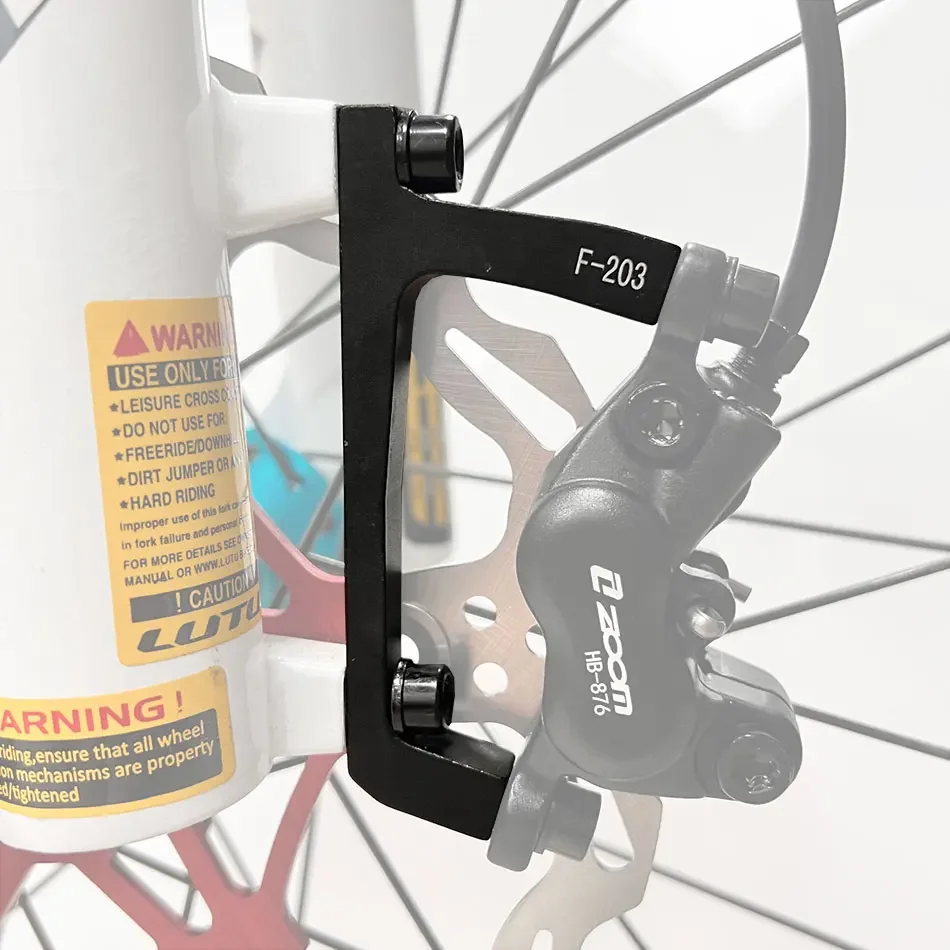

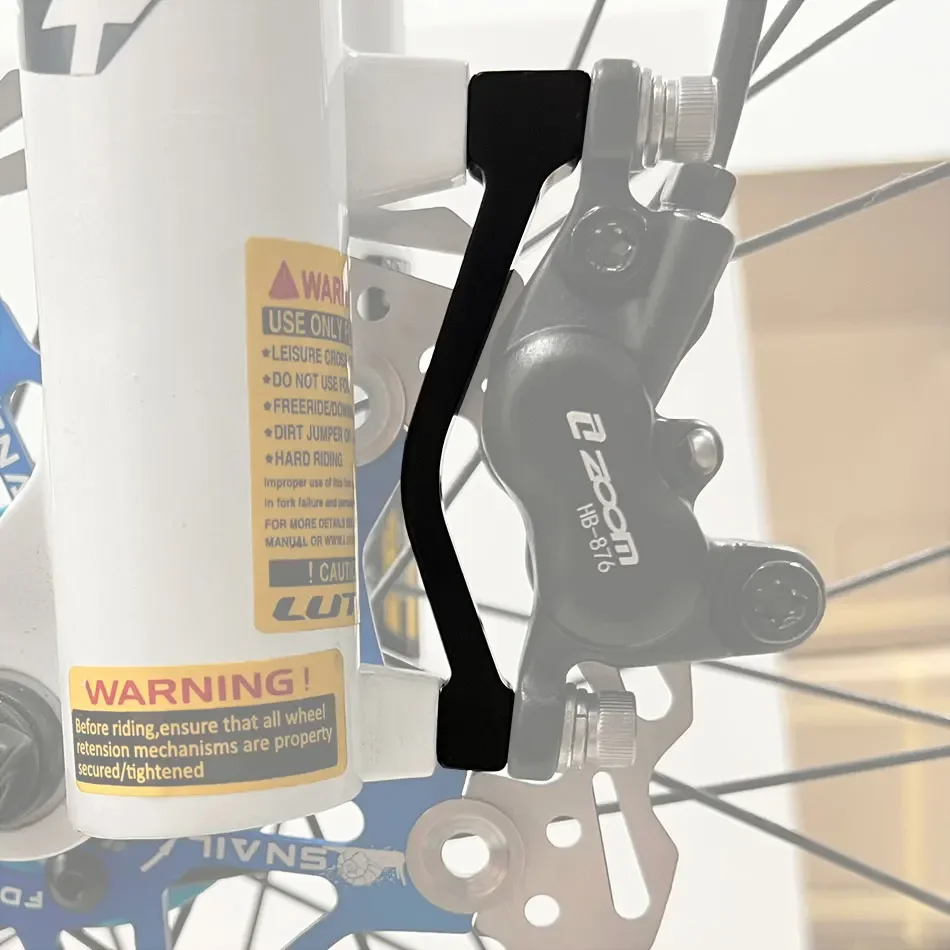

front 203 installation live shot
After 180 installation live shot

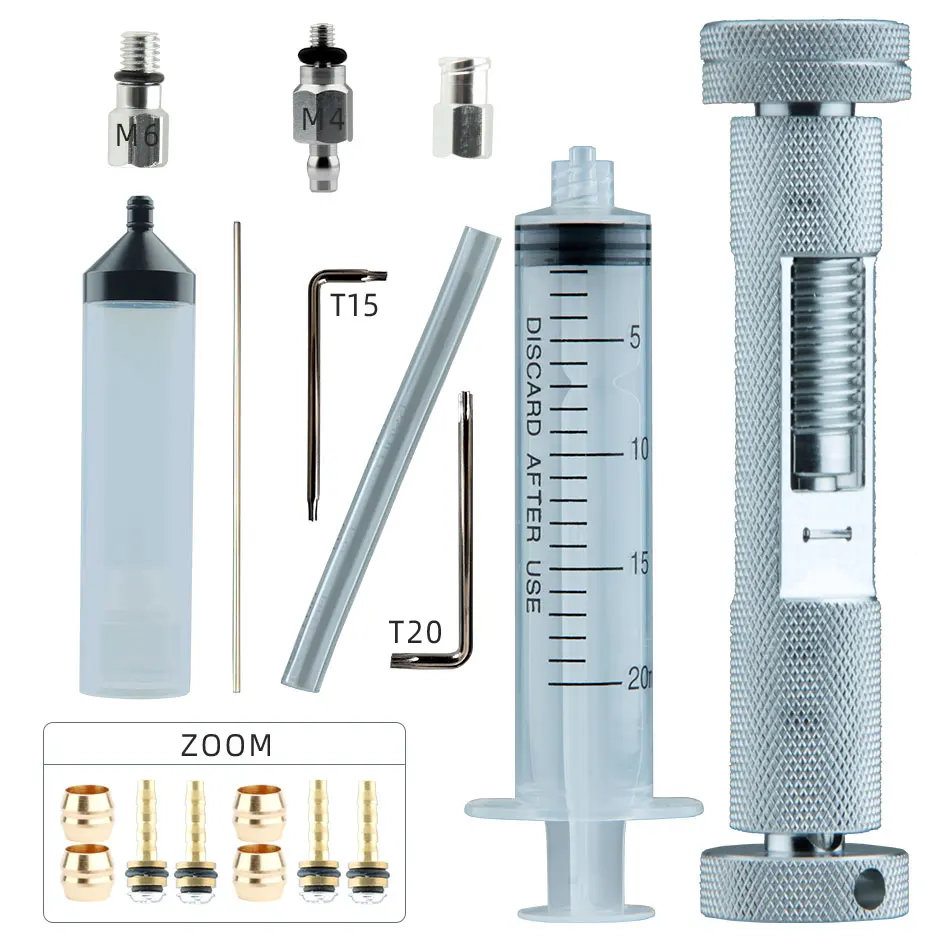

Tool configuration diagram
The real object of the tool shooting
Click on the image above or this link to purchase!
https://www.aliexpress.us/item/2255800387576716.html

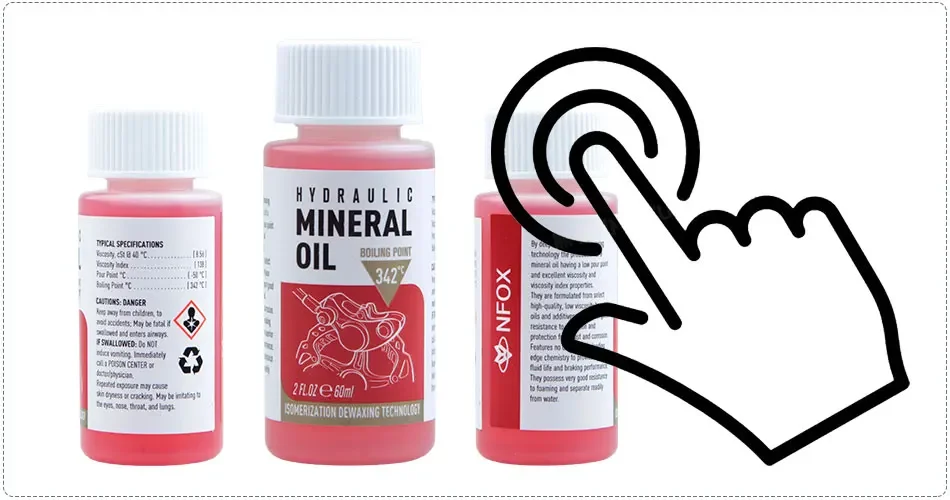

Attention: Mineral oil belongs to liquid (special cargo) and needs to be shipped separately. It cannot be sent in the same package as the brake!

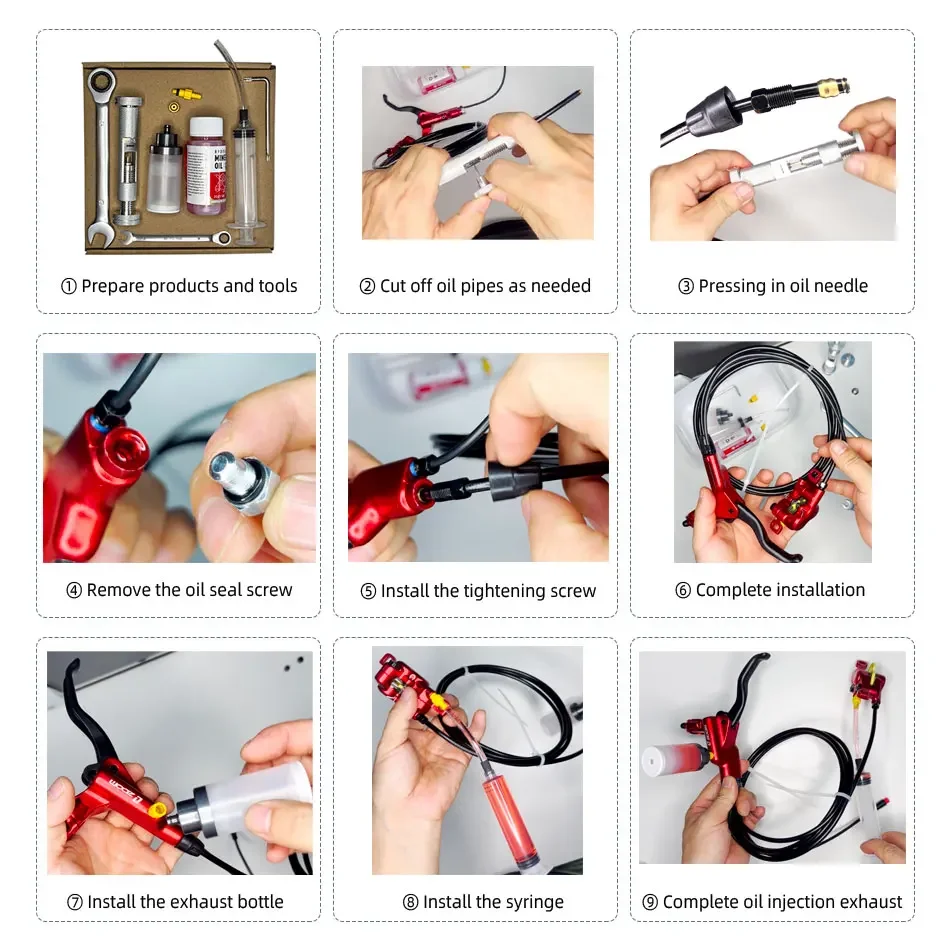

Installation instructions
① Prepare products and tools>>>②Cut off oil pipes as needed>>>③ Pressing in oil needle
④ Remove the oil seal screw>>>⑤ Install the tightening screw>>>⑥ Complete installation
⑦ Install the exhaust bottle>>>⑧ Install the syringe>>>⑨ Complete oil injection exhaust
